EK-Quantum Torque Rotary 90° - Black

EK-TORQURE-90-BK

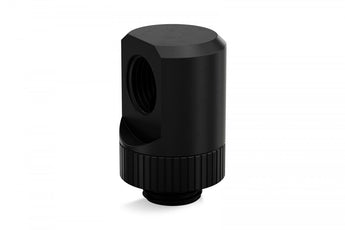

EK-Quantum Torque (Adapter Fitting) - Black is a revolvable angled (90°) adapter fitting with G1/4" threads. In the form of a cylinder, it is very sturdy and there are zero movements in the revolvable joint. This Quantum Line adapter is made out of CNC machined brass with high-quality Satin Black finish while the seal is made by quality rubber O-rings. Black EK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.  It is an extremely secure and sturdy piece that will last for many future builds.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
20 in stock, ready to ship
$11.49 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

EK-Quantum Torque (Adapter Fitting) - Black is a revolvable angled (90°) adapter fitting with G1/4" threads. In the form of a cylinder, it is very sturdy and there are zero movements in the revolvable joint. This Quantum Line adapter is made out of CNC machined brass with high-quality Satin Black finish while the seal is made by quality rubber O-rings. Black EK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.  It is an extremely secure and sturdy piece that will last for many future builds.

The adapter allows for connection of fitting with G1/4" threads to extend tubing possibilities in your water cooled system allowing for easier bends and better accessibility.

Features


EK-Quantum Torque series products received the prestigious iF Design Award. A robust and industrial aesthetic sets the Torque family apart by highlighting the precise manufacturing processes used to create them. In addition, enthusiasts can add a unique color ring to give a personal accent to the fitting line. The Torque family of fittings offers a secure and modular system of connections between liquid cooling components and tubing within a PC. Quantum Torque series products cover angled adapters, rotary and static extenders, splitters, G1/4" plugs, drain valves, fittings, and much more.

Specifications






Technical specifications:

- Material: Brass

- Threads:

* G1/4" BSP; 4,5mm male thread length

* G1/4" BSP, 6mm female thread length

- The outer diameter: 23mm

- Installed height: 31,5mm

- Sealed with high-quality NBR o-ring.








Additional Info
















Material / Design / Color option

Black

Threads

G1/4
