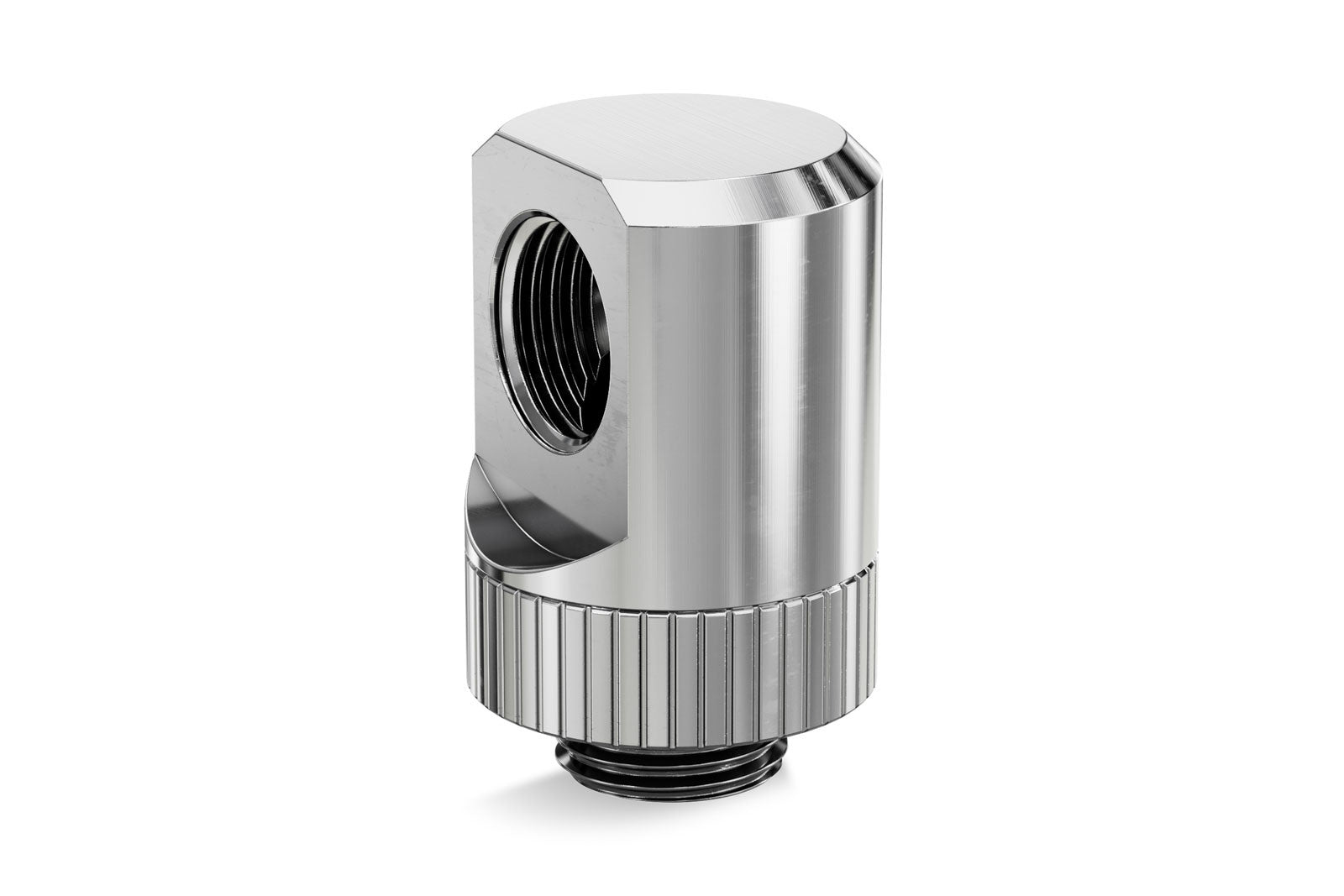

EK-Quantum Torque Rotary 90° - Nickel

EK-TORQUE-90-NK


EK-Quantum Torque (Adapter Fitting) - Nickel is a revolvable angled (90°) adapter fitting with G1/4" threads. In the form of a cylinder, it is very sturdy and there are zero movements in the revolvable joint. This Quantum Line adapter is made out of CNC machined brass with high-quality Nickel finish while the seal is made by quality rubber O-rings. It is an extremely secure and sturdy piece that will last for many future builds.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
20 in stock, ready to ship
$10.49 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

EK-Quantum Torque (Adapter Fitting) - Nickel is a revolvable angled (90°) adapter fitting with G1/4" threads. In the form of a cylinder, it is very sturdy and there are zero movements in the revolvable joint. This Quantum Line adapter is made out of CNC machined brass with high-quality Nickel finish while the seal is made by quality rubber O-rings. It is an extremely secure and sturdy piece that will last for many future builds.

The adapter allows for connection of fitting with G1/4" threads to extend tubing possibilities in your water cooled system allowing for easier bends and better accessibility.

Features


EK-Quantum Torque series products received the prestigious iF Design Award. A robust and industrial aesthetic sets the Torque family apart by highlighting the precise manufacturing processes used to create them. In addition, enthusiasts can add a unique color ring to give a personal accent to the fitting line. The Torque family of fittings offers a secure and modular system of connections between liquid cooling components and tubing within a PC. Quantum Torque series products cover angled adapters, rotary and static extenders, splitters, G1/4" plugs, drain valves, fittings, and much more.

Specifications





Technical specifications:

- Material: made of nickel plated brass

- Threads:

   * G1/4" BSP; 4,5mm male thread length

   * G1/4" BSP, 6mm female thread length

- The outer diameter: 23mm

- Installed height: 31,5mm

- Sealed with high-quality NBR o-ring.



ROHS compliant!





PLEASE NOTE:















  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated fittings! EK is offering a selection of such products in the coolants section.











Additional Info
















Material / Design / Color option

Nickel

Threads

G1/4
