EK-Quantum Velocity² DDC 4.2 PWM D-RGB - AM5 Nickel + Plexi

Details

With this water block, you will not require a dedicated reservoir either, as it incorporates a small reservoir to ease the filling process, but also to ensure the water-lubricated DDC pump always has sufficient coolant not to run dry. It has two G1/4 fill ports to account for both vertical and horizontal motherboard mounting and two sets of inlets and outlets.

DDC 4.2 PWM Pump with a Reservoir

This pump was chosen over the D5 due to its compact design. The quiet and powerful motor, in conjunction with its size, makes it ideally suited for heavy-duty cooling in environments where space is at a premium. The main difference between this DDC 4.2 PWM and a DDC 3.2 PWM is the black cabling, SATA power connector instead of MOLEX, and 32-bit communication.

Since DDC pumps benefit from additional cooling to ensure longer life and fewer issues, the nickel-plated brass top is used as a heatsink for the pump housing via thermal pads that transfer the heat away from the pump. Two fill ports are located in the brass top. Two sets of G1/4 inlets and outlets are made on the side of the block which is made of durable black acetal.

OptiFlow Cooling Engine

EK-Quantum Velocity² series CPU water blocks embed the next-generation cooling engine named OptiFlow. They use a specific combination of mounting pressure and coldplate geometry tailored for the IHS and chiplet layout of AMD AM5 socket processors. Low hydraulic flow restriction enables these products to be used in setups using weaker water pumps or lower pump speeds for added silent operation while still achieving top performance! The lathe-turned coldplate is made with precision to effectively cover the IHS and put pressure on the die area.

Water Block Material and Manufacturing

The coldplate is manufactured out of the highest-grade 99.99% pure electrolytic copper, machined with precision for the best possible contact and heat transfer which is further nickel-plated. The middle section is made of glass-like cast acrylic that is CNC-machined. On top of it stands the DDC pump with the block top that is made of CNC-machined nickel-plated brass.

EK-Quantum Velocity² Patent-pending Mounting

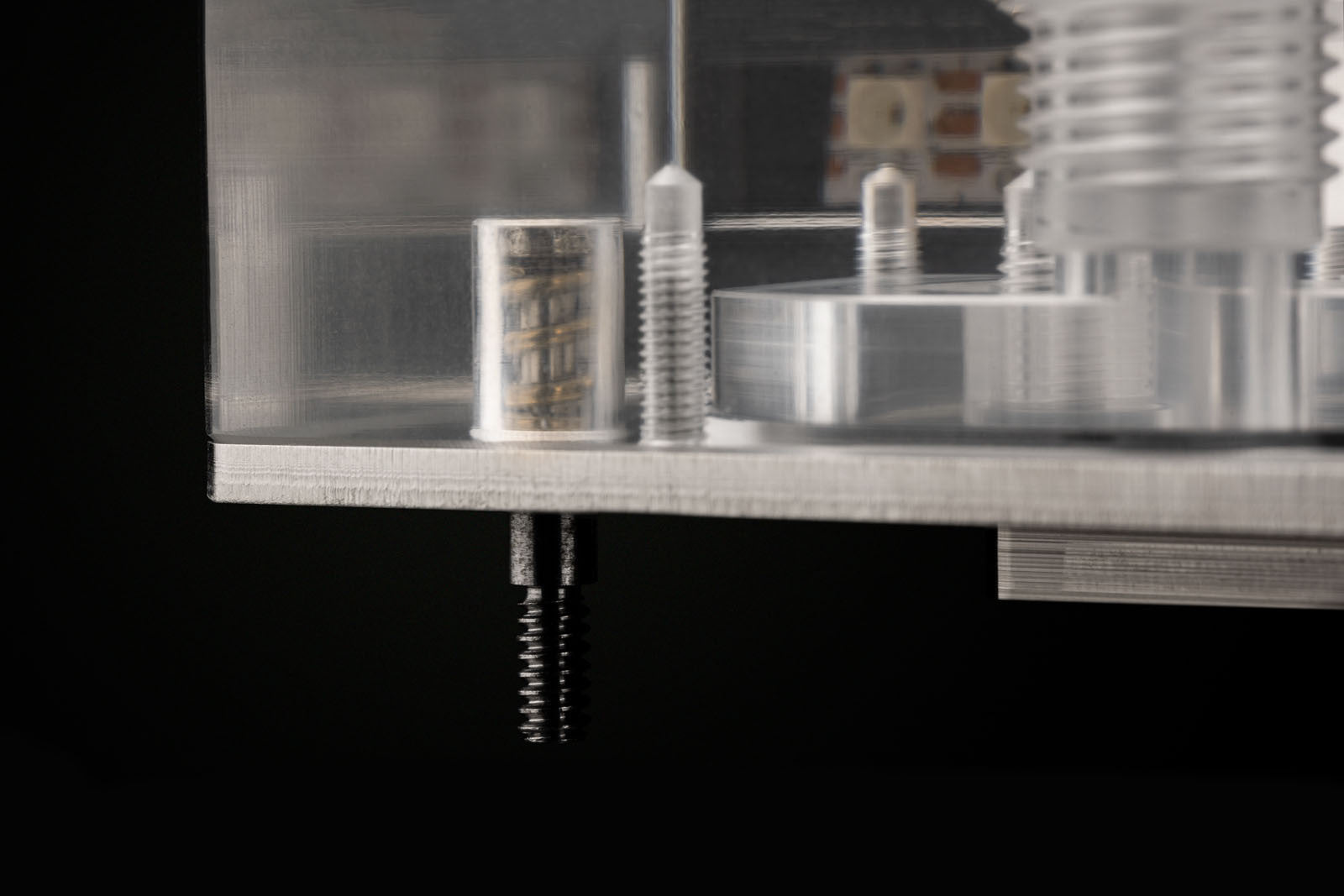

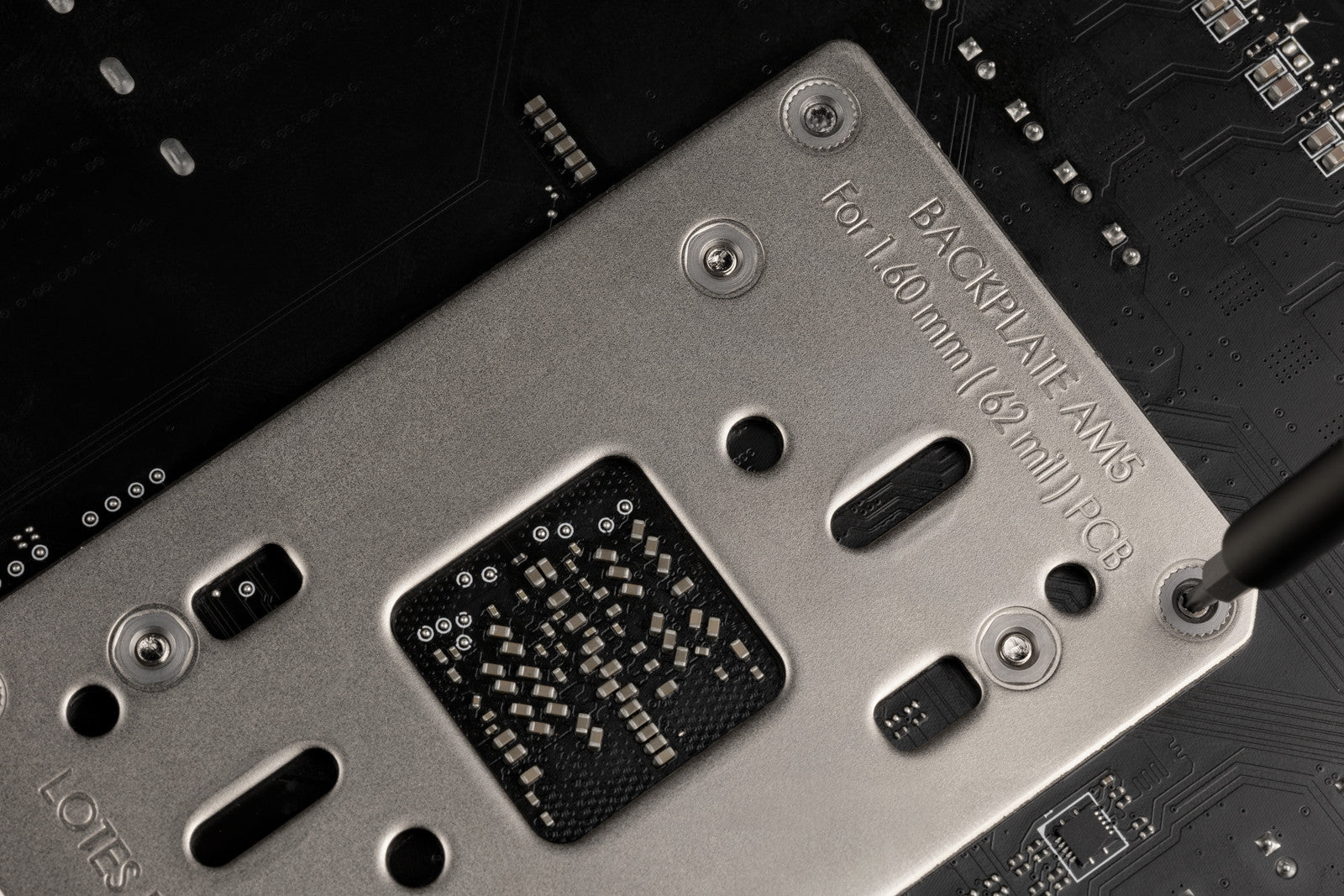

Because of the integrated, sturdy stock backplate arriving with AM5 motherboards, the patent-pending EK-ExactMount mounting system was re-engineered for an even simpler installation process. The end result is an even easier-to-use and â??invisibleâ? mounting mechanism since the entire mounting system is inside the water block, and now it is a true single-piece product. The backplate is factory-mounted on the motherboard, and the spring-loaded Torx screws are integrated into the water block and are screwed by counter-clockwise rotation into the stock backplate of the motherboard.

The integrated mounting screws are engineered with a hard-stop design, so once screws reach the end of the thread, the block is perfectly mounted and tensioned. This removes the risks of over-torquing the water block and potentially damaging your motherboard and/or CPU.

EK-Quantum Velocity² D-RGB LED Lighting

This product is compatible with all popular addressable RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB header. The middle section of the block, which is made of glass-like acrylic, is lit with 14 addressable LEDs.
