EK-QuantumX Loophole Distroplate D5 PWM - Silver
EK-QTMX-LH-DISTRO-D5-PWM-SL
Thank you for your submission!
We will get back to you soon.
Estimate shipping
6 in stock, ready to ship
Shipping calculated at checkout.
Pickup available at Performance-PCs.com
Usually ready in 1 hour
Details
Details

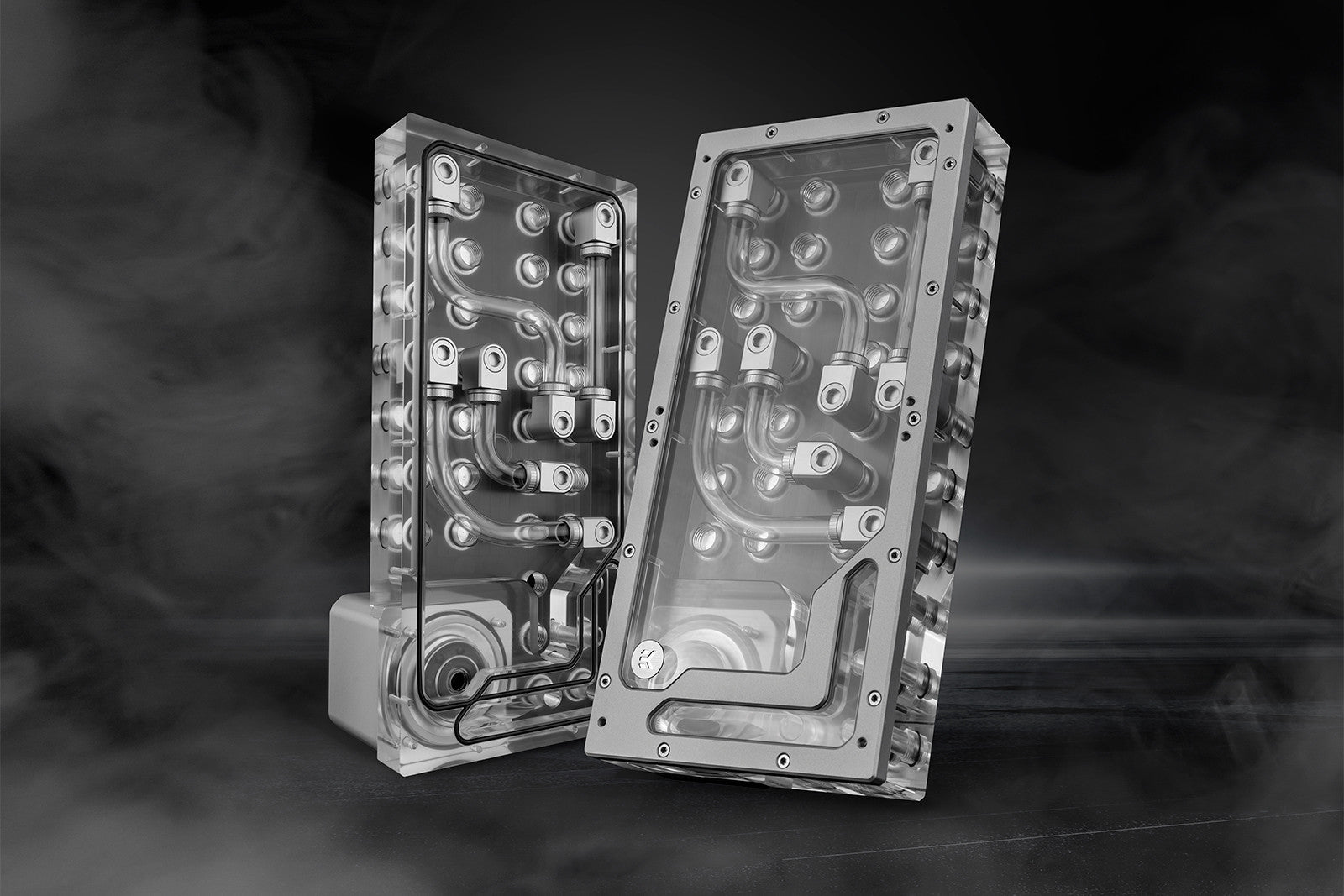

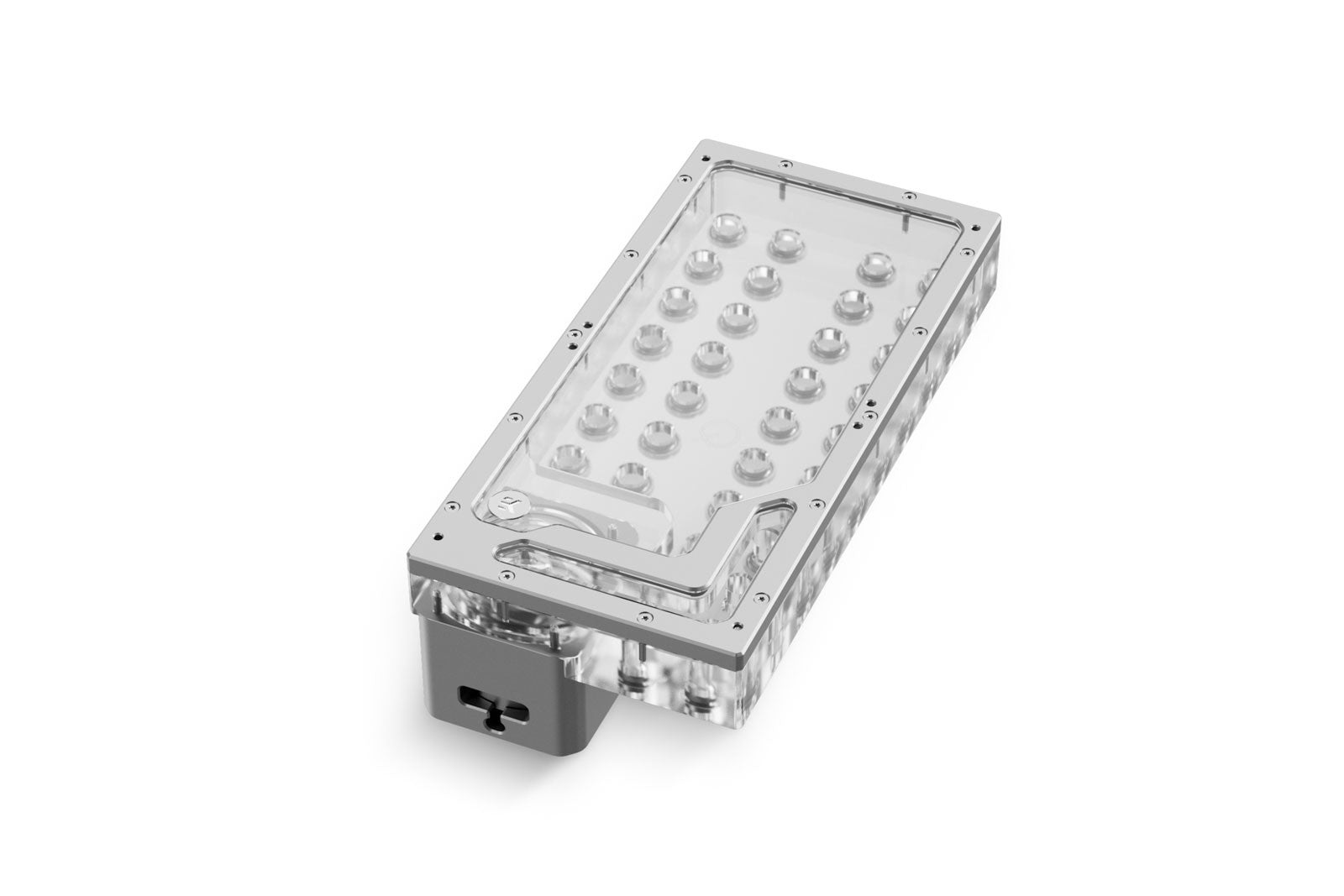

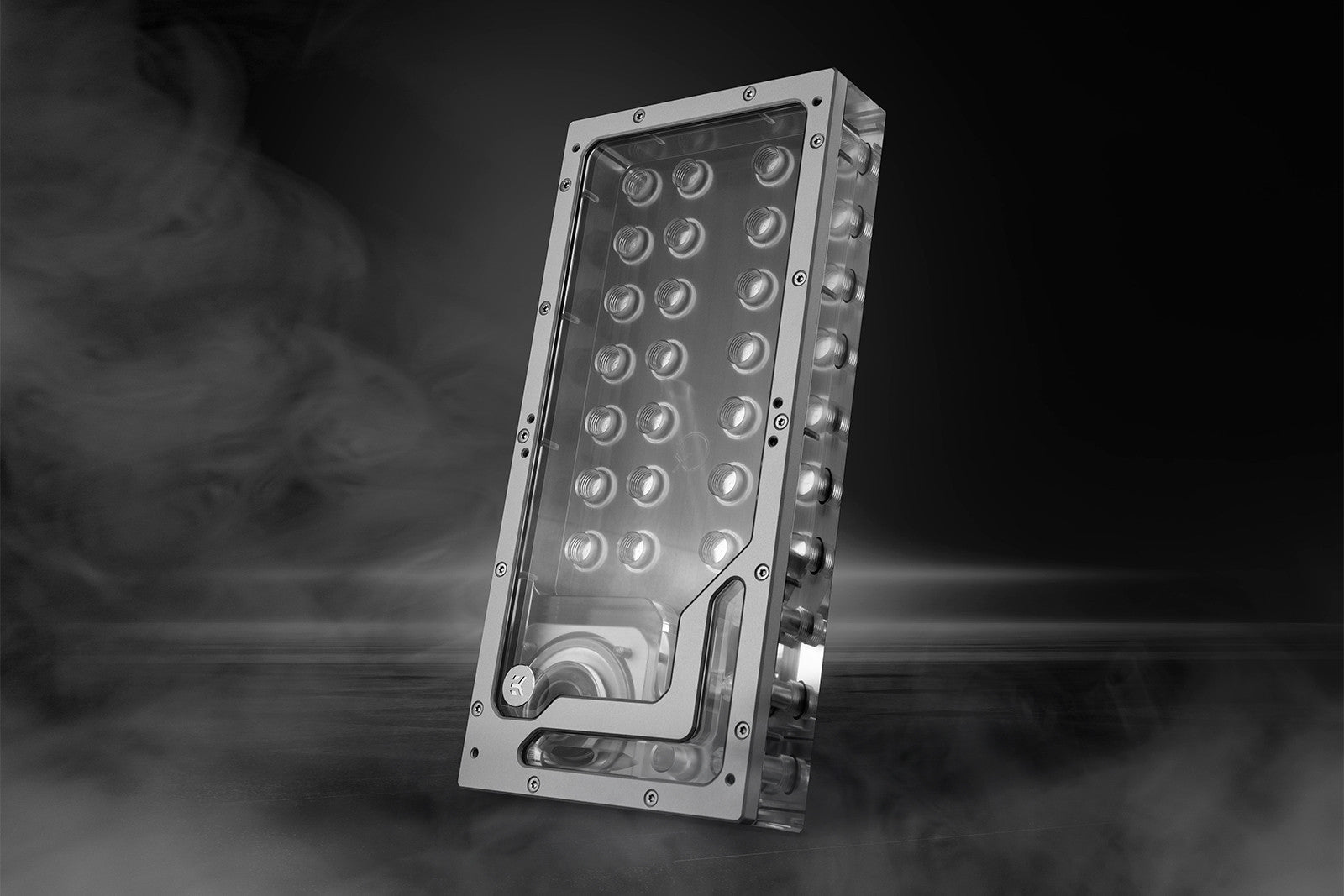

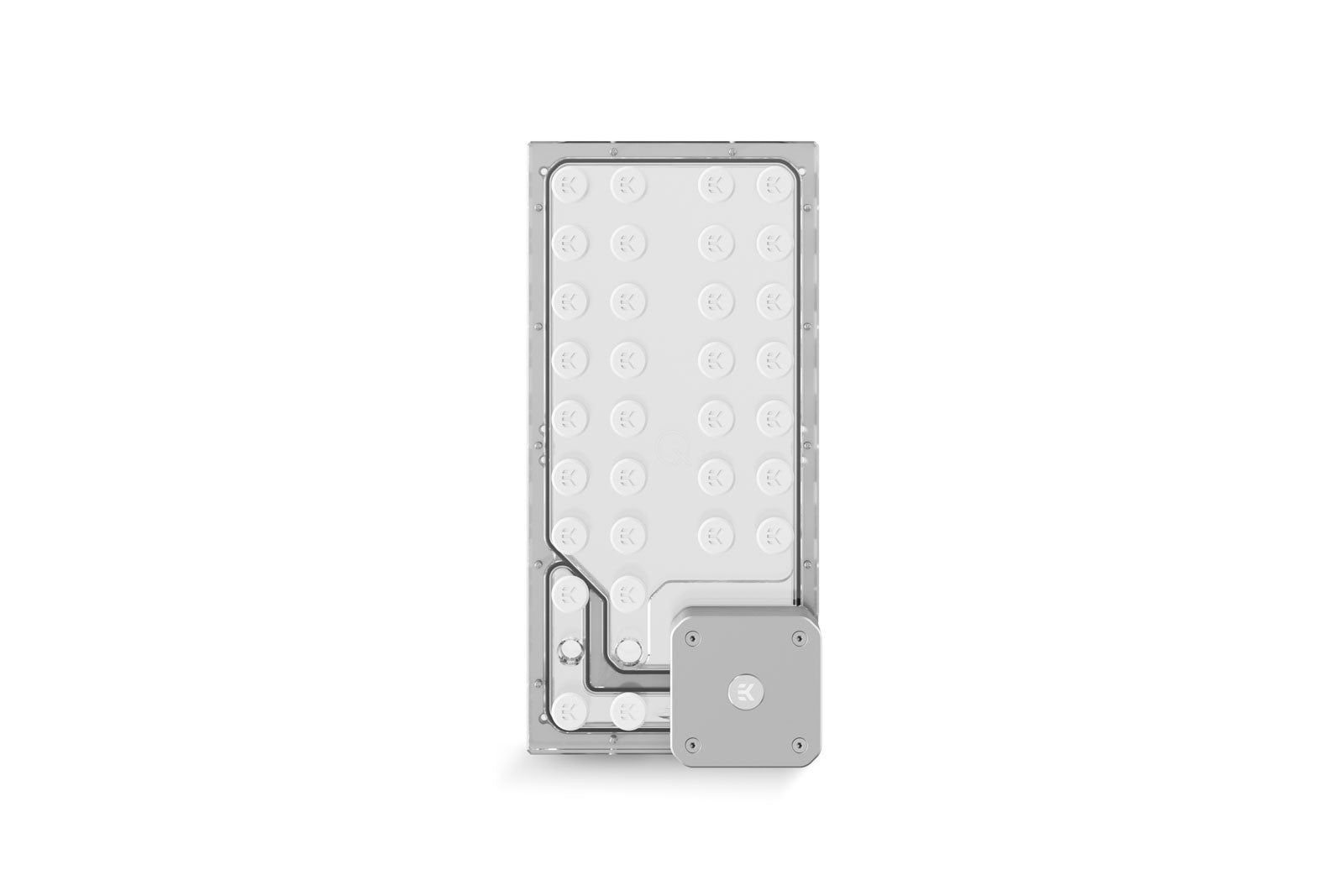

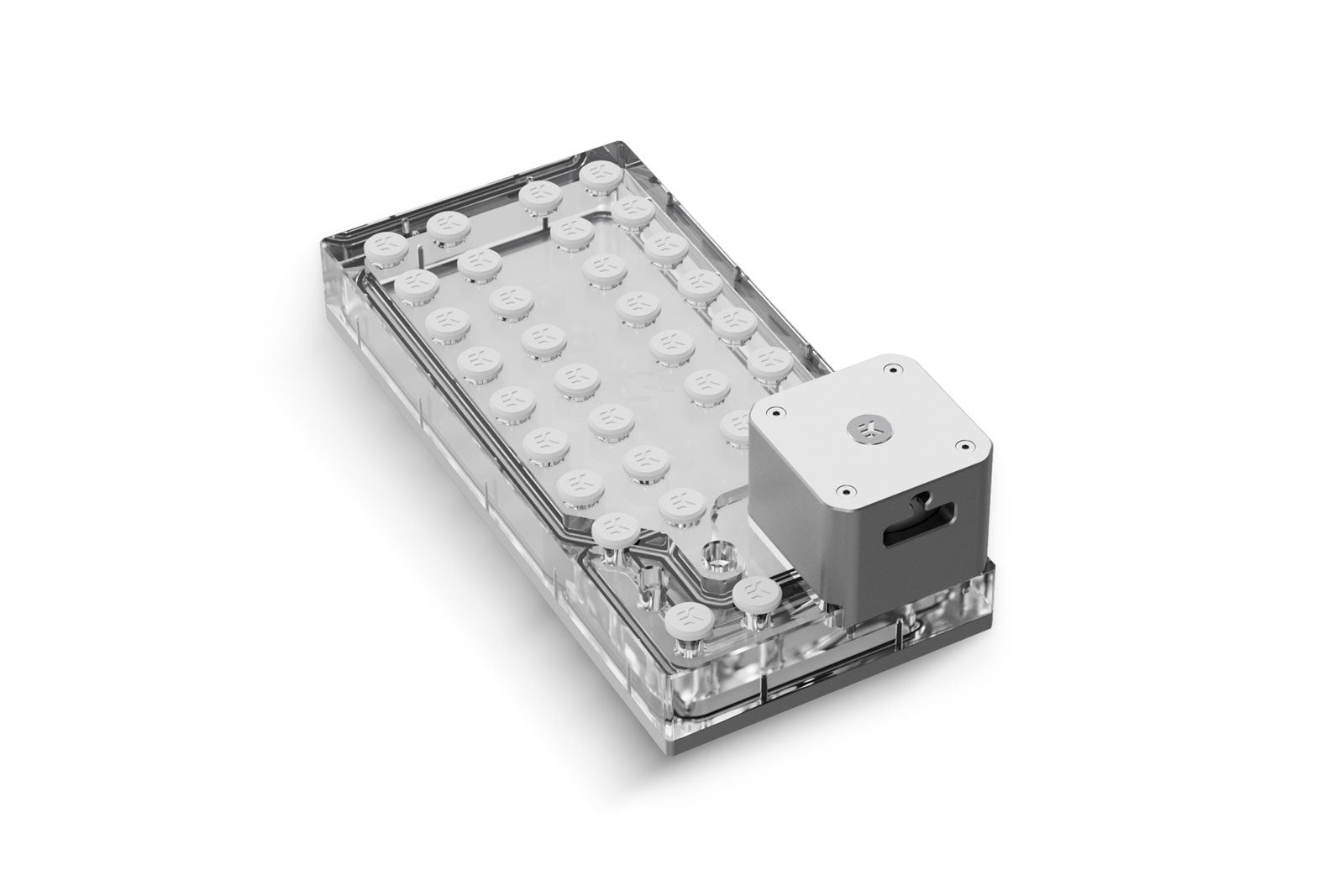

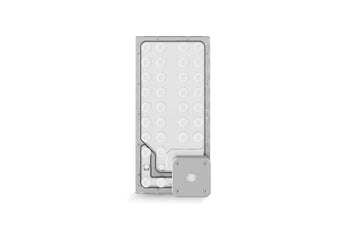

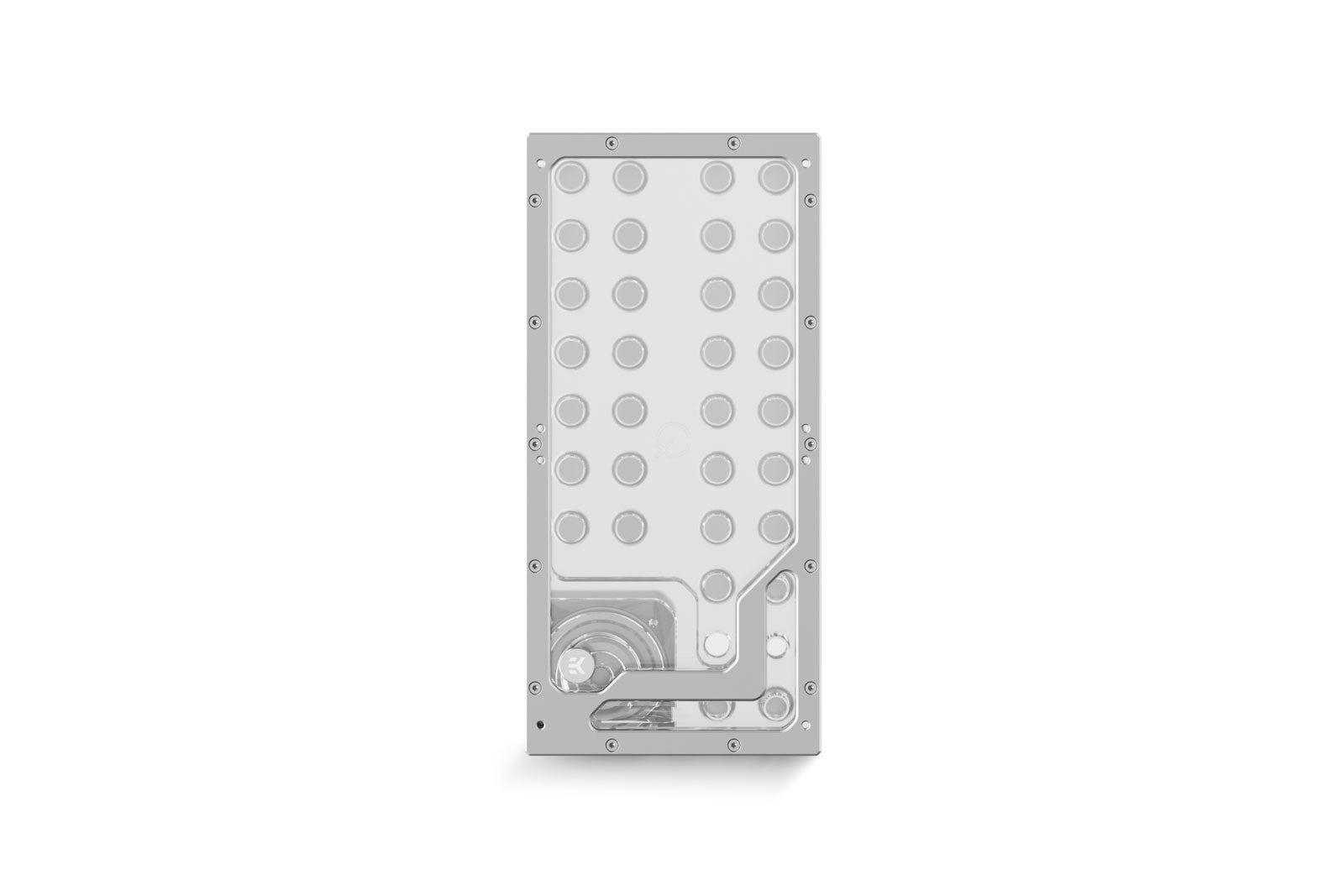

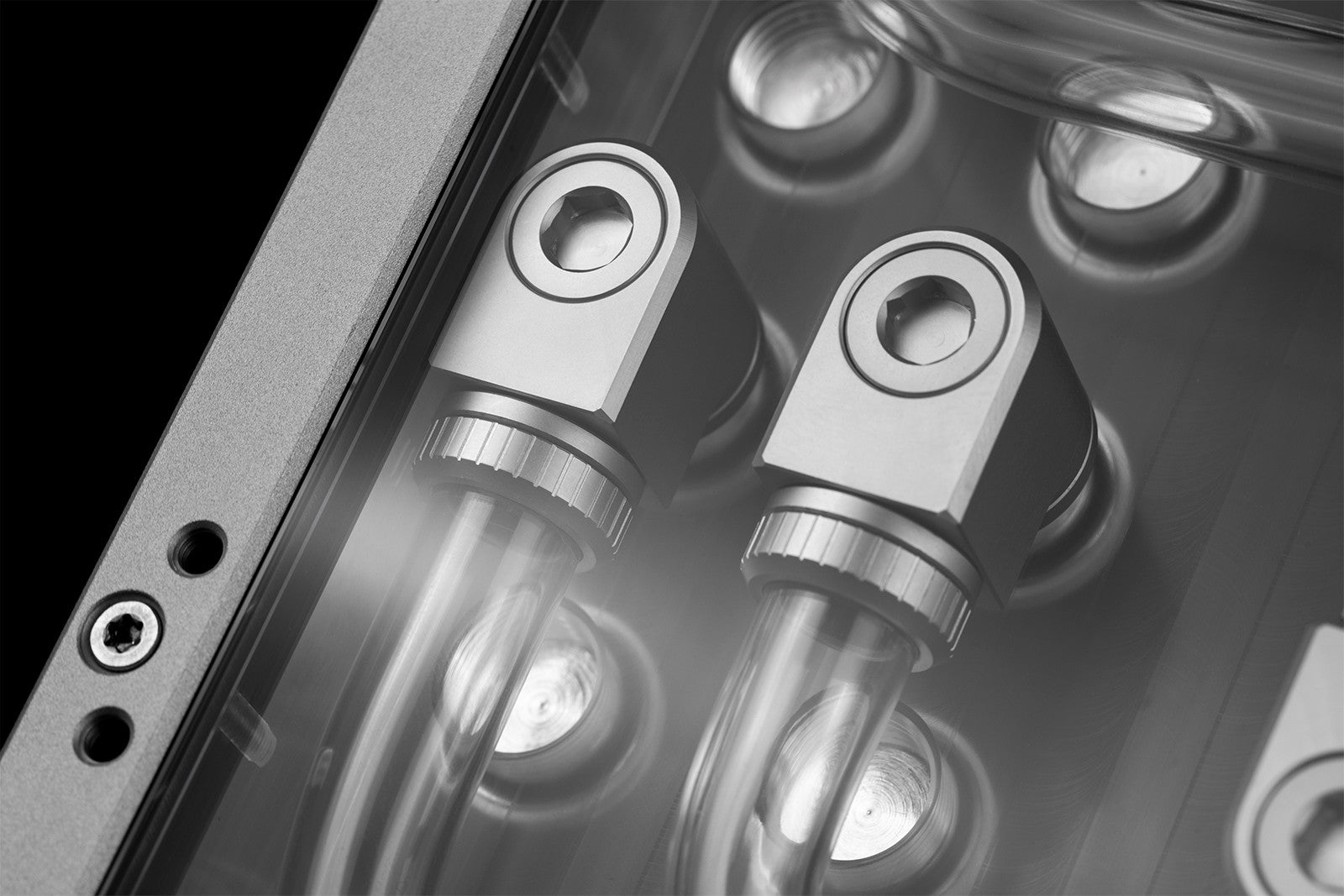

EK-QuantumX Loophole Distroplate D5 PWM - Silver is a custom water-cooling reservoir, routing, and pump solution that can be mounted on 140mm fan patterns inside the chassis (provided thereâ??s enough room for it in the case). It is unique in the sense that there are no pre-made channels for coolant routing. Instead, the channels are built by the user. As the waterway has no prebuilt inner channels but rather an â??open spaceâ? internal structure, the user can custom-route tubes from one port to another within the distro itself using micro 90-degree angled adapters and micro HDP or HDC fittings.
Features

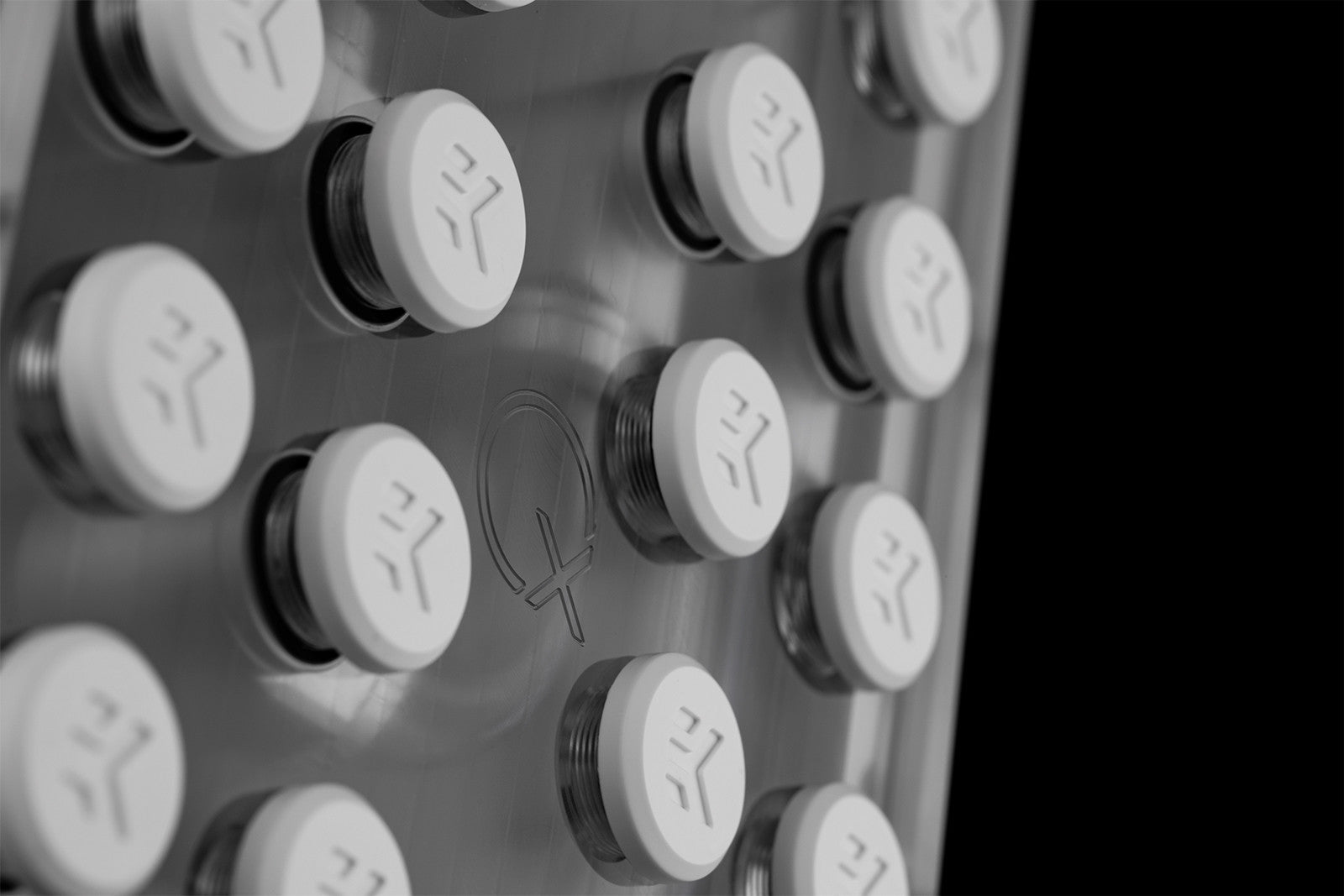

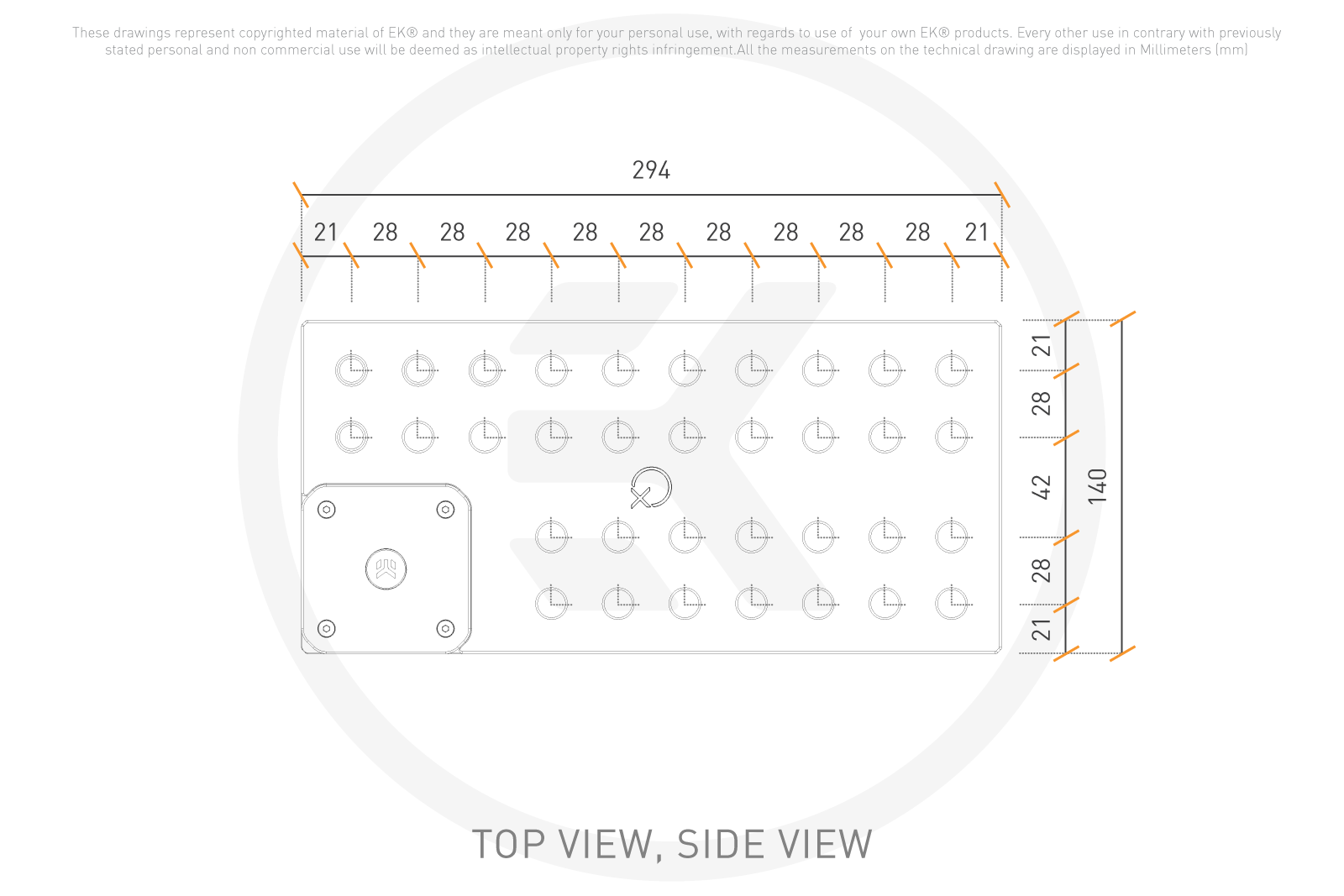

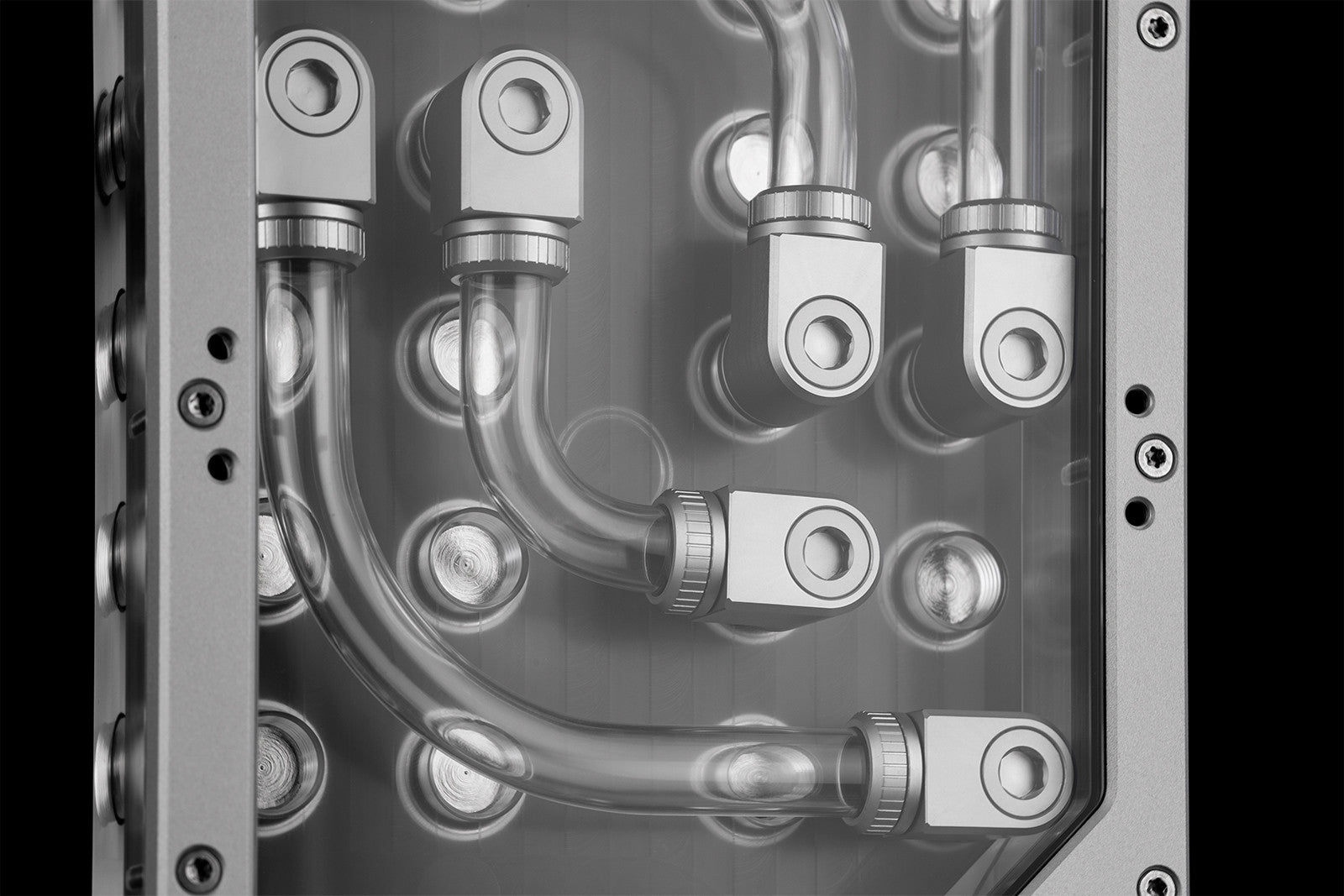

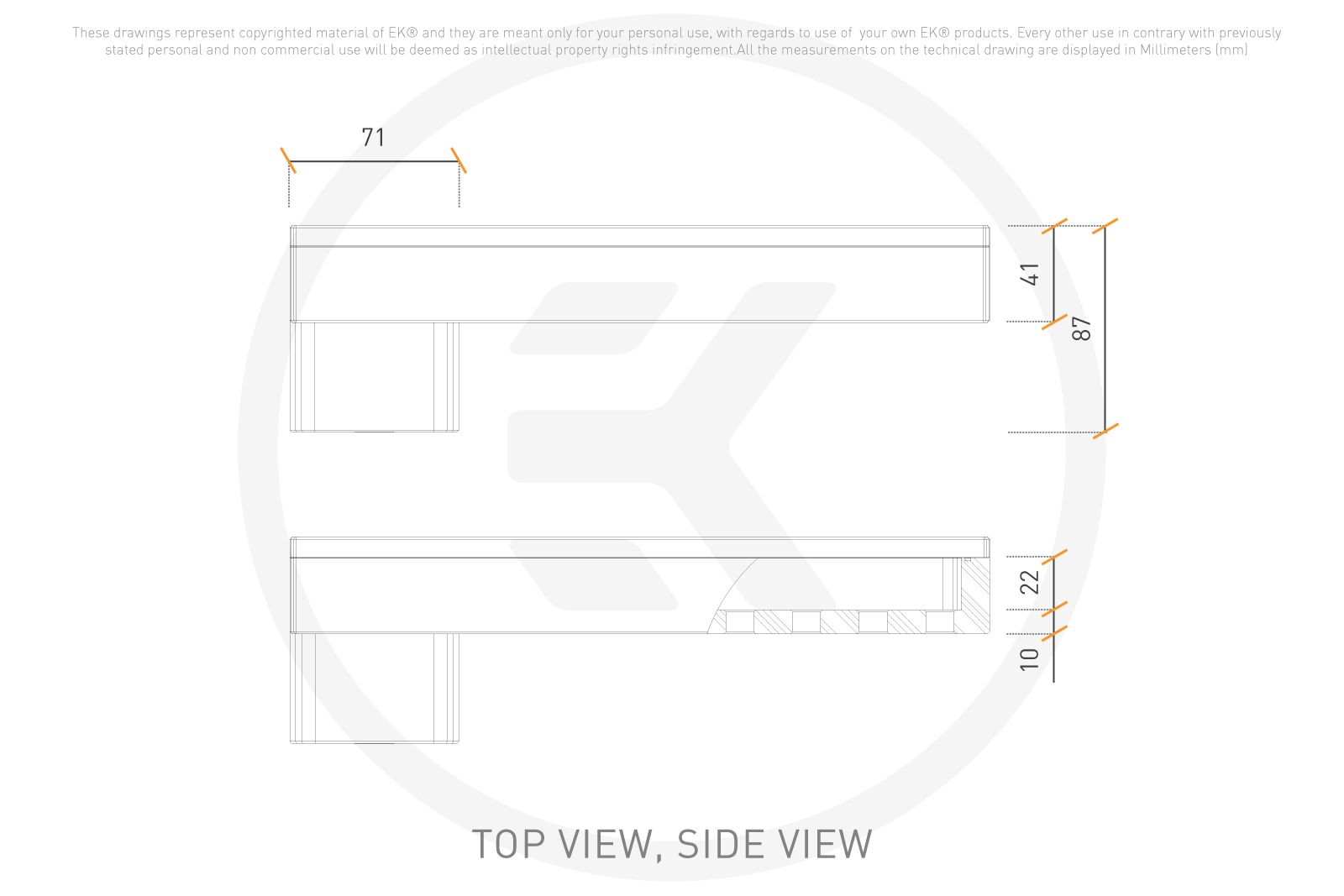

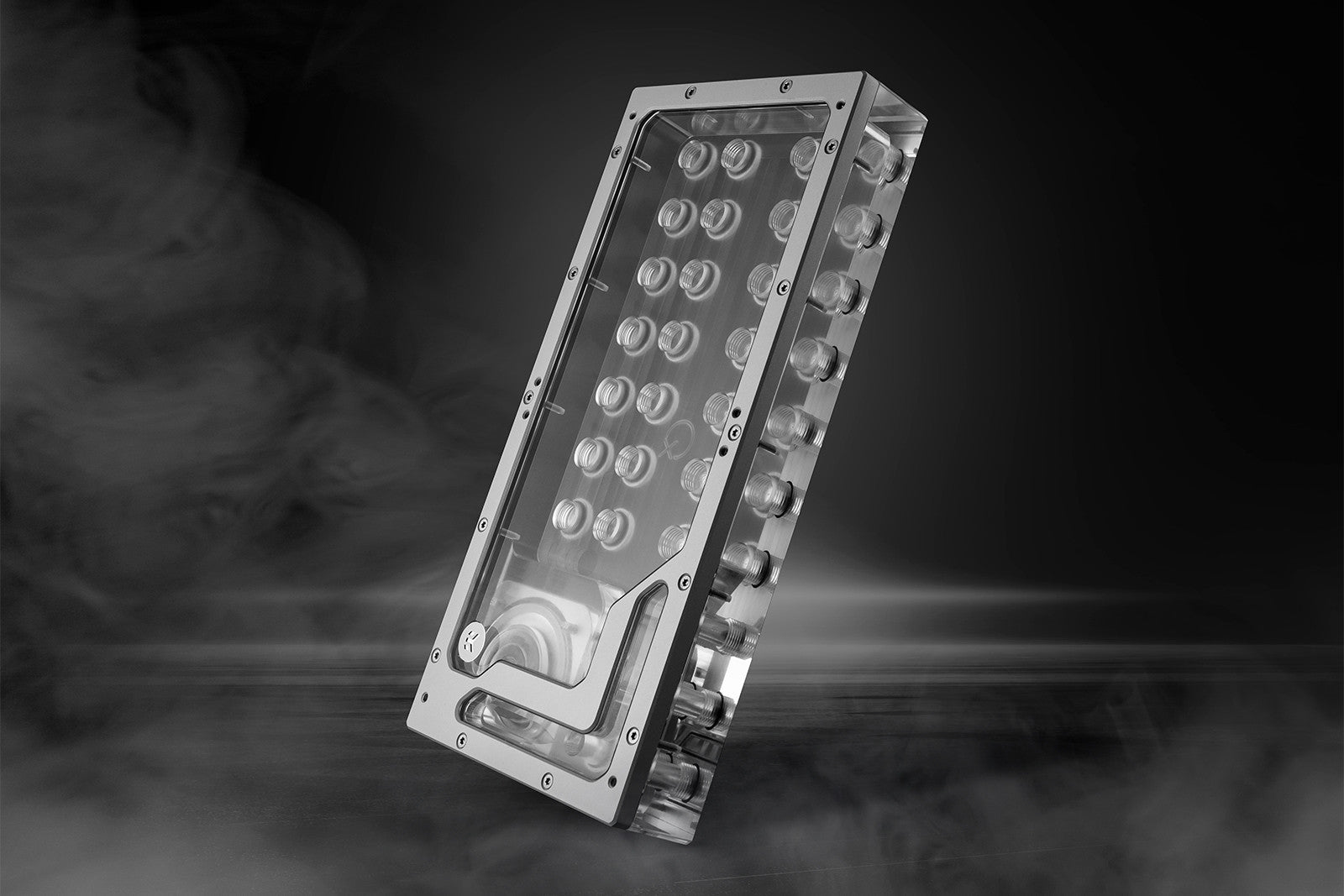

The distro can be mounted on practically any 280mm (2x140mm) mounting point, and with angled brackets (sold separately), users can mount it 90° to a 120mm or 140mm fan mount. It is part of the QuantumX Line aimed at enthusiasts who wish to stand out. EK-QuantumX Loophole Distroplate D5 PWM - Silver features silver screws, a silver anodized aluminum frame, and the EK-Quantum Convection premium pump cover anodized in natural aluminum silver. Designed to offer unique aesthetics, this advanced all-in-one waterway solution includes a pump, reservoir, and a total of 34 industry-standard G1/4 threaded ports. Connection on the inside of the distro is made via micro adapters, fittings, and tubes. EK recommends the use of the following: There is 22mm of space between the thread hole surface and the inner lid surface. Using these Torque Series products guarantees compatibility and mitigates any potential issues with the height of the fittings. These products are not included with the distribution plate and are purchased separately in any preferred finish. All thirty-two G1/4â?³ plugs come with this distro, together with their white covers. This water distribution plate comes with a powerful yet silent PWM-controlled D5 pump. The goal was to make a product with enough power to offer excellent reliability and outstanding performance with multiple blocks and radiators while keeping the noise down to a minimum. The D5 pump has been updated with the latest G3 (Generation 3) variant and comes with a SATA power connector, following the latest PC industry trend to decrease the use of 4-pin Molex cables. EK-Quantum Convection cover is made of CNC-machined aluminum anodized in natural aluminum silver. It is designed to improve the aesthetics of D5 pumps and features a rectangular design with a convenient hole for routing the cable and hiding it as much as possible, allowing for a cleaner look. EK-Matrix7 standardizes the productsâ?? dimensions, including the port position and spacing, making liquid cooling loop assembly easier and more intuitive than ever. EK-Quantum distribution plates follow the EK-Matrix7 standard, enabling them to seamlessly integrate with the Vector² GPU water blocks, active backplates, and Quantum Surface radiators. This means the user will spend less time planning the loop and bending the tubes, resulting in an epic water-cooled build.
Genuine D5 Water Pump
EK Matrix7 Standard
Specifications
