EK-SF3D Inflection Point EVO - Mounting AMD

EK-SF3D Inflection Point EVO - Mounting AMD is a universal AMD AMx/FMx socket mounting mechanism for EK-SF3D Inflection Point EVO CPU evaporation cooler. This item allows the EK-SF3D Inflection Point EVO to be used on majority of AMD socket based overclocking motherboards.

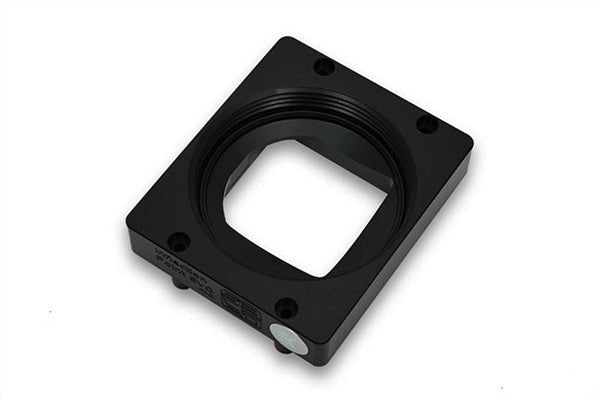

The product is made from precisely machined POM Acetal to fit past the nearby socket components. Backplate is made from 3mm thick stainless steel plate. This product also features plastic standoffs which prevents excessive compression of insulation material as well as warping of the motherboard.

The installation requires the removal of AMD motherboard original heatsink adapter latches and it's backplate.

Heater can be used on the backside of the motherboard's socket in order to warm-up the nearby VRM capacitors for higher stability.

Supported CPU sockets:
- AM2, AM2+, AM3, AM3+
- FM1, FM2, FM2+

Enclosed:
- EK-SF3D Inflection Point EVO - Mounting AMD adapter with gaskets
- EK-SF3D Heater 4W type A (LGA-115x)
- Backplate
- Front- (3mm) and backside (15mm) insulation sheet
- Mounting screws
- Required set of Torx- and Allen keys

Made in Slovenia - EU!
Heaters made in Hong Kong - PRC.
