Enclosed:

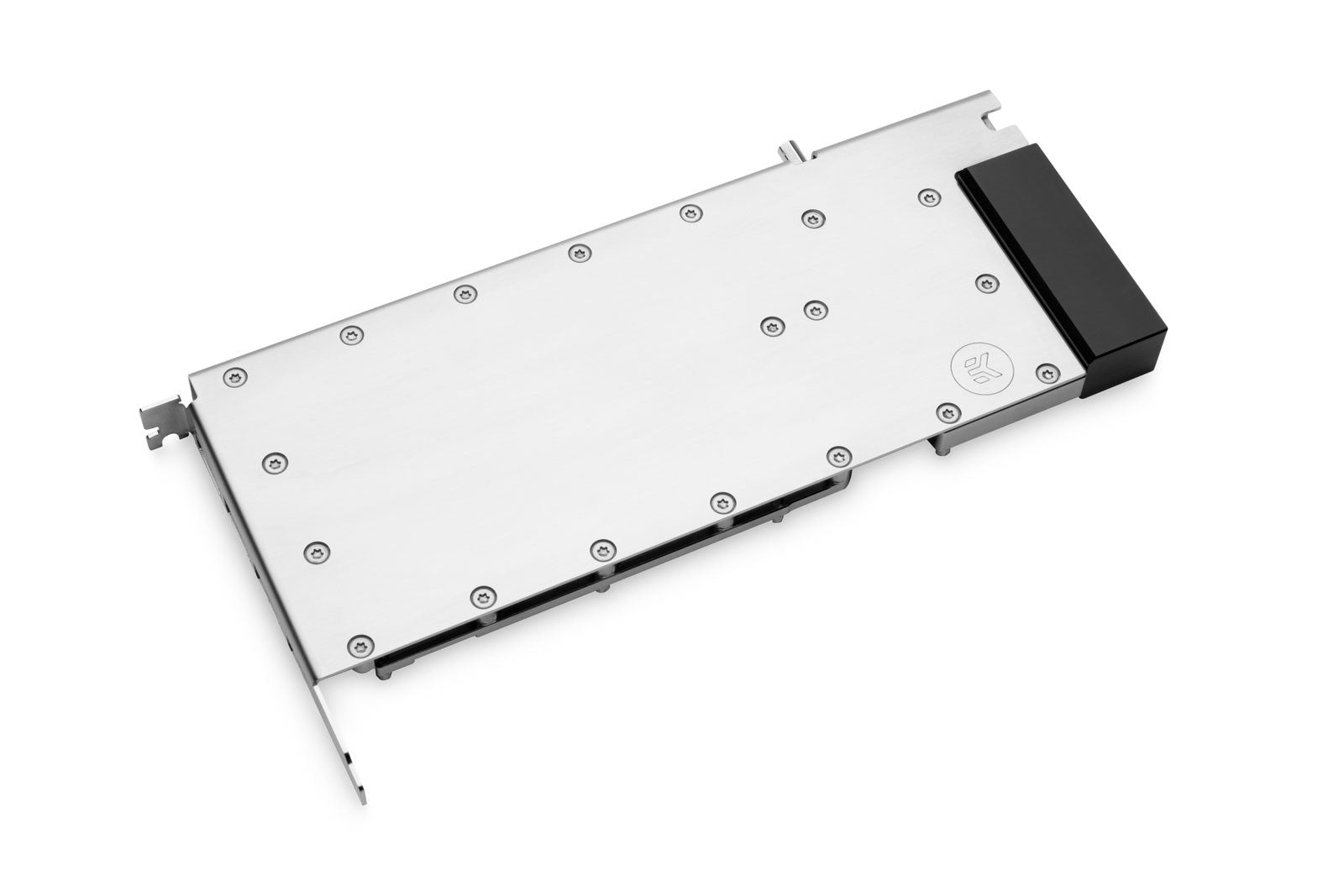

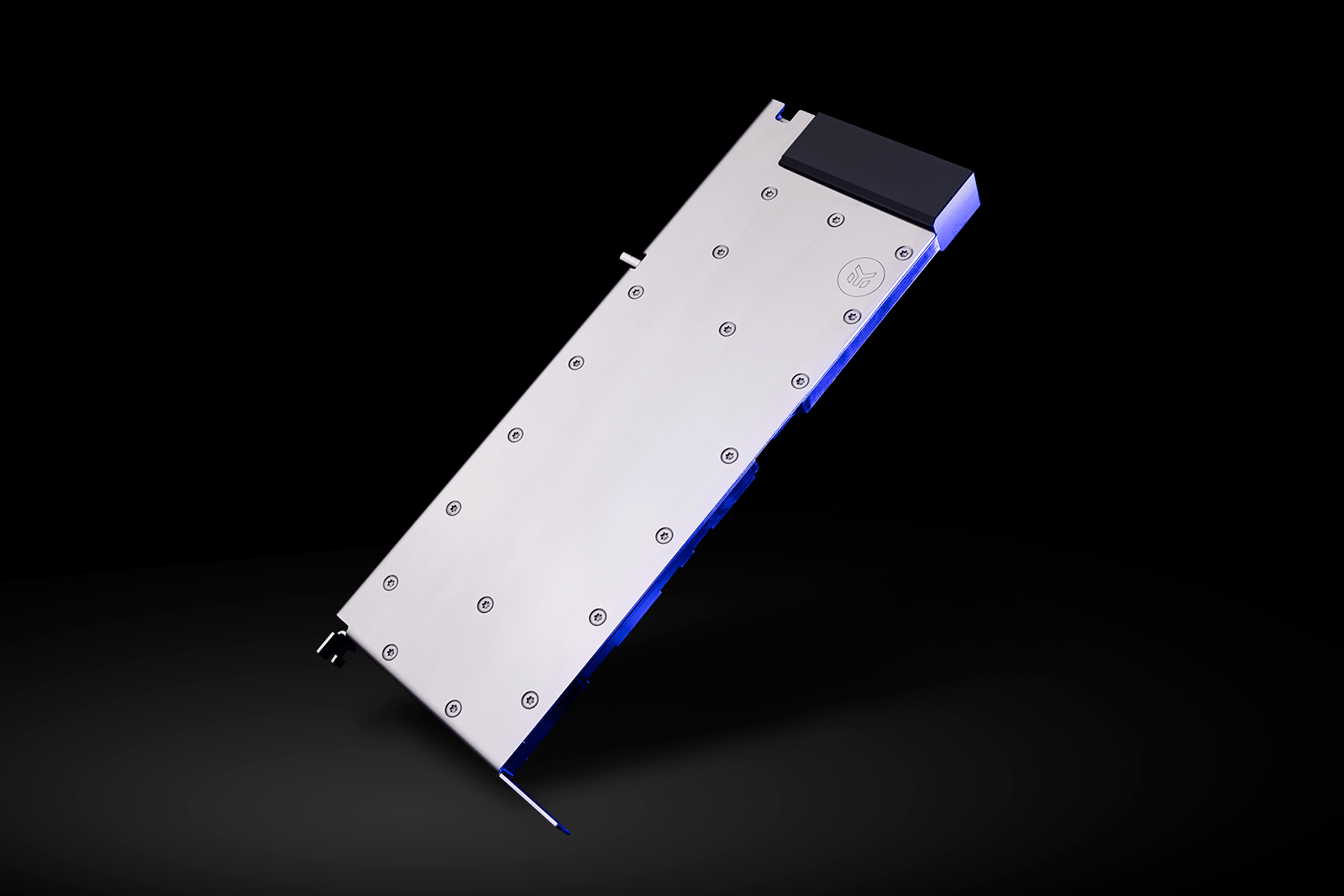

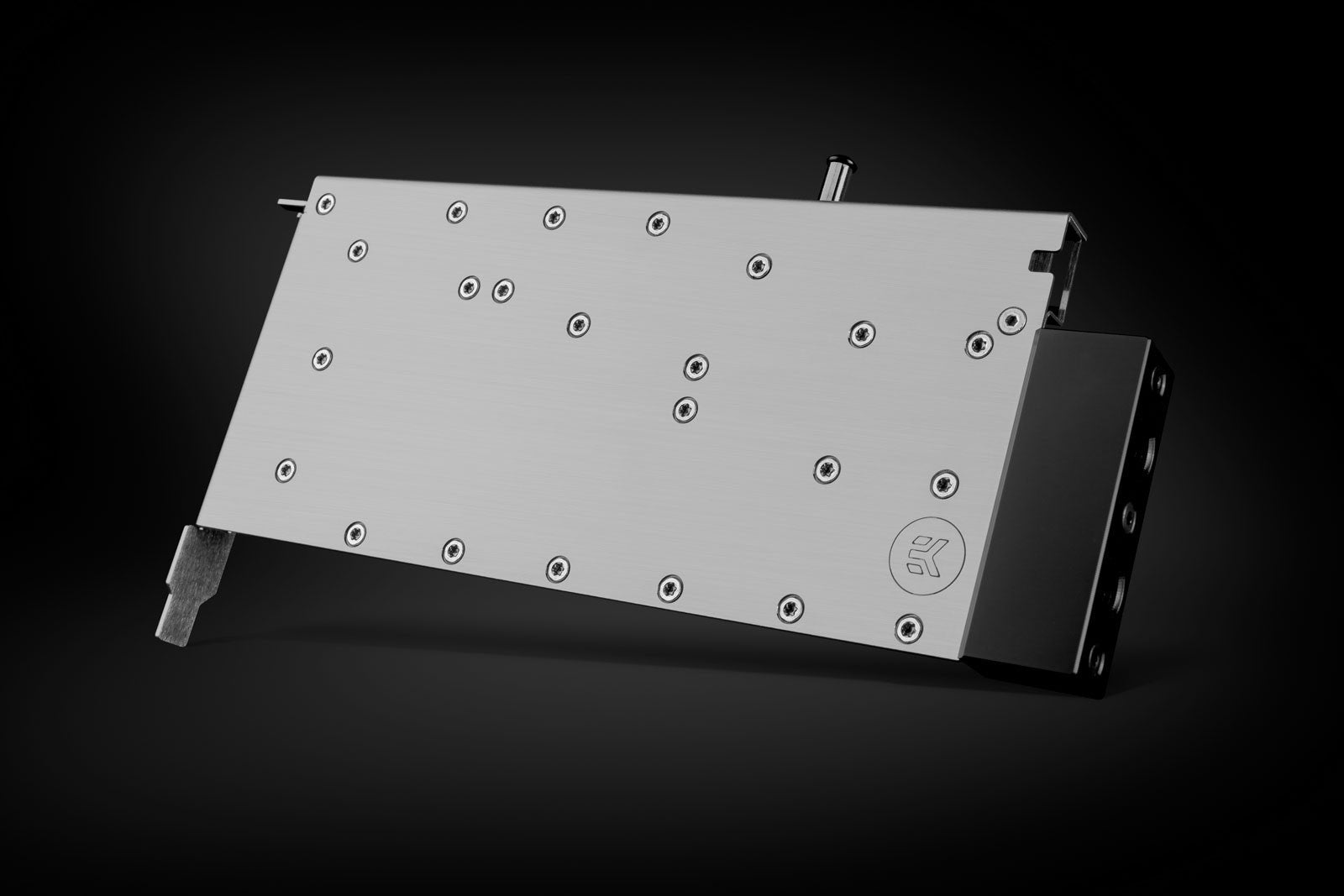

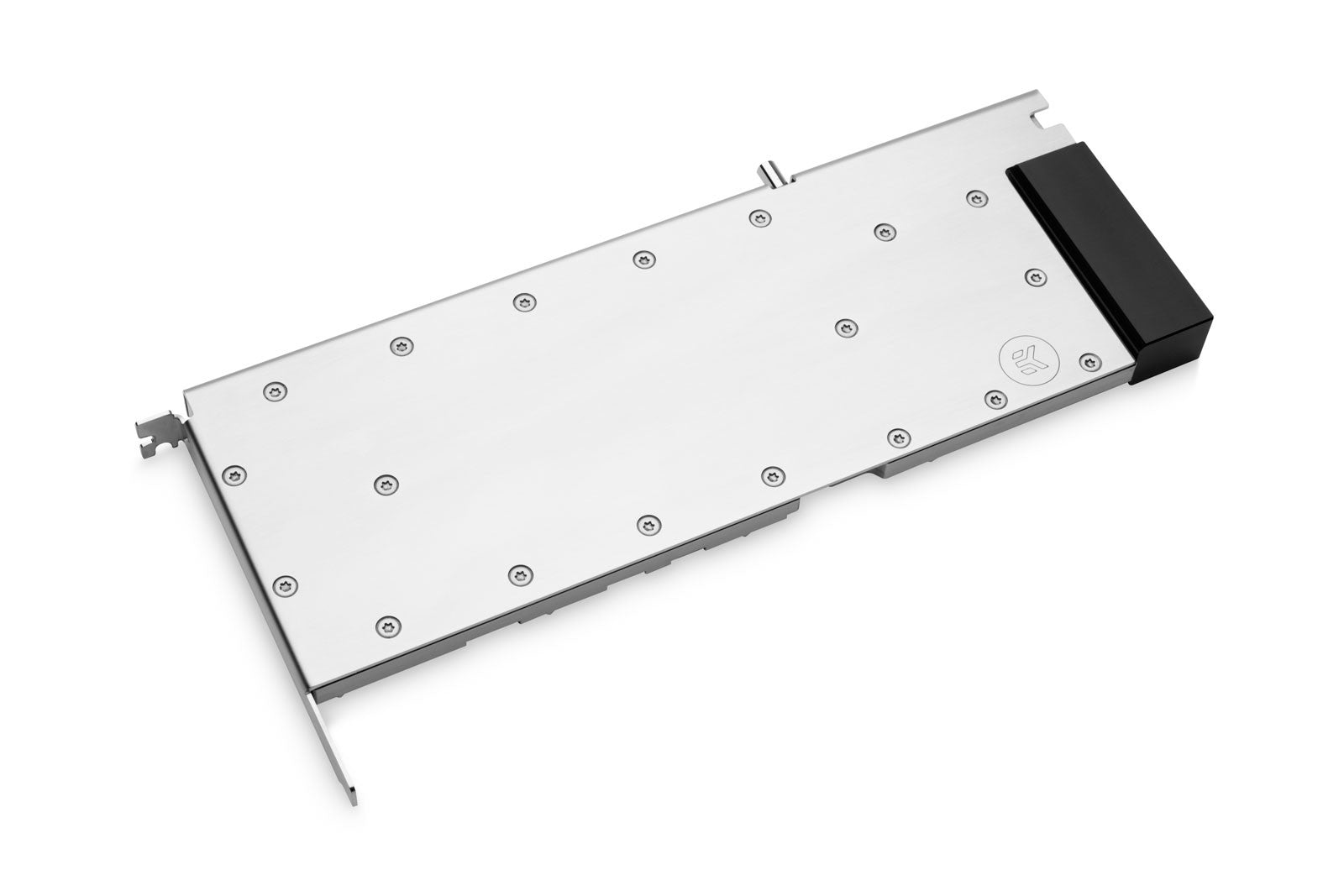

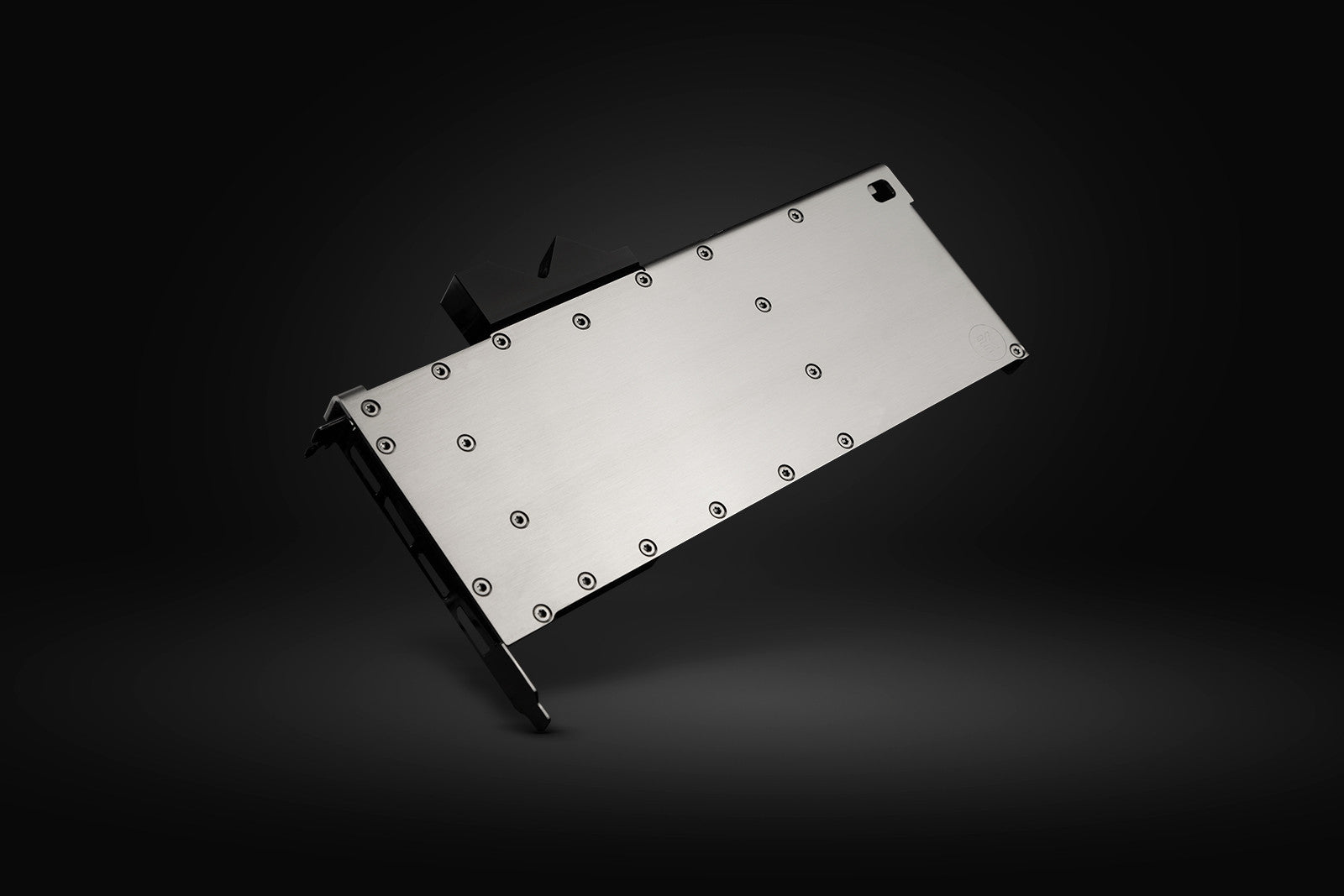

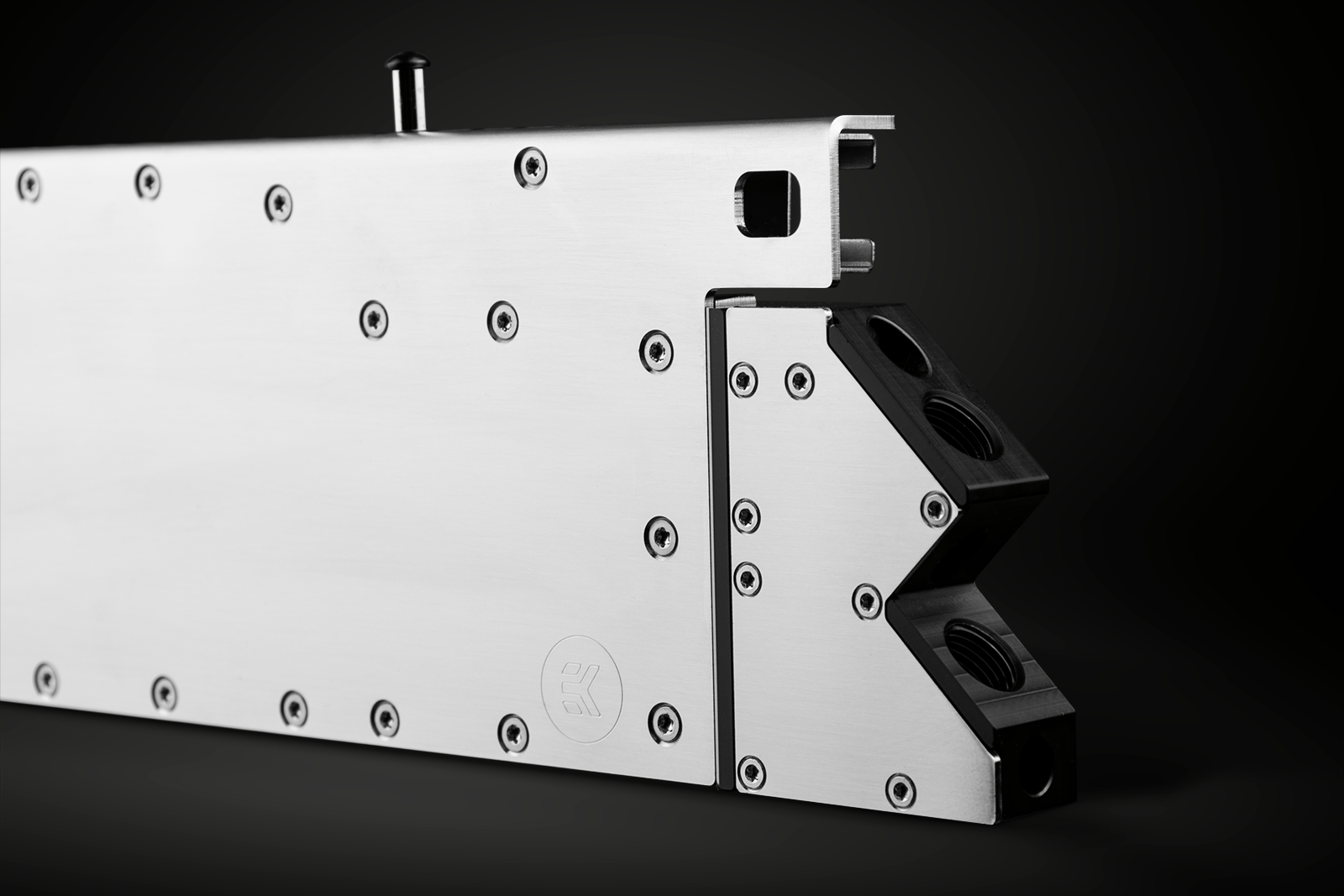

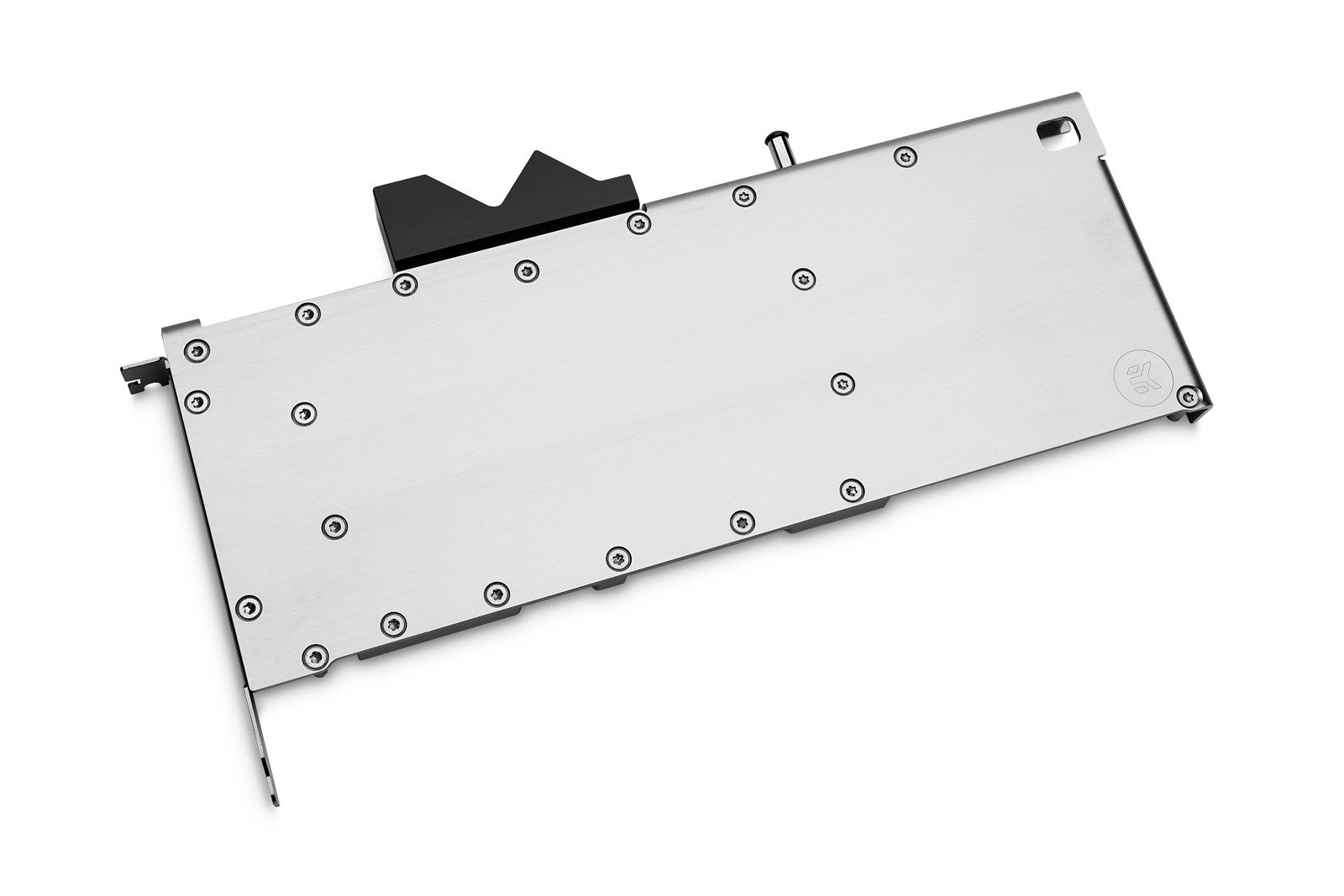

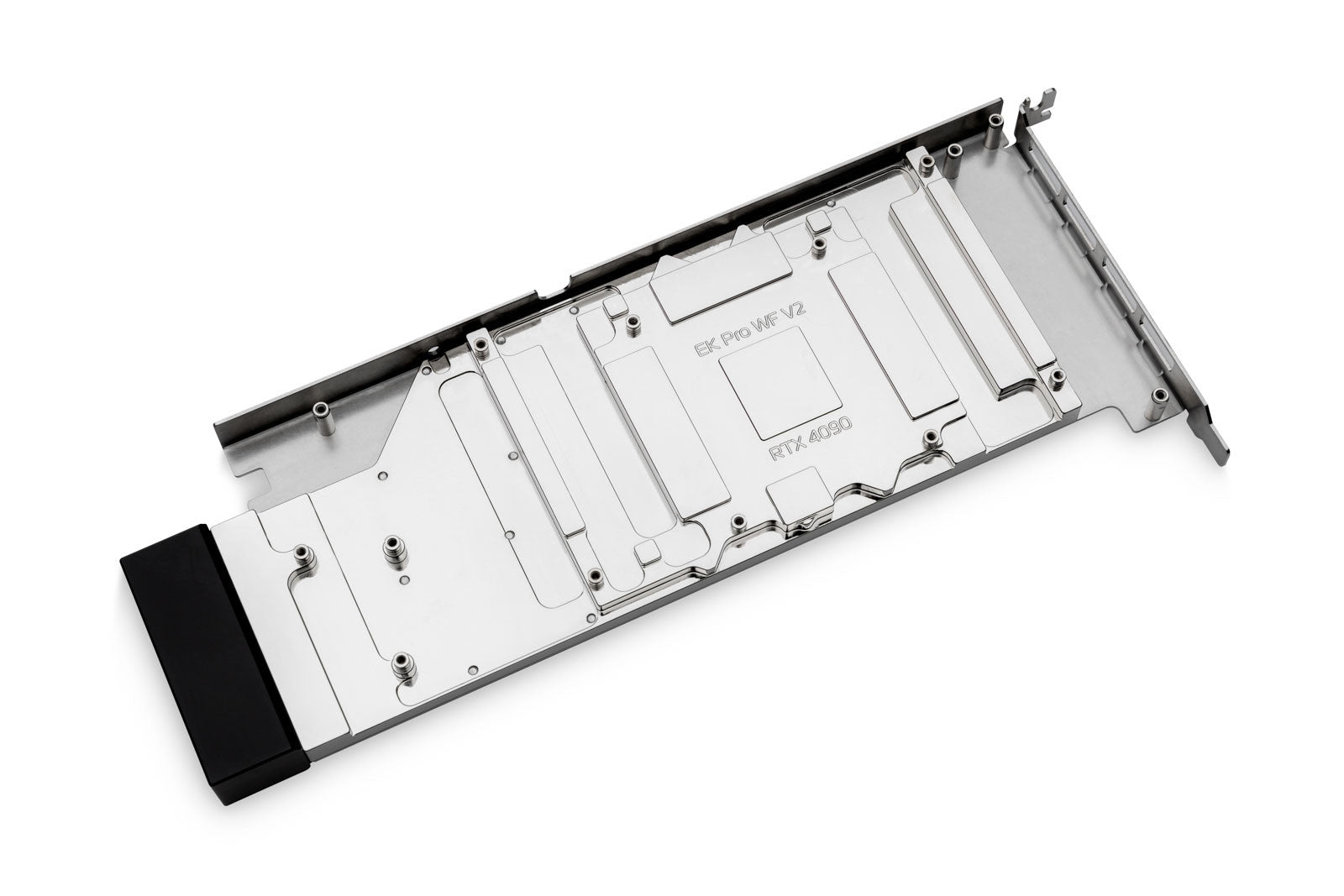

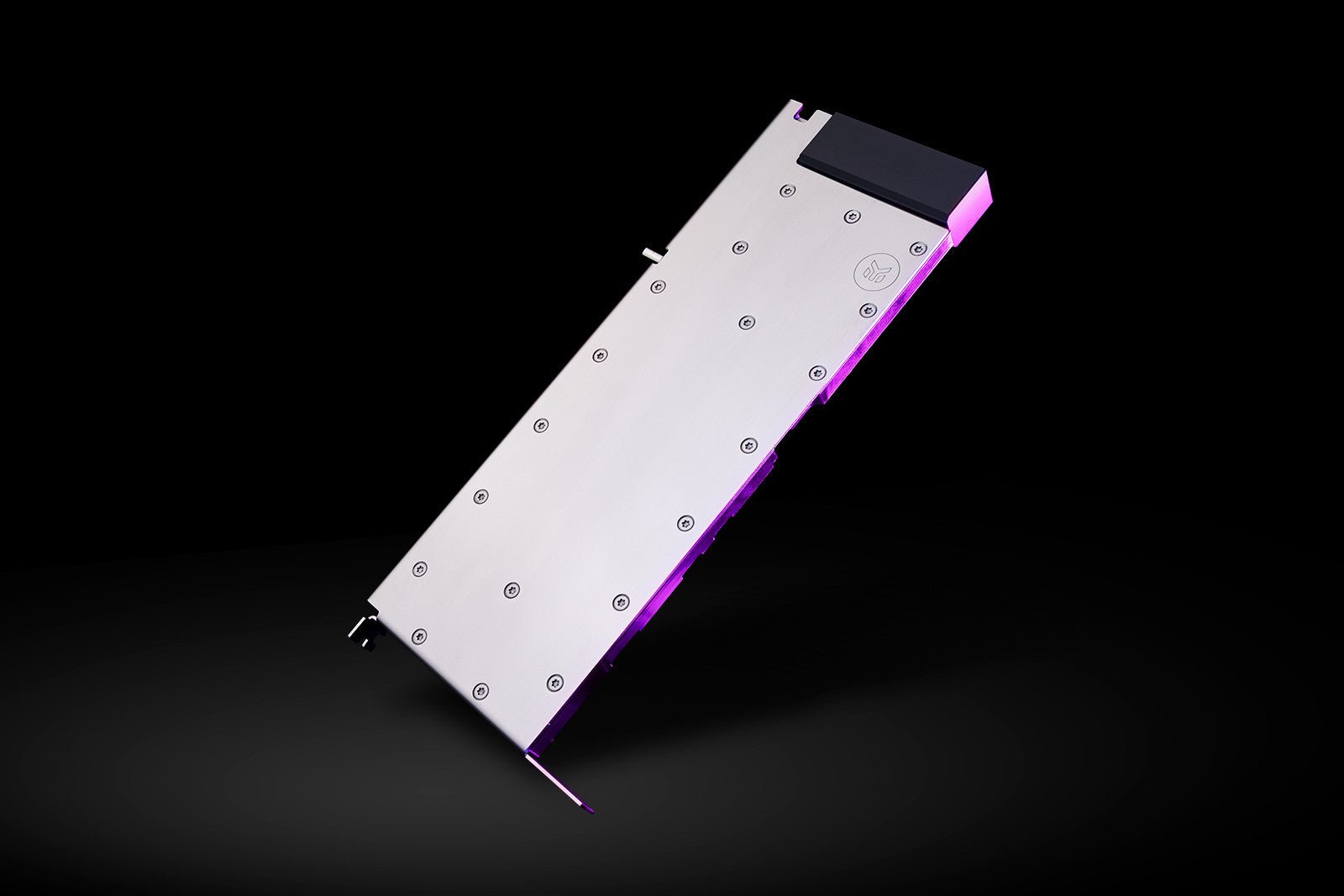

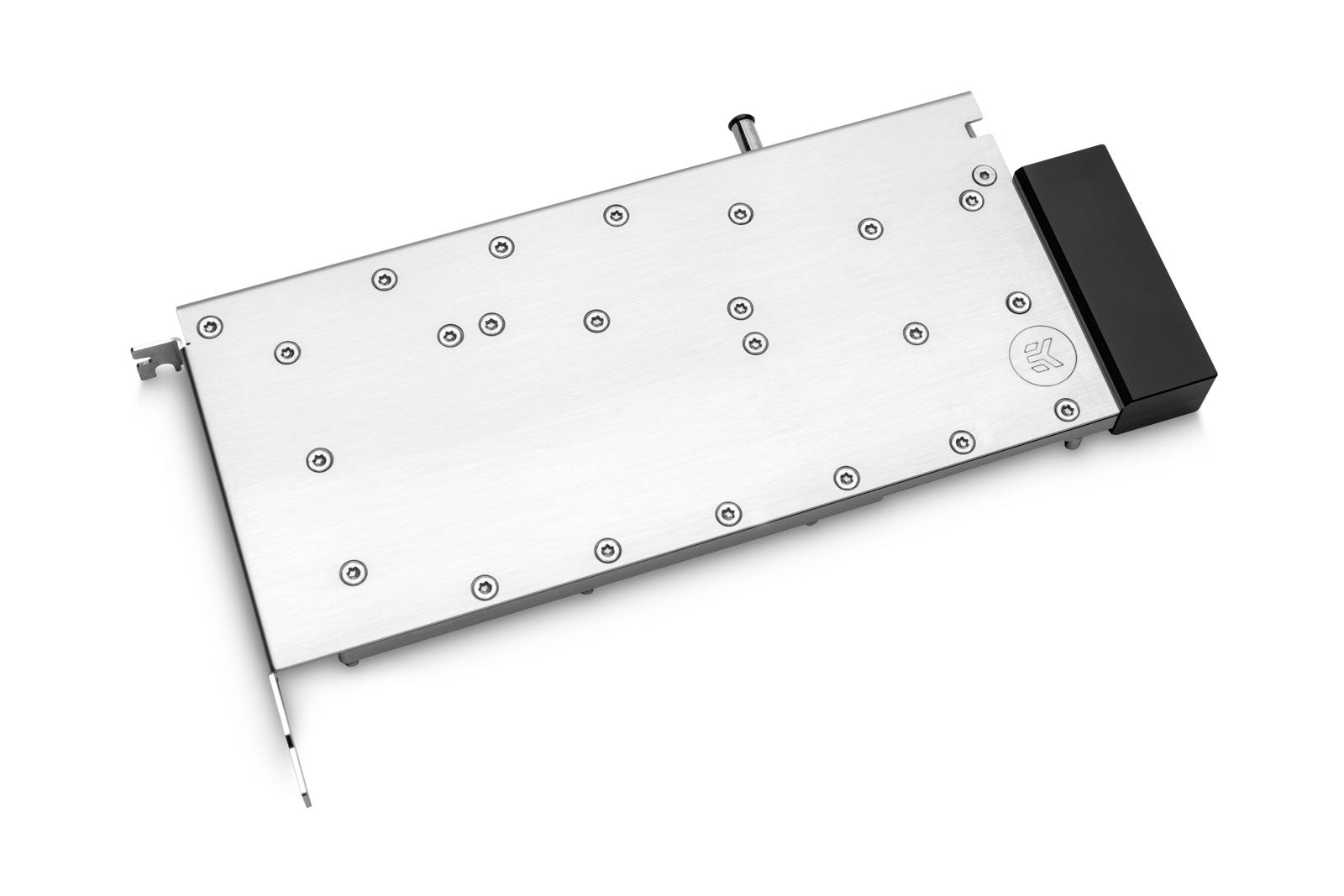

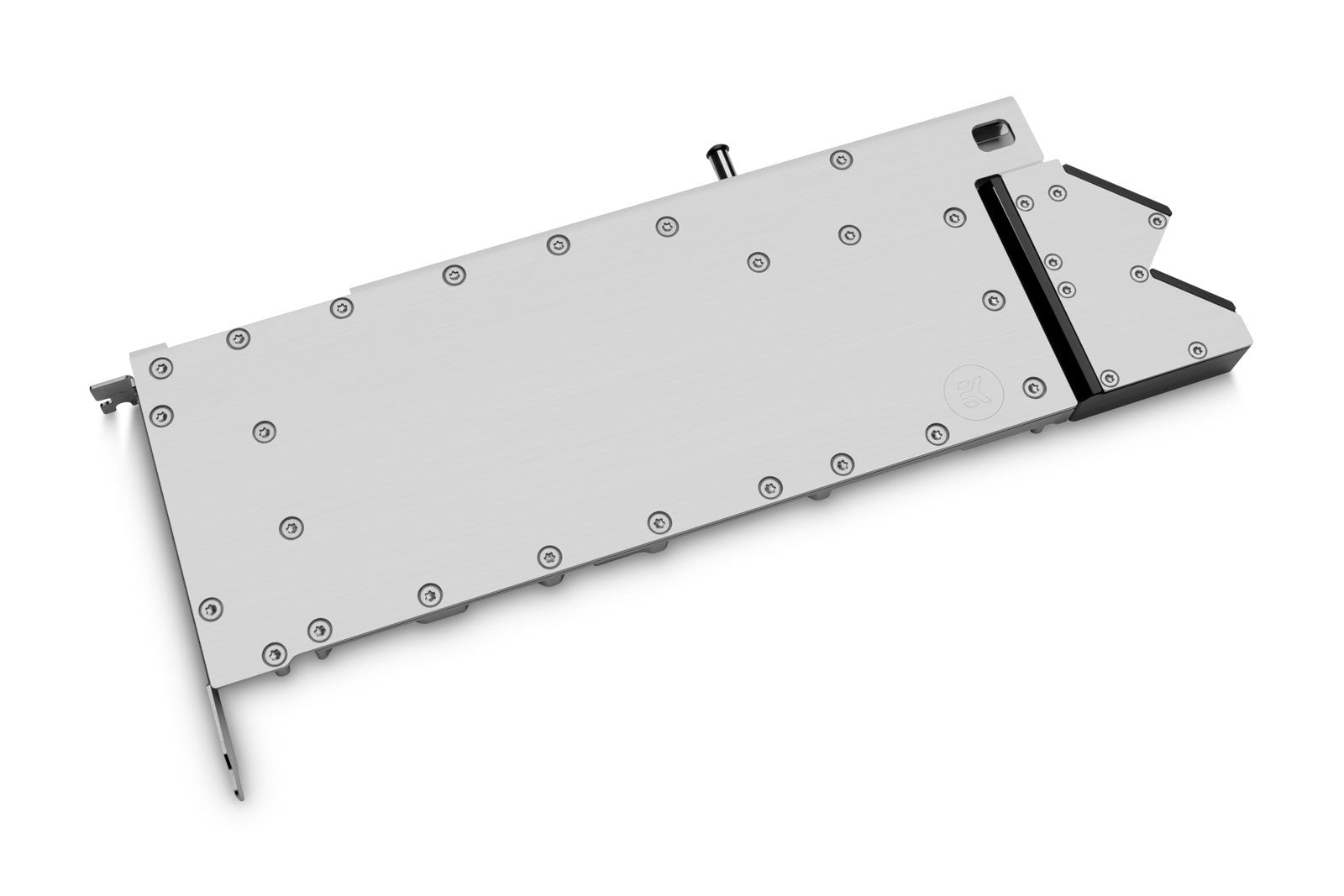

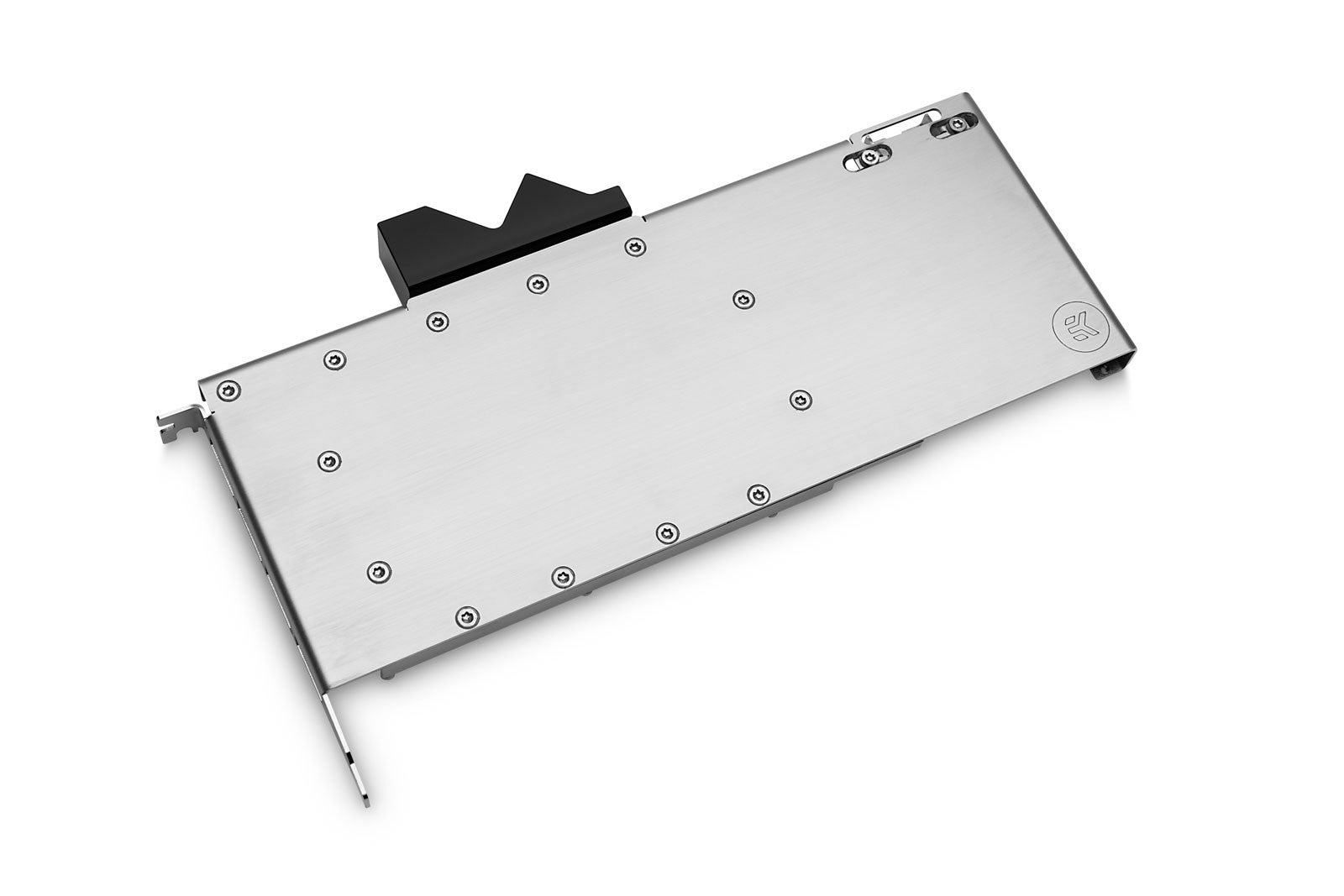

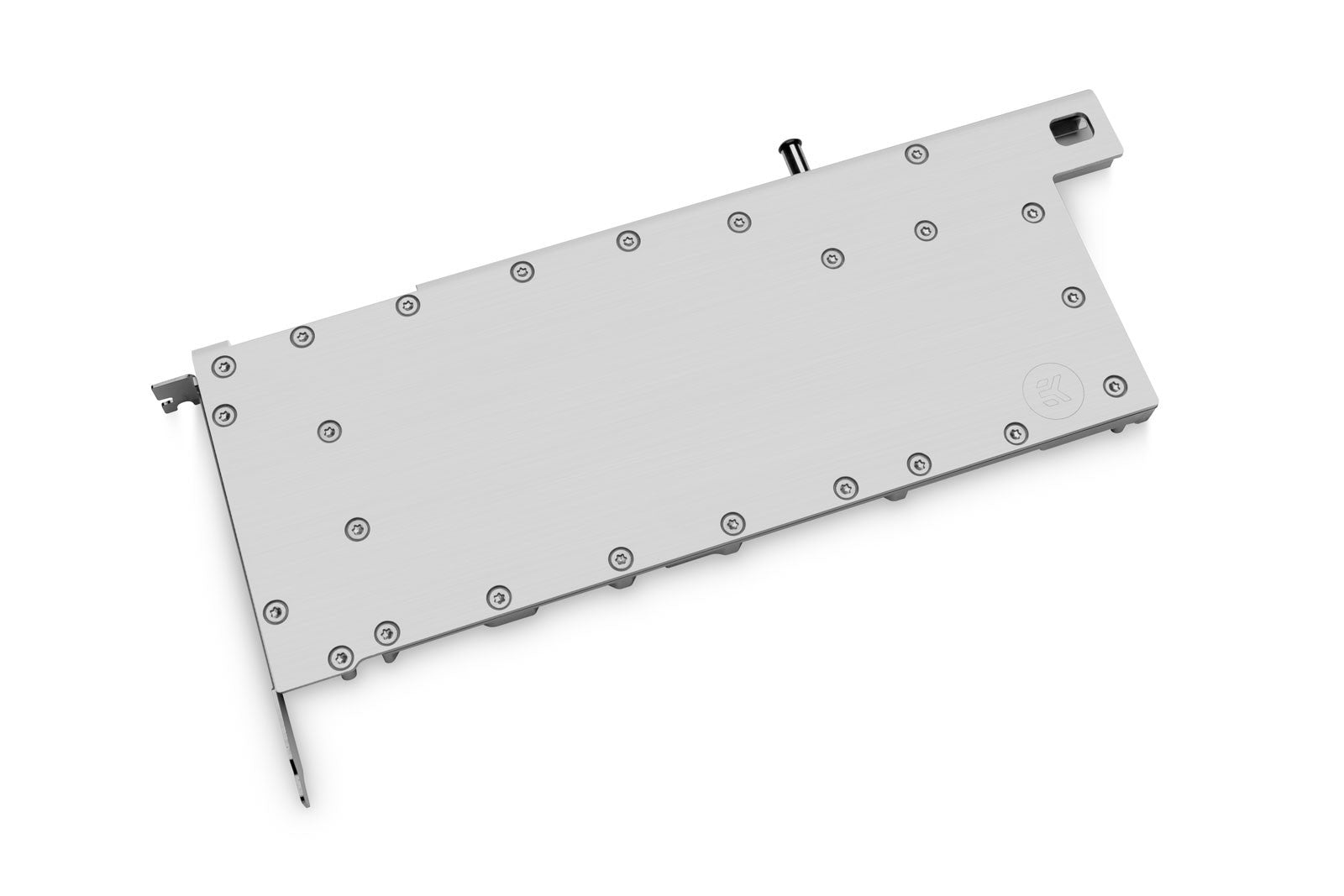

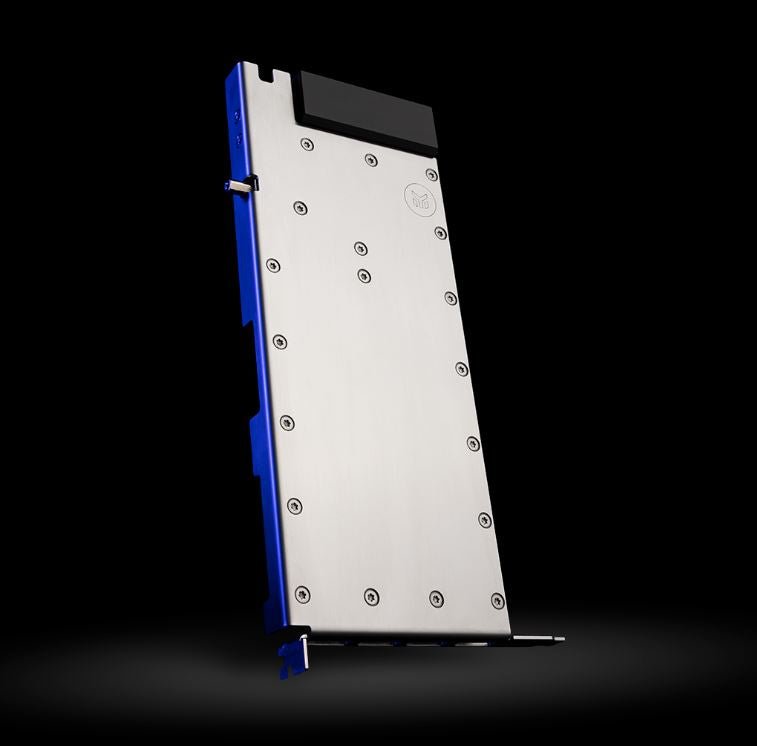

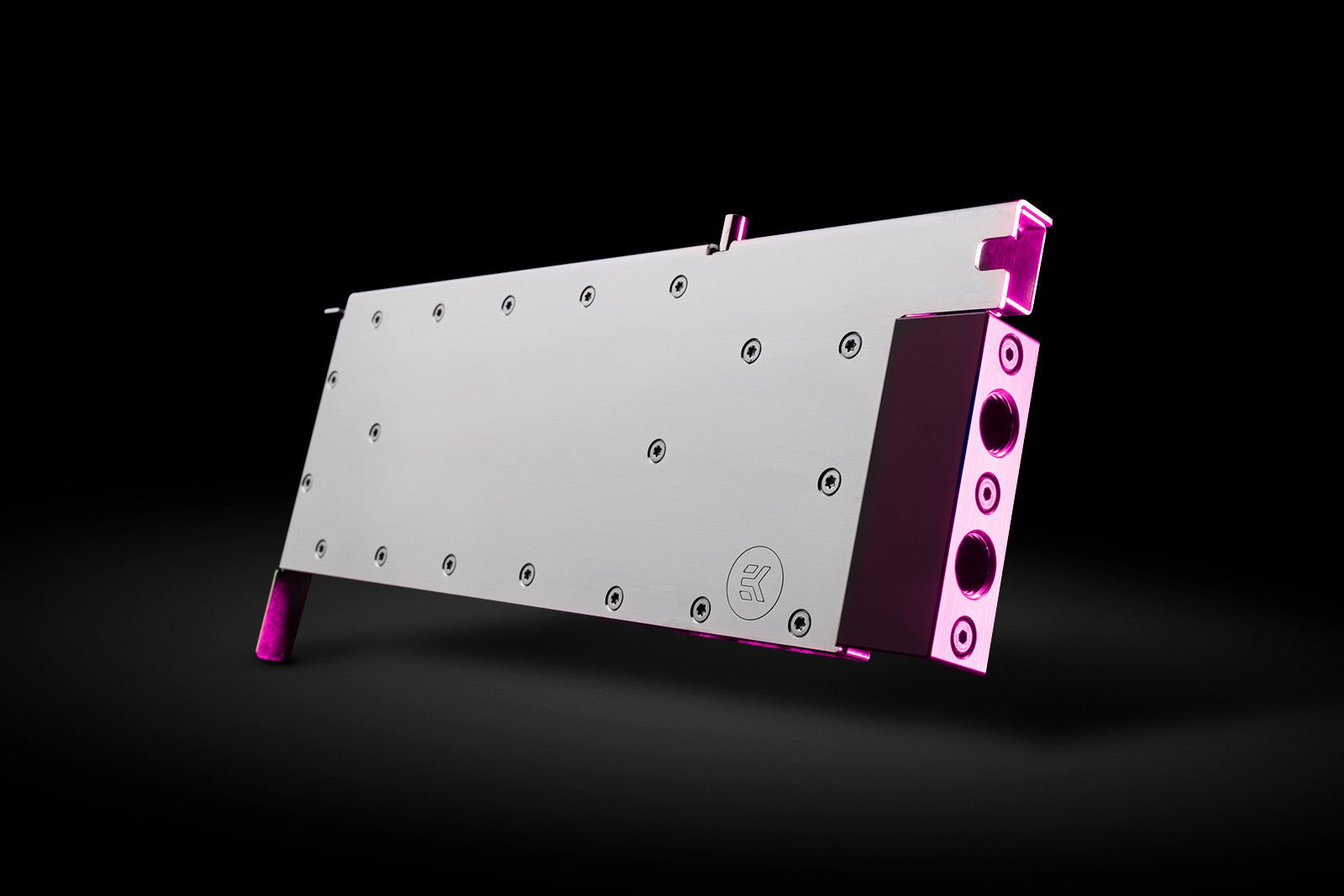

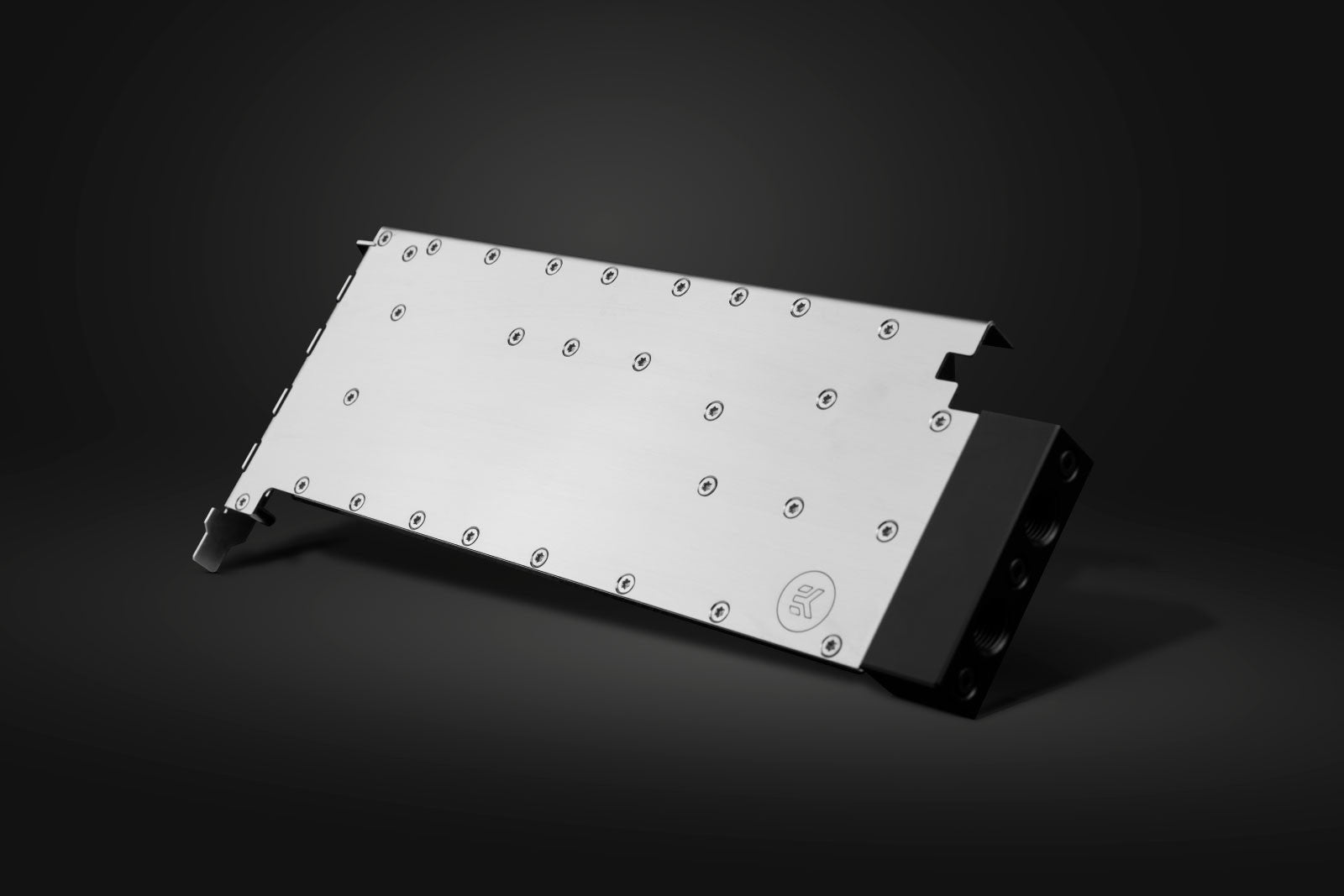

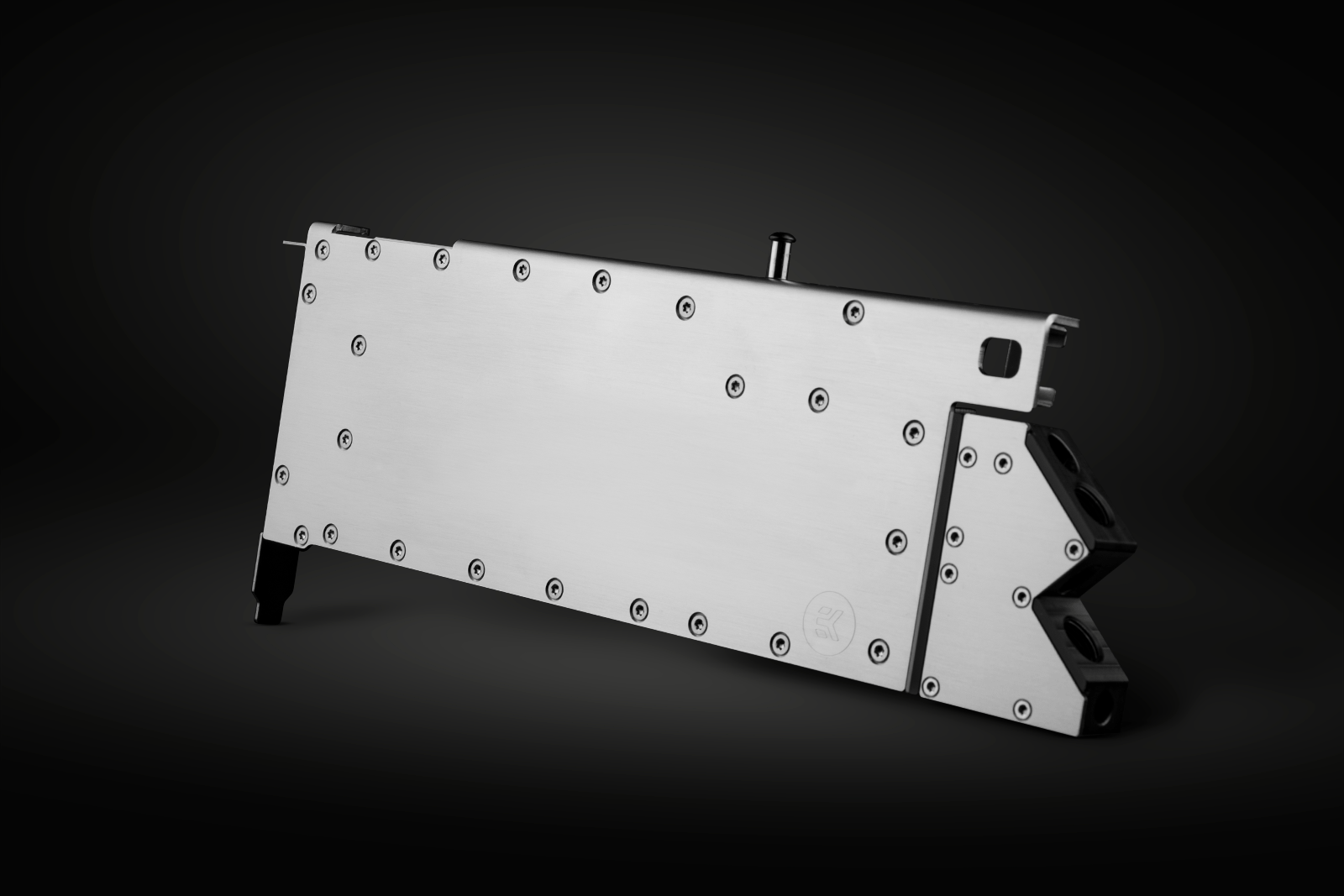

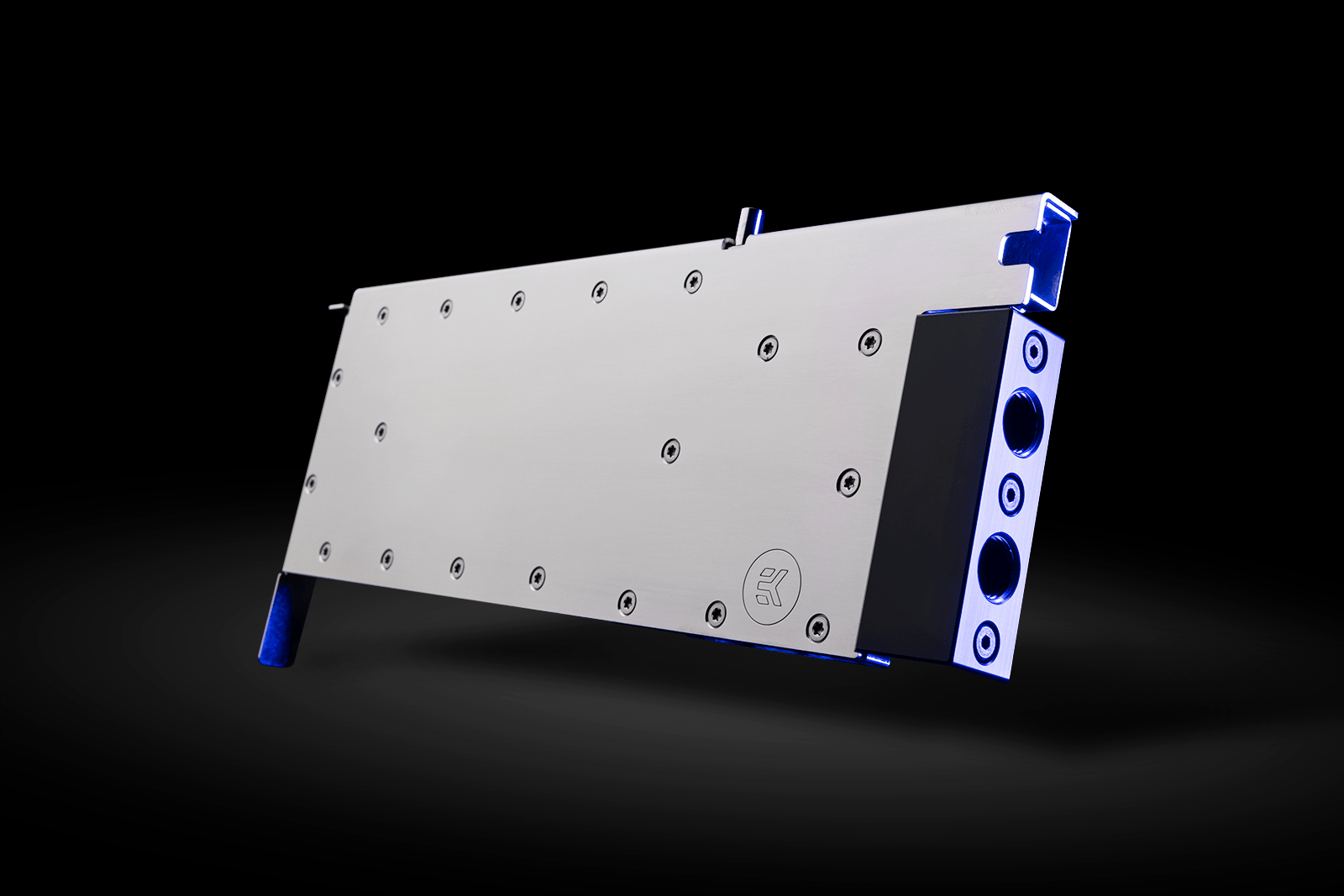

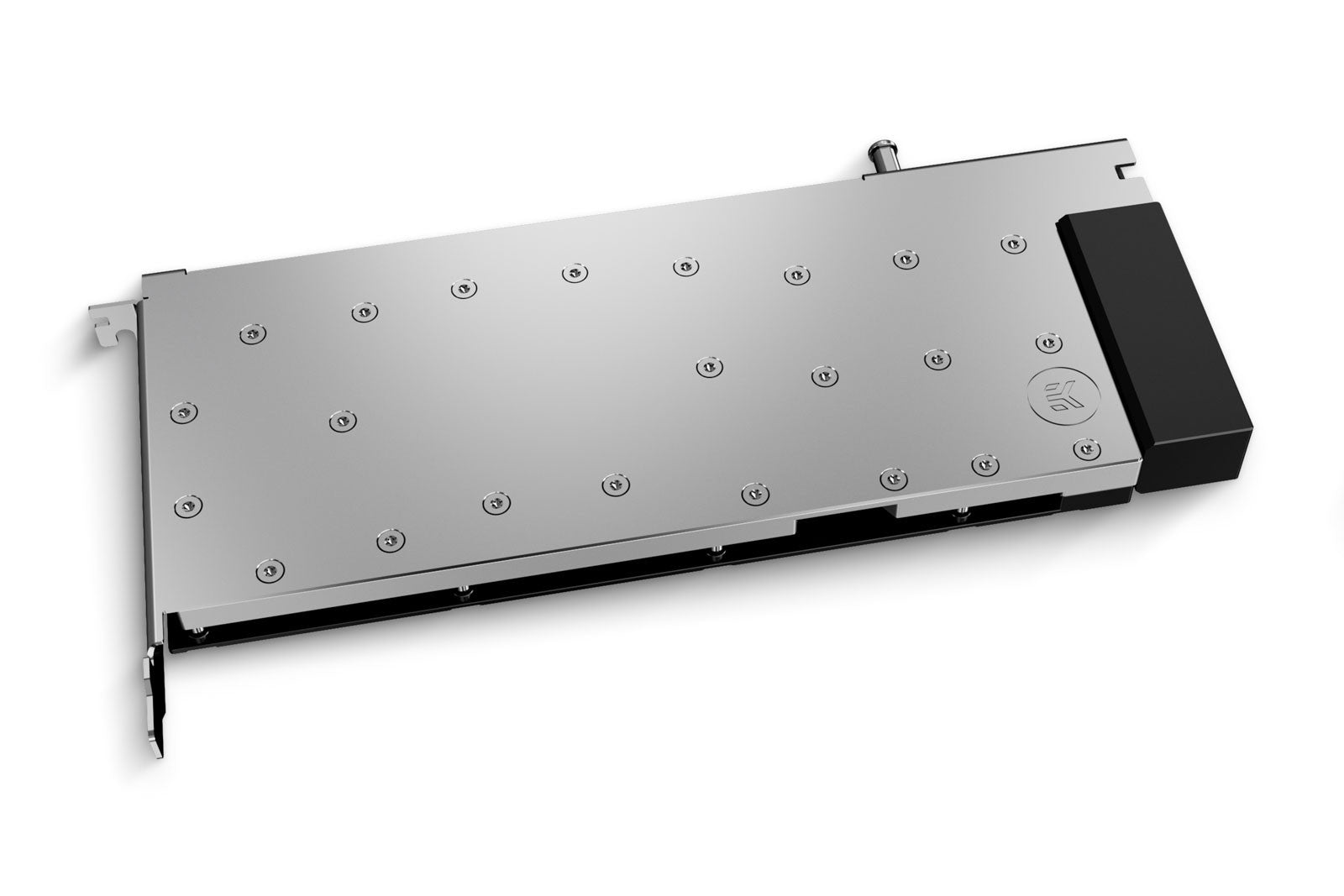

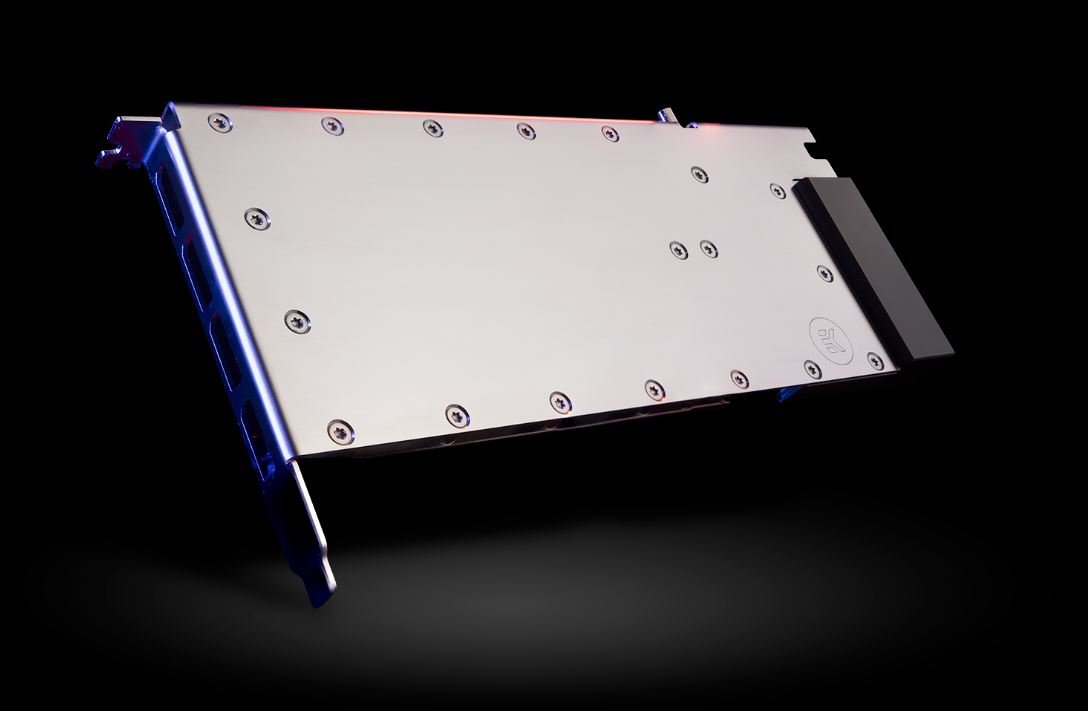

- EK-Pro GPU WB RTX 4090 WindForce V2 - Nickel + Inox workstation and server-grade water block

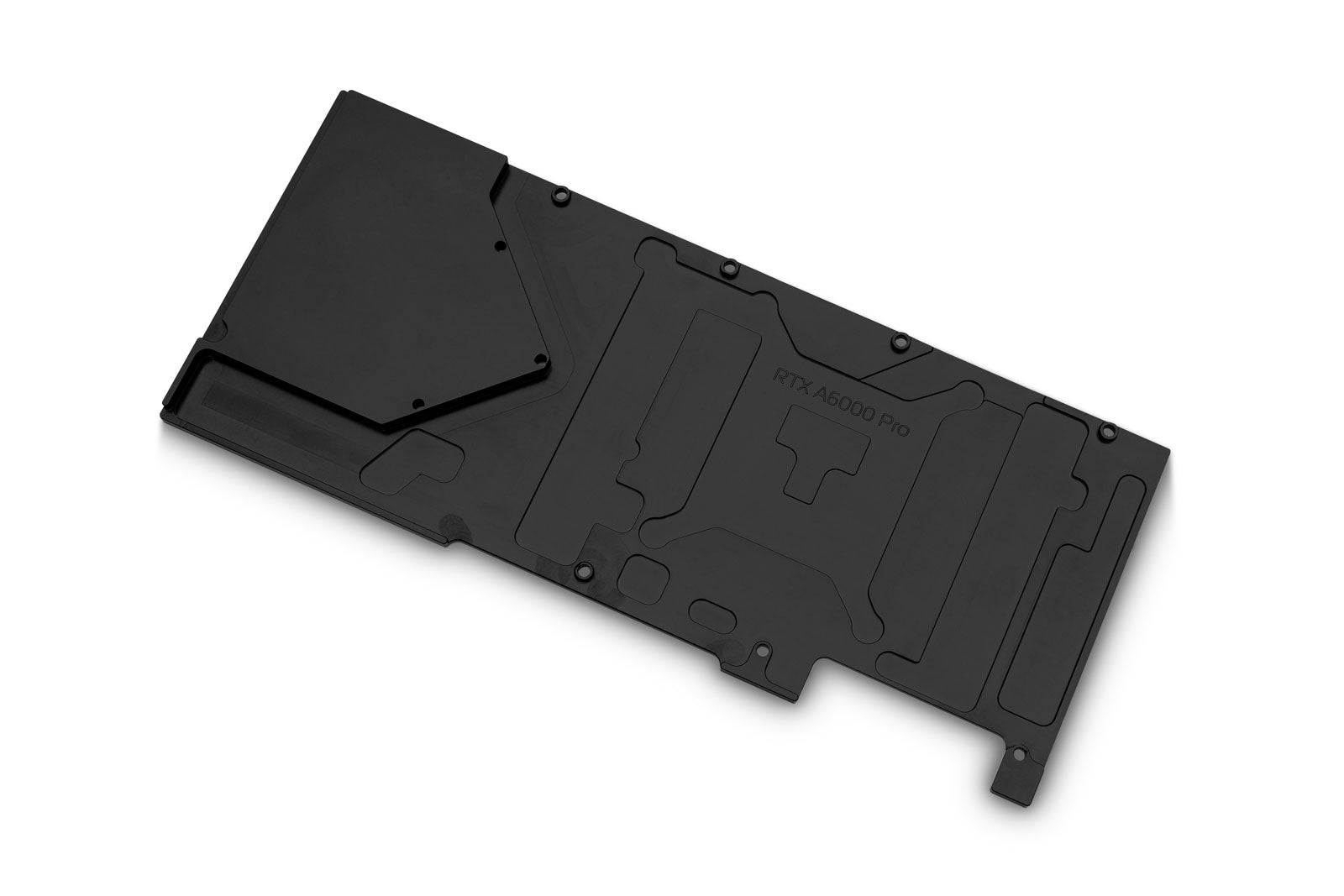

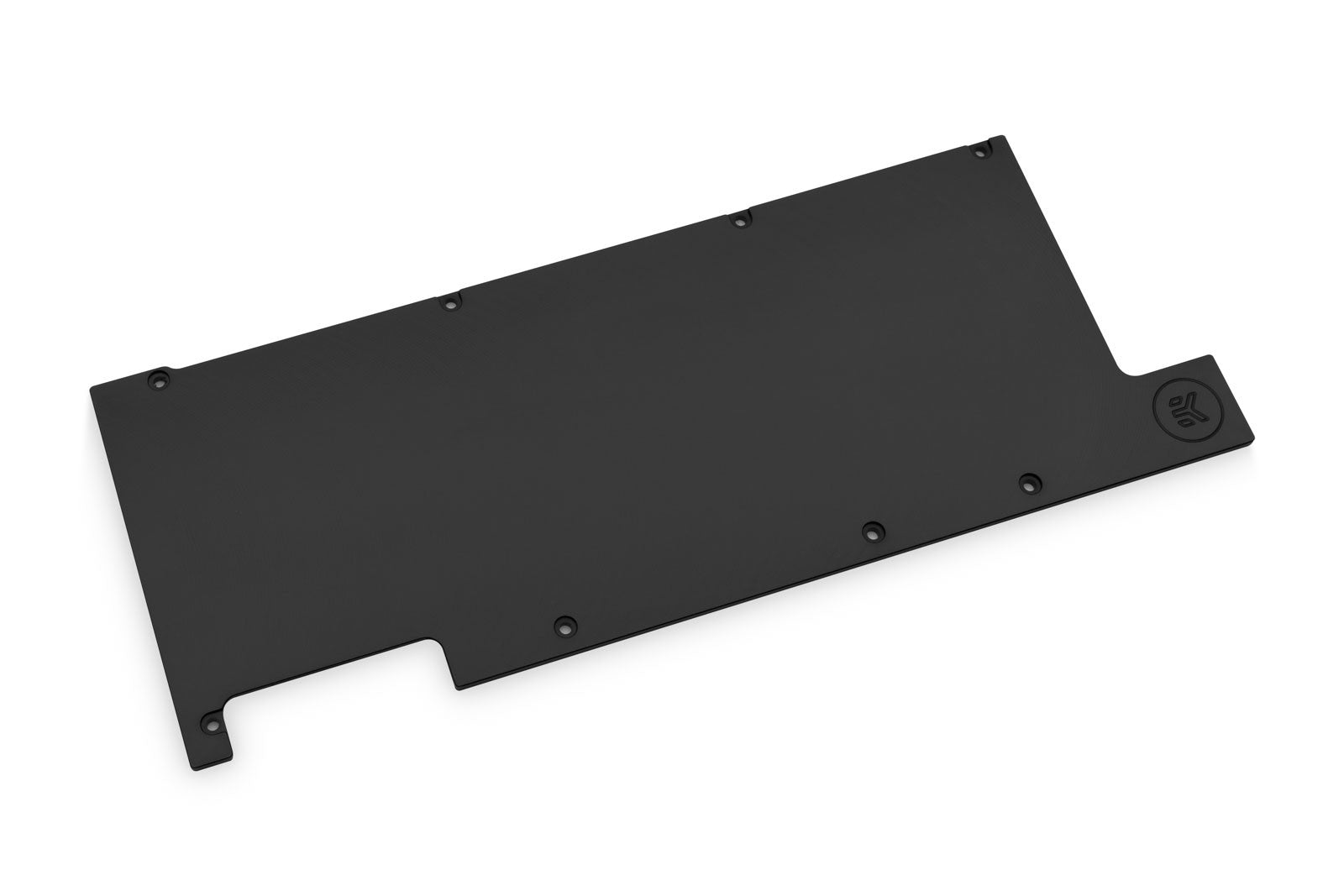

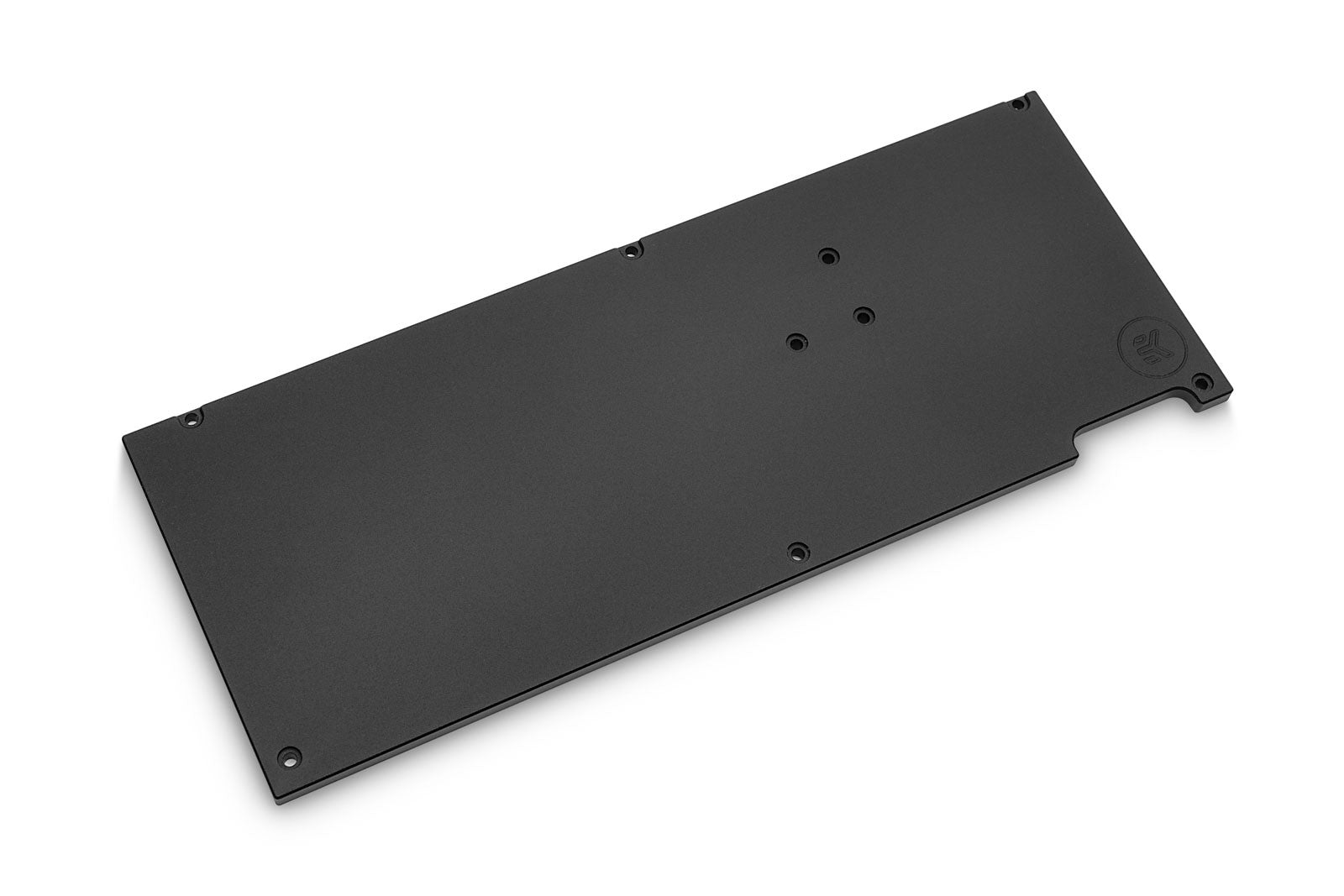

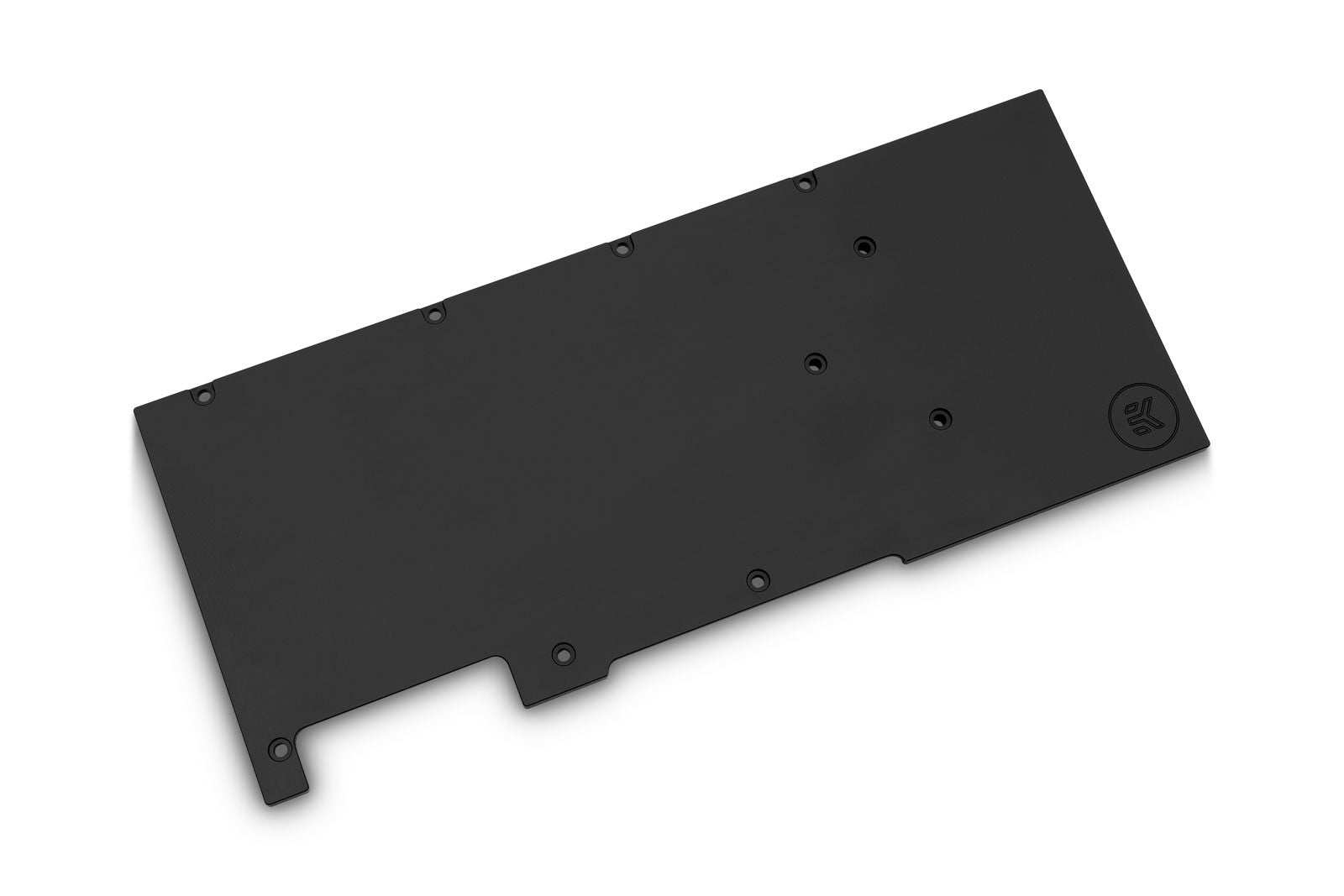

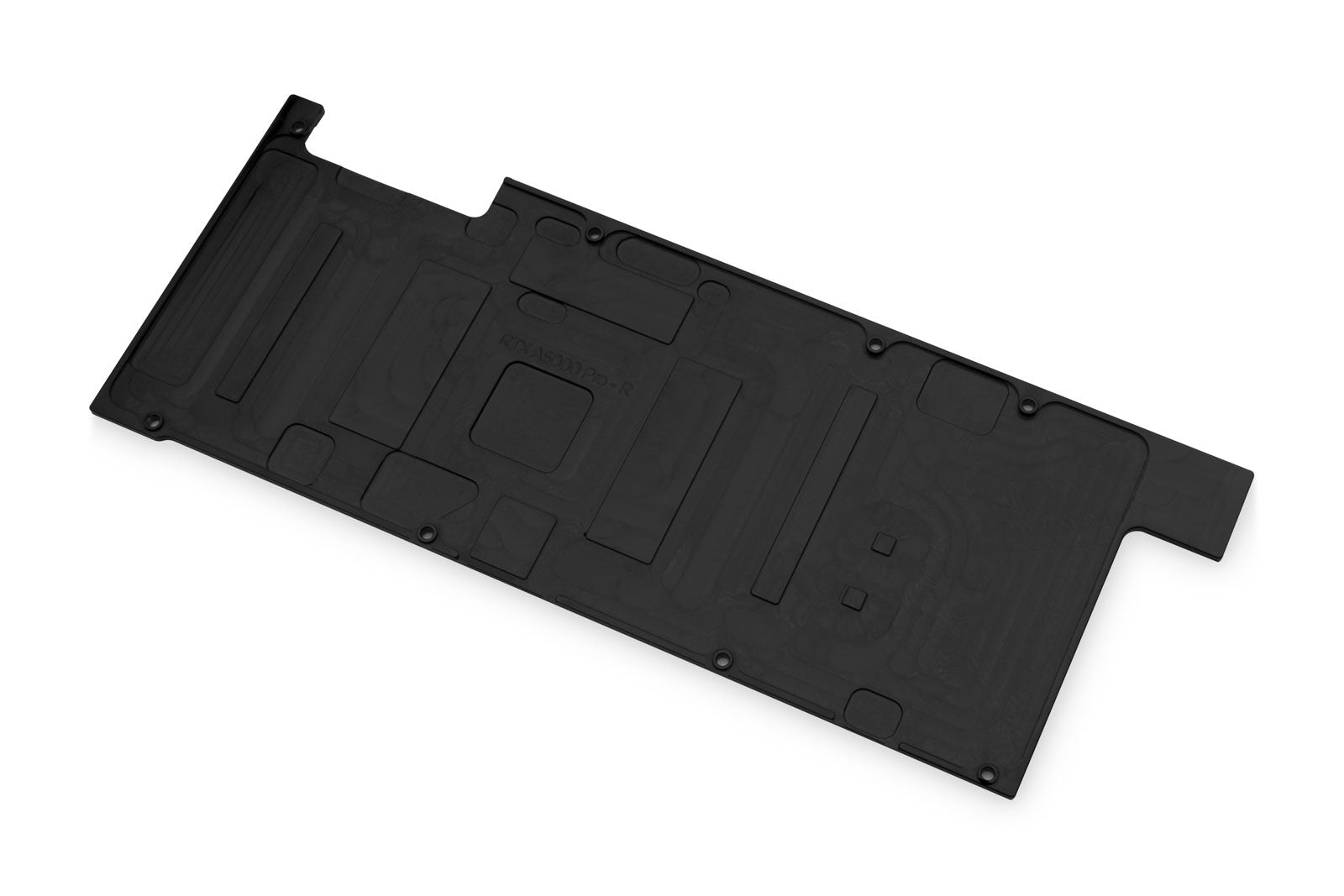

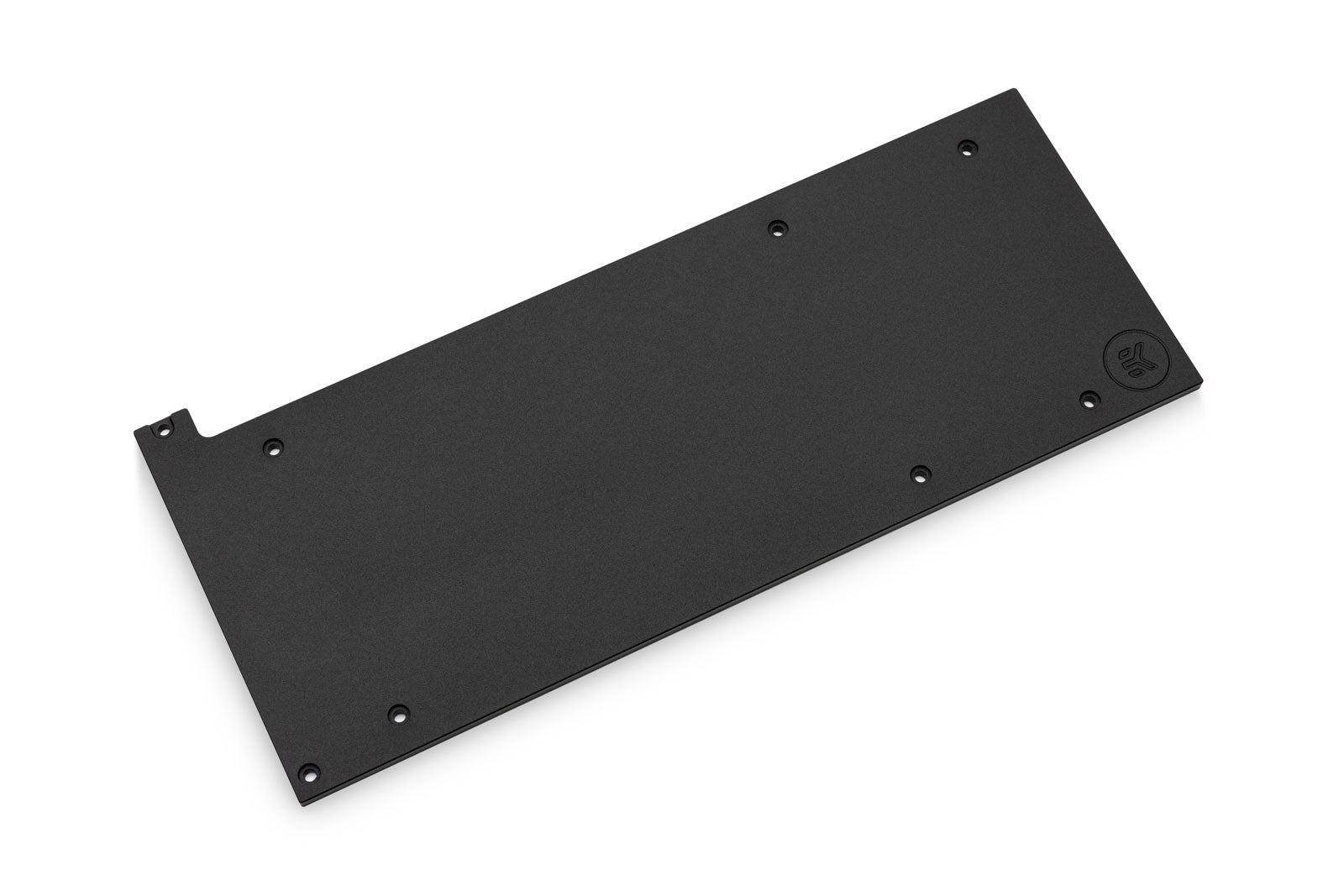

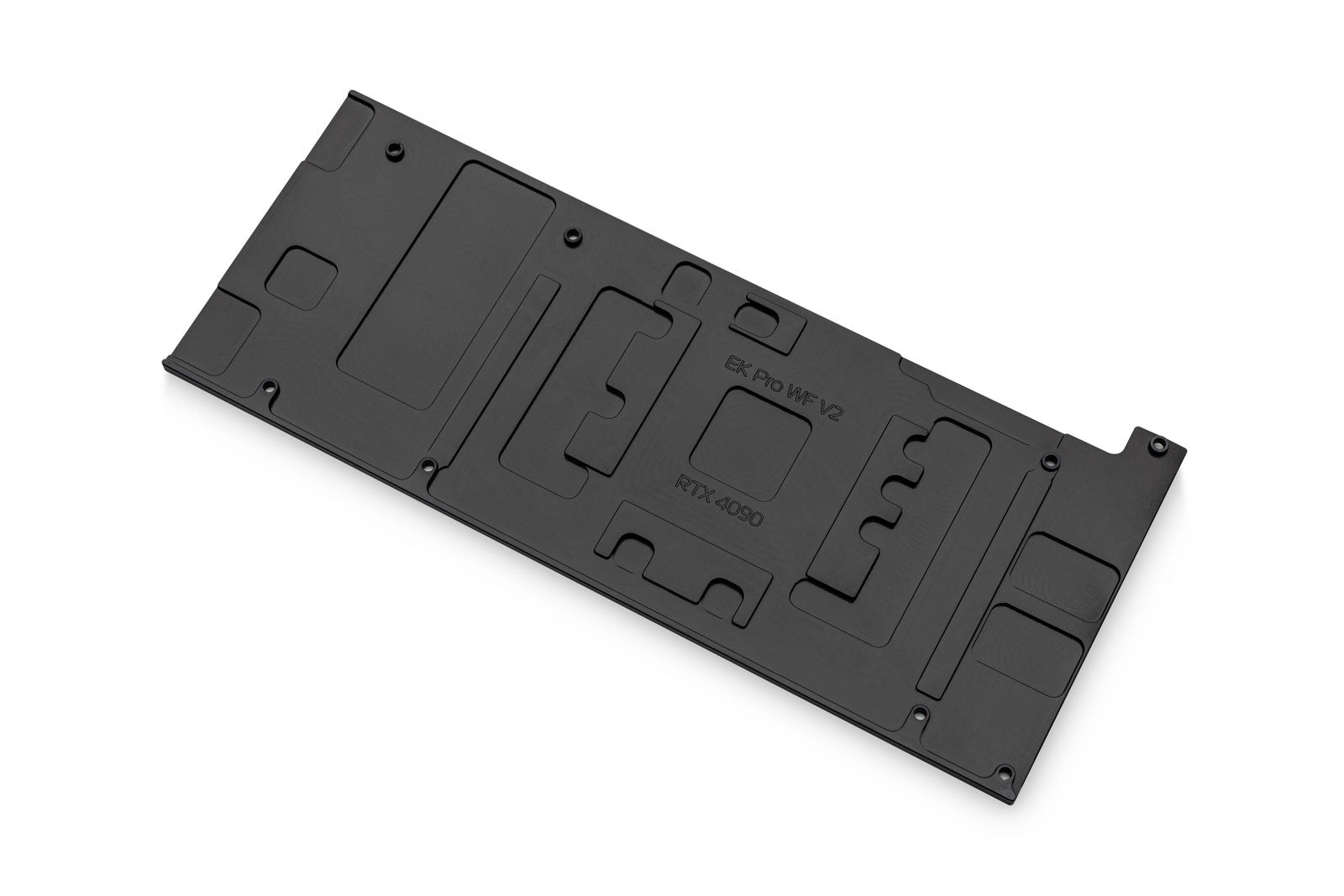

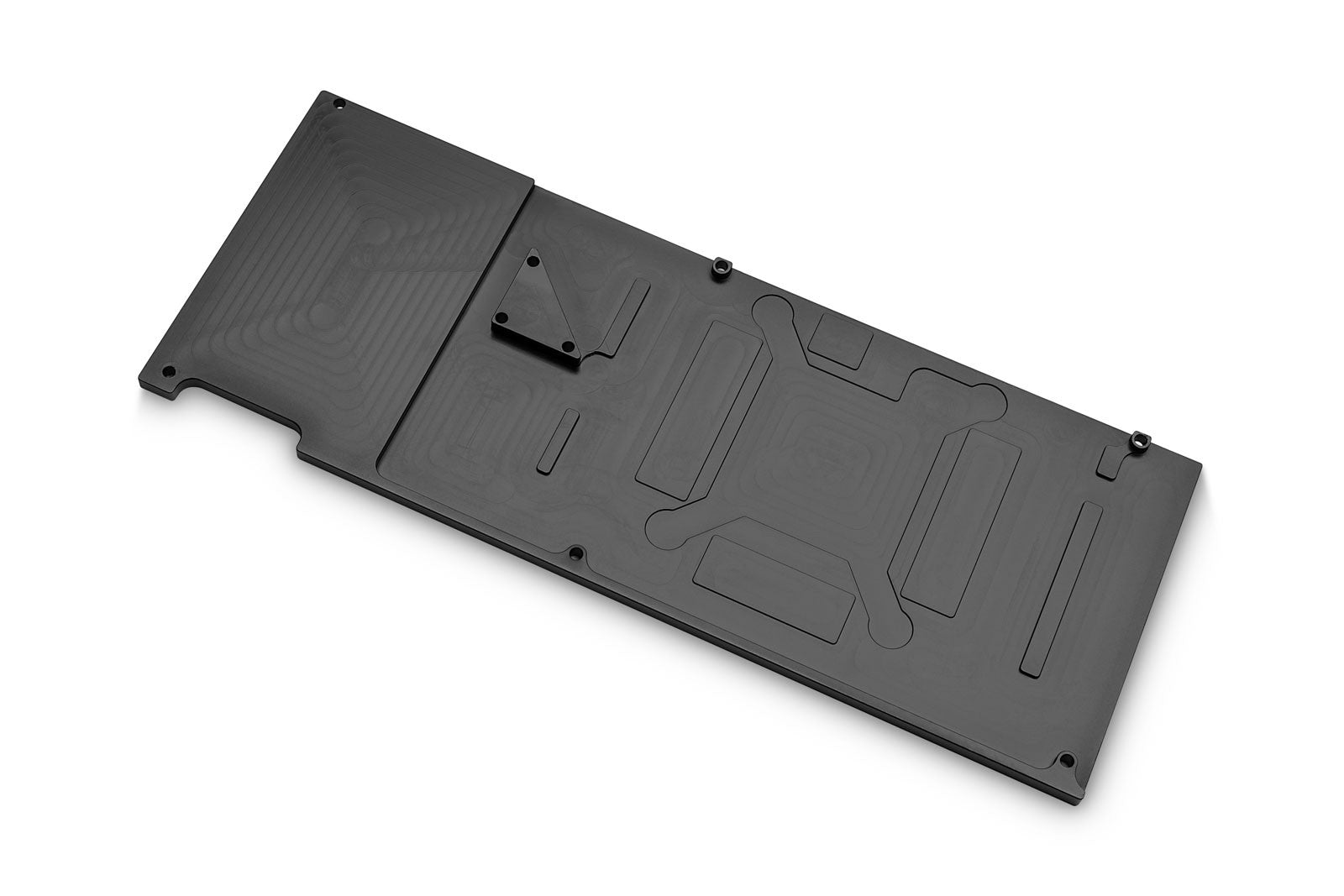

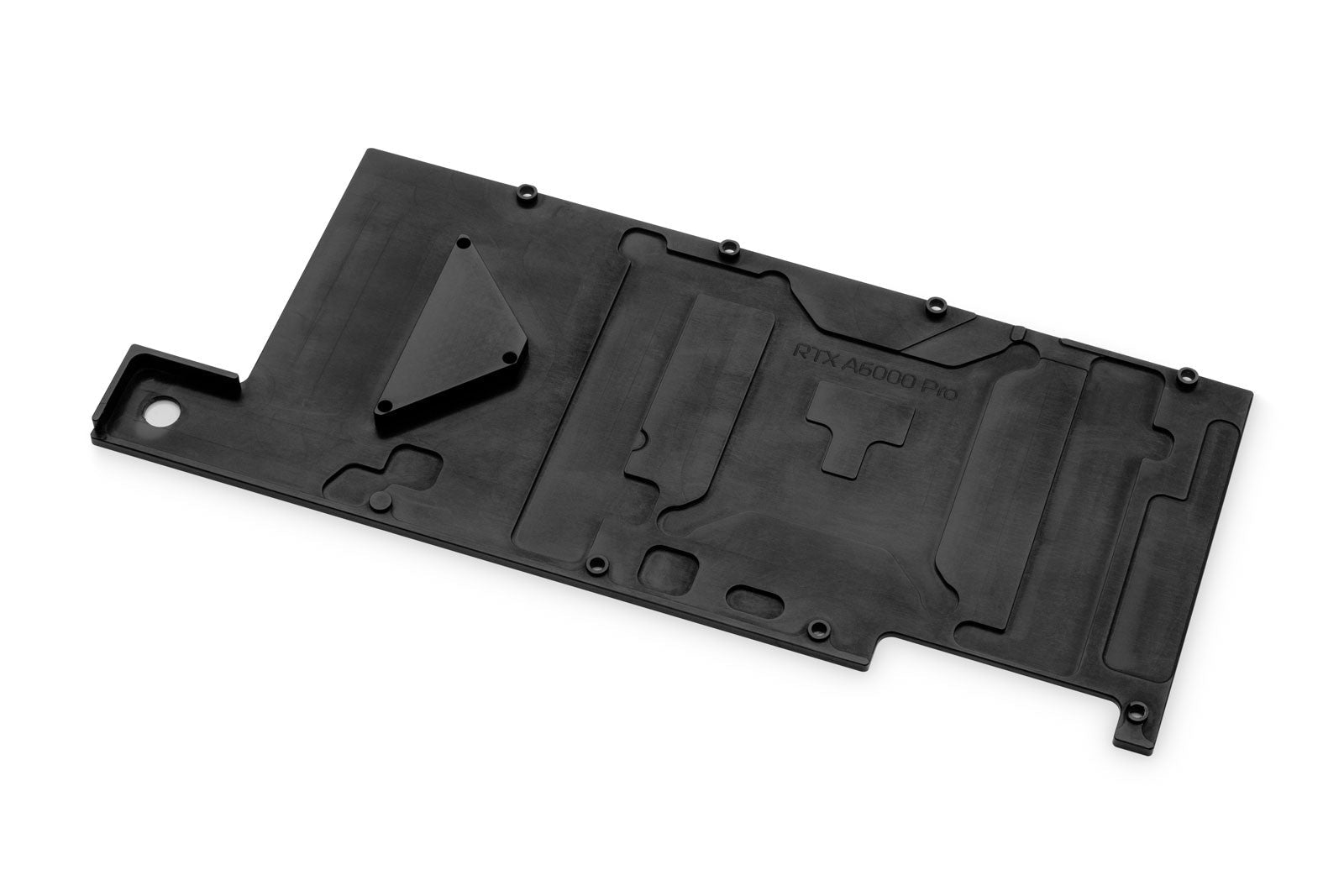

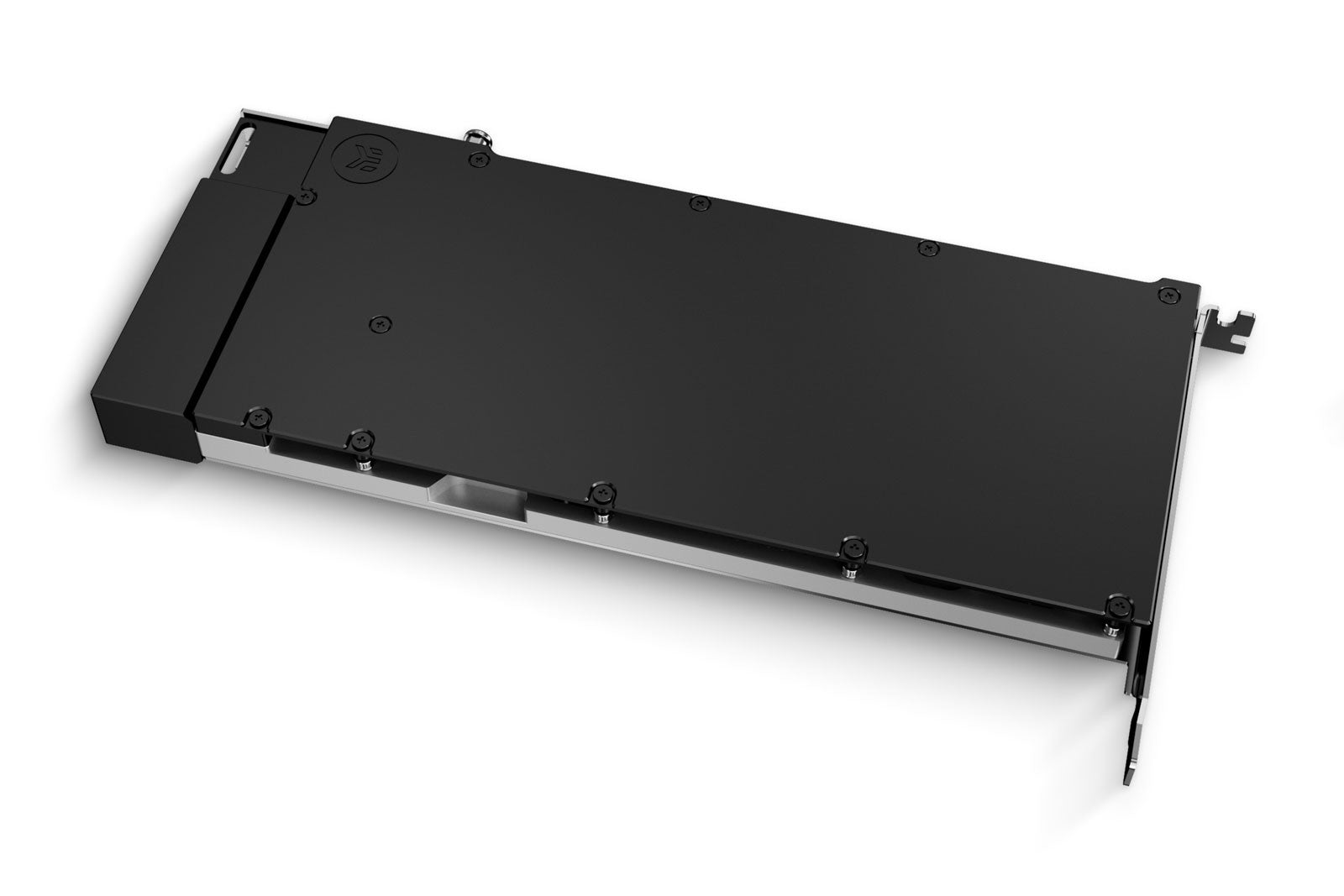

- Retention backplate
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- Thermal Interface Material
Technical Specifications:

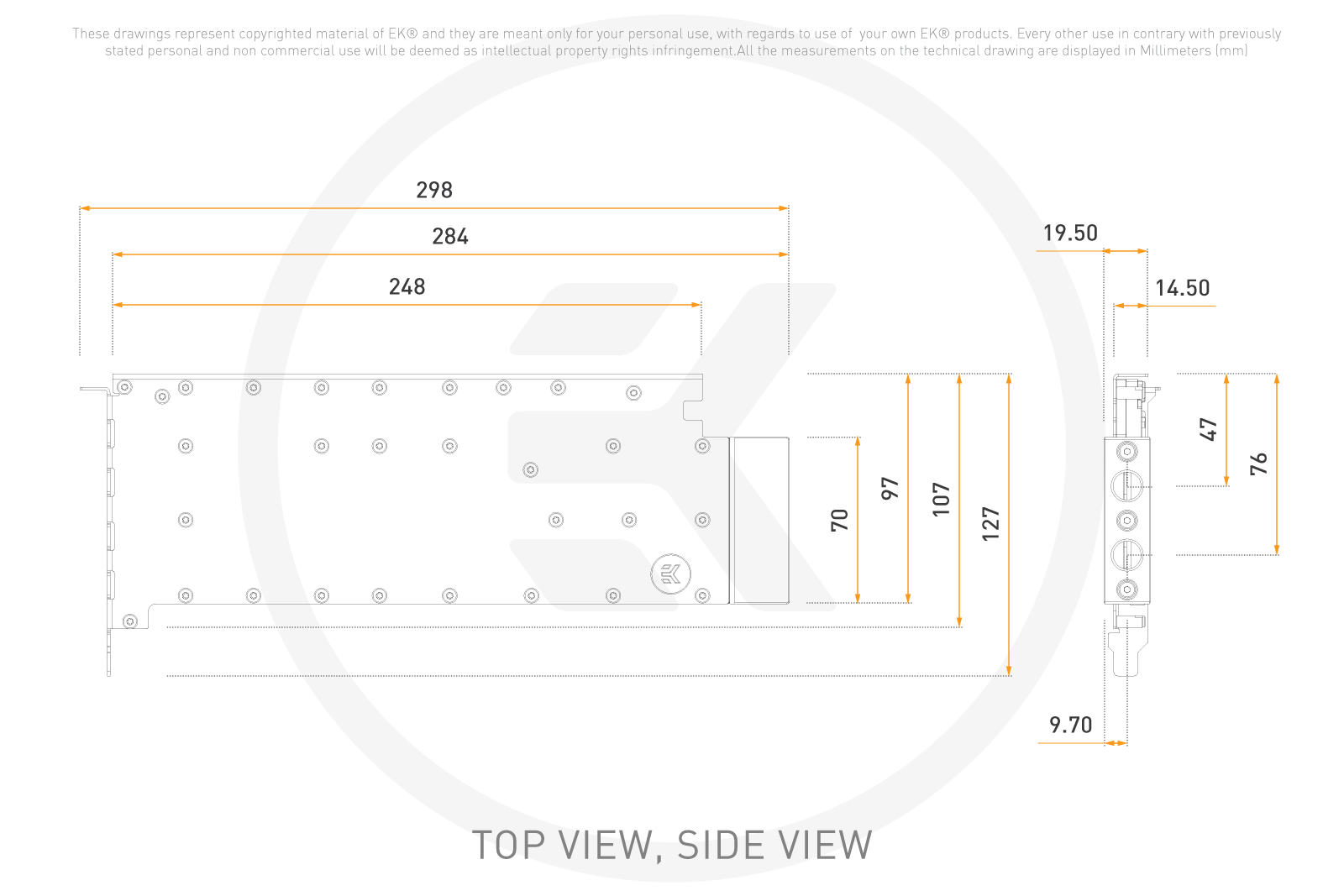

- Dimensions (L x H x W): 284 x 107 x19.50 mm
- Materials: Nickel-plated copper, stainless steel, POM
- Mass (kg): 1.365
- Ports: 2 x G1/4â?
- Mounting method: Backplate
- Working pressure: 2500 Pa
- Maximal working pressure: 30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
- Operating temperature range: 5 â?? 60 °C
Compatibility:
- Gigabyte GeForce RTXâ?¢ 4090 WINDFORCE V2 24G
Made in Slovenia - EU!
PLEASE NOTE:
- Due to the immense variety of fittings/barbs available, we only guarantee compatibility with EK fittings.
- Only compatible with the Gigabyte RTX 4090 WindForce V2 GPUs.
- Factory backplates are not compatible with this water block! Use only the backplate that comes with the water block.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
- The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated water block. EK is offering a selection of such products in the coolants section.
Additional Info
Material / Design / Color option |
Nickel + Inox |
|---|
Threads |
G1/4, G1/4 |
|---|
Chip Manufacturer |
Nvidia GeForce, Nvidia GeForce |
|---|
