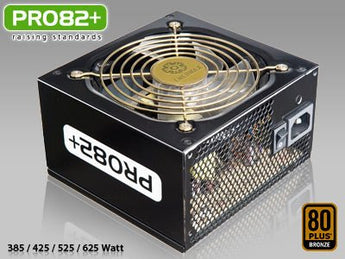

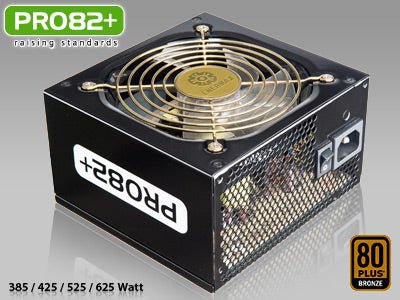

ENERMAX PRO82+ EPR625AWT 625W Modular Power Supply

82PLUS ready!

ErP Lot 6 2010 ready!

Advanced +5Vsb circuitry with up to 20% improved efficiency in comparison to generic designs helps your system meet ErP Lot 6 2010 (AC < 1W at standby) requirement. *With ErP Lot 6 enabled motherboard.

AirGuard

Optimal aero-dynamical design reducing noisy air turbulences.

100% Japanese Capacitors For maximum durability and stability. SpeedGuard Advanced fuzzy logic control for optimal cooling and minimum noise.(Patented)

HeatGuard Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime. CordGuard Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

SafeGuard

SafeGuard will turn PRO82+II off to protect itself and your system from damage.

( OCP = Over Current Protection, OPP = Over Power P., SCP = Short Circuit P., OVP = Over Voltage P., UVP = Under Voltage P., OTP = Over Temperature P., SIP = Surge & Inrush P. )

	82PLUS ready! World first ATX12V PSU series with 82-88% efficiency @ 20-100% load. Compliant with 80 PLUS® BRONZE efficiency requirements.
	ErP Lot 6 ready! Help system to meet ErP Lot 6 2010 (< 1W at standby mode) with high efficiency +5Vsb circuitry. (With ErP Lot 6 enabled motherboard.)
	AMD GAME! Ready and ATI CrossFireX certified AMD® AMD GAME! Ready and ATI CrossFireX? certified. (ENERMAX PRO82+II 625W, EPR625AWT II-01, ©2010 Advanced Micro Devices, Inc., ATI, The ATI logo, CrossFireX, and Radeon are trademarks of Advanced Micro Devices, Inc.)
	ATX12V v2.3 ready! Compliant with the newest standard for desktop power supplies.
	24/7 @ 40°C ready! Non-Stop industrial class performance at 40°C/104°F ambient.
	DXXI ready! 100% 6+2P (8P) PCI-E connector to support new generation DXXI graphic cards.
	GAMING ready! ATX12V v2.3 support for latest Intel® Core? 2 Duo/Quad/Extreme/i7/i5, and AMD® Athlon? 64X2 & Phenom? II and CrossFireX?.
	WORLD ready! 100-240VAC in with automatic adjustment and active PFC for global usage.
	HeatGuard Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.
	CordGuard Fixing the AC cord tightly to avoid accidental shutdowns of your PC.
	AirGuard Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulences.
	SafeGuard Advanced multiple protection circuitries of OCP, OVP, DC UVP, AC UVP, OPP, OTP , SCP & SIP protects your system.
	SpeedGuard Advanced fuzzy logic 12cm fan speed control for optimal cooling and minimum noise. (Patented)
	TRIPLE 12V rails The best rail design for this PSU class for maximum safety and compatibility.
	100% Japanese Electrolytic Capacitors Highest components standards for maximum durability and stability.

AC Input Voltage		100-240VAC, 50-60Hz, Active PFC (Maximum operation range: 90-265VAC, 47-63Hz)
AC Input Current		9.5 - 4A
DC output	Rated	3.3V	5V	12V1	12V2	12V3	-12V	5Vsb
		0.1-24A	0.1-24A	0.1-25A	0.5-25A	0-25A	0-0.6A	0-3A
	Combined	140W		600W (50A)			7.2W	15W
	Total Power	625W
	Peak Power	690W
