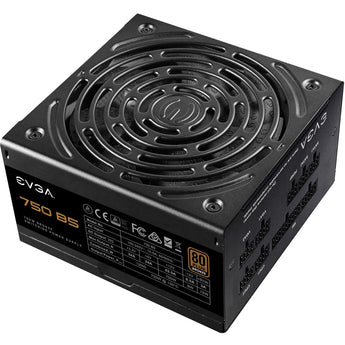

EVGA 750 B5, 80 Plus BRONZE 750W, Fully Modular Power Supply 220-B5-0750-V1

EVGA 750 B5 Power Supply - Introducing the EVGA B5 power supplies, the latest 80PLUS Certified Bronze power supplies to carry on the EVGA tradition of reliability, performance, and affordability. The B5 power supplies start with the most important standard for reliability - 100 percent Japanese Capacitors. Next, the B5 power supplies provide maximum flexibility by using a small chassis and a fully modular design. The ultra-quiet 135mm Fluid-Dynamic Bearing fan becomes silent when coupled with EVGA ECO mode to turn off the fan in medium to low loads. Last, but not least, the B5 power supplies have a full suite of protections and a 5-year limited warranty that you've come to know and expect from EVGA.

• 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads


• Fully Modular to reduce clutter and improve airflow


• EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads


• 5 Year Warranty and unparalleled EVGA Customer Support


• Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)


• Specification Compliance ATX12V/EPS12V


• Efficiency 85%


• Number of Fans 1


• Modular


• Input Voltage 120V AC* 230V AC


• Output Voltage  3.3V DC @ 24A* 5V DC @ 24A* 12V DC @ 62.5A* - 12V DC @ 0.5A* 5V DC @ 3A


• Output Power 750 W


• Form Factor Internal


• Height  86mm


• Width 150mm

Specifications:

Model

Brand	EVGA
Series	750 B5
Model	220-B5-0750-V1

Details

Type	ATX12V / EPS12V
Maximum Power	750W
Fans	1 x 135mm Fluid Dynamic Bearing Fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	6
Haswell Support	Yes
Modular	Full Modular
Efficiency	89% or Higher (Under typical load)
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	10 - 5 A
Output	+3.3V@24A, +5V@24A, +12V@62.5A, -12V@0.5A, +5Vsb@3A
MTBF	>100,000 Hours
Approvals	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, Compliance with ErP Lot 3 2014 Requirement
Dimensions	3.39 x 5.91 x 5.91
Max PSU Length	150 mm
Weight	3.30 lbs.

Features

Connectors

1 x 24 Pin ATX (20+4) 2 x 8 Pin EPS (4+4) 4 x 8 Pin PCIe (6+2) 6 x SATA 3 x Four-Pin Peripheral 1 x Floppy

Features

80 PLUS Bronze certified, with 85% efficiency or higher under typical loads Fully Modular to reduce clutter and improve airflow EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads 5 Year Warranty and unparalleled EVGA Customer Support Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

Additional Information

Date First Available	March 12, 2020
