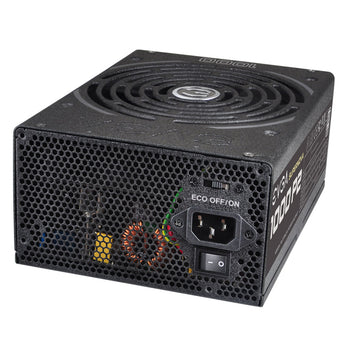

EVGA SuperNOVA 1000 P2, 80+ PLATINUM 1000W, Fully Modular, EVGA ECO Mode, 10 Year Warranty

EVGA SuperNOVA 1000W Platinum Power Supply

EVGA adds a platinum series power supply to its full line with the SuperNOVA 1000 P2. This Power supply is 80 PLUS Platinum rated with an efficiency of 92% under typical loads. The new ECO Thermal Control Fan System offers Fan RPM modes to provide zero fan noise during low load operations. This provides improved efficiency for longer operation, less power consumption, reduced energy costs and minimal heat dissipation. Backed by a 10-year warranty, gain peace of mind from the heart of your system and power up with the EVGA SuperNOVA 1000 P2!

• 80 PLUS Platinum high efficiency power supply certified @ 50% load (92% Efficiency)


• Superior vertical double layer main transformer


• Dual Thermal Control System provides custom Fan RPM modes


• ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45°C)


• Japanese Nippon Chemi-Con solid state capacitors improves long-term reliability


• High Amperage Single-Rail Design for maximum power and efficiency


• Over Power/Under Power/Over Voltage/Short Circuit protections built in


• Fully modular cable design (Improve airflow/cable management)

Brand

EVGA

Model

220-P2-1000-XR

Series

SuperNOVA 1000 P2

Details

Type

ATX12V / EPS12V

Maximum Power

1000W

Fans

1

Main Connector

24Pin

+12V Rails

Single

PCI-Express Connector

2 x 6-Pin, 6 x 6+2-Pin

SATA Power Connector

10

SLI

SLI Ready

Haswell Support

Certified

CrossFire

CrossFire Ready

Modular

Full Modular

Efficiency

92%

Energy-Efficient

80 PLUS PLATINUM Certified

Over Voltage Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

50/60 Hz

Output

+5V@20A, +3.3V@20A, +12V@83.3A, -12V@0.5A, +5Vsb@2.5A

MTBF

>100,000 Hours

Approvals

TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
