EZConvert M.2 SATA SSD to 2.5" SATA SSD Converter Adapter

MB703M2P-B

ICY DOCK's EZConvert MB703M2P-B is a complete solution to convert any M.2 SATA SSD into the exact dimensions and port locations as a standard 2.5 SSD (9.5mm height).

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$19.95 $9.98 Sale Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

ICY DOCK's EZConvert MB703M2P-B is a complete solution to convert any M.2 SATA SSD into the exact dimensions and port locations as a standard 2.5 SSD (9.5mm height). Designed for compatibility, it accepts all M.2 sizes from 30mm to 80mm in length, mounting them without screws or tools, and allows these drives to be installed anywhere that accepts a bare 2.5 drive, such as a hot-swap bay, 2.5 mounting bracket, or in any of ICY DOCK's 2.5 drive enclosures. MB703M2P-B protects the delicate circuit board of your M.2 SSDs from bumps and drops.

Features














Key Features























































*


Convert your M.2 SATA SSD to a 2.5 SSD form factor, 9.5mm in height


*

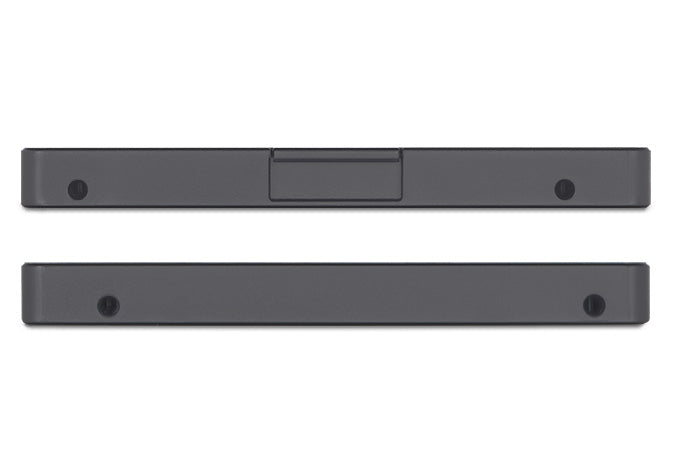

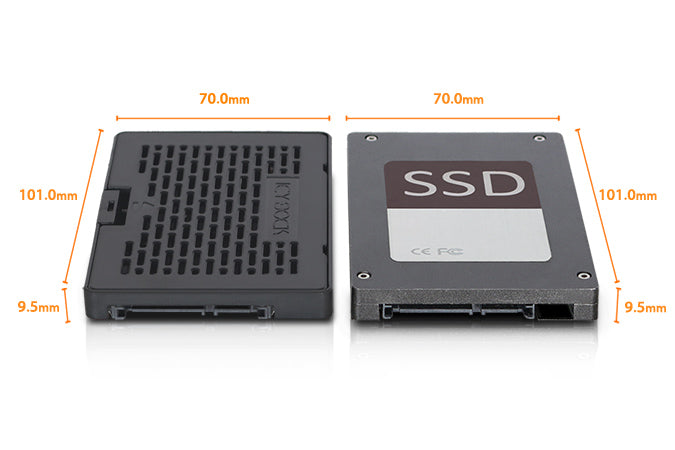

Exact same dimensions, port locations, and screw locations as a 2.5 SSD (9.5mm height)


*

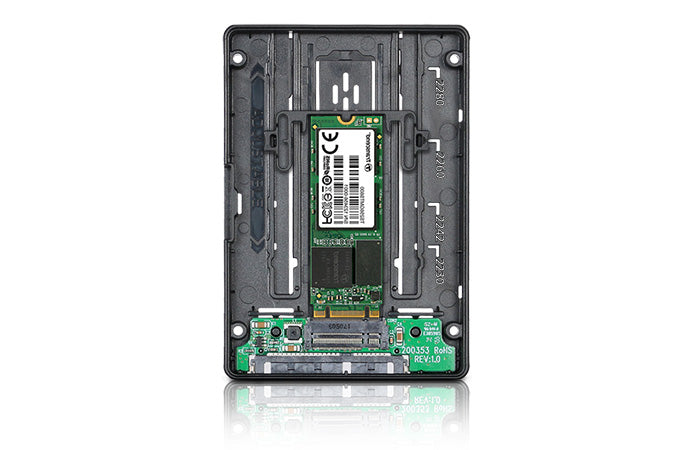

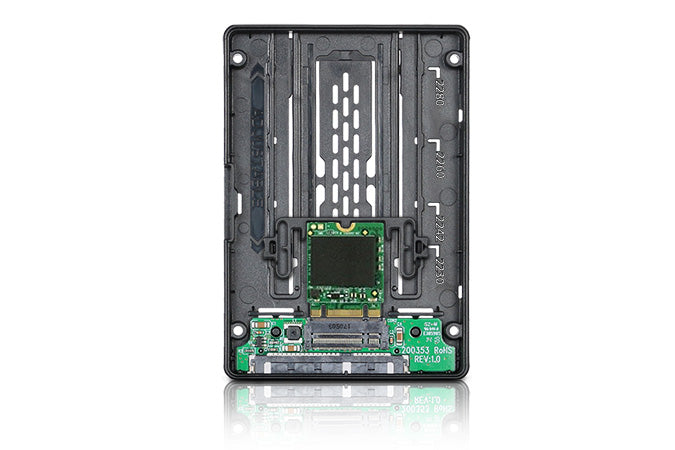

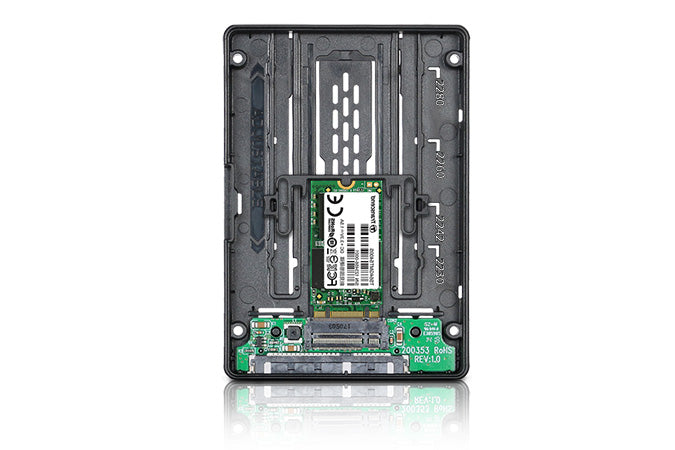

Accepts any M.2 SATA SSD from 30mm to 80mm in length (2230 / 2242 / 2260 / 2280)


*


Enables hot-swap functionality for any M.2 SATA SSD


*


Supports full SATA III bandwidth specification of 6Gbps


*

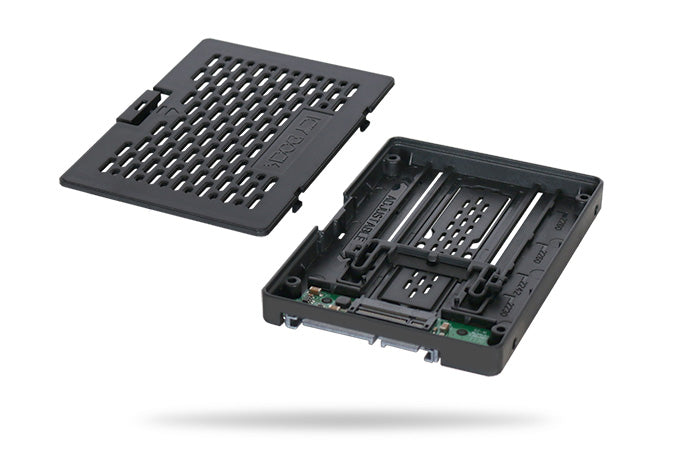

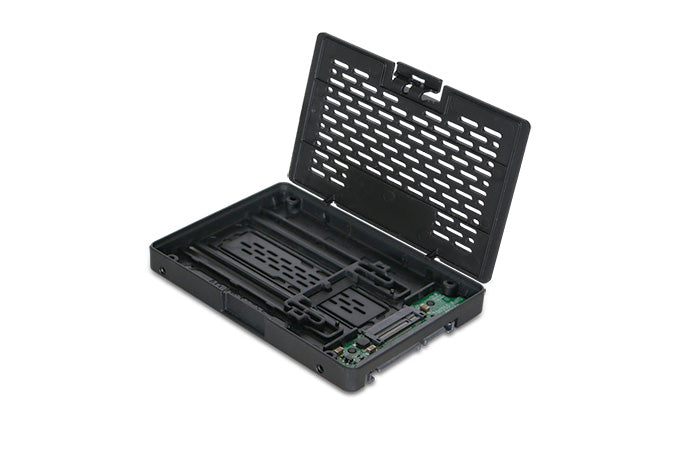

100% tool-less and screw-less M.2 drive installation


*


Can be installed into any 2.5 backplane, hot-swap bay, or USB drive adapter.


*

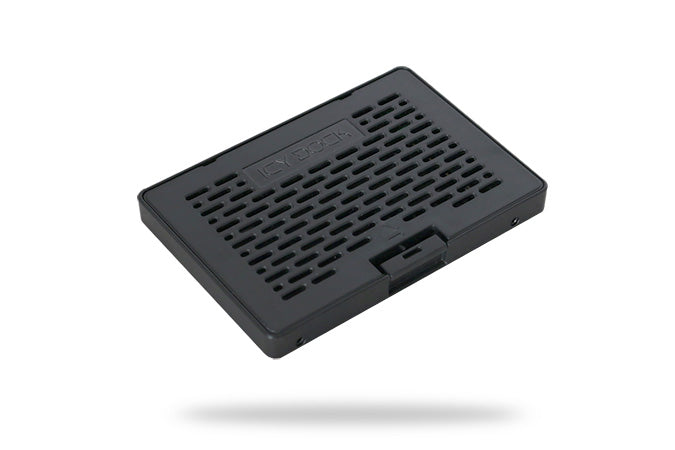

Sturdy ABS plastic construction


*

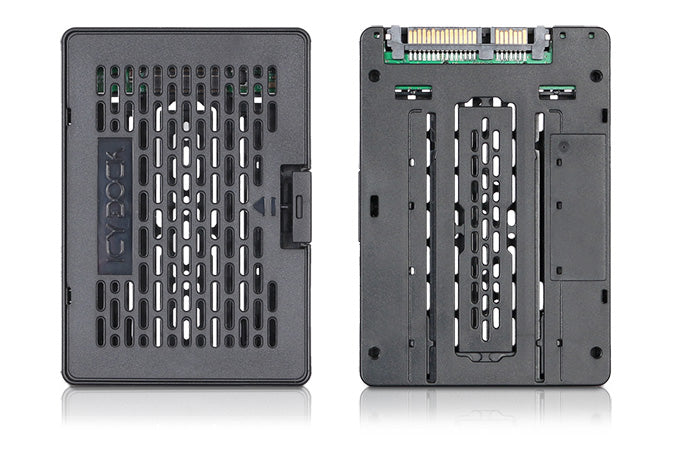

Body and lid each use strong one-piece construction.


*

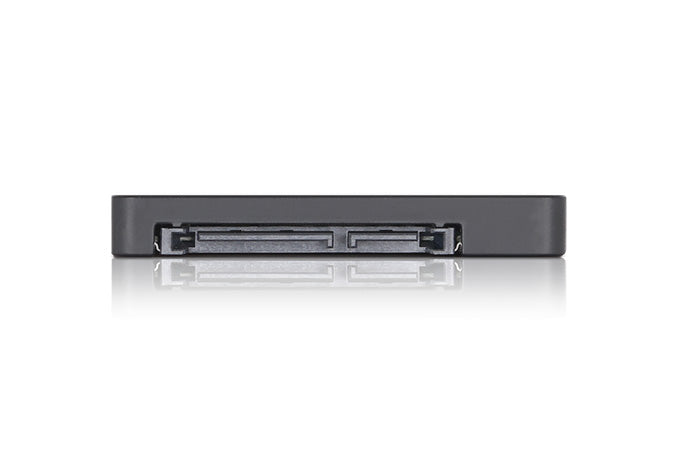

Supports SATA data and power cables with locking latch designs


*


Industry leading 3 year warranty with exceptional customer support


*


Complimentary technical support from trained US-based ICY DOCK support technicians


Specifications












































































Product Name :


M.2 SATA SSD to 2.5 SATA SSD Converter Adapter











Model Number :


MB703M2P-B











Color :


Black











Support Drive Size:


1 x B / B + M key M.2 SATA SSD 2230/2242/2260/2280











Compatible Drive Type :


SATA











Number of M.2:


1











Drive Bay :


1 x 2.5 SATA drive bay (9.5mm - 15mm)











Host Interface :


1 x SATA 7pin











Power Input :


1 x SATA 15pin power connector











Transfer Rate :


Up to 6Gbps (Depending on hard drive speed)











Support HDD Capacity :


No Limitation











Structure / Material :


Plastic











Support Hot-Swap :


Yes











Product Dimension (W x H x D) :


70.0 x 9.5 x 101.0mm











Product Net Weight :


28g











Package Gross Weight :


53g











Package contents :


device, user manual











SATA Connector Insertion Rate :


10,000











Humidity :


5%~65% RH











Operating Temperature :


0°C to 60°C (32°F to 140°F)











Storage Temperature :


-35°C to 70°C (-31°F to 158°F)
