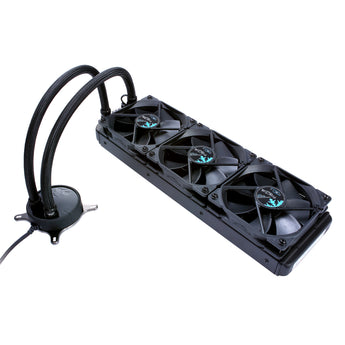

Fractal Design Celsius S36 Cooling Fan/Radiator - Blackout

Fractal Design

FD-WCU-CELSIUS-S36-BKO

The Celsius series builds upon proven technology with cutting edge advancements and premium sound dampening materials to deliver extreme cooling performance with minimum noise output.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$139.99 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The Celsius series builds upon proven technology with cutting edge advancements and premium sound dampening materials to deliver extreme cooling performance with minimum noise output.

Smart dual mode speed controls are both simple and robust with no need for additional software. Both fan and pump speeds can be managed by an intelligent auto mode or switched to PWM mode for precise user control.

For true enthusiasts, the satisfaction of a clean and efficient build can never be overstated, and the Celsius makes this easier than ever with an integrated fan hub and concealed cable routing.
Features


  • The Celsius series uses a combination of cutting edge technology and premium sound dampening materials to deliver extreme cooling performance with minimum noise output.

  • An intelligent temperature-controlled auto mode adjusts fan and pump speeds in real-time for optimum balance of cooling performance and silence, while PWM mode enables precision manual tuning for any usage situation.

  • Included Fractal Design Dynamic X2 PWM fans offer a wide speed adjustment range from 500 to 2000 RPM allowing for near silent operation under lighter loads and maximum airflow during heavy usage.

  • An integrated fan hub with concealed cable routing simplifies cable management for a clean installation.

  • Radiator fittings use standard G 1/4 thread for maximum compatibility and expandability with standard do-it-yourself components. Easily add and integrate a GPU block of your choice to eliminate noisy graphics card fans so the only sound you hear is the sound of your game.
Specifications



General specifications






  • Coldplate technology

    Fifth generation



  • Coldplate material

    Copper



  • Additional sound dampening

    Integrated



  • Thermal paste

    Pre-applied, high thermal conductivity



  • Sockets supported (Intel)

    1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-v3, 2066 (via included 2011-v3 kit)



  • Sockets supported (AMD)

    AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)

    â??CPU brackets and screws may vary due to manufacturer revisions.â?





  • Tube length

    400 mm



  • Tube material

    Sleeved low-permeability rubber tubes



  • Fittings, block side

    Durable metal fittings, non-removable



  • Fittings, radiator side

    Durable metal fittings, G 1/4 thread



  • Fan control

    Integrated dual mode



  • Warranty

    5-year pre-expansion (Post-expansion, only individual components of the Fractal Design Celsius S24 or S36 are covered)







Fan specifications






  • Fan type

    Fractal Design Dynamic X2 GP-12 PWM



  • Rotational speed

    500-2,000 RPM



  • Bearing

    LLS



  • PWM control

    Yes



  • Acoustical noise (full speed)

    32.2 dB (A)



  • Maximum air flow

    148.8 m3/h | 87.6 CFM



  • Maximum static pressure

    2.30 mm H2O



  • Input voltage

    12 V



  • Maximum input current

    0.2 A



  • MTBF

    >100,000 hours







Pump specification






  • Rotational speed

    1,950-3,150 RPM



  • Bearing type

    Ceramic bearing and shaft



  • PWM control

    Yes



  • Acoustical noise (full speed)

    20,0 dB (A)



  • Maximum pressure, 50°C

    1m H2O | 1.45 PSI



  • Input voltage

    12 V



  • Input current (without fans)

    0.15 A



  • Rated input power (with fans)

    9 W



  • MTTF

    >50,000 hours







Radiator specification






  • Dimensions

    403 x 123 x 30 mm



  • Housing material

    Aluminum



  • Fin material

    Aluminum



  • Port threads

    G 1/4



  • Fan screw threads

    UNC 6-32







Other






  • Package contents

    Celsius S36 system, 3x Dynamic X2 GP-12 PWM fans, Multilingual user manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws



  • Package Dimensions

    472 x 144 x 177
