Fractal Design Define 7 Clear Tempered Glass - White

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use. The dual-layout interior, industrial sound damping, and classic styling make it an easy choice for any design-conscious PC builder in need of a versatile and dependable case that accommodates ambitious builds and leaves you room to grow.

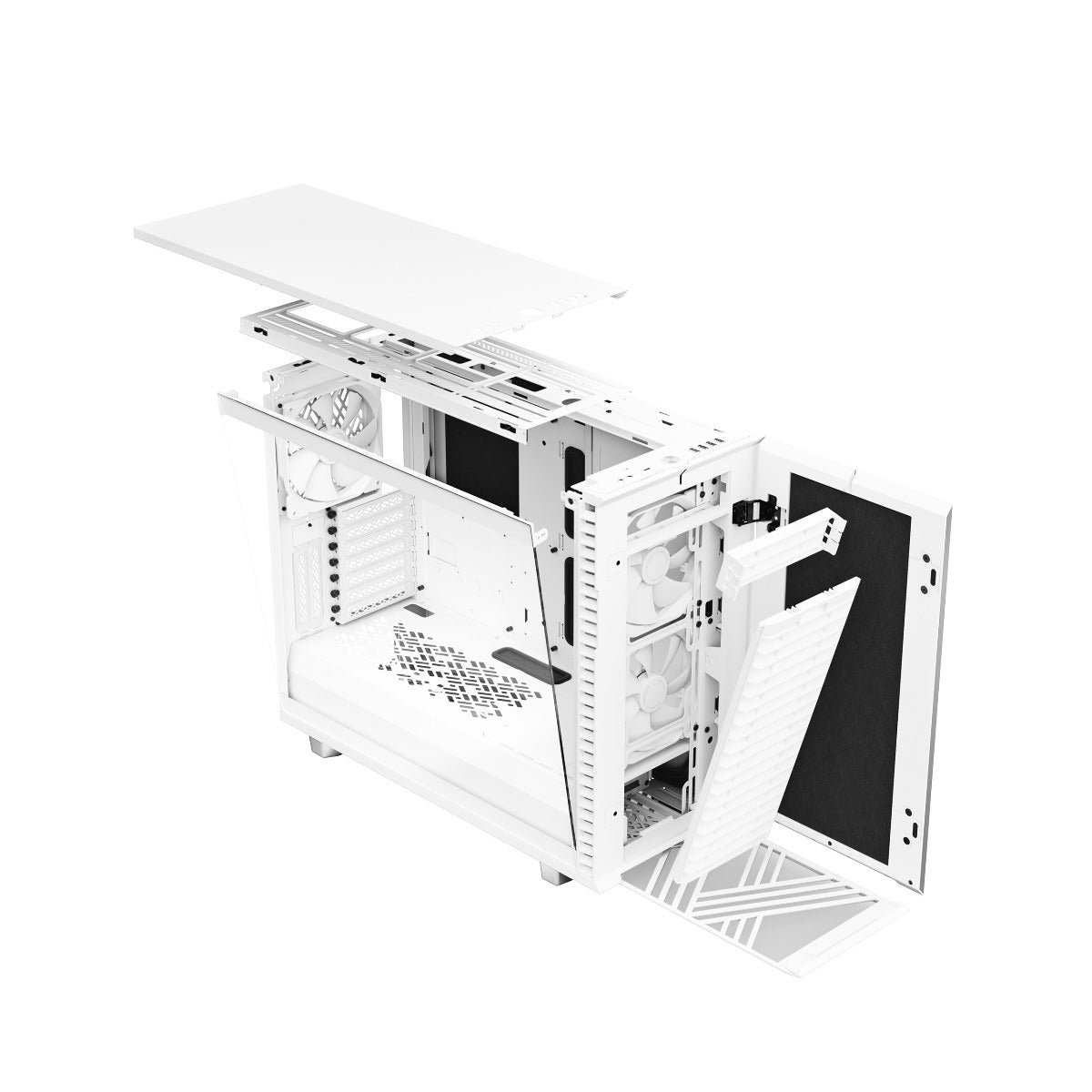

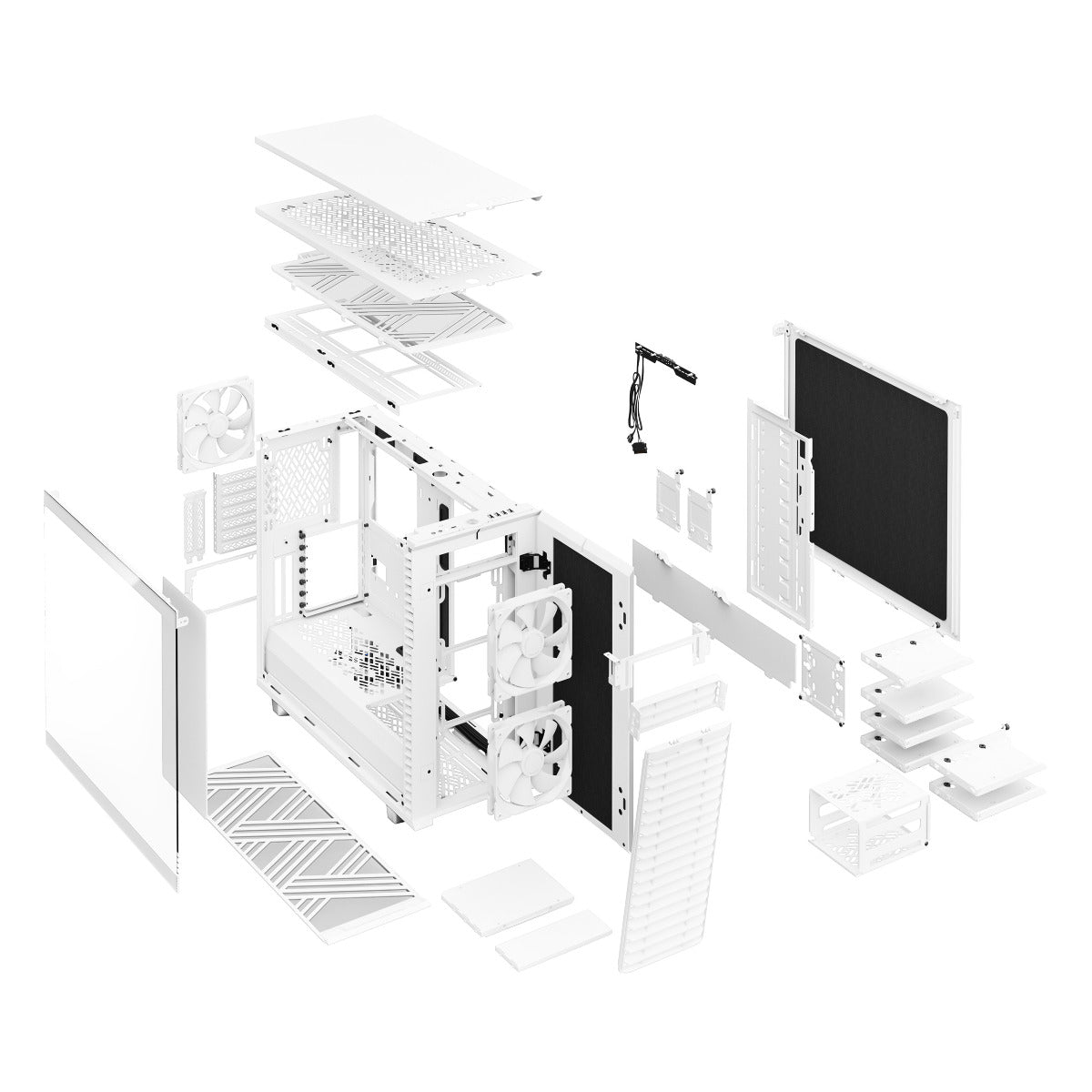

Open and interchangeable

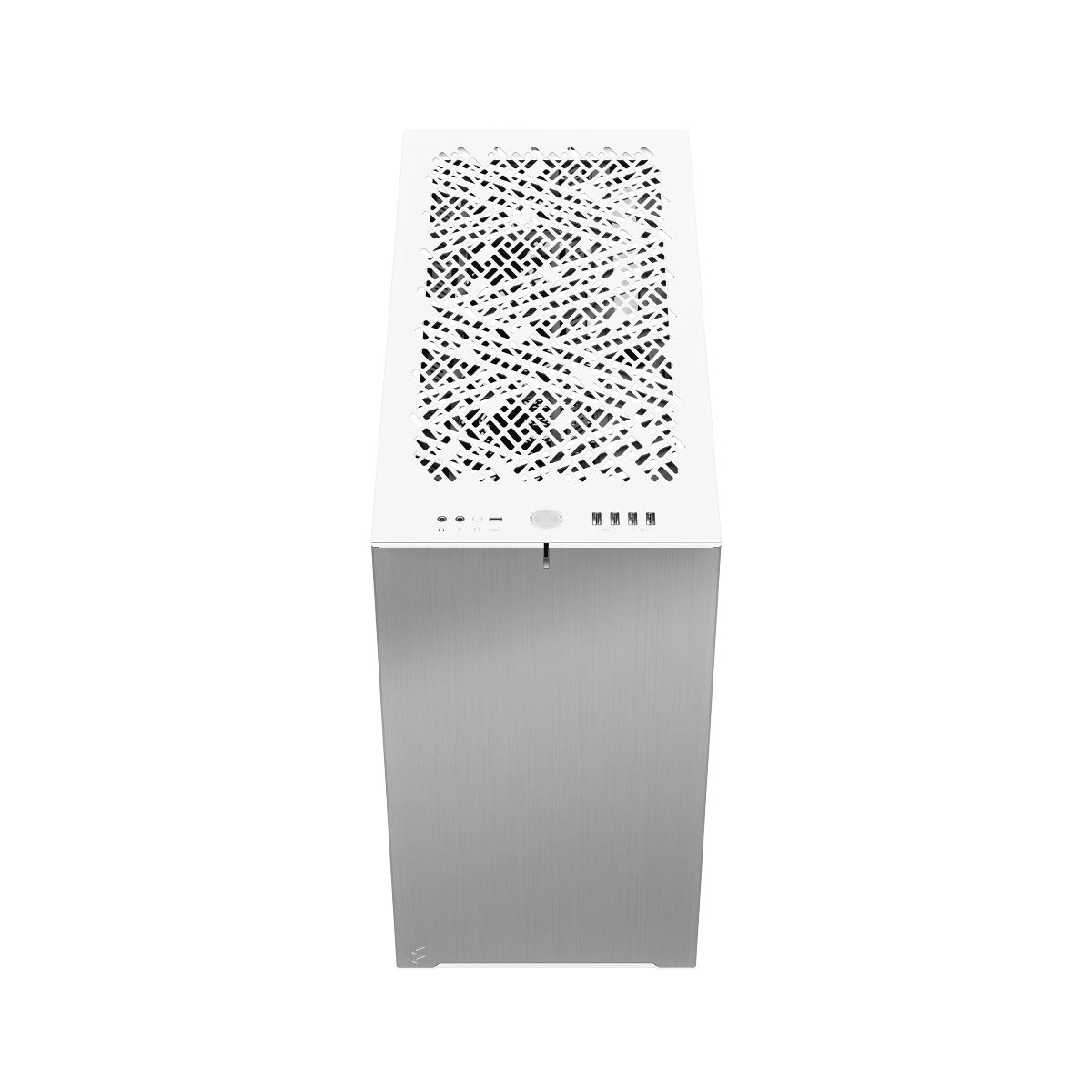

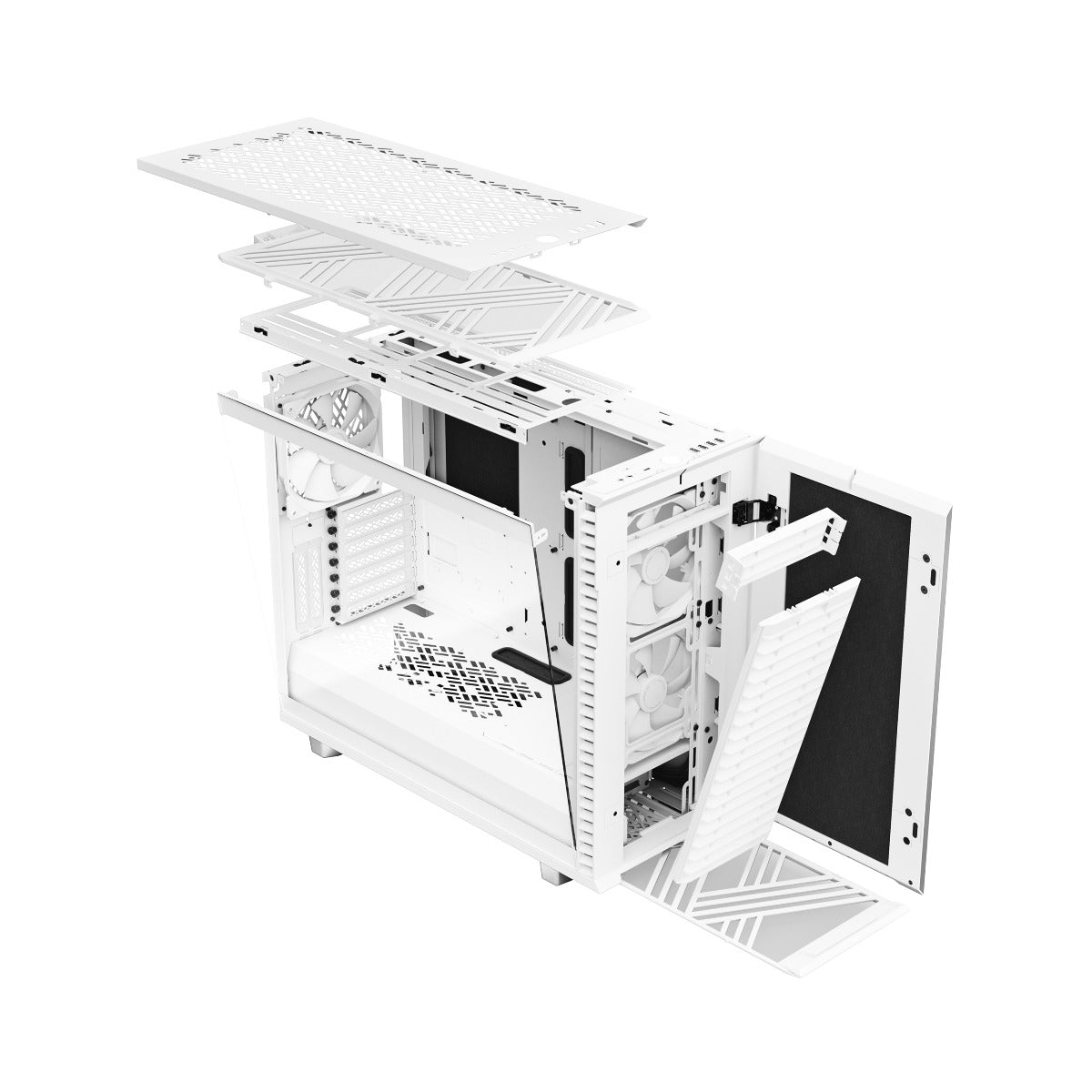

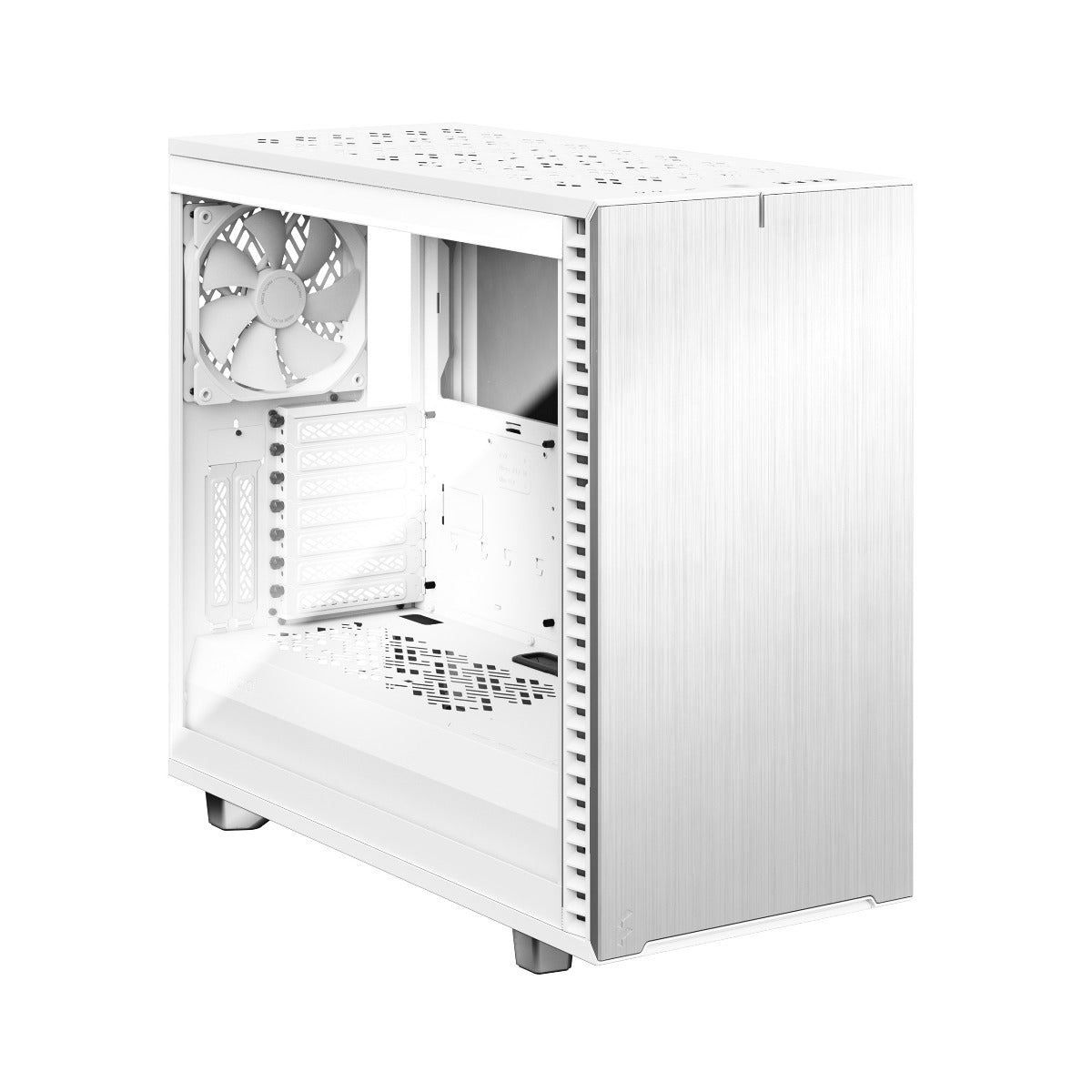

Swap in the ventilated panel to add three filtered fan positions; remove the entire top to build and route with zero hindrance



Superior airflow by design
Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.

• Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions


• Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access


• The single 5.25â? ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering

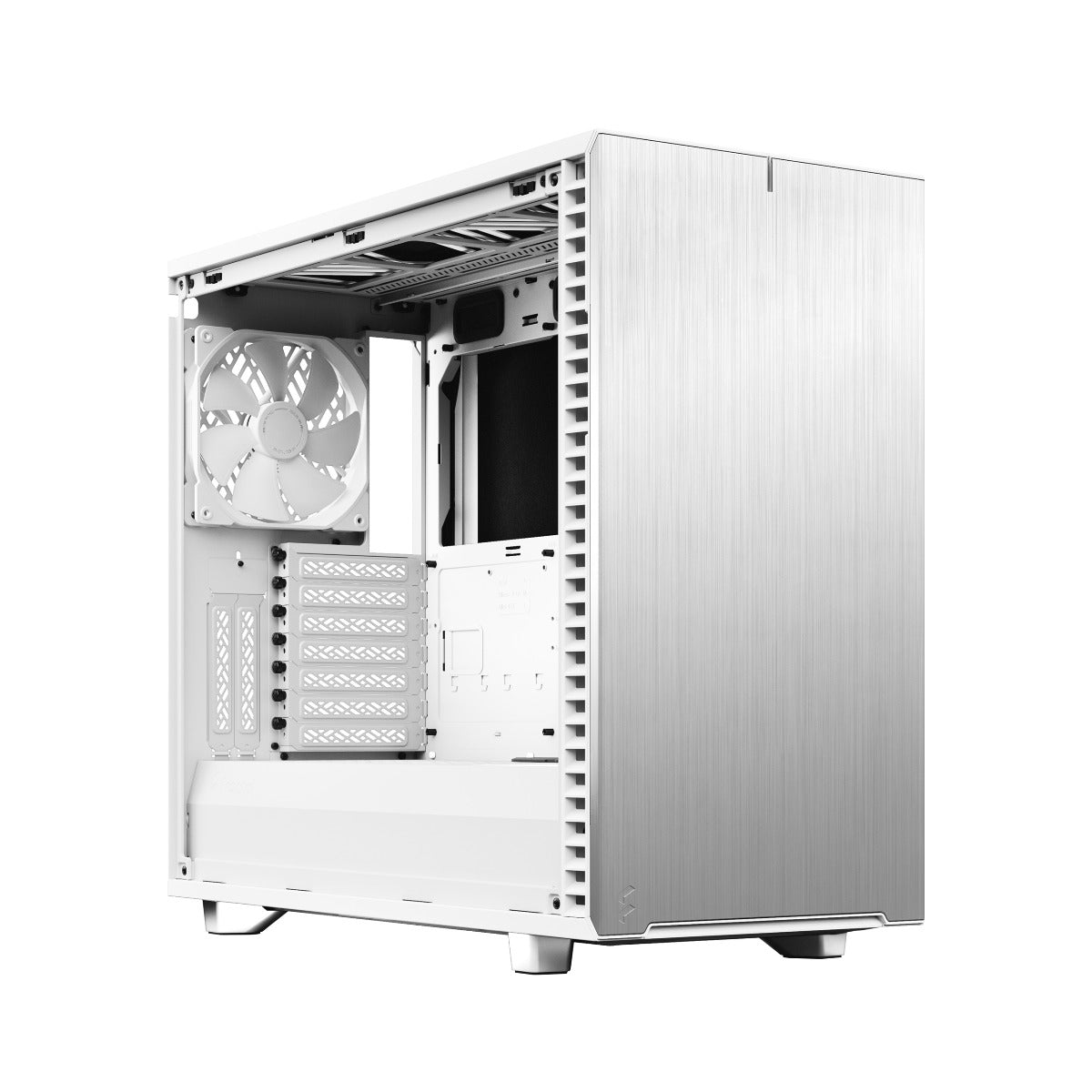

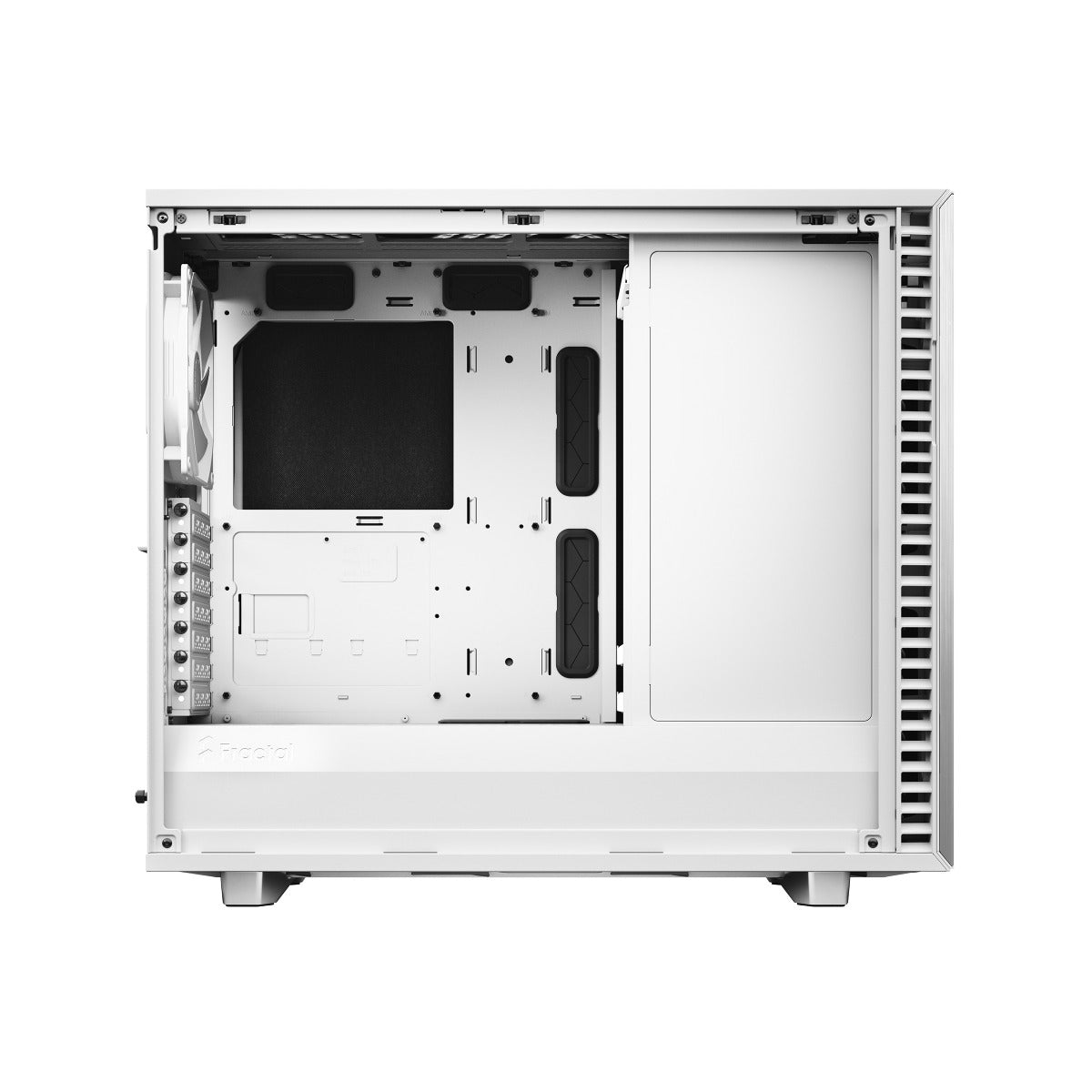

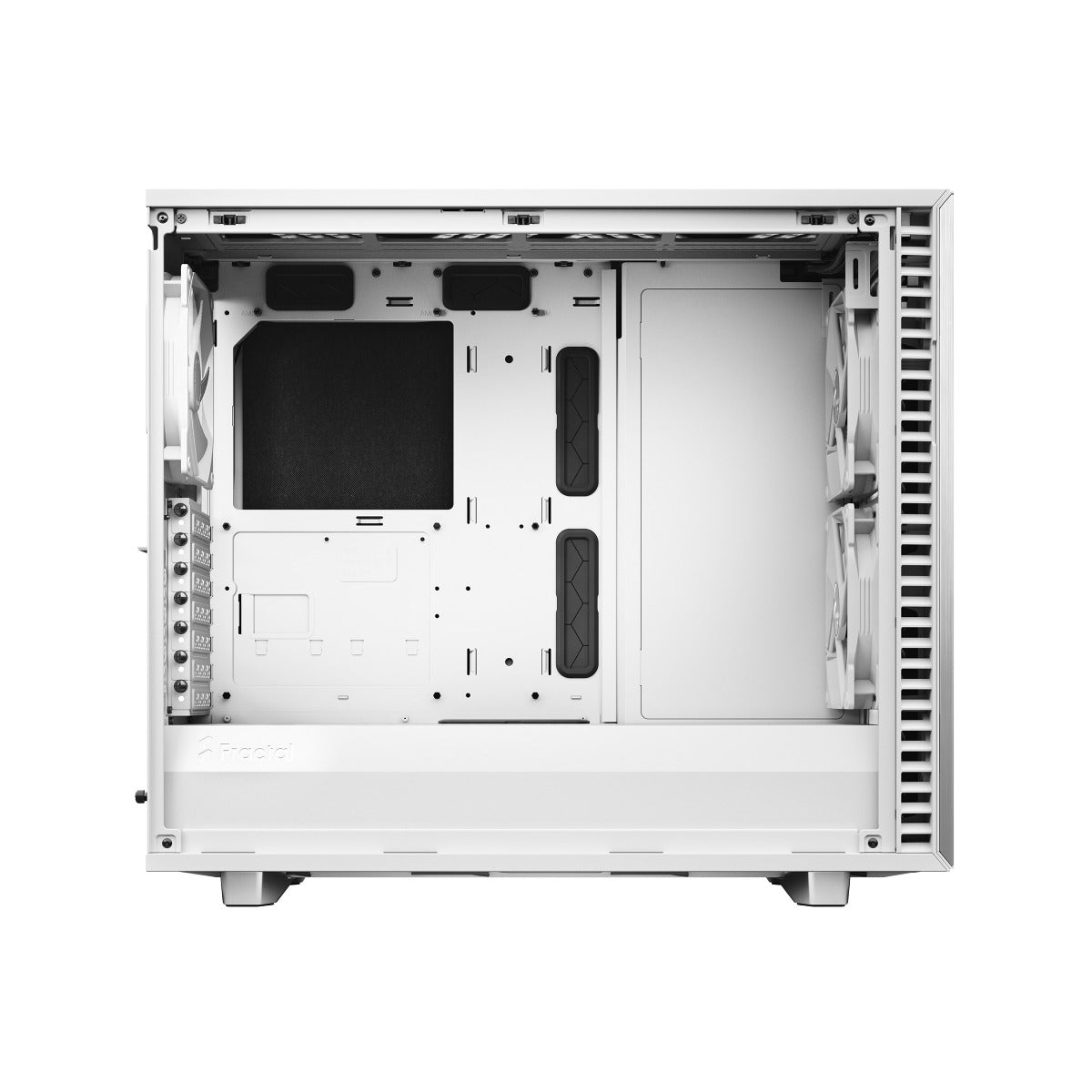

Open layout for massive headroom

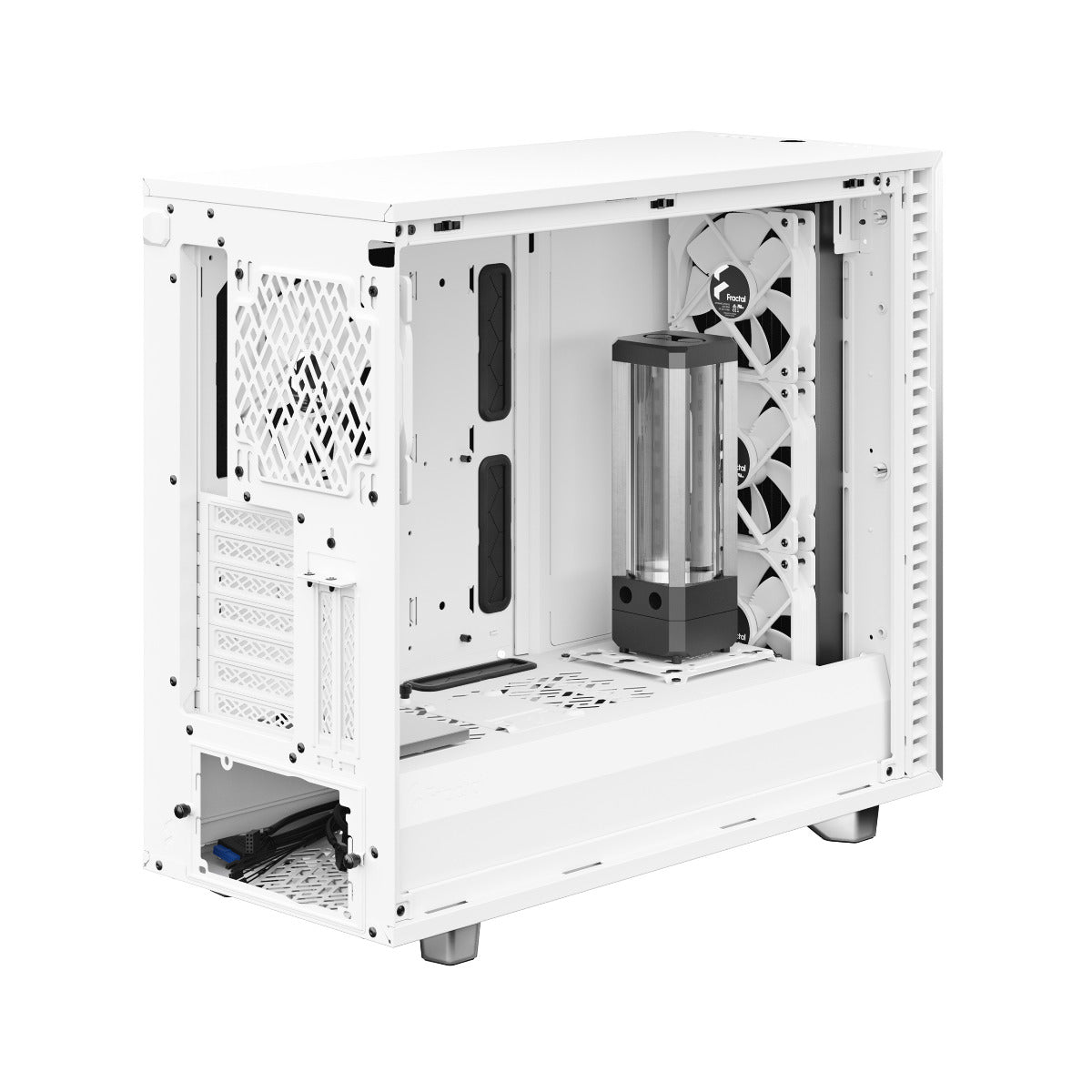

Youâ??ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

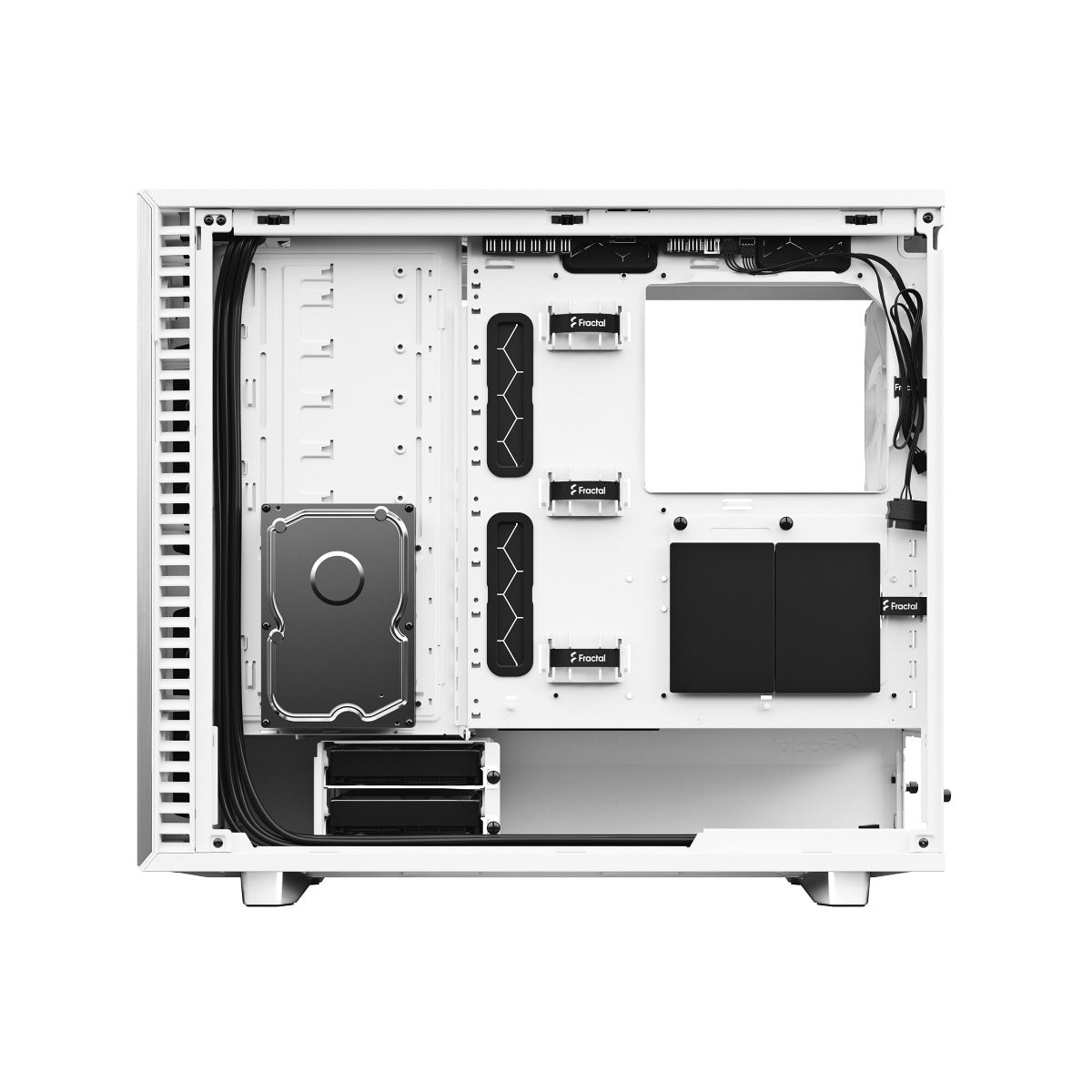

• Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX


• Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base


Superlative storage(6 SSD/HDD trays + 2 SSD brackets + 1 Multibracket included)

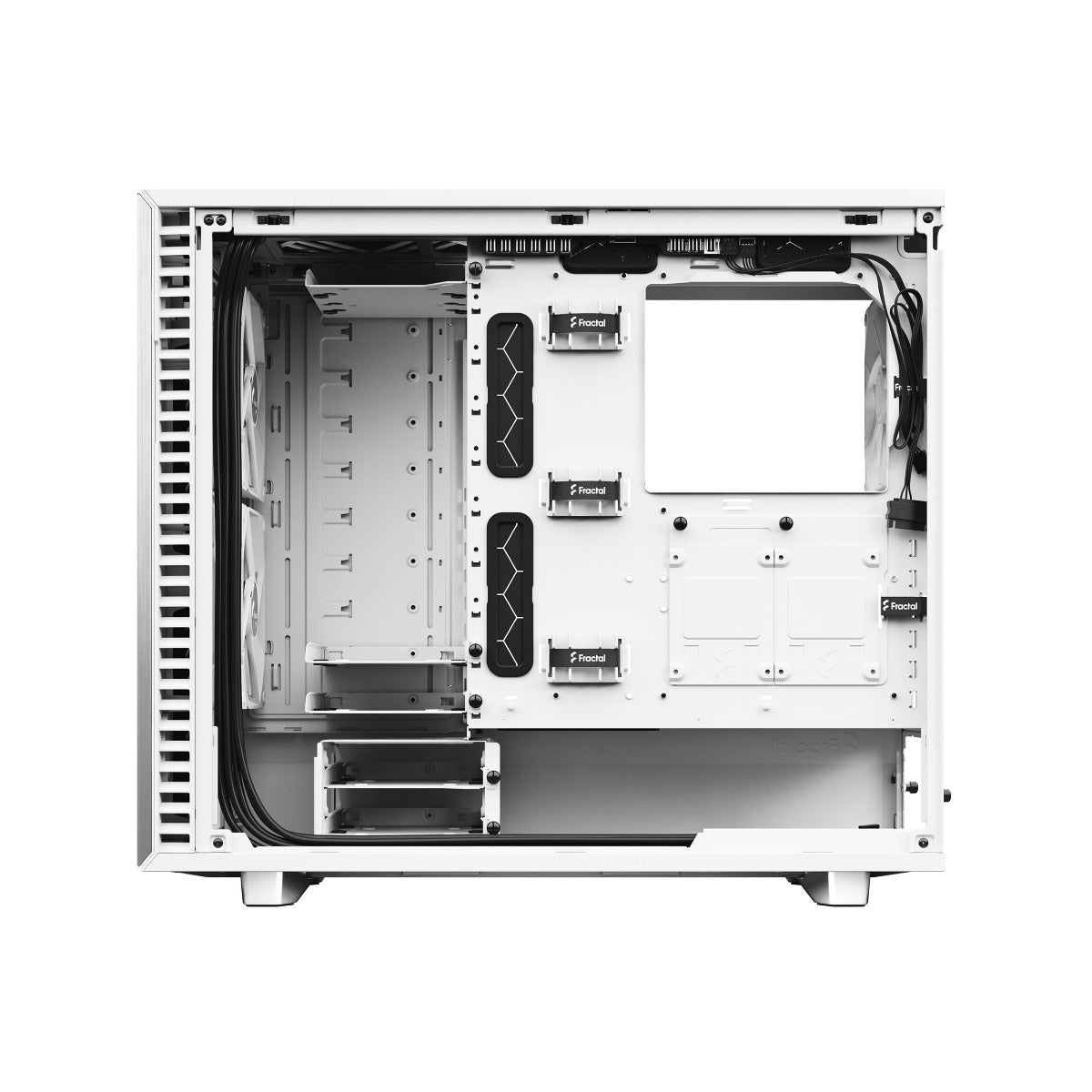

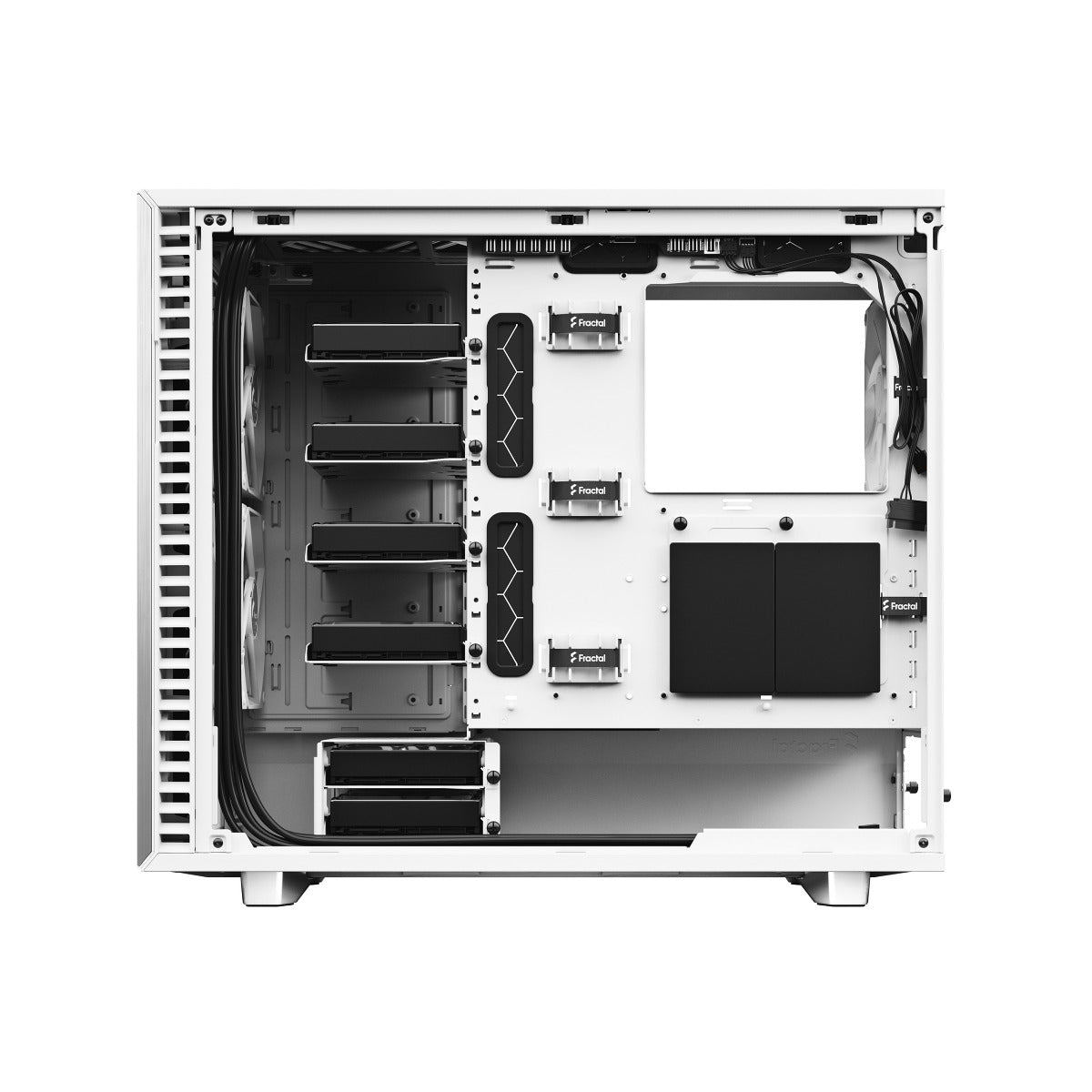

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts

• 6 universal HDD/SSD brackets included with 14 positions total in Storage Layout


• 2 dedicated SSD brackets included with 4 positions total


• Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount


• Sturdy new HDD cage design with vibration damped trays



Exceptionally silent
Silence-optimized construction with industrial sound-damped front, top, and side panels

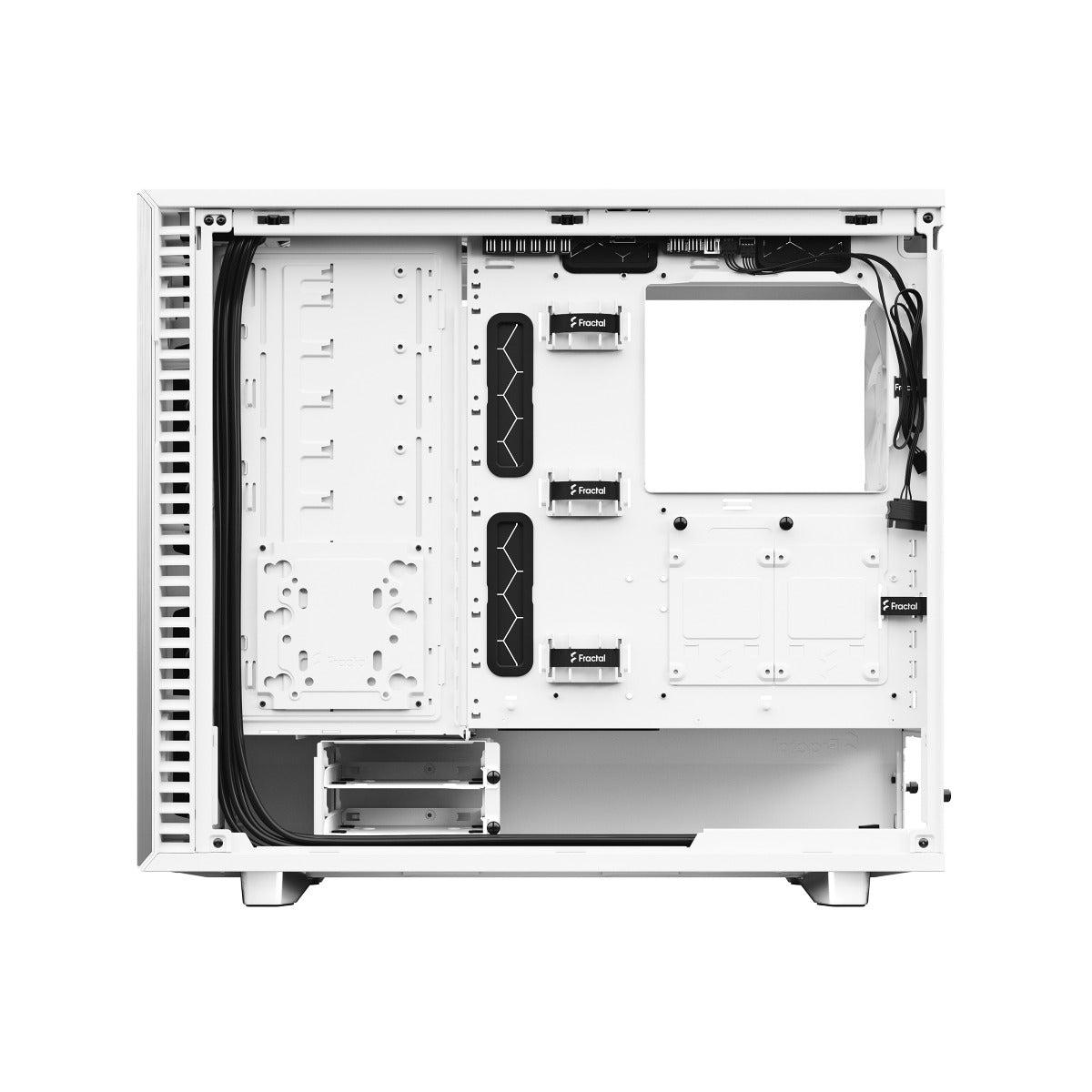

Cable management
Integrated cable guides with Velcro ties simplifies cable management behind the board



Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans



Type-C interface
Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps



Versatile new Multibracket
The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount

• Specifications




• 3.5/2.5 Universal drive brackets: 6 included, 14 positions total


• Dedicated 2.5 drive brackets: 2 trays included, 4 positions total


• 5.25â? drive mounts: 1

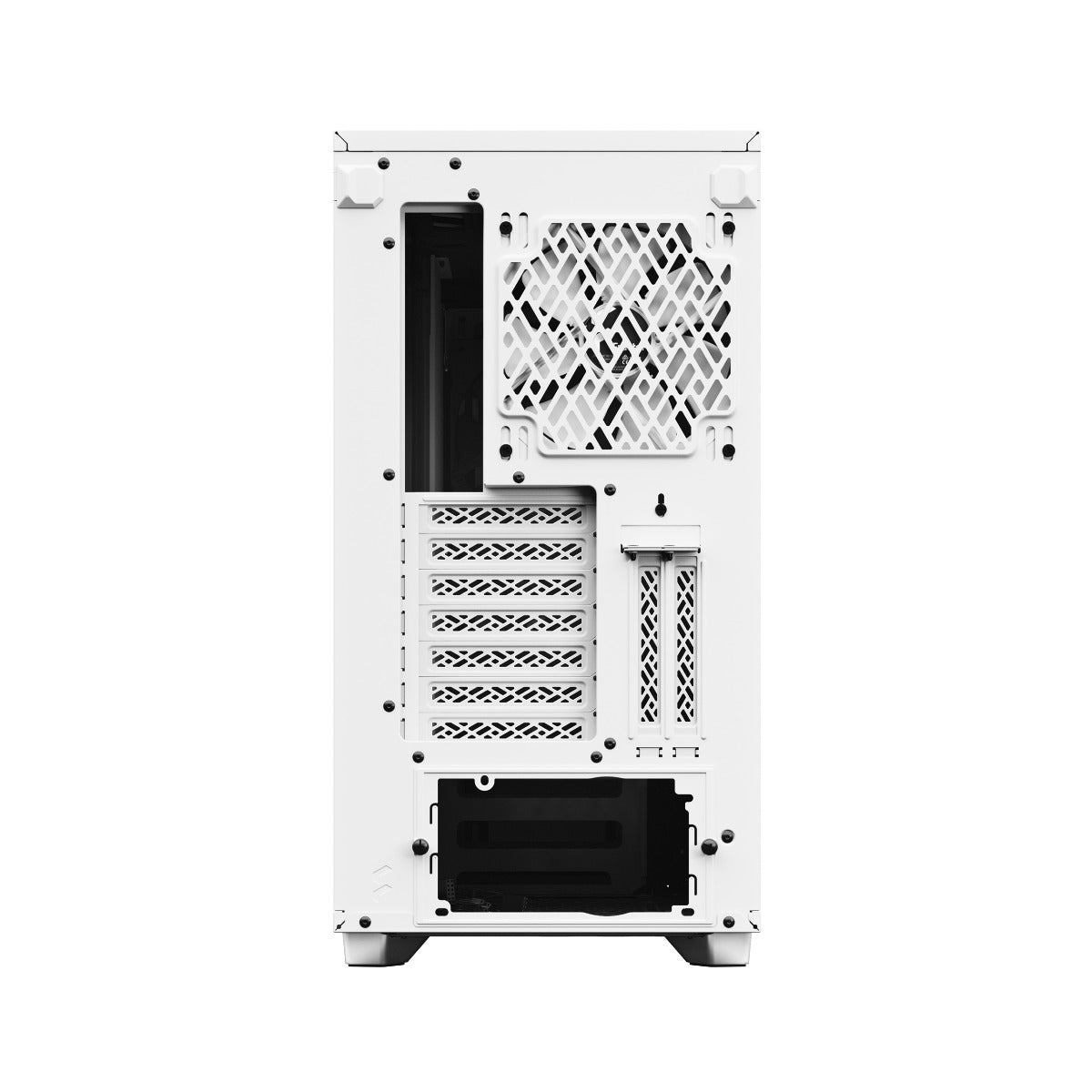

• Expansion slots: 7 + 2


• Front ports: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button


• Total fan mounts: 9 x 120/140 mm


• Front fan: 3 x 120/140 mm (2 x Dynamic X2 GP-14 included)


• Top fan: 3 x 120/140 mm


• Rear fan: 1 x 120/140 mm (1 x Dynamic X2 GP-14 included)


• Bottom fan: 2 x 120/140 mm


• Dust filters: Top, 2 x front, full length bottom


• Fixed velcro straps: Yes


• Cable routing grommets: Yes


• Captive thumbscrews: HDD brackets, SSD brackets, PSU bracket

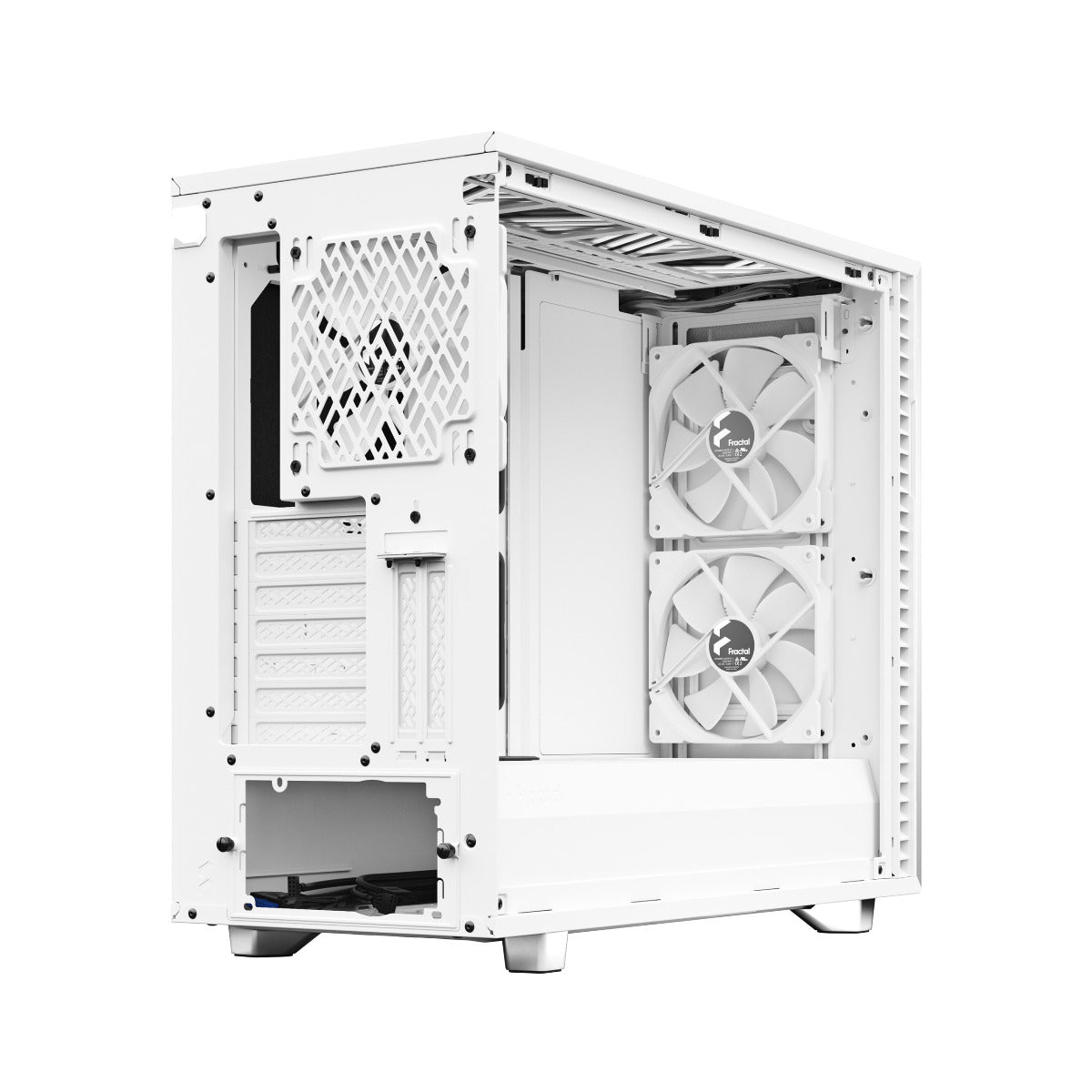

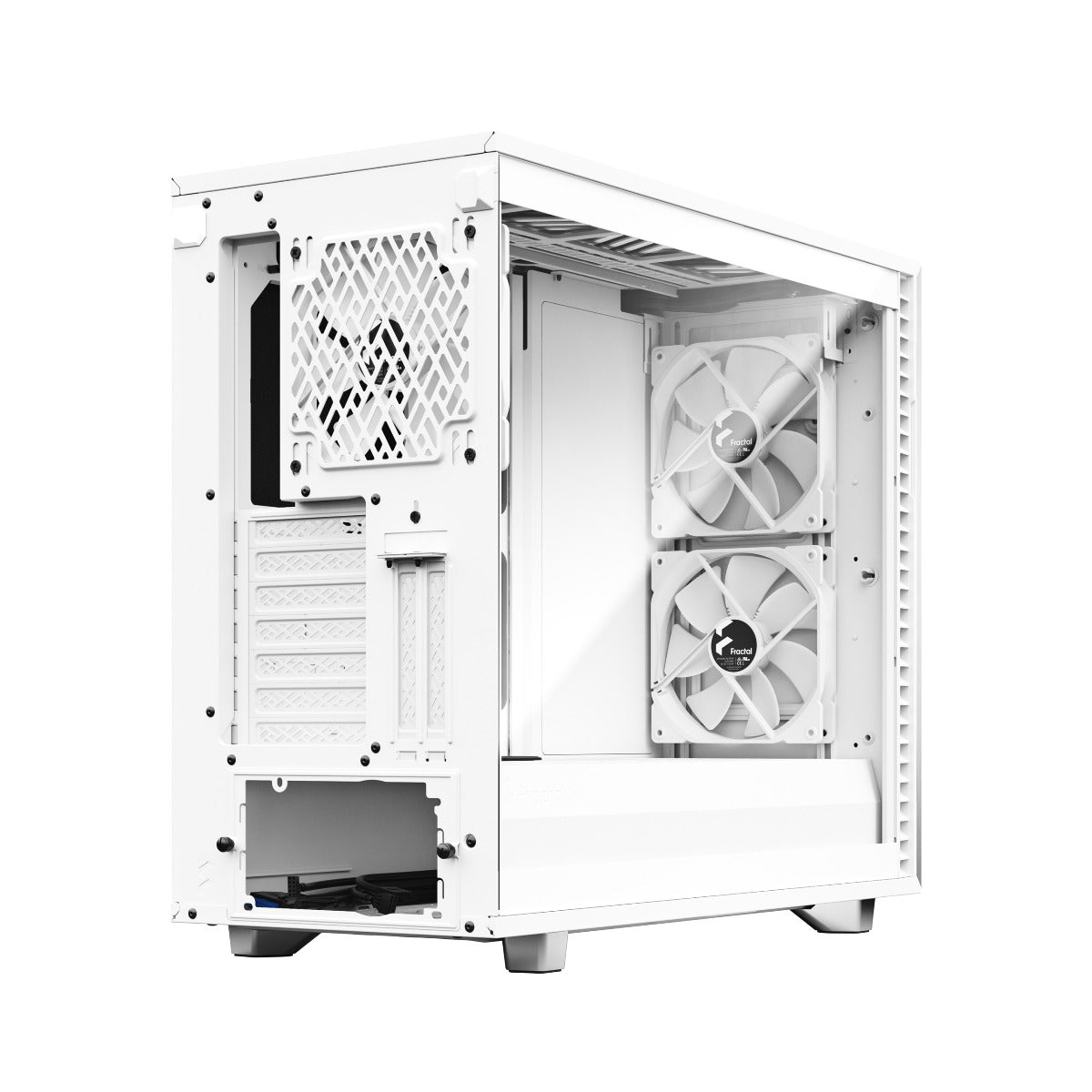

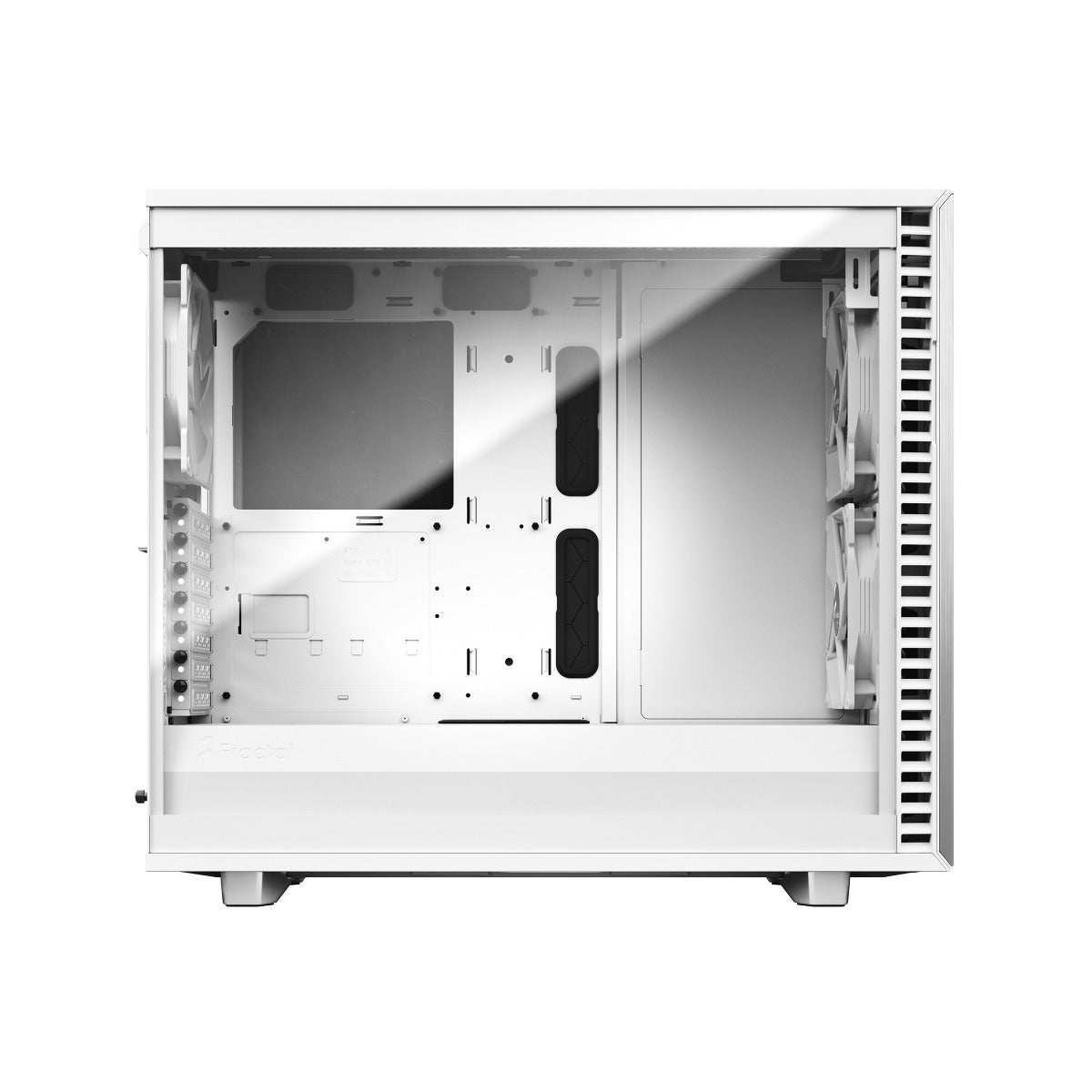

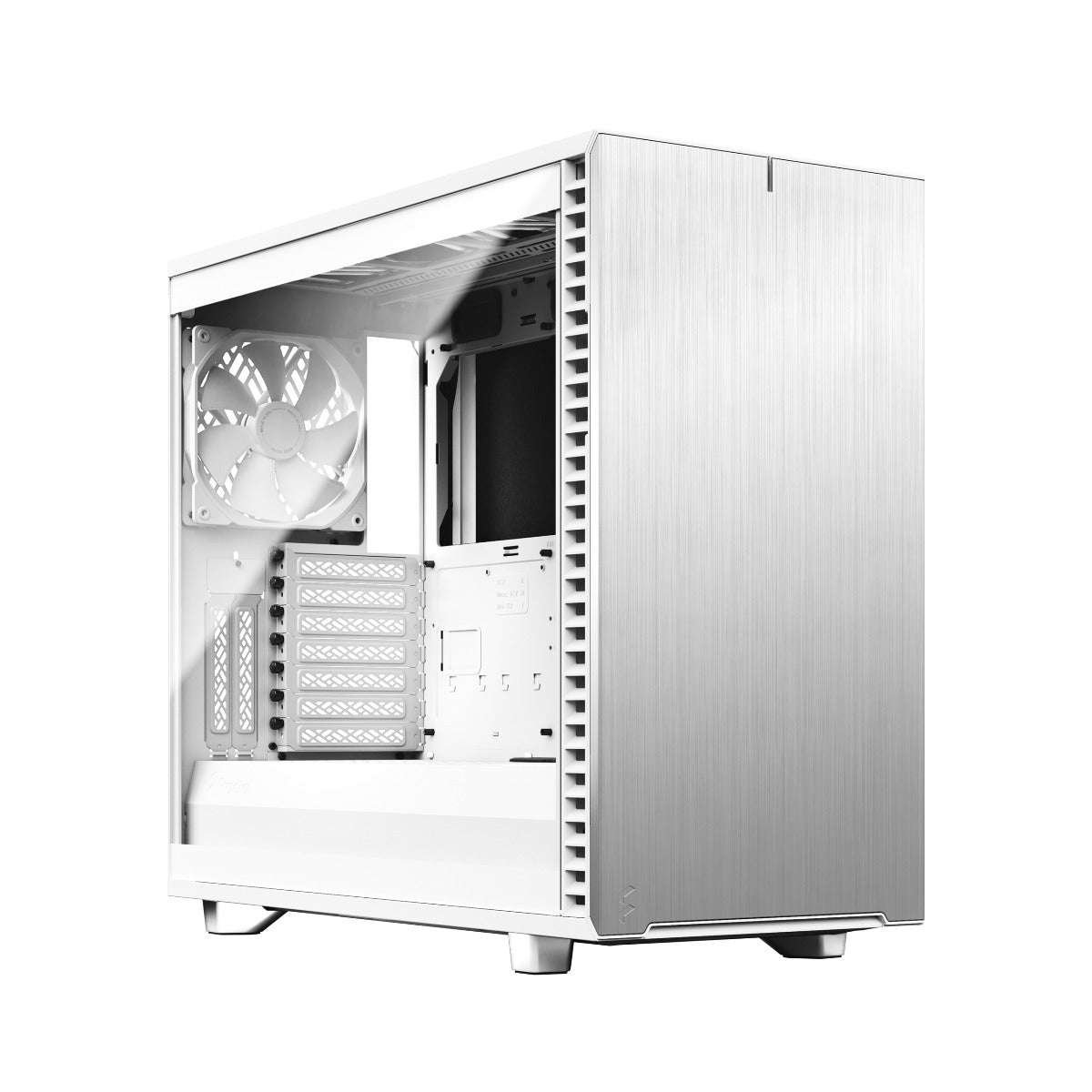

• Left side panel: Tempered glass

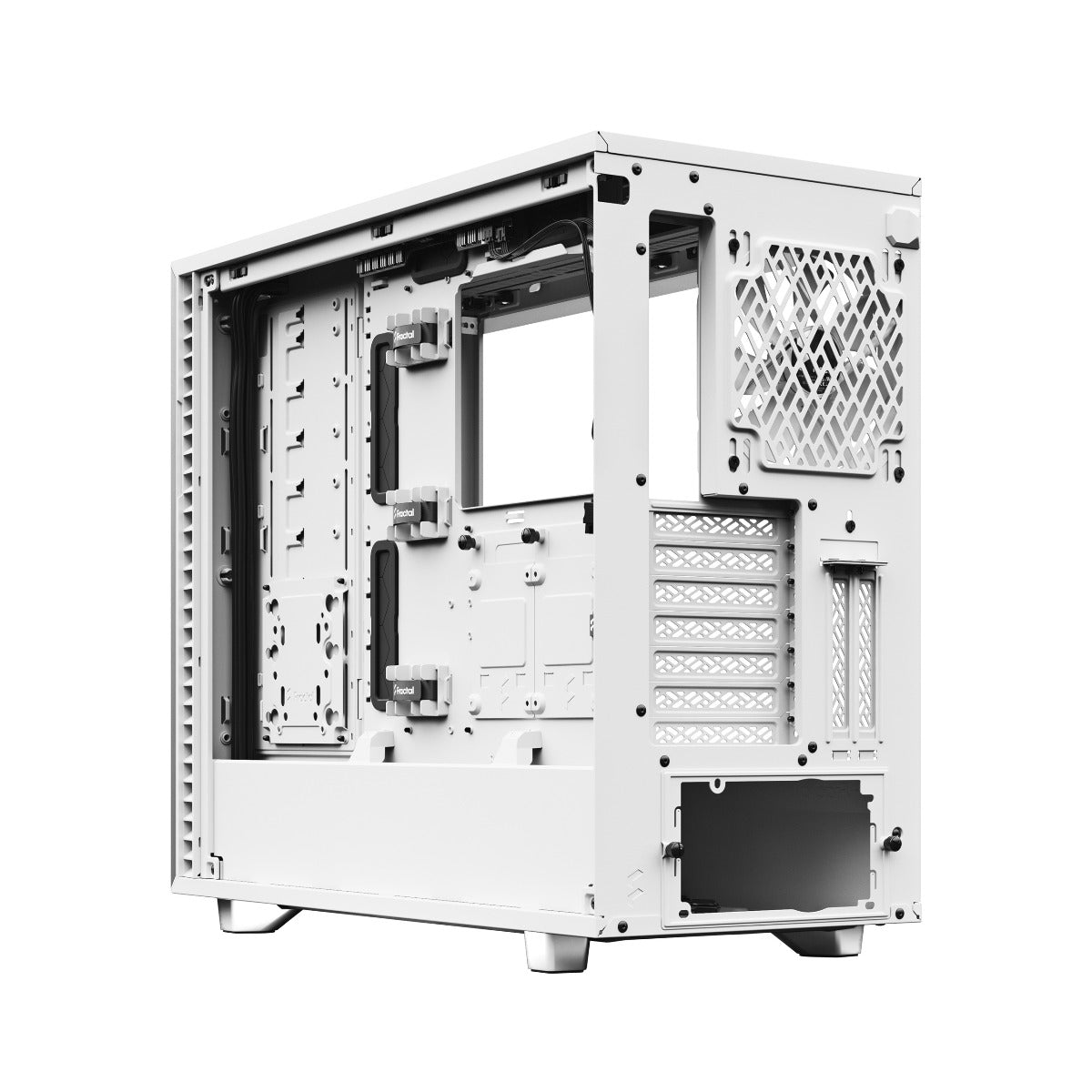

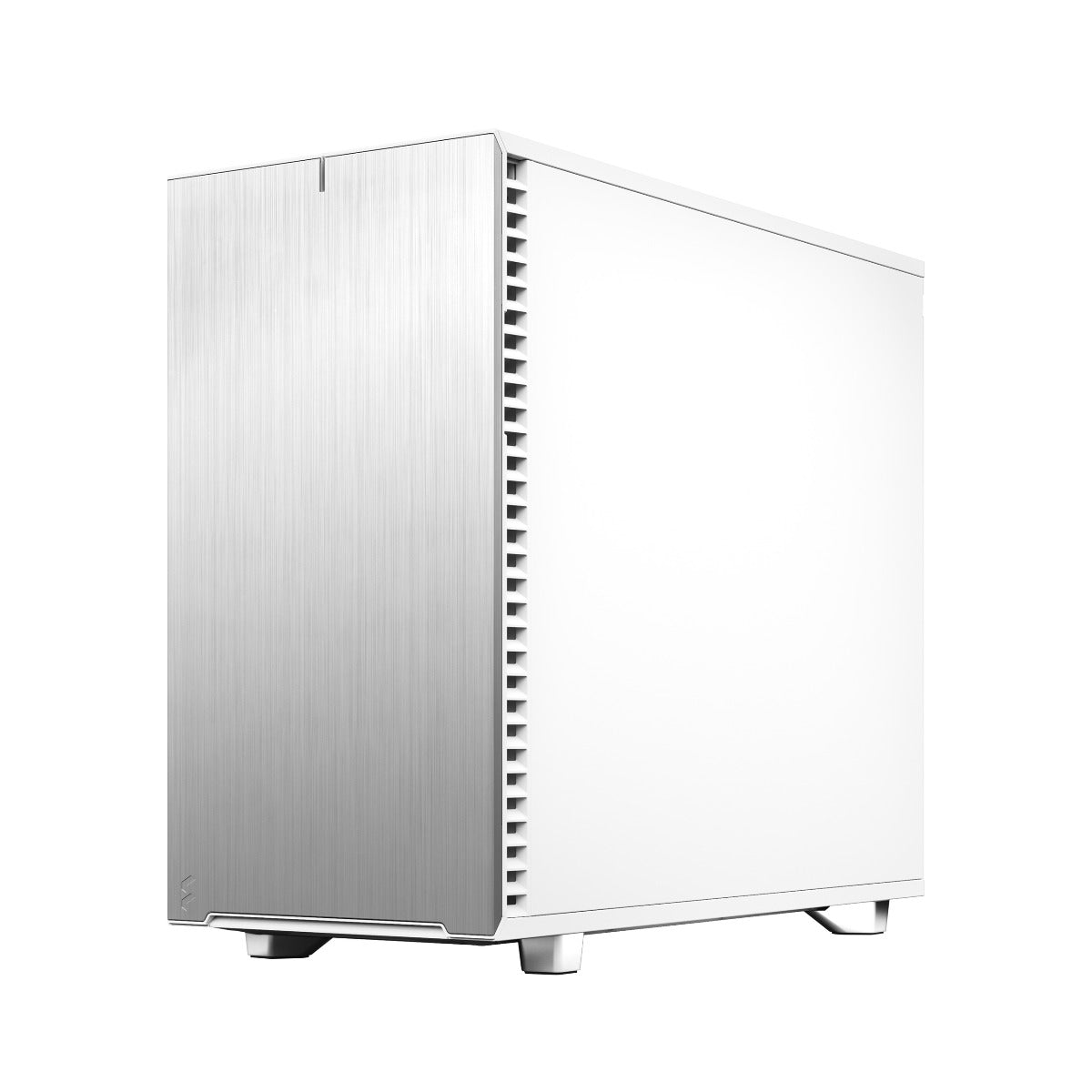

• Right side panel: Industrial sound-damped steel





• Compatibility




• Motherboard compatibility: E-ATX (max 285 mm) / ATX / mATX / mITX


• Power supply type: ATX


• PSU max length: 250 mm (with HDD cage installed)


• GPU max length: Storage layout: 315 mm - Open layout: 491 mm (467 mm w/ front fan)


• CPU cooler max height: 185 mm


• Front radiator: Up to 360/280 mm


• Top radiator: Up to 360/420 mm


• Rear radiator: 120 mm


• Bottom radiator: Up to 240/280 mm


• Cable routing space: 30 mm





• Dimensions




• Case dimensions (LxWxH): 547 x 240 x 475 mm


• Case dimensions w/o feet/protrusions/screws: 533 x 240 x 451 mm


• Package dimensions (LxWxH) : 558 x 363 x 641 mm


• Net weight: 13.45 kg


• Package weight: 15.94 kg


• Volume: 57.7 liters





• Other




• Package contents: Define 7 case. Accessory box. User manual. Ventilated top. 4 x HDD/SSD trays (for a total of 6)


• EAN: Black/White - 7340172702238. White â?? 7340172702245


• UPC: Black/White - 843276102234. White â?? 843276102241


• JAN: Black/White - 4537694275880. White â?? 4537694275897


• Product code: Black/White - FD-C-DEF7A-05. White - FD-C-DEF7A-06
