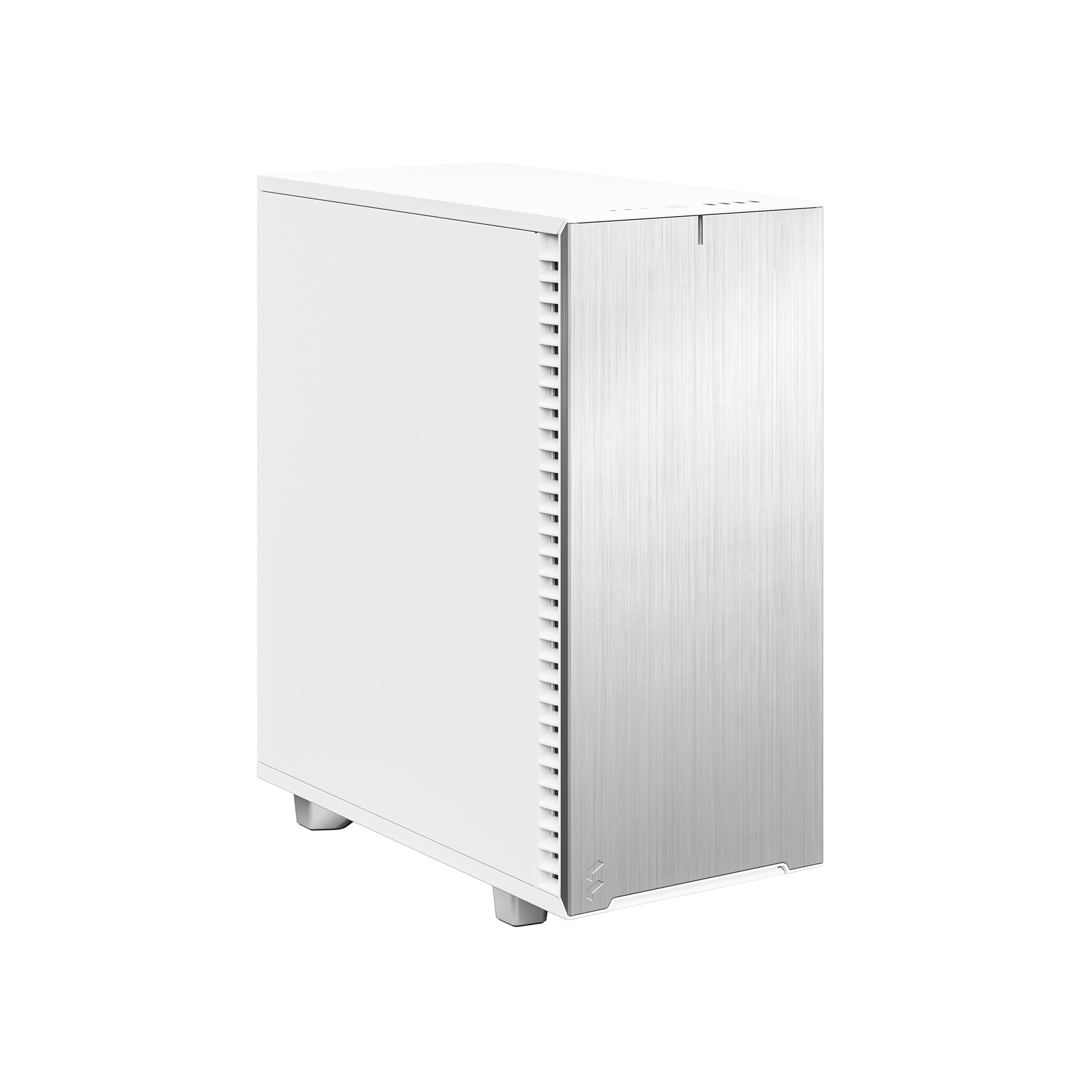

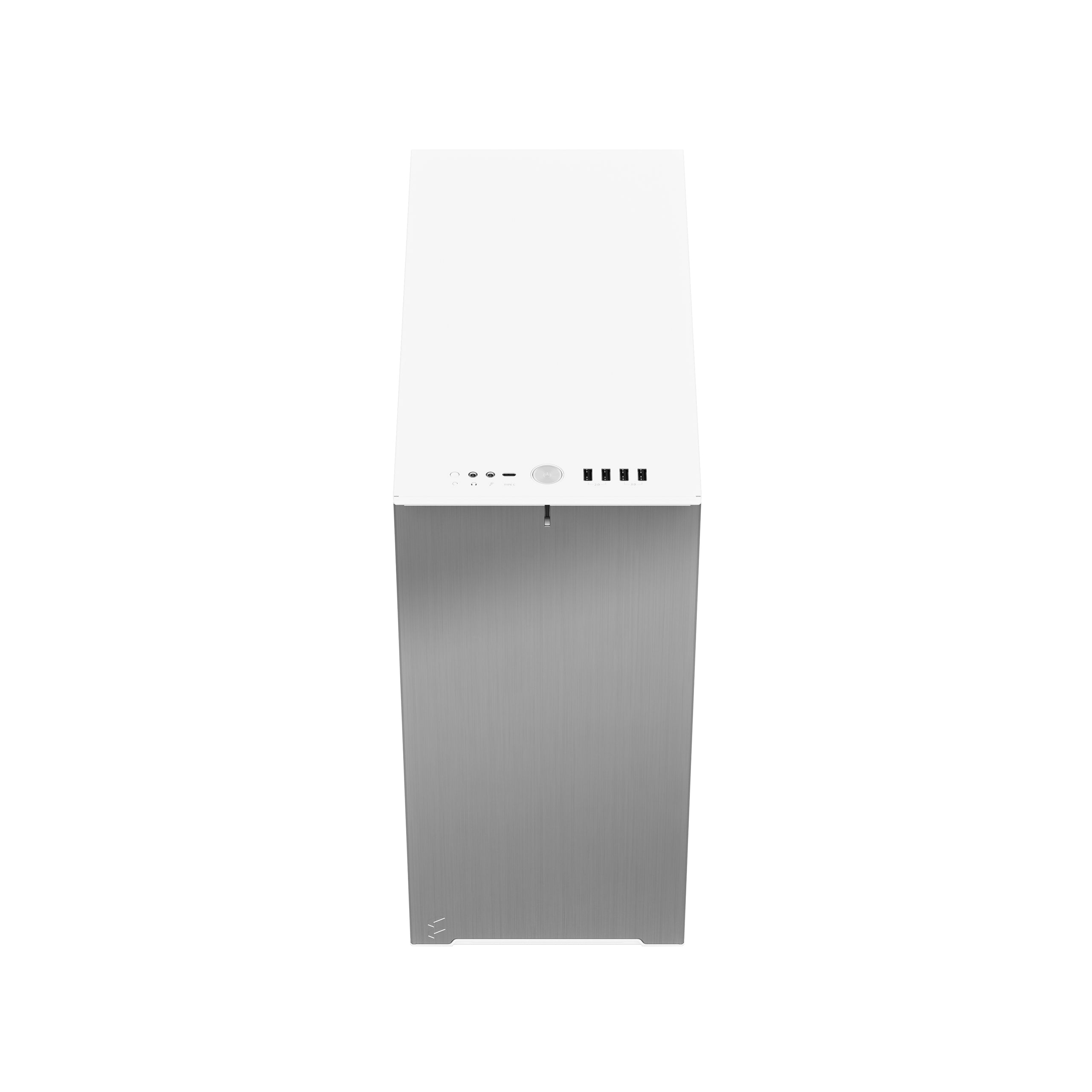

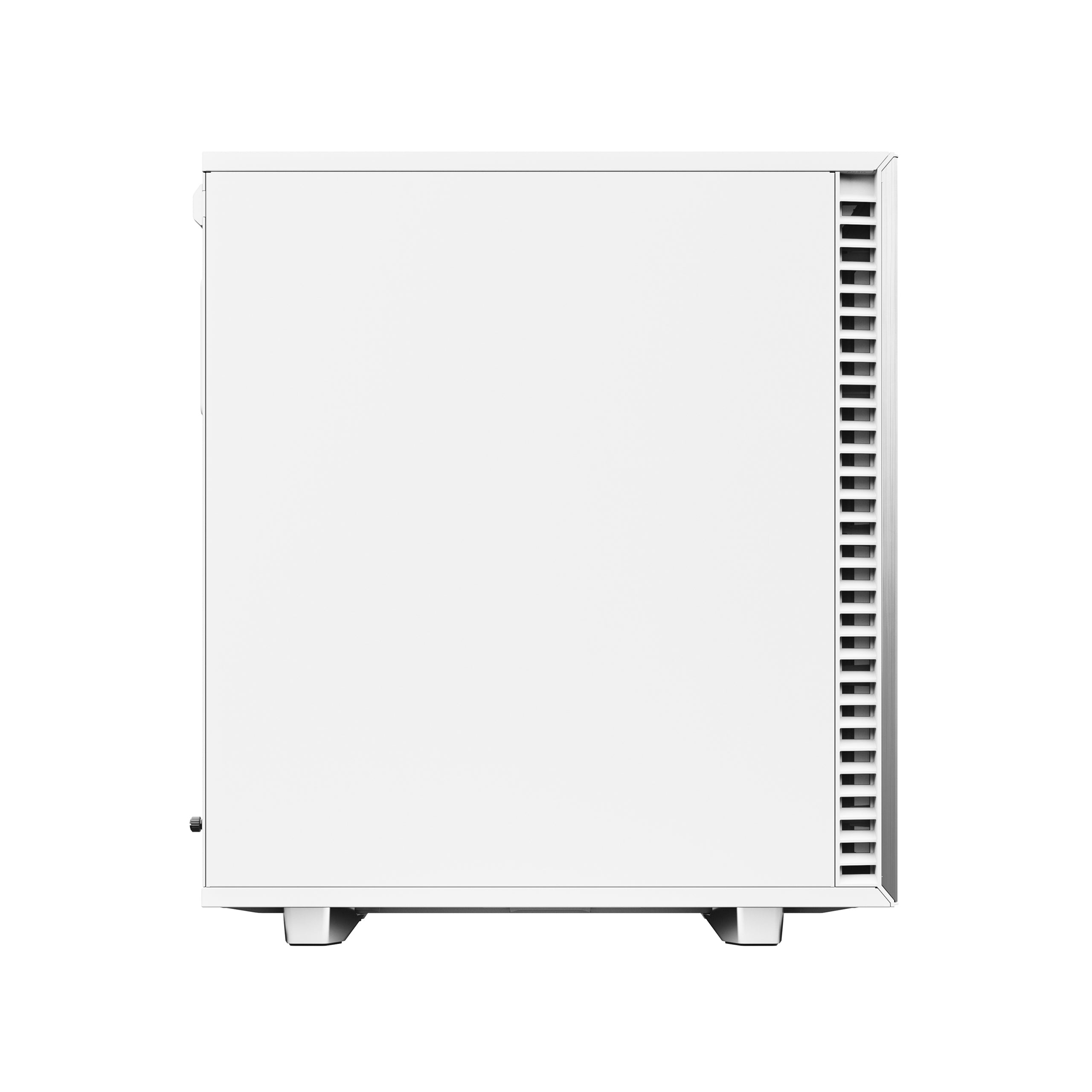

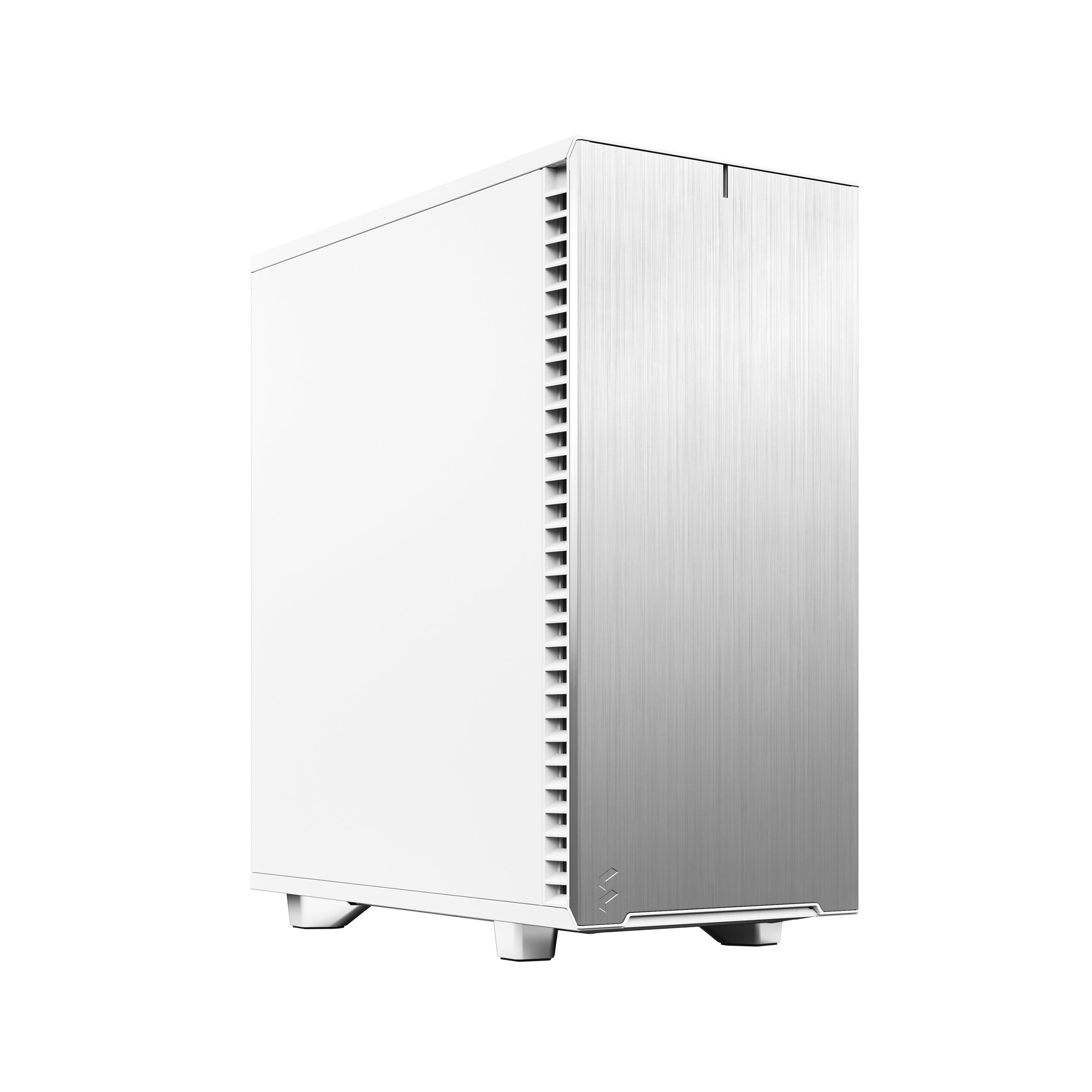

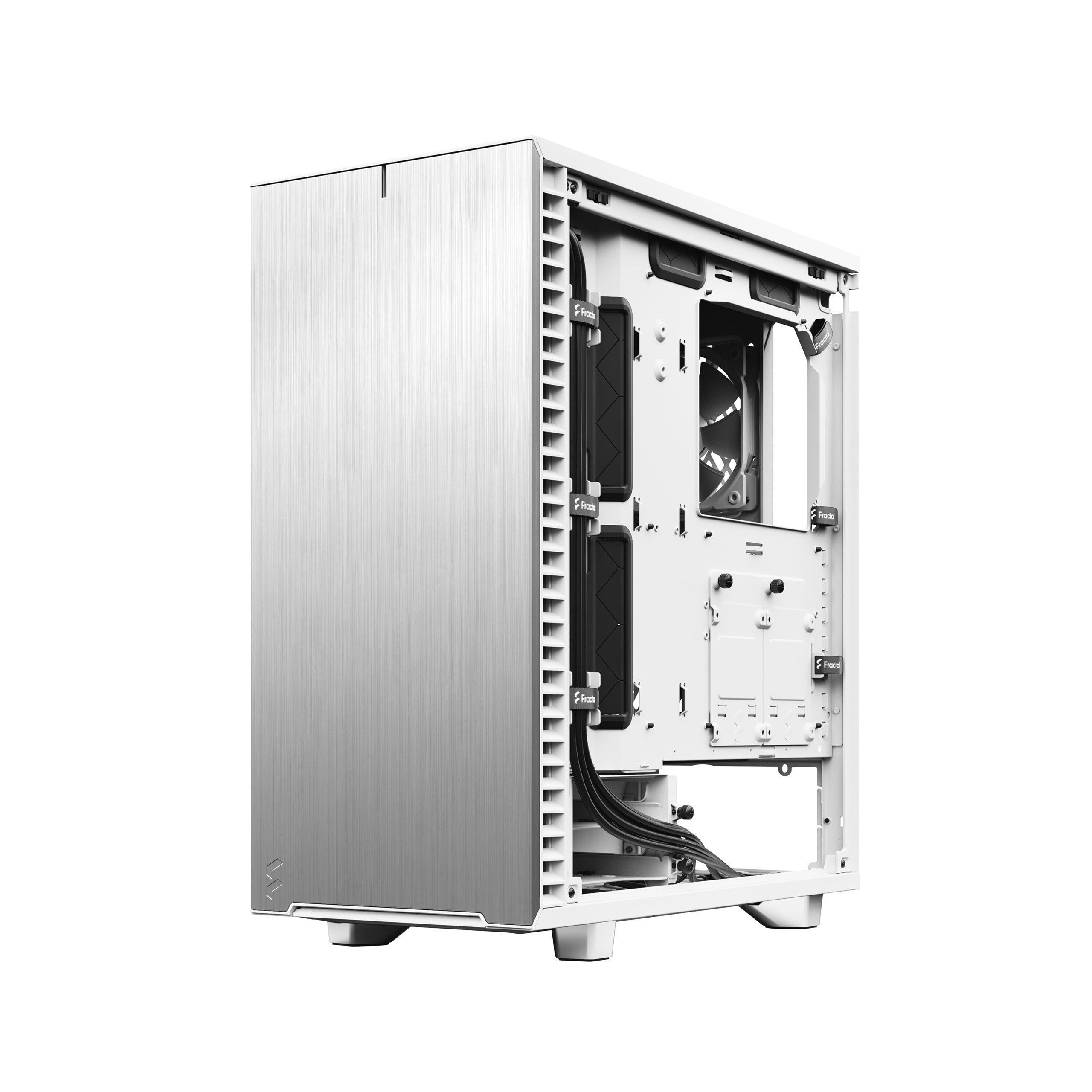

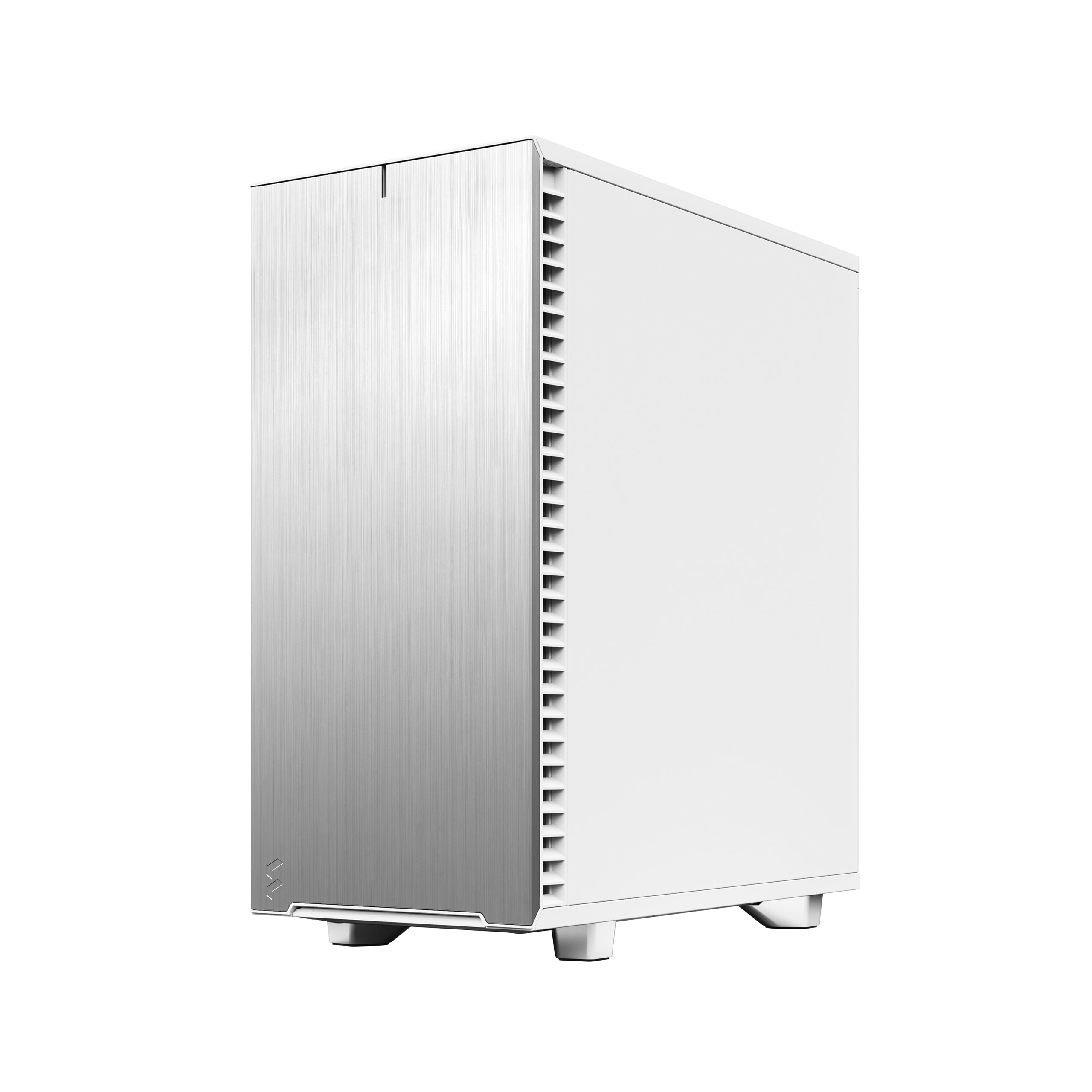

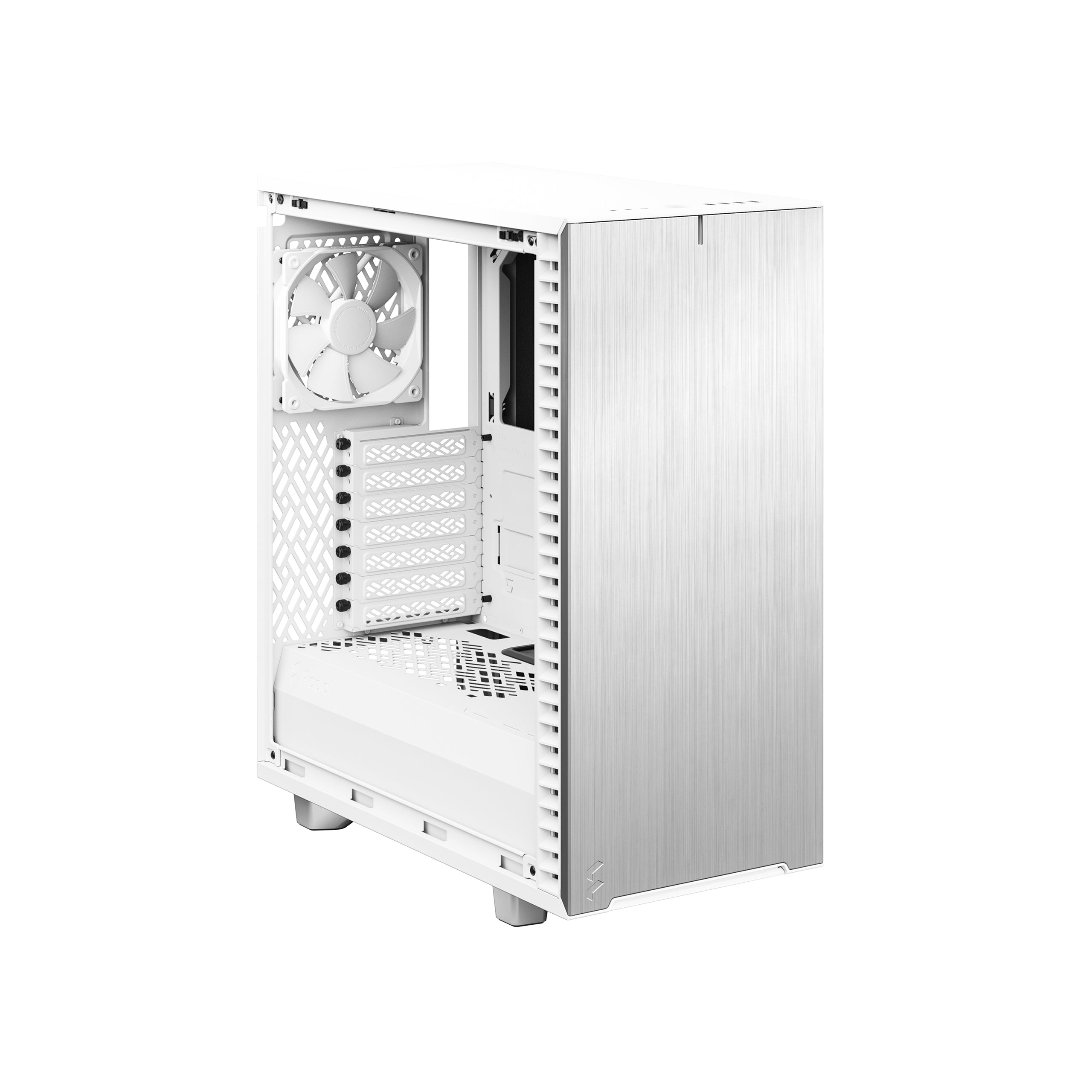

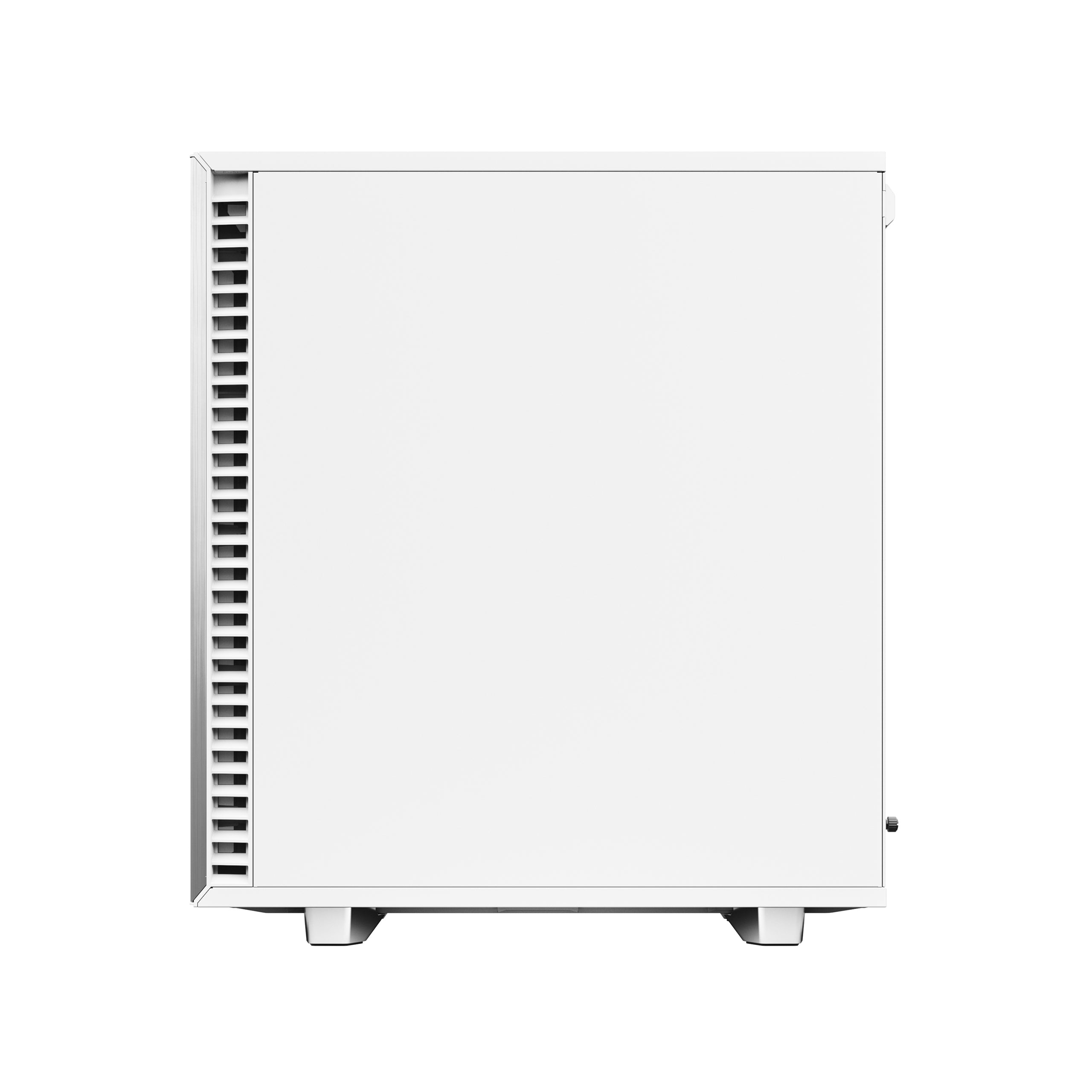

Fractal Design Define 7 Compact Solid Panel - White

Fractal Design

FD-C-DEF7C-05


The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.


Found a better price? Let us know and we'll try and match it!
Estimate shipping
$129.99 USD Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Define 7 Compact


Re-defining efficiency.


The new Define 7 Compact takes the strongest features of the contemporary
7 Series design and places them in a conveniently compact frame.

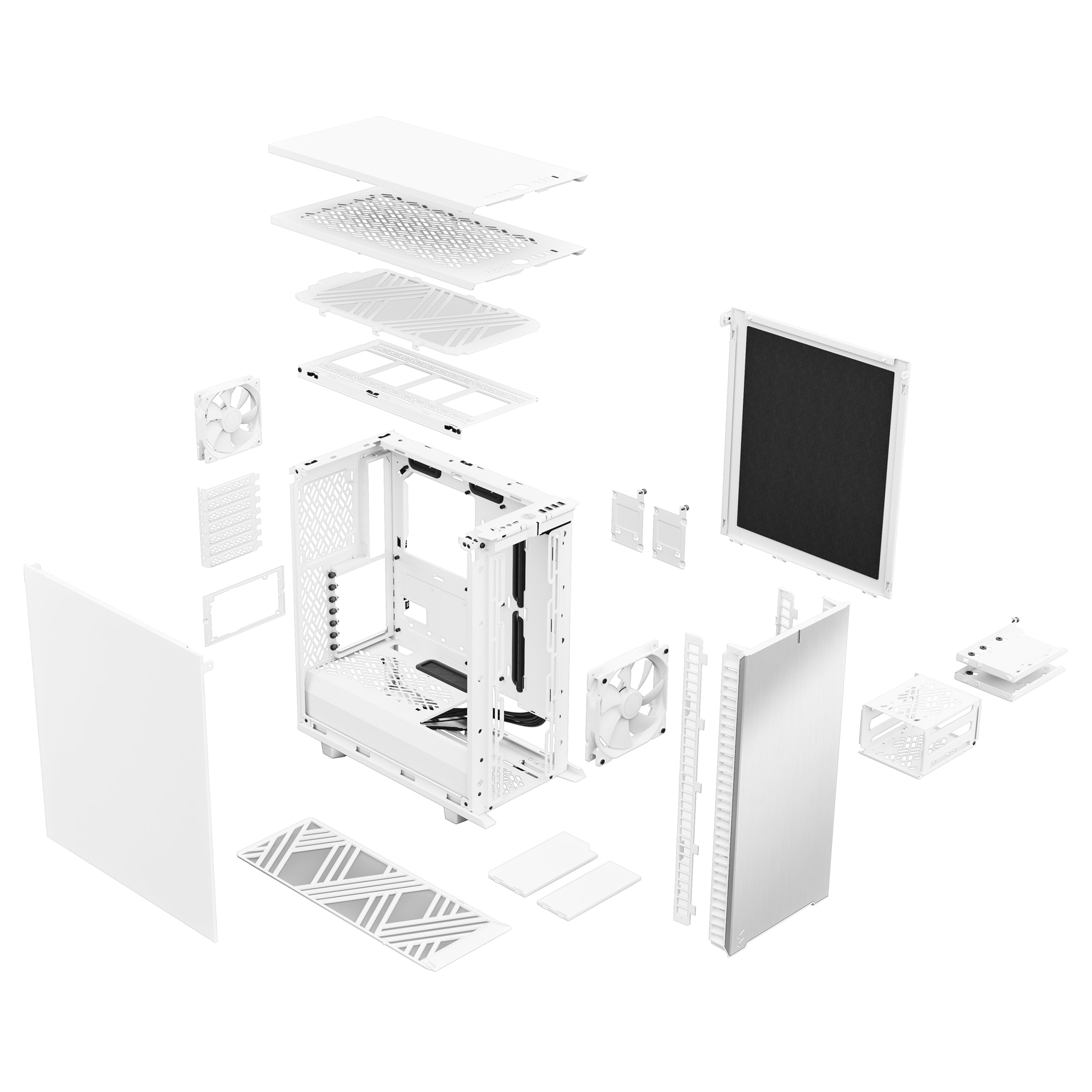

Highly modular for its size, the Define 7 Compact is easily customizable to

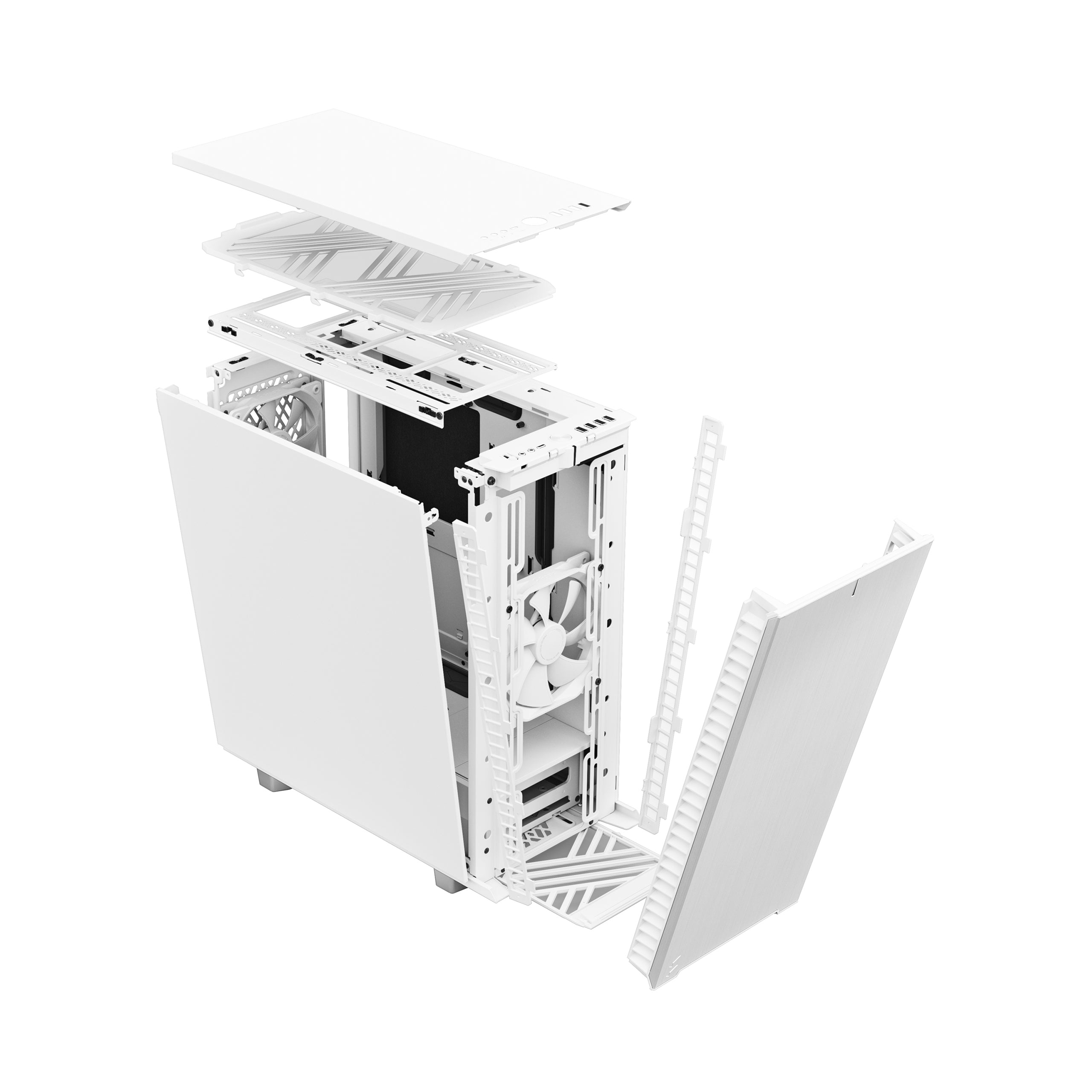

meet your exact needs â?? and the instantly removable top panel ensures an

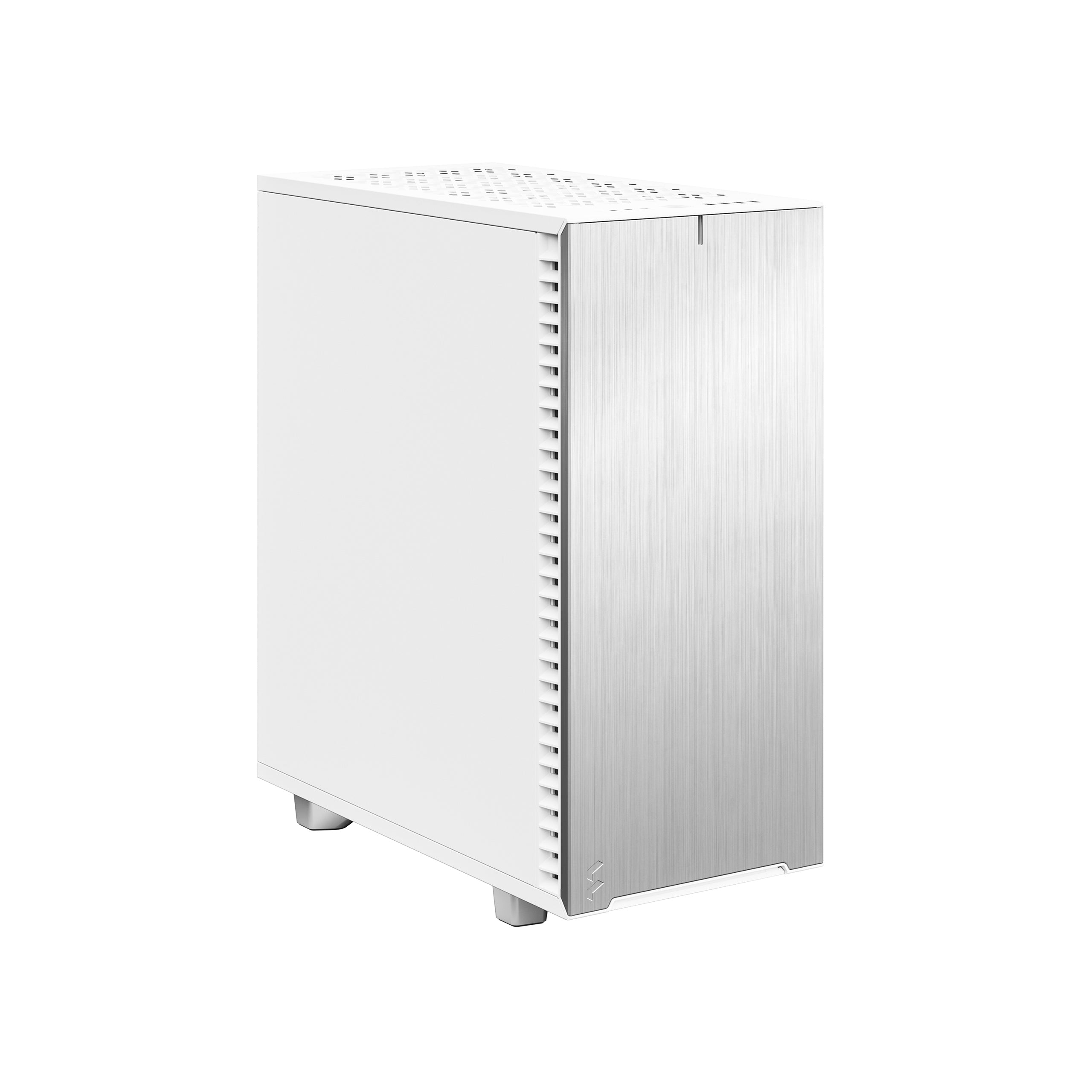

easy build, even with high-end components.
Features

/
Specifications



Specifications






  • 3.5/2.5 drive mounts

    2



  • Dedicated 2.5 drive mounts

    2 trays included, 4 positions total



  • Expansion slots

    7



  • Front interface

    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio I/O, Power button, Reset button



  • Total fan mounts

    7x 120 or 4x 140 mm and 2x 120 mm



  • Front fan

    3x 120 or 2x 140 mm, (1x Dynamic X2 GP-14 included)



  • Top fan

    2x 120 or 2x 140 mm



  • Rear fan

    1x 120 mm, (1x Dynamic X2 GP-12 included)



  • Bottom fan

    1x 120 mm (requires removal of HDD cage)



  • Dust filters

    Top, 2x front, full length bottom



  • Fixed velcro straps

    Yes



  • Cable routing grommets

    Yes



  • Captive thumbscrews

    HDD brackets, SSD brackets, PSU bracket



  • Left side panel

    Industrial sound-damped steel



  • Right side panel

    Industrial sound-damped steel







Compatibility






  • Motherboard compatibility

    ATX / mATX / Mini-ITX



  • Power supply type

    ATX



  • PSU max length

    200 mm total (165 mm w/ HDD cage and front fan)



  • GPU max length

    341 mm (360 mm without front fan)



  • CPU cooler max height

    169 mm



  • Front radiator

    Up to 360/280 mm (max 145 mm width)



  • Top radiator

    Up to 240 mm



  • Rear radiator

    120 mm



  • Bottom radiator

    120 mm (requires removal of HDD cage)



  • Cable routing space

    17-28 mm







Dimensions






  • Case dimensions (LxWxH)

    427 x 210 x 474 mm



  • Case dimensions w/o feet/protrusions/screws

    415 x 210 x 451 mm



  • Package dimensions (LxWxH)

    536 x 310 x 521 mm



  • Net weight

    8.61 kg



  • Package weight

    10.87 kg



  • Volume

    39.3 liters







Other






  • Package contents

    Define 7 Compact, Accessory box, User manual, Ventilated top panel
