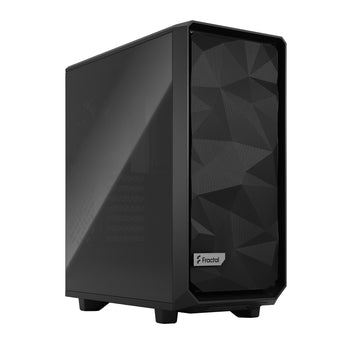

Fractal Design Meshify 2 Compact Dark Tempered Glass - Black

FD-C-MES2C-02

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$139.99 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Meshify 2 Compact

A classic evolved.

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired
aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully
removable top panel granting excellent interior access, and a front USB 3.1
Type-C port. The front nylon filter can be removed for extra airflow, letting
the mesh front deal with filtering. Intelligent space utilization enables the
Meshify 2 Compact to boast the performance and capacity of larger cases
despite its remarkably compact mid-tower size, and the filtered airflow
design makes cooling a breez

width=461

Features

Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
Open interior layout creates a smooth airflow path from front intake to rear exhaust
Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
Fully removable top panel and top fan bracket opens to provide excellent interior access and easy cable routing
Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps
Robust cooling capacity with seven fan positions and support for up to 360/280 mm radiators
Flexible storage options supporting two 2.5"/3.5" drives and up to four SSDs (two SSD brackets included)
New front nylon filter that can be removed for increased airflow
Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
Improved cable routing with three integrated cable alignment clips and six velcro straps
Full length power supply shroud with two-part removable cover conceals drive cage and excess cabling for smooth airflow and a clean interior
Seven bridgeless expansion slots ensure obstruction-free connections

Specifications



Specifications






  • 3.5/2.5 Universal drive mounts

    2 (included)



  • Dedicated 2.5 drive mounts

    4 (2 included)



  • Expansion slots

    7



  • Front interface

    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button



  • Total fan mounts

    7x 120 or 4x 140 mm and 2x 120 mm



  • Front fan

    3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included)



  • Top fan

    2x 120/140 mm



  • Rear fan

    1x 120 mm, (1x Dynamic X2 GP-12 included)



  • Bottom fan

    1x 120 mm (requires removal of HDD cage)



  • Dust filters

    Top, front and bottom



  • Fixed velcro straps

    Yes



  • Cable routing grommets

    Yes



  • Captive thumbscrews

    HDD, SSD and PSU brackets



  • Left side panel

    Tempered Glass



  • Right side panel

    Steel







Compatibility






  • Motherboard compatibility

    ATX / mATX / Mini-ITX



  • Power supply type

    ATX



  • PSU max length

    200 mm (165 mm with HDD cage and front fan)



  • GPU max length

    341 mm (360 mm without front fan)



  • CPU cooler max height

    169 mm



  • Front radiator

    Up to 360/280 mm



  • Top radiator

    Up to 240 mm



  • Rear radiator

    120 mm



  • Bottom radiator

    120 mm (requires removal of HDD cage)



  • Cable routing space

    17-28 mm



  • Radiator Support â?? Additional Details

    Maximum radiator width: 145mm for front mounting. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual.







Dimensions






  • Case dimensions (LxWxH)

    424 x 210 x 475 mm



  • Case dimensions w/o feet/protrusions/screws

    412 x 210 x 455 mm



  • Package dimensions (LxWxH)

    542 x 320 x 554 mm



  • Net weight

    7.7 kg



  • Gross weight

    9.3 kg



  • Volume

    39.4 Liters







Other






  • Package contents

    Meshify 2 Compact Case, User manual, Accessory box
