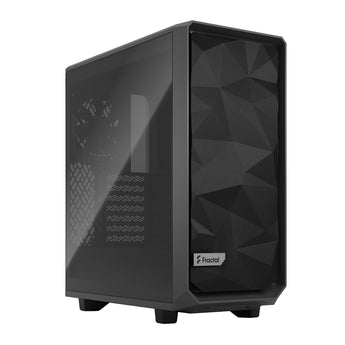

Fractal Design Meshify 2 Compact Light Tempered Glass - Gray

FD-C-MES2C-04

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$139.99 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Meshify 2 Compact

A classic evolved.

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired
aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully
removable top panel granting excellent interior access, and a front USB 3.1
Type-C port. The front nylon filter can be removed for extra airflow, letting
the mesh front deal with filtering. Intelligent space utilization enables the
Meshify 2 Compact to boast the performance and capacity of larger cases
despite its remarkably compact mid-tower size, and the filtered airflow
design makes cooling a breez

width=461

Features

Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
â?¢ Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
â?¢ Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
â?¢ Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
â?¢ Open interior layout creates a smooth airflow path from front intake to rear exhaust
â?¢ Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
â?¢ Fully removable top panel and top fan bracket opens to provide excellent interior access and easy cable routing
â?¢ Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps
â?¢ Robust cooling capacity with seven fan positions and support for up to 360/280 mm radiators
� Flexible storage options supporting two 2.5�/3.5� drives and up to four SSDs (two SSD brackets included)
â?¢ New front nylon filter that can be removed for increased airflow
â?¢ Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
â?¢ Improved cable routing with three integrated cable alignment clips and six velcro straps
â?¢ Full length power supply shroud with two-part removable cover conceals drive cage and excess cabling for smooth airflow and a clean interior
â?¢ Seven bridgeless expansion slots ensure obstruction-free connections

Specifications



Specifications






  • 3.5/2.5 Universal drive mounts

    2 (included)



  • Dedicated 2.5 drive mounts

    4 (2 included)



  • Expansion slots

    7



  • Front interface

    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button



  • Total fan mounts

    7x 120 or 4x 140 mm and 2x 120 mm



  • Front fan

    3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included)



  • Top fan

    2x 120/140 mm



  • Rear fan

    1x 120 mm, (1x Dynamic X2 GP-12 included)



  • Bottom fan

    1x 120 mm (requires removal of HDD cage)



  • Dust filters

    Top, front and bottom



  • Fixed velcro straps

    Yes



  • Cable routing grommets

    Yes



  • Captive thumbscrews

    HDD, SSD and PSU brackets



  • Left side panel

    Tempered Glass



  • Right side panel

    Steel







Compatibility






  • Motherboard compatibility

    ATX / mATX / Mini-ITX



  • Power supply type

    ATX



  • PSU max length

    200 mm (165 mm with HDD cage and front fan)



  • GPU max length

    341 mm (360 mm without front fan)



  • CPU cooler max height

    169 mm



  • Front radiator

    Up to 360/280 mm



  • Top radiator

    Up to 240 mm



  • Rear radiator

    120 mm



  • Bottom radiator

    120 mm (requires removal of HDD cage)



  • Cable routing space

    17-28 mm



  • Radiator Support â?? Additional Details

    Maximum radiator width: 145mm for front mounting. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual.







Dimensions






  • Case dimensions (LxWxH)

    424 x 210 x 475 mm



  • Case dimensions w/o feet/protrusions/screws

    412 x 210 x 455 mm



  • Package dimensions (LxWxH)

    542 x 320 x 554 mm



  • Net weight

    7.7 kg



  • Gross weight

    9.3 kg



  • Volume

    39.4 Liters







Other






  • Package contents

    Meshify 2 Compact Case, User manual, Accessory box
