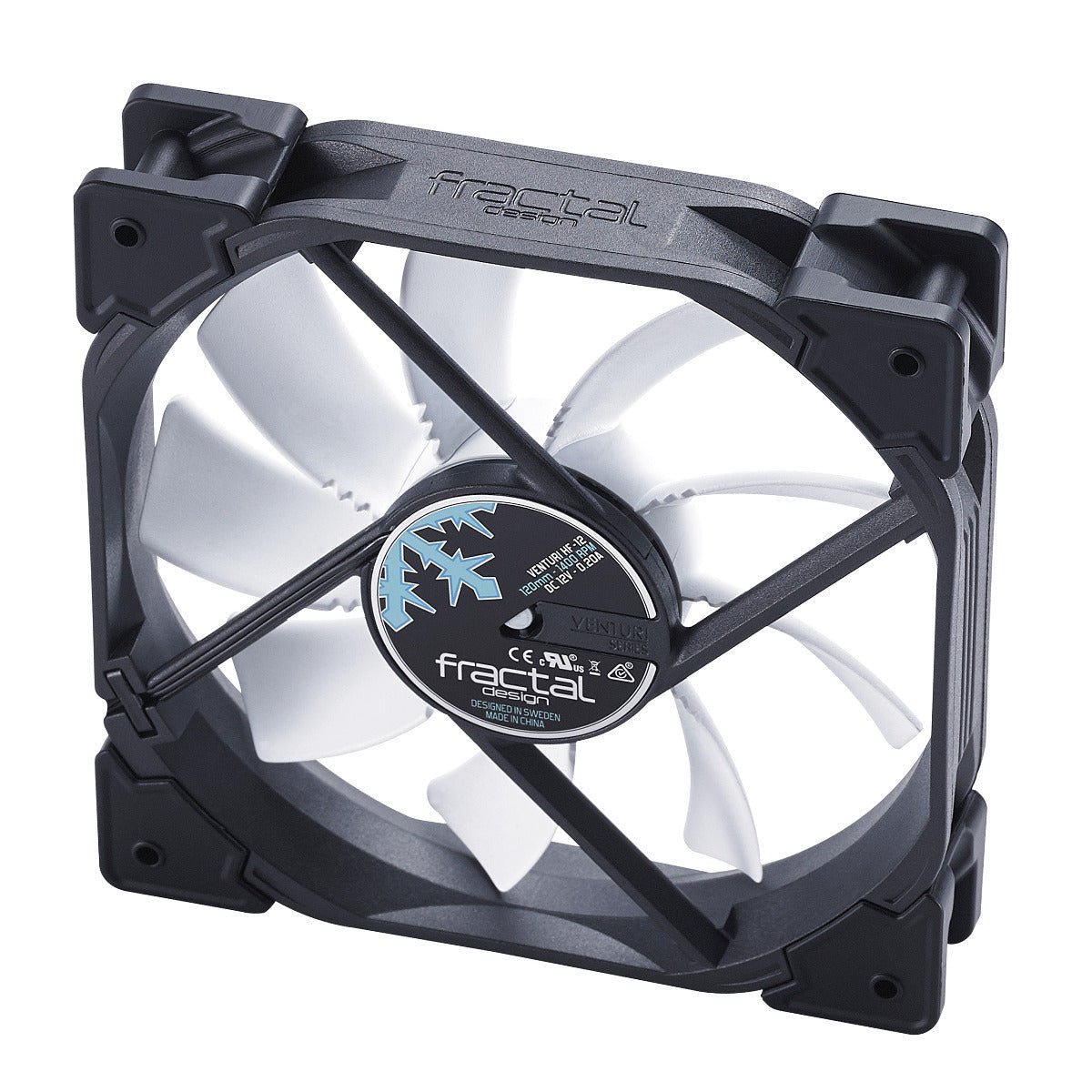

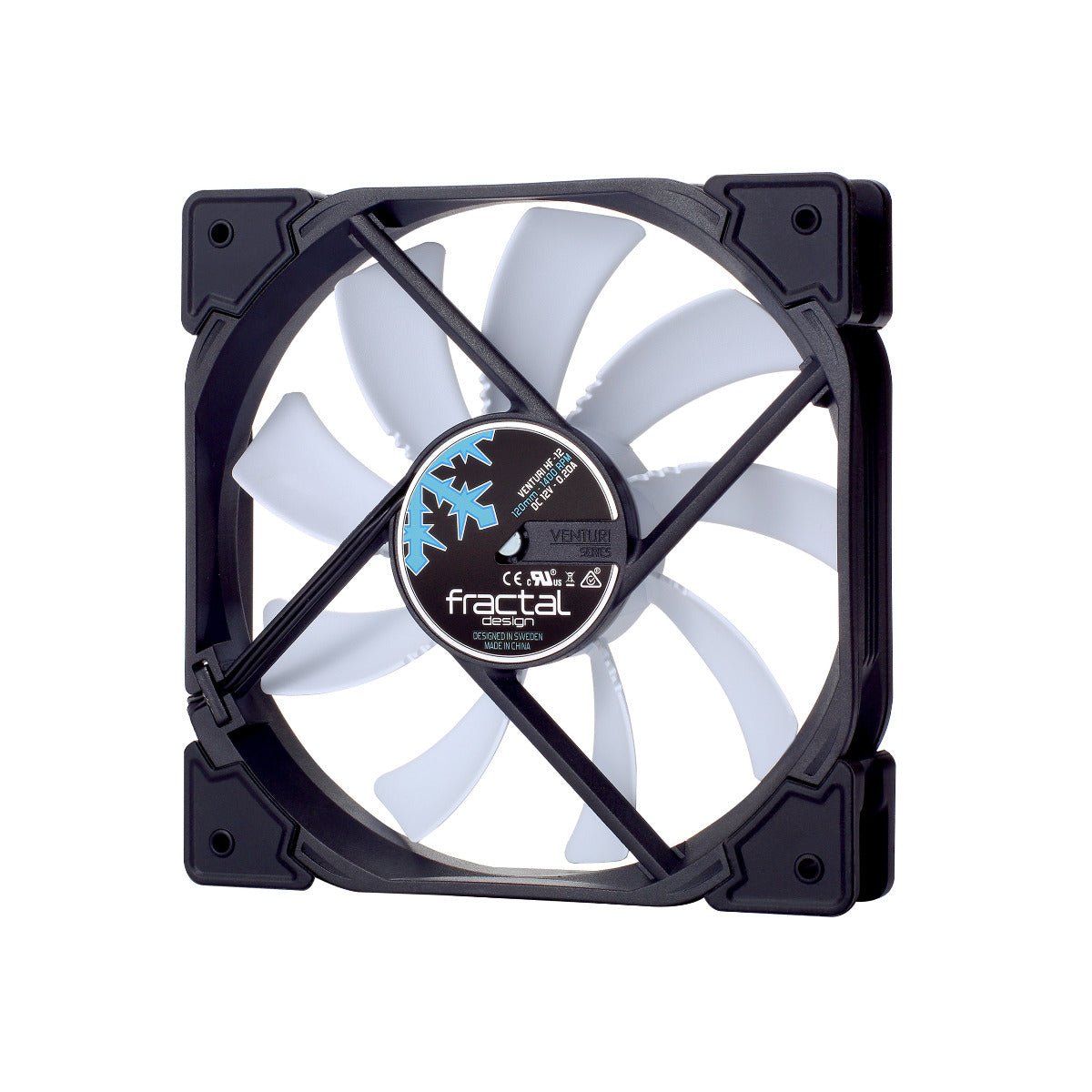

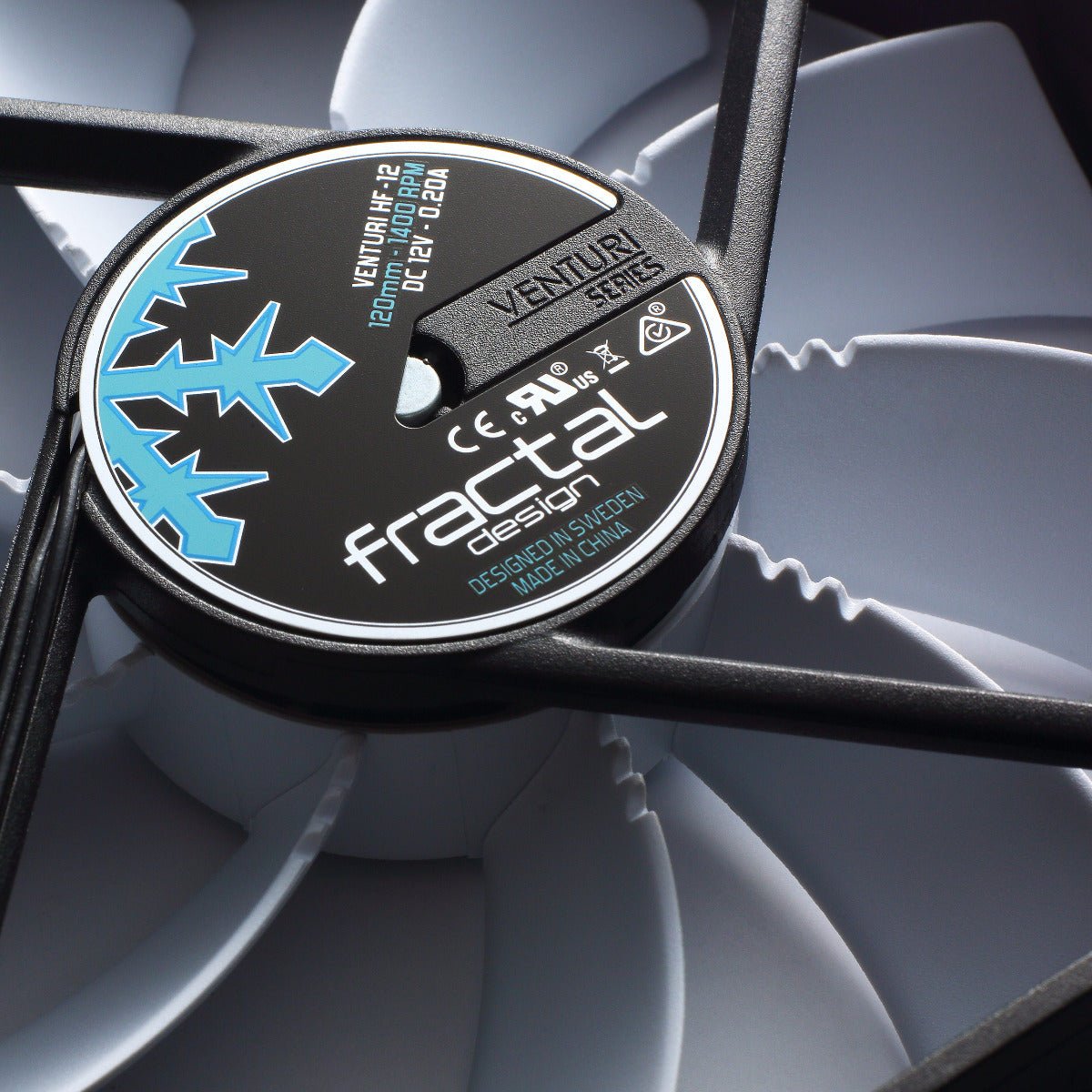

Fractal Venturi HF12 120mm Case Fan - White

Fractal Design

FD-FAN-VENT-HF12-WT

The Venturi High Flow Series fans are optimized for low-restriction airflow environments, making them an excellent choice for computer case fans, or other low-restriction usage scenarios

Found a better price? Let us know and we'll try and match it!
Estimate shipping
9 in stock, ready to ship
$8.49 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Designed for strength and silence

These fans can move an amazing amount of air compared to other fans at the same, minimal noise level. The Venturi High Flow Series fans are ideal for anyone looking for a perfect balance between high performance and low noise built from sturdy, high-quality materials.
Features



  • Made from high-grade glass fiber reinforced thermoplastic polymer




  • Ground-breaking airflow, perfect for low-restriction usage scenarios




  • Aerodynamical stator struts reduce noise and unwanted turbulence

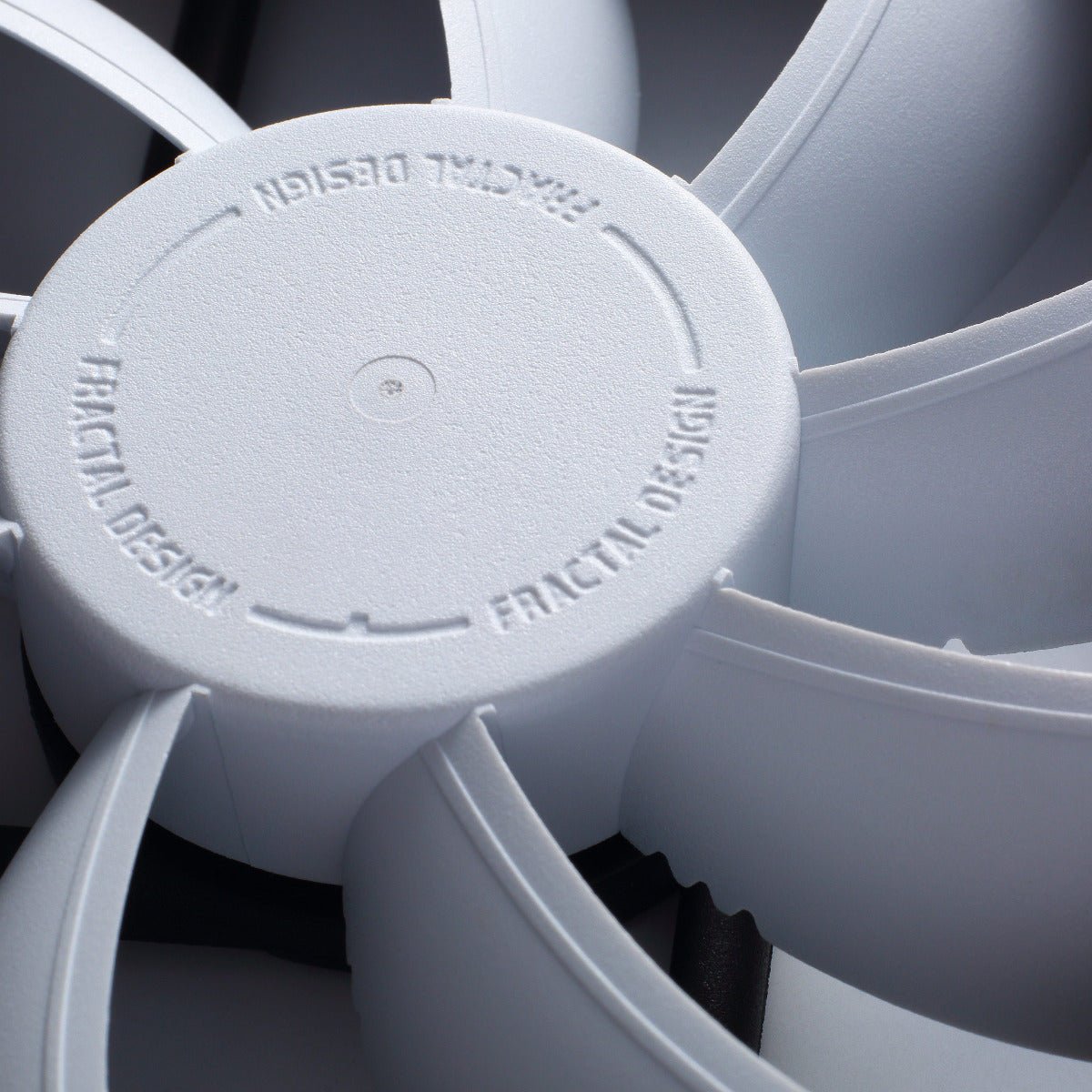

  • Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts




  • The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation




  • Powerful motor maintains a reliable speed and an adapter for reducing the speed without the use of a fan controller
Specifications








Specifications






  • Size

    120 x 120 x 25 mm



  • Screw hole pattern

    105 x 105 mm



  • Connector

    3-pin



  • Bearing

    FDB



  • Number of blades

    9



  • Rotational speed

    1400 RPM



  • Noise level

    25.3 dB (A)



  • Airflow (CFM)

    83.4



  • Airflow (m3/h)

    141.7



  • Static pressure

    1.22 mm H2O



  • Fan input power

    1.3 W



  • Fan max input current

    0.2 A



  • Fan input voltage

    12 V



  • Fan starting voltage

    4 V



  • Low speed adapter speed

    1100 RPM



  • Low speed adapter Static pressure

    0.89 mm H2O



  • Low speed adapter Air flow (CMF)

    65.8



  • Low speed adapter Air flow (m3/h)

    111.8



  • Low speed adapter Noise level

    19.0 dB (A)



  • MTBF

    150,000 hours



  • Fan weight

    169 g



  • Cable length

    500 mm



  • Cable type

    Braided all-black ribbon wire







Other






  • Package contents

    Venturi Series fan, Screw pack with 4 metal screws, Low-speed adapter



  • Package weight

    215 g



  • Package dimensions (Including hanging tab)

    180 x 122 x 30 mm



  • Package dimensions (Excluding hanging tab)

    147 x 122 x 30 mm



  • EAN

    7350041083337



  • Product code (Black)

    FD-FAN-VENT-HF12-BK



  • Product code (White)

    FD-FAN-VENT-HF12-WT
