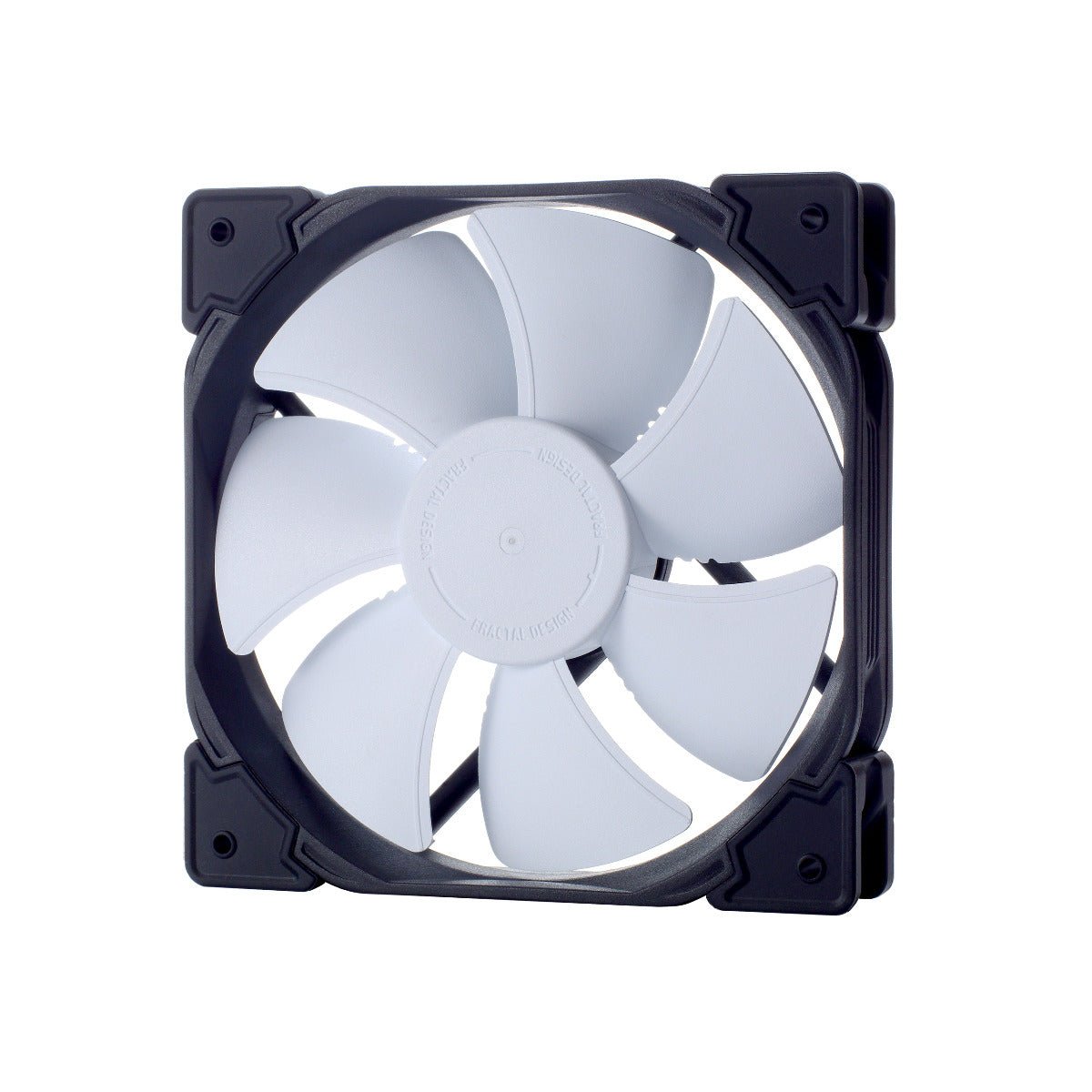

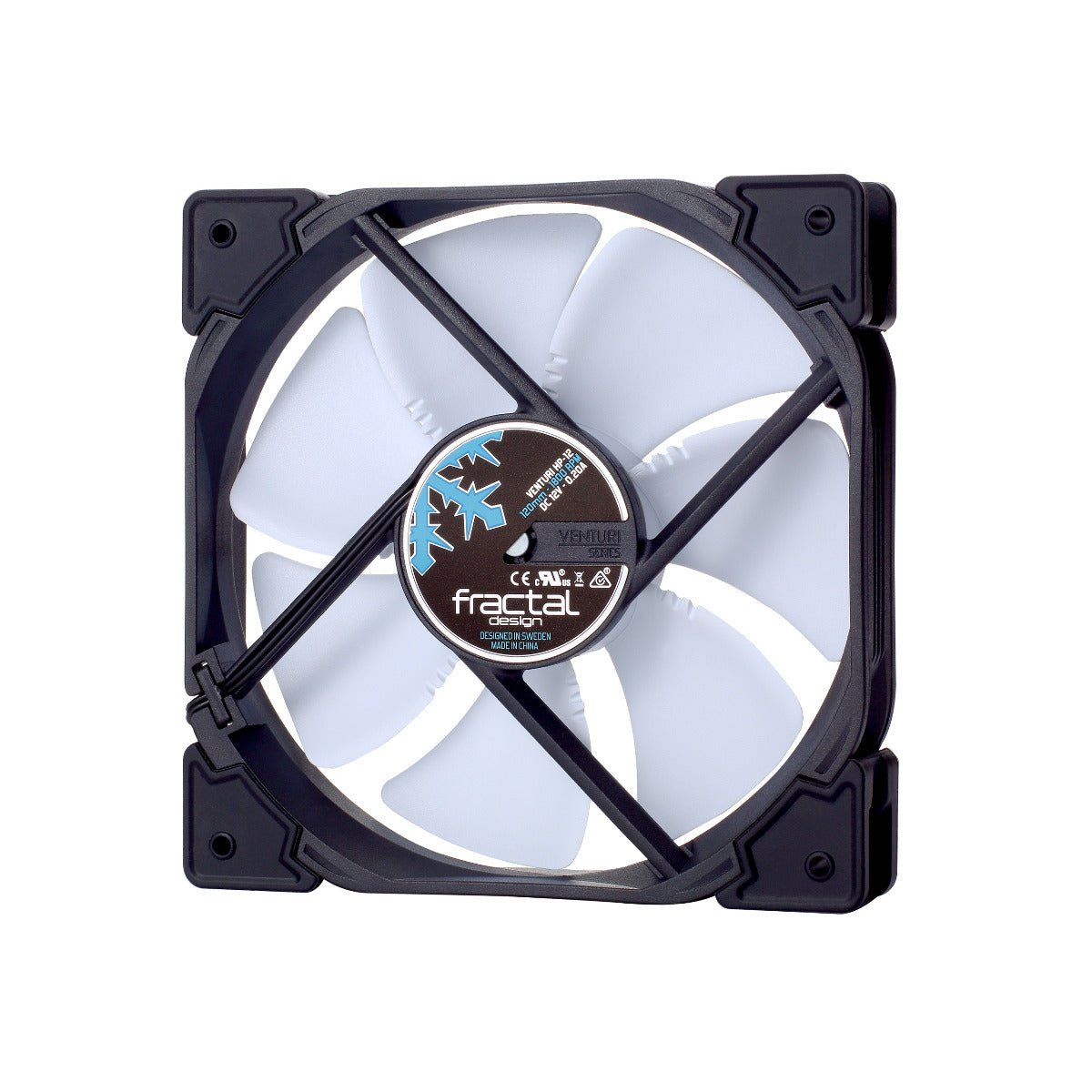

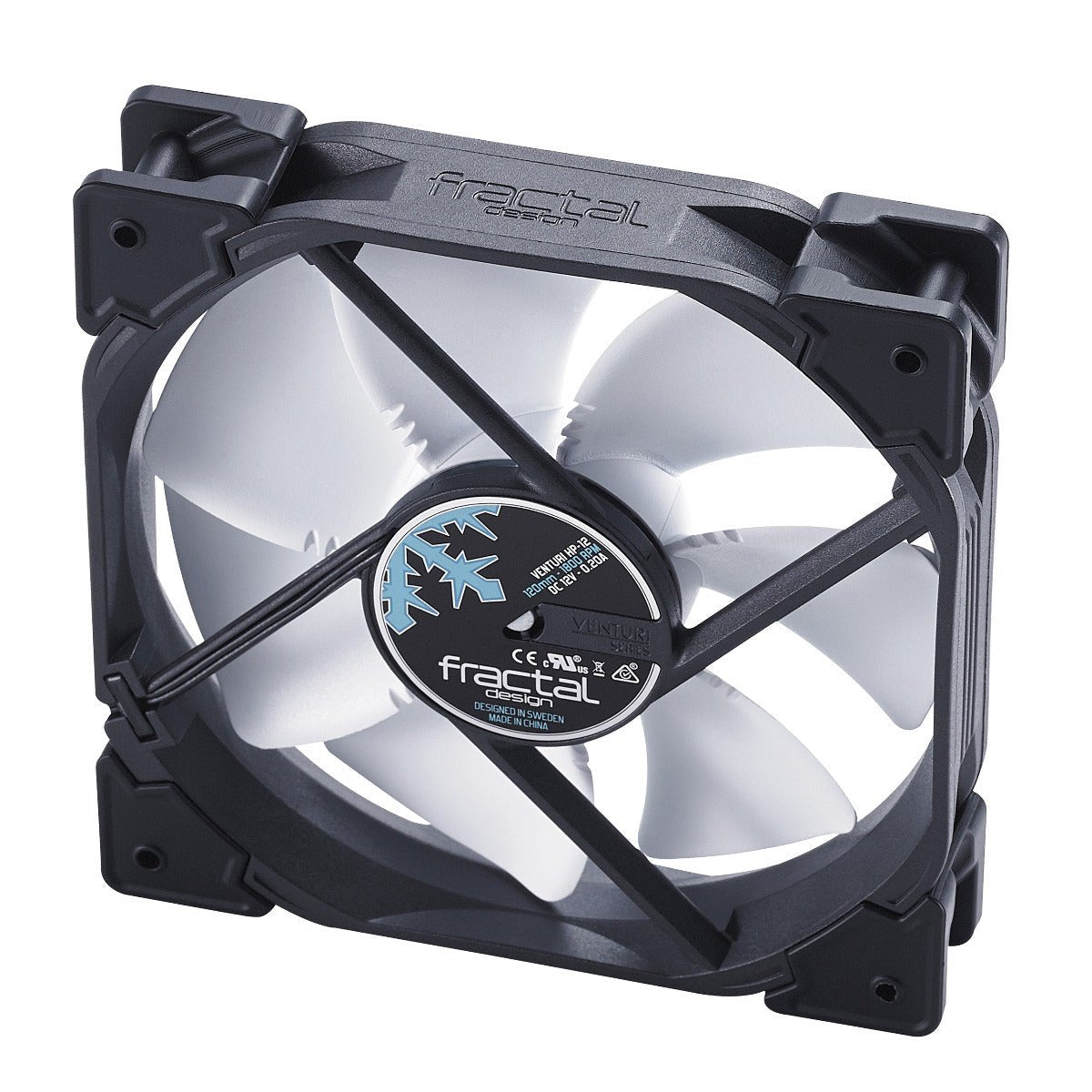

Fractal Venturi HP12 120mm PWM Case Fan - White

FD-FAN-VENT-HP12-PWM-WT

The Venturi High Pressure Series PWM fans, HP-12 and HP-14, are optimized for high-restriction airflow scenarios, making them an excellent choice for usage on large heatsinks, on radiators, or in other highly restrictive scenarios.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$19.99
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The Venturi High Pressure Series PWM fans, HP-12 and HP-14, are optimized for high-restriction airflow scenarios, making them an excellent choice for usage on large heatsinks, on radiators, or in other highly restrictive scenarios.

Designed with a variety of performance-increasing and noise-reducing features, these fans can move an amazing amount of air through restricted environments compared to other fans at the same, minimal noise level.

The HP-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140mm fan hole spacing (125mm) and one compatible with the standard 120mm hole spacing (105mm). The Venturi High Pressure Series PWM fans are ideal for those looking for a perfect balance between high performance and low noise built from sturdy, high quality materials.

/

Features


  • Featuring true FDB-bearings, providing silent operation coupled with a long lifespan

  • Equipped with a counter-balanced magnet that reduces the axial tension on the bearing

  • Features integrated vibration-dampening corners, made from solid high-quality synthetic rubber

  • Dense, sturdy construction, made from high grade glass fiber reinforced thermoplastic polymer

  • Fan geometry is optimized for high pressure, delivering high performance results in high restriction usage scenarios, such as in use with large dense heatsinks or water cooling radiators.

  • Featuring PWM control with a very wide speed range, starting at only 400RPM (400 +/- 100 RPM), ideal for CPU heatsinks or radiators, where the motherboard can control the fan speed based on the CPU temperature.

  • Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence.

  • Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts

  • The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation

  • Comes with a PWM Y-cable, for connecting additional fans to a single PWM header on your motherboard or PWM fan controller

  • 140mm fans come with an additional set of vibration-dampening corners are included that lends compatibility with 120mm fan mounts (105mm screw spacing). This enables the use of 140mm fans on many CPU coolers.

  • Available in 120mm and 140mm fan sizes

Specifications








Specifications






  • Size

    120 x 120 x 25 mm



  • Screw hole pattern

    105 x 105 mm



  • Connector

    4-pin



  • Bearing

    FDB



  • Number of blades

    7



  • Rotational speed

    1800 RPM



  • Noise level

    31.7 dB (A)



  • Airflow (CFM)

    61.4



  • Airflow (m3/h)

    104.3



  • Static pressure

    2.3 mm H2O



  • Fan input power

    1.0 W



  • Fan max input current

    0.2 A



  • Fan input voltage

    12 V



  • Fan starting voltage

    6 V



  • Low (0-20%) PWM speed

    400 RPM



  • Low PWM noise level

    < 10 dB (A)



  • Low PWM airflow (CMF)

    15.4



  • Low PWM airflow (m3/h)

    26.2



  • Low PWM static pressure

    0.45 mm H2O



  • MTBF

    150,000 hours



  • Fan weight

    179 g



  • Cable length

    500 mm



  • Cable type

    Braided all-black ribbon wire







Other






  • Package contents

    Venturi Series fan, Screw pack with 4 metal screws, 1->2 PWM signal splitter cable



  • Package weight

    225 g



  • Package dimensions (Including hanging tab)

    180 x 122 x 30 mm



  • Package dimensions (Excluding hanging tab)

    147 x 122 x 30 mm



  • EAN

    7350041083344



  • Product code (Black)

    FD-FAN-VENT-HP12-PWM-BK



  • Product code (White)

    FD-FAN-VENT-HP12-PWM-WT









Reviews
Product Q/A
Product Attachments

Net Reviews & Videos


The fan is well built (please note that I can?t test for long term reliability given timing constraints), relatively quiet and well performing enough to be one of the best radiator optimized fans on the market- at least with medium airflow restriction radiators (or heatsinks, for that matter), has a near universally appealing color scheme, sleeved fan cable that matches the fan color and again goes well with just about any build and priced lower than other high end fans.




To Read More Click HERE
