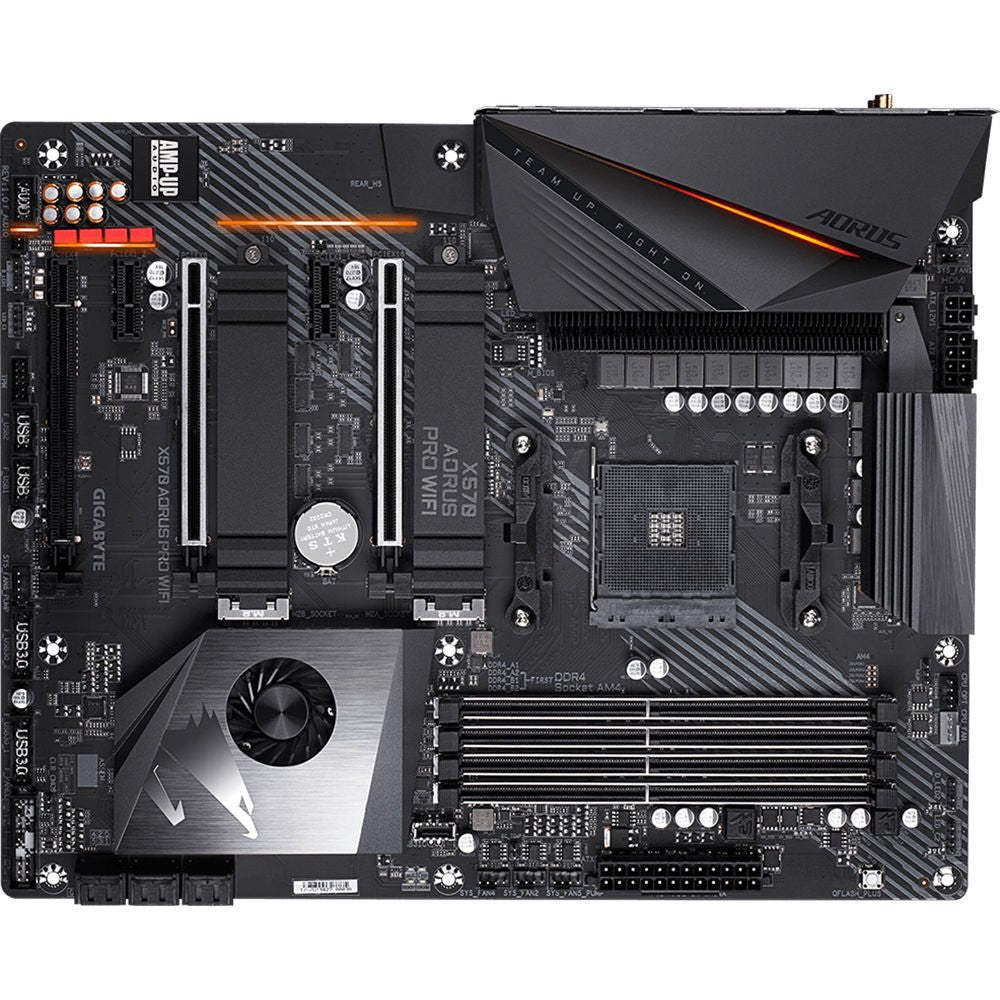

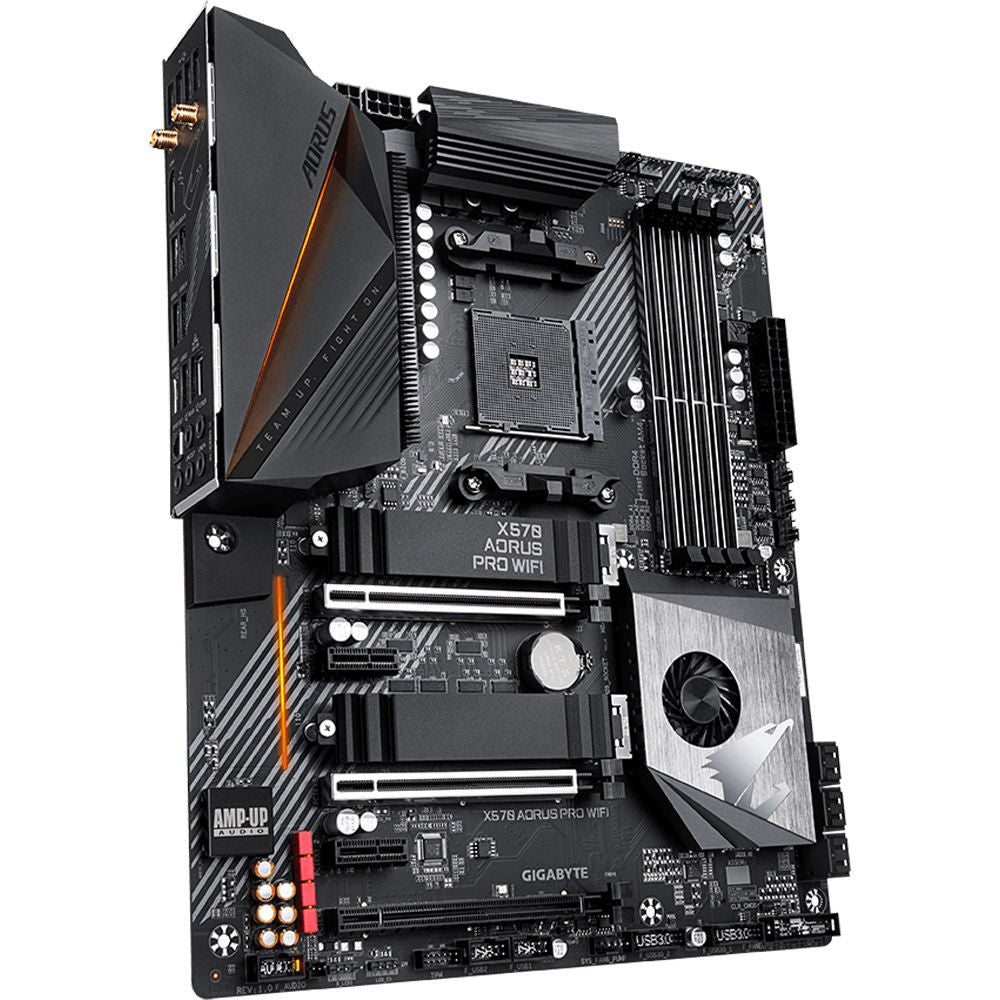

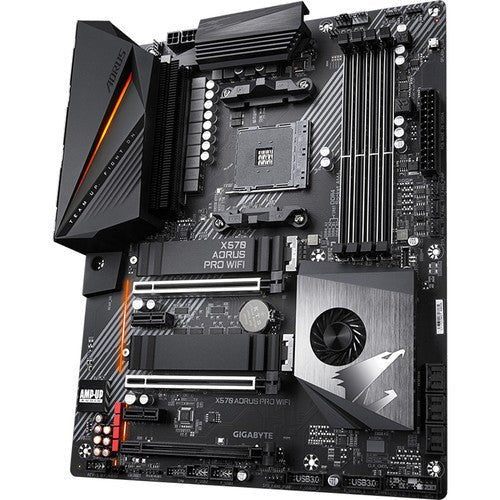

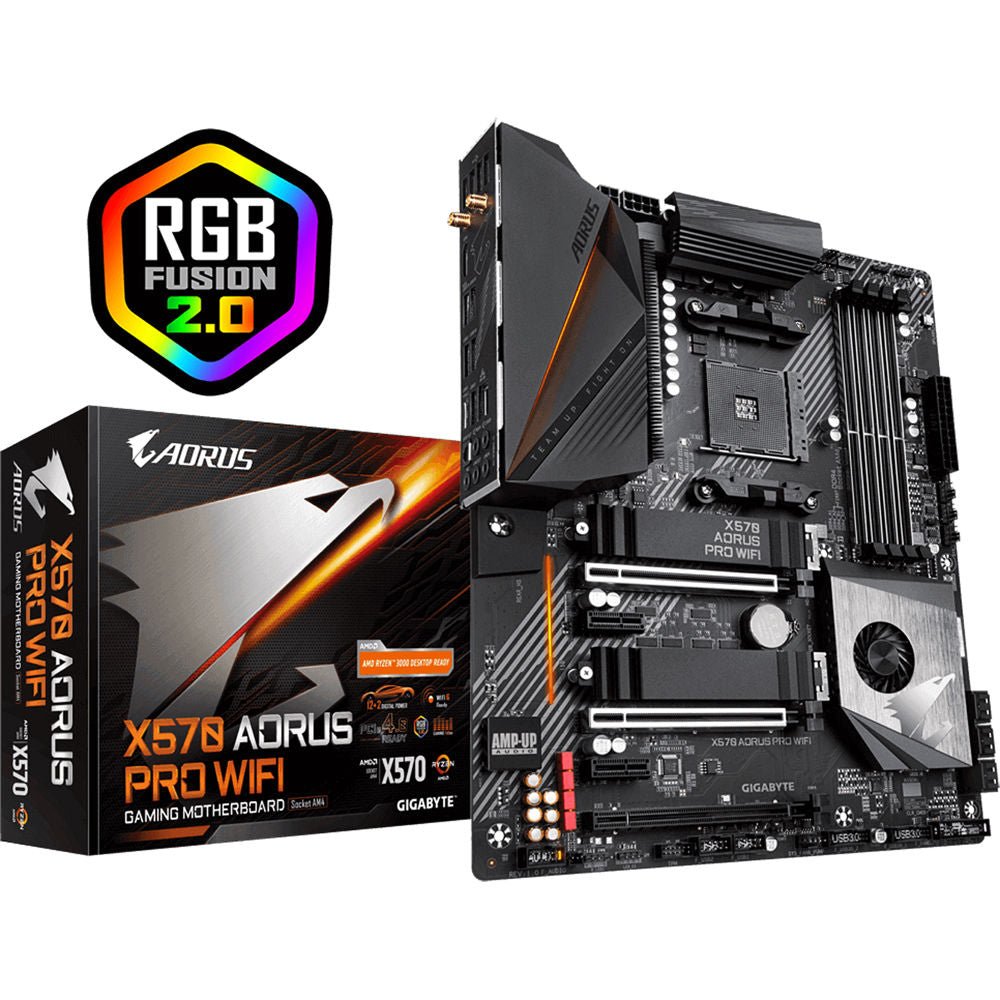

Gigabyte AORUS AMD X570 Pro WIFI ATX Motherboard X570AORUSPROWIFI

The AORUS AMD X570 Pro WIFI Motherboard from Gigabyte is built on an AMD X570 chipset, supporting 2nd and 3rd generation AMD Ryzen processors with an AM4 socket. It has four memory slots for up to 128GB of dual-channel DDR4 RAM, which can be overclocked to up to 4400 MHz. For storage, it's equipped with six SATA 6Gb/s ports and two M.2 slots. It is also equipped with three PCIe 4.0 x16 slots and two PCIe 4.0 x1 slots. The Realtek ALC1200-VB codec provides up to 7.1-channel HD audio.



Features:

• AMD X570 Chipset provides full support for 3rd Gen AMD Ryzen processors


• AORUS Core Lighting illuminates the vast AORUS ecosystem


• AMD StoreMI technology accelerates traditional storage devices to reduce boot times, combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, and transforms the everyday PC to a performance driven system


• 12+2 Phases IR Digital power design includes both digital PWM Controller and PowlRstage MOSFET, and can provide at least 40A of power from each phase, for a total of 480A


• Smart Fan provides three different operating modes including Silent, Balanced, and Performance, to minimize noise and extend the fan's longevity


• High quality ball bearing guarantees 60,000 working hours


• PCIe 4.0 slots have high slot signal stability and low impedance, maximizing PCIe bandwidth while also being backwards compatible with PCIe 3.0


• Dual PCIe 4.0 M.2 connectors with thermal guards


• Support for DDR4 XMP up to 4400 MHz


• Intel Wi-Fi 6 802.11ax and Bluetooth 5 module


• AORUS antenna supports dual-band with better Wi-Fi signal


• Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments


• USB Type-C front panel connector for USB 3.2 Gen2 makes access convenient when connecting a USB 3.2 Gen2 drive or charging your mobile device


• ALC1220 120 dB(A) SNR HD audio with smart headphone amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion


• VB series audio controller allows you to stream your voice with both front/rear microphone SNR up to 110/114 dB(A)


• Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors


• RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB or Addressable LED light strips for their PC


• Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard


• Fan Stop allows you to map any fan to stop completely when temperatures drop below a specified threshold


• Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode


• Q-Flash Plus allows you to update BIOS without installing CPU, memory, and graphics card


• Solid plated ATX 24-pin and ATX 12V 8-pin + 4-pin power connectors offer a stable power supply during CPU overloading


• Ultra-durable PCIe armor reinforces the PCIe connectors to provide extra strength required to support heavy graphics cards


• Ultra-durable memory armor design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference


• Patented double locking bracket


• BIOS modes include New User Interface, My Favorites, Storage Information, Changelog, and Intuitive Load Line Curve


• APP CENTER is a portal of all GIGABYTE MB utilities and drivers. You can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version


• EasyTune interface allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment


• @BIOS app allows you to update your system's BIOS from within Windows using a simple graphical user interface


• System Information Viewer is a central location that gives you access to your current system status
