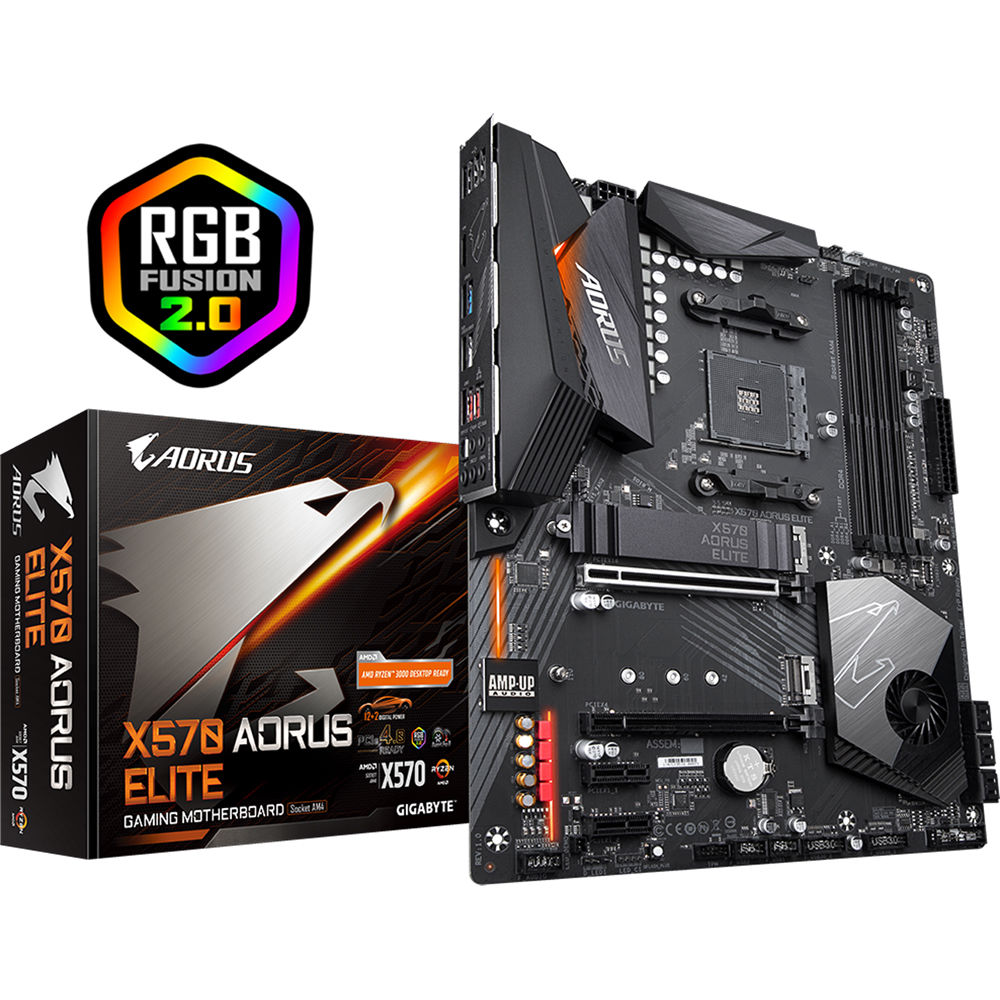

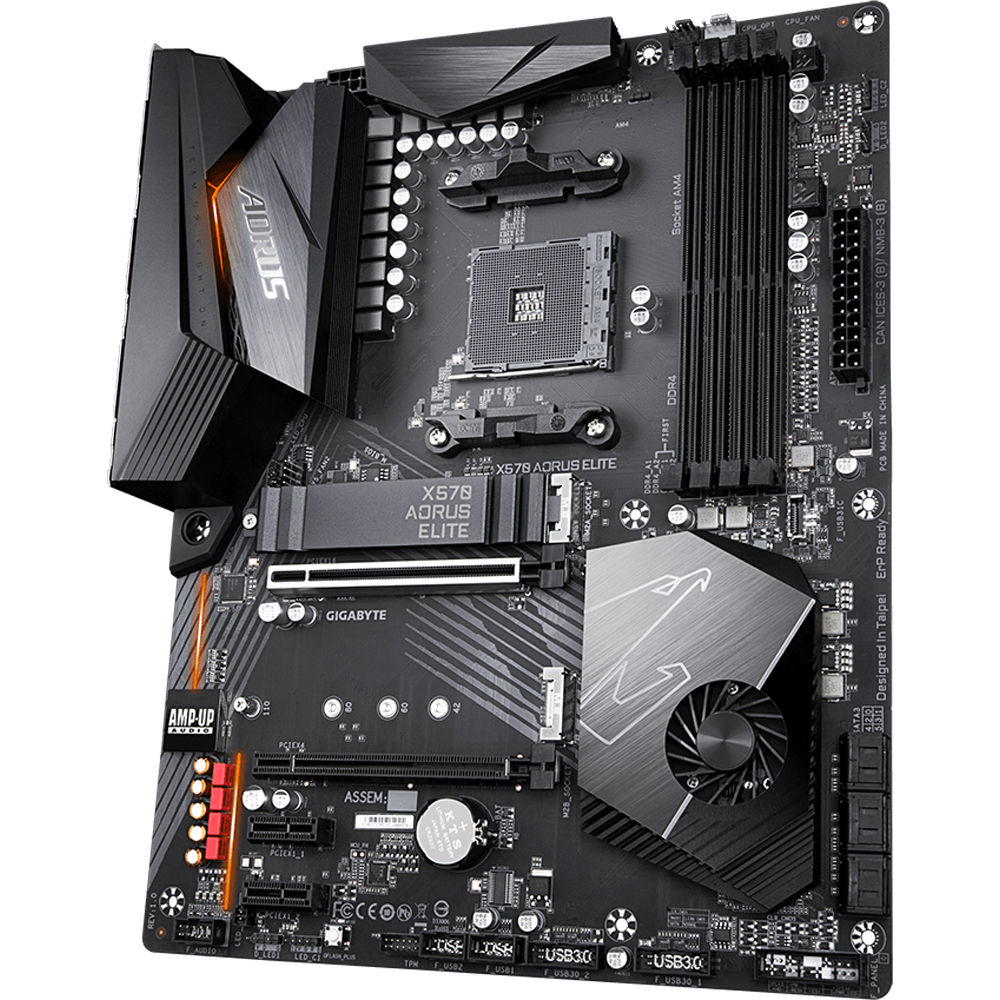

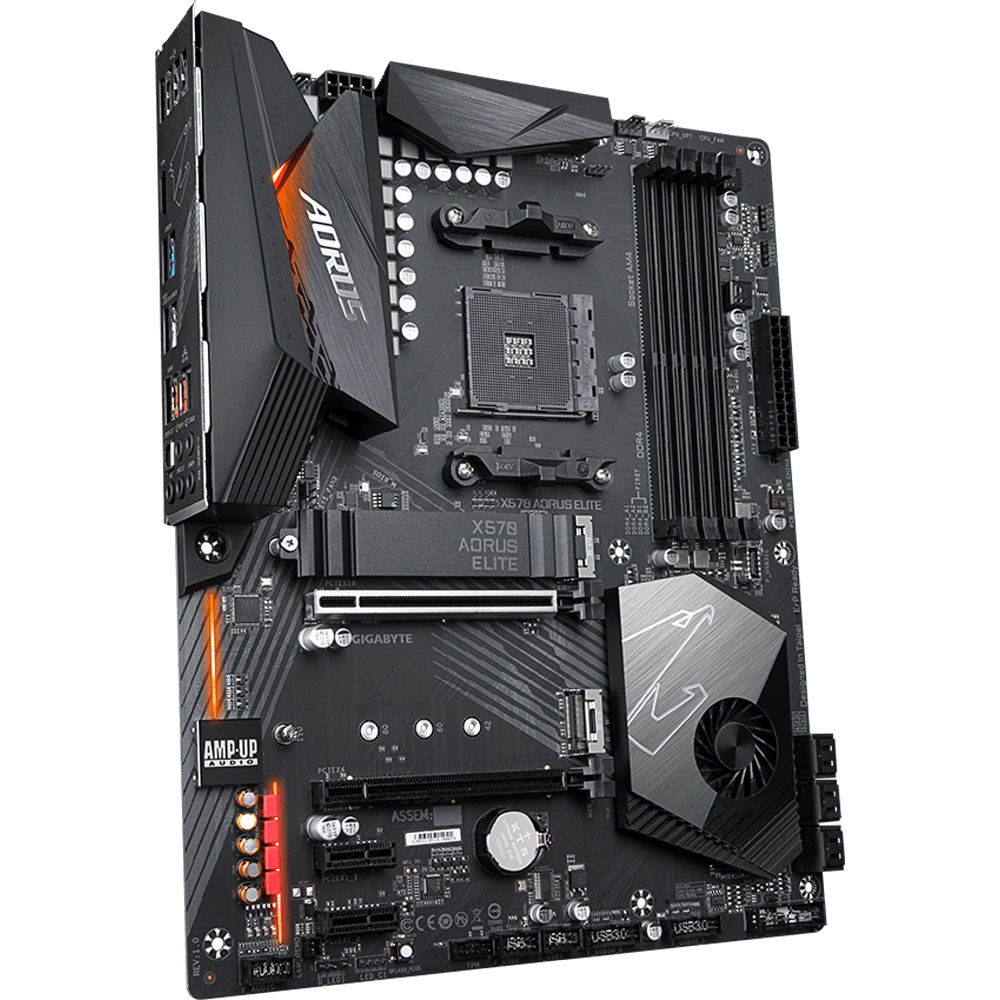

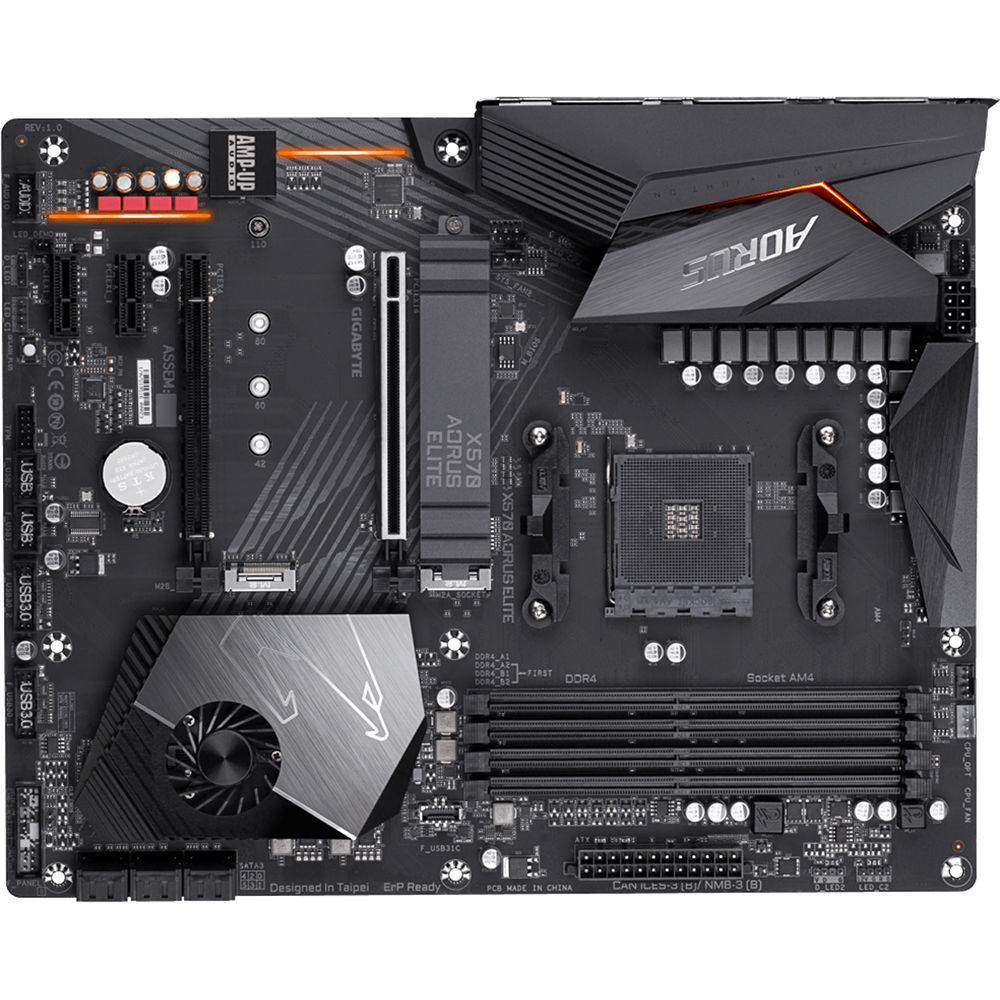

Gigabyte X570 AORUS ELITE AM4 ATX Motherboard

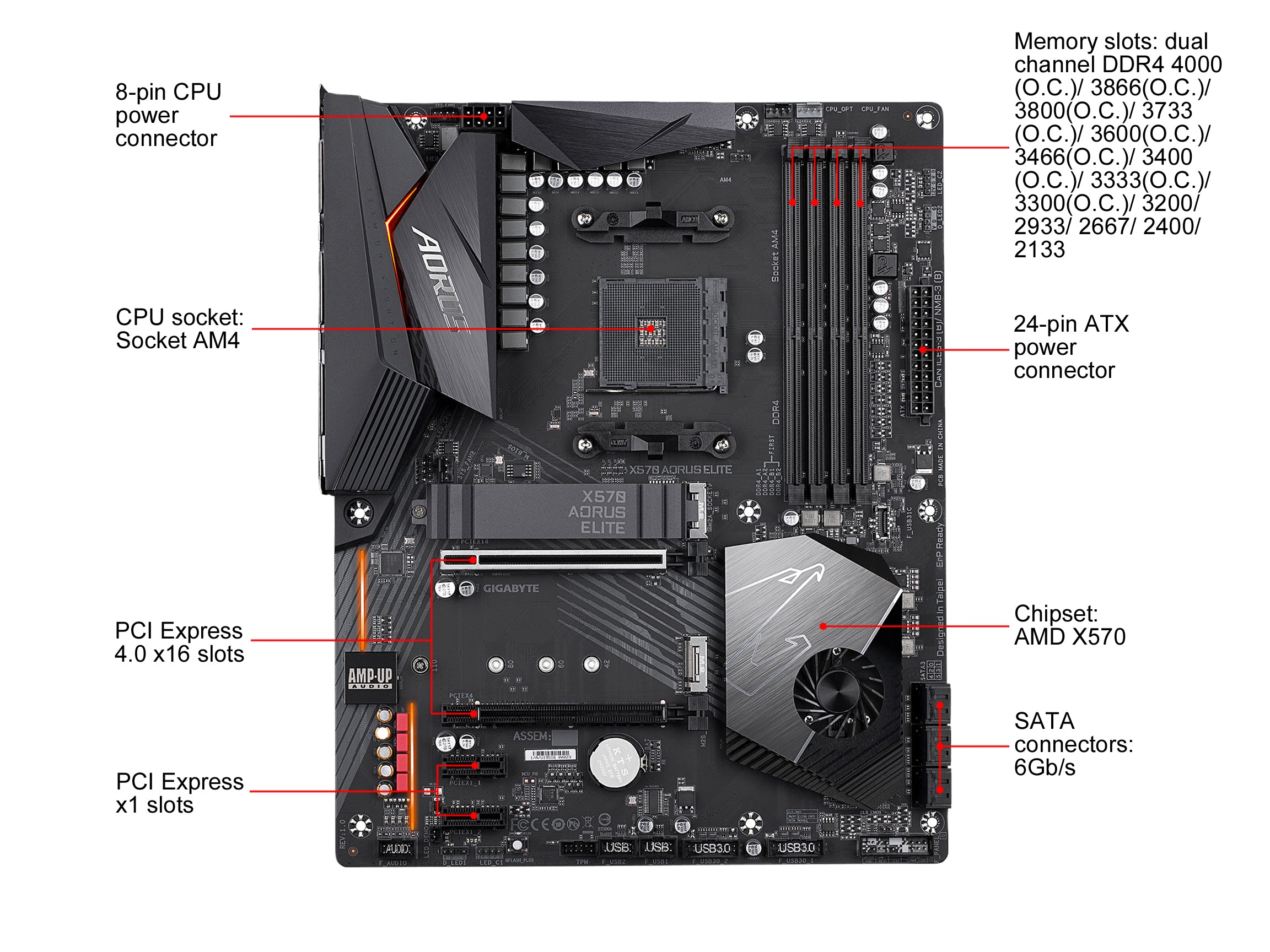

The X570 AORUS ELITE AM4 ATX Motherboard from Gigabyte is built on an AMD X570 chipset, supporting 2nd and 3rd generation AMD Ryzen processors with an AM4 socket. It has four memory slots for up to 128GB of dual-channel DDR4 RAM, which can be overclocked to up to 4000 MHz. For storage, it's equipped with six SATA III ports and two M.2 slots. This motherboard is equipped with a PCIe 4.0 x16 slot for a graphics card. The Realtek ALC1200 codec provides 7.1-channel HD audio.

Key Features

• AMD X570 chipset


• Advanced thermal design and an enlarged heatsink ensure that dangerous temperatures are kept at bay


• Dual PCIe 4.0 x4 M.2 connectors


• Supports multi-GPU technologies (AMD Crossfire)


• Intel GbE LAN with cFosSpeed


• Realtek ALC1200 codec for 7.1 audio


• Audio noise guard


• Q-Flash Plus enables users to update the BIOS without installing a CPU, memory, or graphics card


• RGB Fusion 2.0 multi-zone lighting


• HDMI 2.0 support


• Solid pin power connectors


• Reinforced PCIe connectors


• Patented double locking bracket and integrated I/O shield armor


• Norton Internet Security (OEM version) included
