Features:
- Support for Ryzen 5000 Series with BIOS UPDATE
- Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen/2nd Gen Ryzen / 3nd Gen Ryzen with Radeon Vega Graphics/2nd Gen Ryzen with Radeon Vega Graphics/Ryzen with Radeon Vega Graphics Processors
- Dual Channel ECC/Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+2 Phases Digital VRM Solution
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guard
- High Quality Audio Capacitors and Audio Noise Guard
- Realtek 8118 LAN
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
- Smart Fan 5 - Hybrid Fan Headers with FAN STOP and Noise Detection

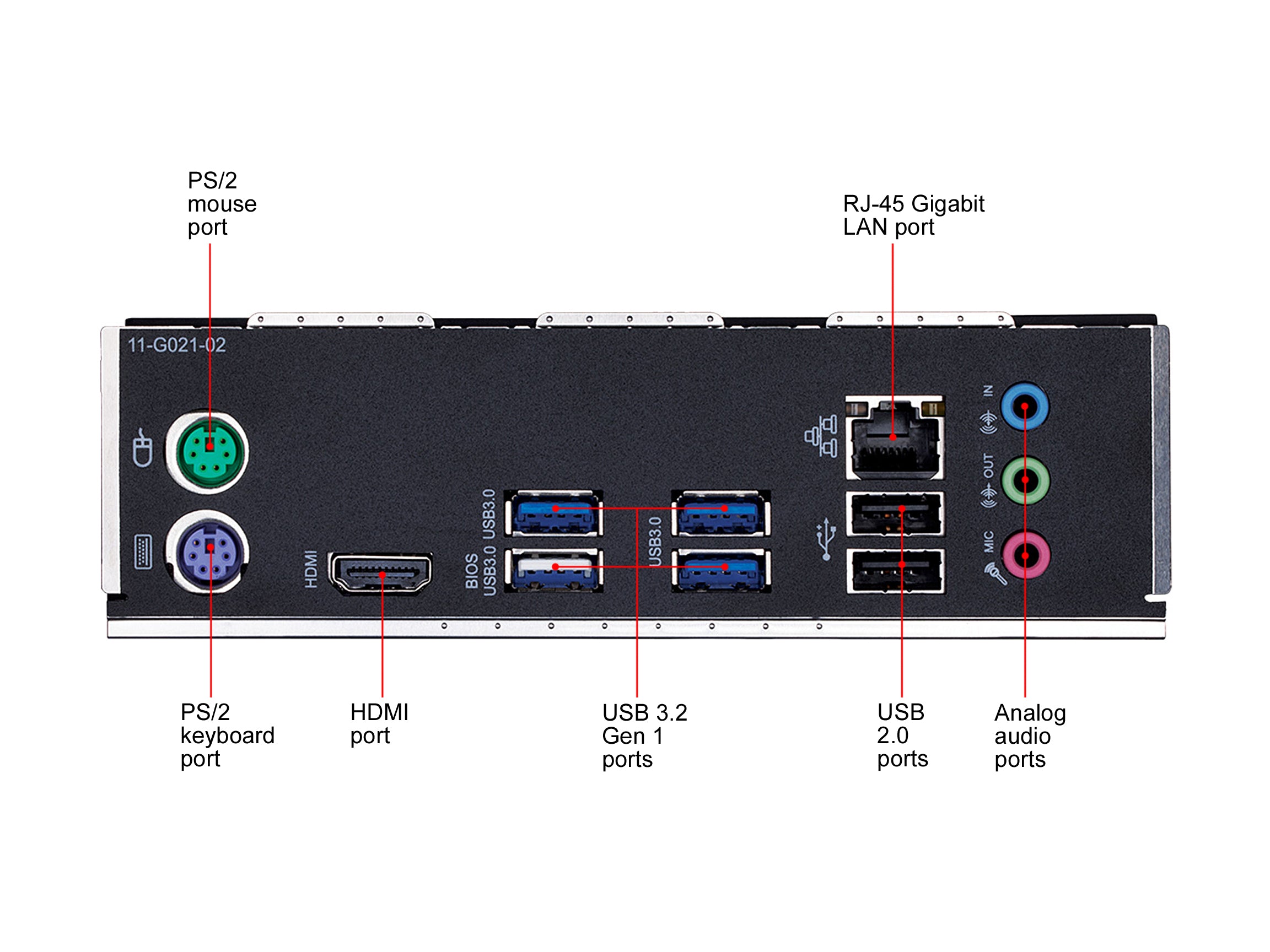

- Integrated I/O Shield
- Q-Flash Plus Update BIOS Without Installing CPU, Memory, GPU

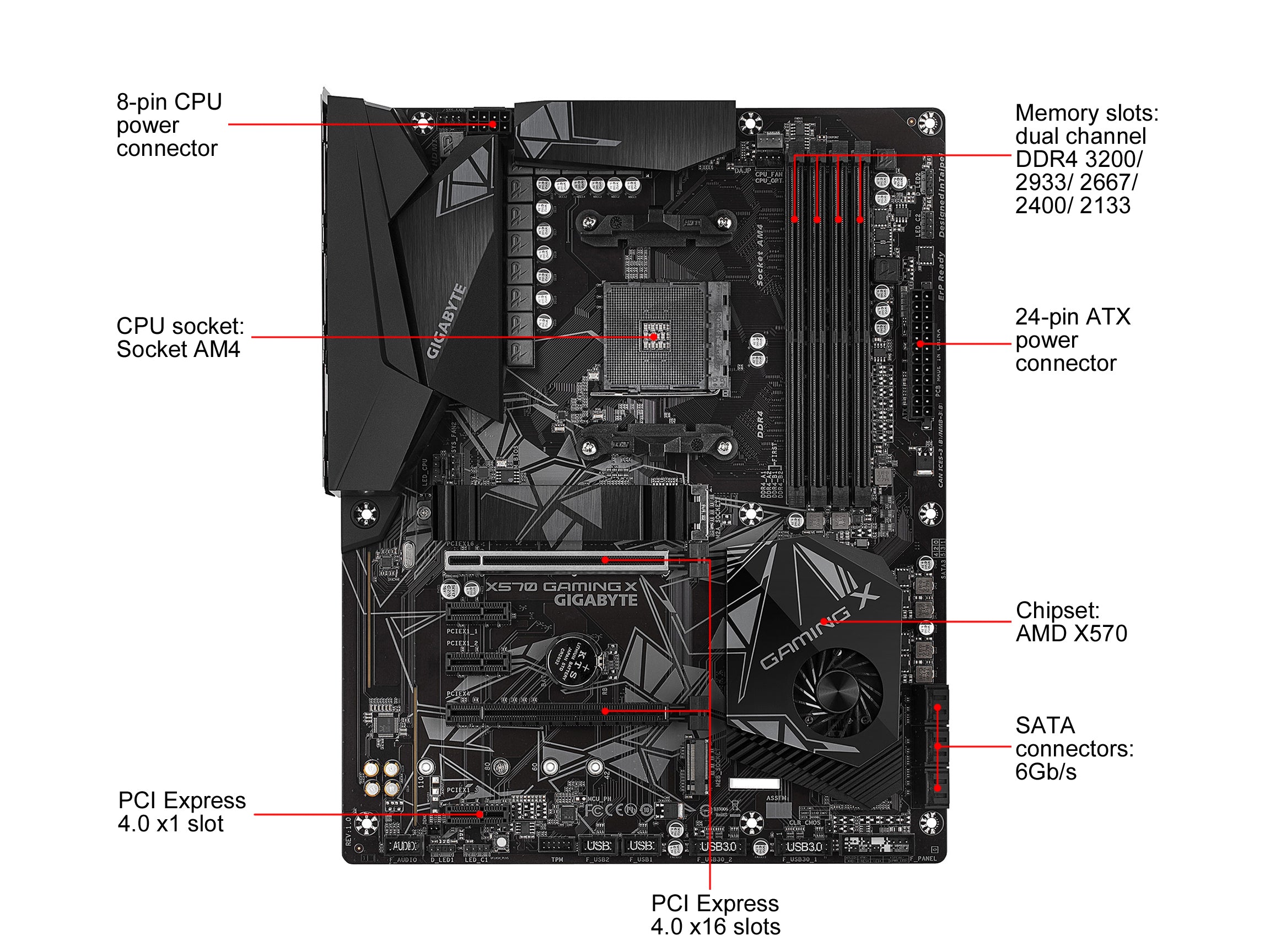

AMD X570 Chipset
The AMD X570 chipset is designed around third-generation AMD Ryzen 3000-series processors. Along with multiple noteworthy improvements, the design supports PCIe 4.0, which has roughly double the bandwidth of PCIe 3.0. This benefits graphics cards, networking devices, NVMe drives, and more.
Storage and Memory
- Two M.2 slots are available, supporting up to type 22110 SATA and PCIe NVMe SSDs.
- Six SATA III headers are available for hard drives and 2.5 SSDs.
- RAID 0, 1, and 10 configurations are supported.
- Up to 128GB of dual-channel DDR4-4000 (OC) memory can be installed across four slots.
AMD StoreMI Storage Acceleration
AMD StoreMI technology accelerates storage by combining the speed of SSDs with the high capacity of mechanical hard disk drives. This software utility automatically caches frequently accessed files to your SSD drives or within up to 2GB of designated RAM for significantly faster load speeds. It also allows you to combine multiple drives into one drive letter to help keep your files organized and quickly accessible.
Enhanced Cooling
- This motherboard includes large surface heatsinks with a chipset fan to optimize thermal efficiency.
- A thick thermal pad provides additional cooling performance for overclocking.
- Thermal guards help to quickly dissipate heat from the M.2 solid-state drives to avoid speed throttling.
- Smart Fan 5 allows users to interchange fan headers to correspond with the thermal sensors located across the motherboard so that the system stays cool while maintaining a high level of performance for games and other demanding applications.
- Fan Stop lets you to take control of your computer's noise level by allowing specified fans to halt when the system drops to a designated temperature level. These settings may be customized according to your preferences.
- Hybrid Fan Headers automatically detect the connected liquid- or air-cooling systems, enabling Smart Fan 5 to monitor information such as flow-rate.
Performance Features
The X570 GAMING X features an all-digital PWM controller with Lower RDS(on) MOSFETs, which includes 10+2 phases that efficiently delivers power to critical components.
Designed for Durability
- A stainless steel shield reinforces the PCIe connectors, providing extra strength to support heavy graphics cards.
- Solid plated ATX 24-pin and 8-pin power connectors deliver a stable power supply to key components.

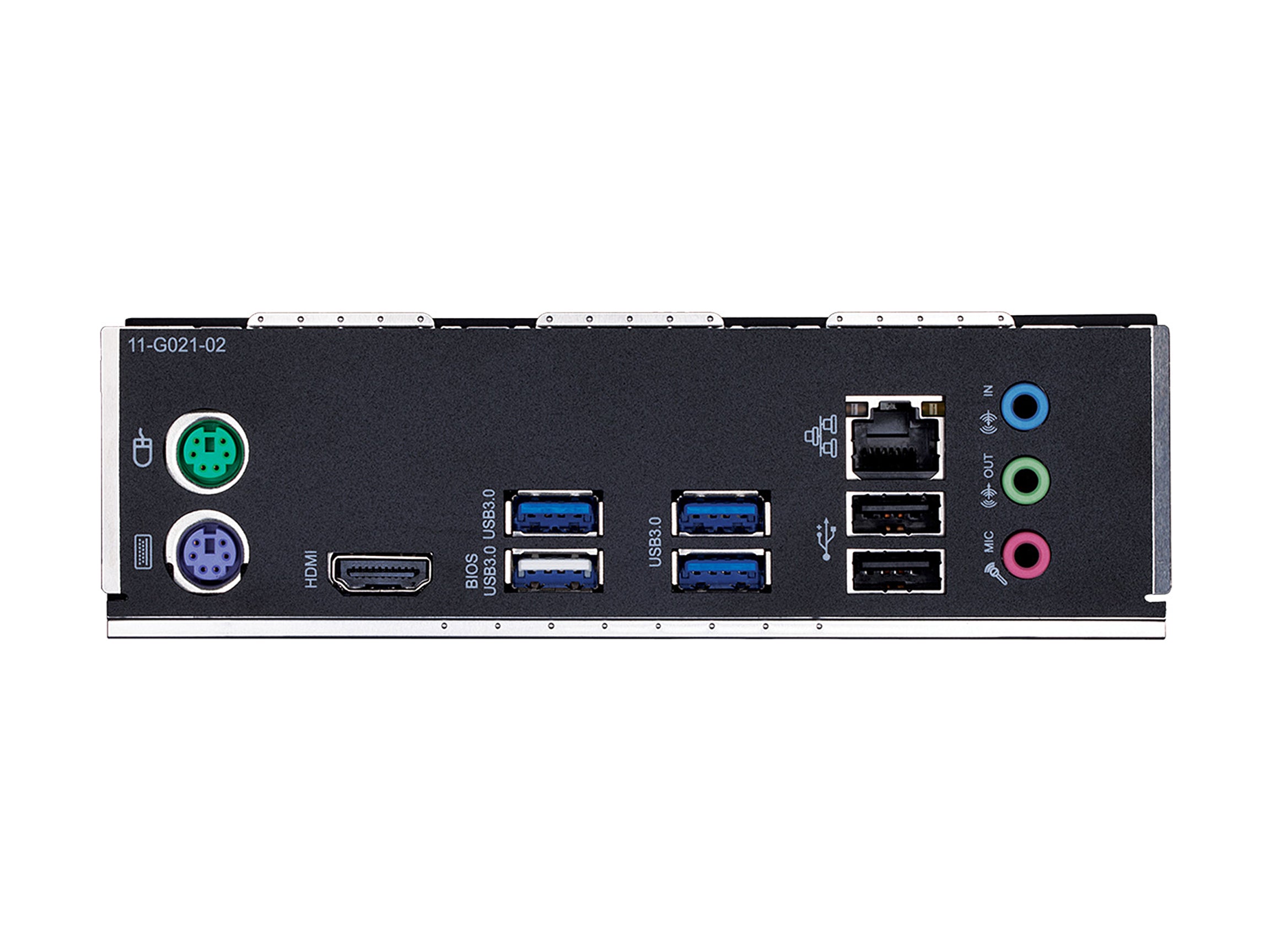

- An integrated I/O shield allows for easier installation.
- With the Q-Flash Plus feature, you can update the BIOS without having to install a CPU or video card. Simply copy the new BIOS file to a USB flash drive, insert it into the designated port, then press the Q-Flash button.
AMD CrossFireX Support
Installing multiple graphics cards will enhance the computer's performance for demanding tasks such as CAD, 3D rendering, video editing, and more. This motherboard supports Quad-GPU and 2-Way AMD CrossFireX configurations.
Immersive Audio
- The Realtek ALC887 audio codec provides vibrant 5.1-channel surround sound to your speakers.
- High-quality, durable capacitors help to deliver clear sound to audio equipment.
- A noise guard separates the board's sensitive audio components from areas that may cause interference and noise pollution.
Network Performance
The Gigabit Ethernet port provides a fast network connection with high-speed data transfers using compatible devices.
RGB Fusion 2.0 Lighting
With Gigabyte's RGB Fusion 2.0 technology, you can customize your computer by installing RGB lighting strips alongside compatible components and peripherals for incredible effects. Lighting profiles that cover your entire system, including the motherboard, video card, and CPU, can be configured and controlled using the Gigabyte RGB Fusion 2.0 desktop software or mobile app.
