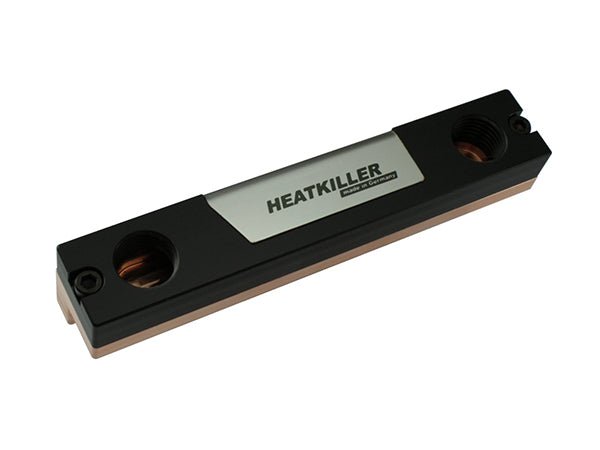

HEATKILLER® MB-X VRM ASUS RAMPAGE IV Black Edition - Cu

When the water coolers of the HEAT KILLER ® MB -X series , especially its performance is paramount. You are being developed specifically for the particular motherboard and are therefore different from the products of our HEATKILLER ® SW -X series is not modular. In return, the discerning customer expects an outstanding cooling performance at a very low flow (high flow). In addition to the voltage transformers , the coils are cooled. This improves the stability of the motherboard , while increasing the overclocking potential.

Another feature of the HEAT KILLER ® MB -X Series are the insulating spacer . These decouple the heatsink electrically from the motherboard. At the same time , you also enable an easy and kippelfreie assembly.

In preparing the HEATKILLER ® MB -X Series Only high quality materials are used . So the floor is 99.9 % pure electrolytic copper is made . To save weight , the upper part is machined from an industrial plastic (POM ) . The interface is kept very clean, so , unsightly screws completely beneath a cover made of polished stainless steel.

About 1/4 inch thread the water cooler can easily be integrated into the water cycle . In addition to the mounting material are also already pre-cut thermal pads included . Additional heat conducting means are not needed.

Bargain hunters beware! Through a very generous sized passive heatsink on the chipset the ASUS RAMPAGE IV Black Edition VRM water cooler can also be used stand-alone . We offer it therefore also individually. However, enthusiasts and overclockers is the complete HEAT KILLER ® MB -X Kit ( part numbers 11551 & 11552 ) to heart . This also includes a very powerful water cooler for the chipset.

Note: This version contains only the VRM waterblock.

• >Material: Electrolytic copper , POM, Stainless Steel


• > >Dimensions ( LxWxH): 107 x 19 x 23.5 mm ( VRM)


• > >Weight: about 150g


• > >Pressure tested: 5 bar


• > >Seals: NBR70


• >
  >Connections: G ¼ in. ( DIN ISO 228-1 )

> >Scope of delivery:

• >1x HEAT KILLER ® MB - ASUS RAMPAGE IV VRM X Black Edition Cu


• > >1x Mounting material


• > >1x thermal pads


• >1x Installation Instructions
