We designed the REVOLT 3 to be the ITX case you'll take anywhere, and upgrade for years. With an integrated handle and tool-free side panels, you'll love how easy it is to build in, modify, and travel with.

Get yours today, and experience play before you hit the power button.

• Supports most full-size graphics cards, no riser cable needed.

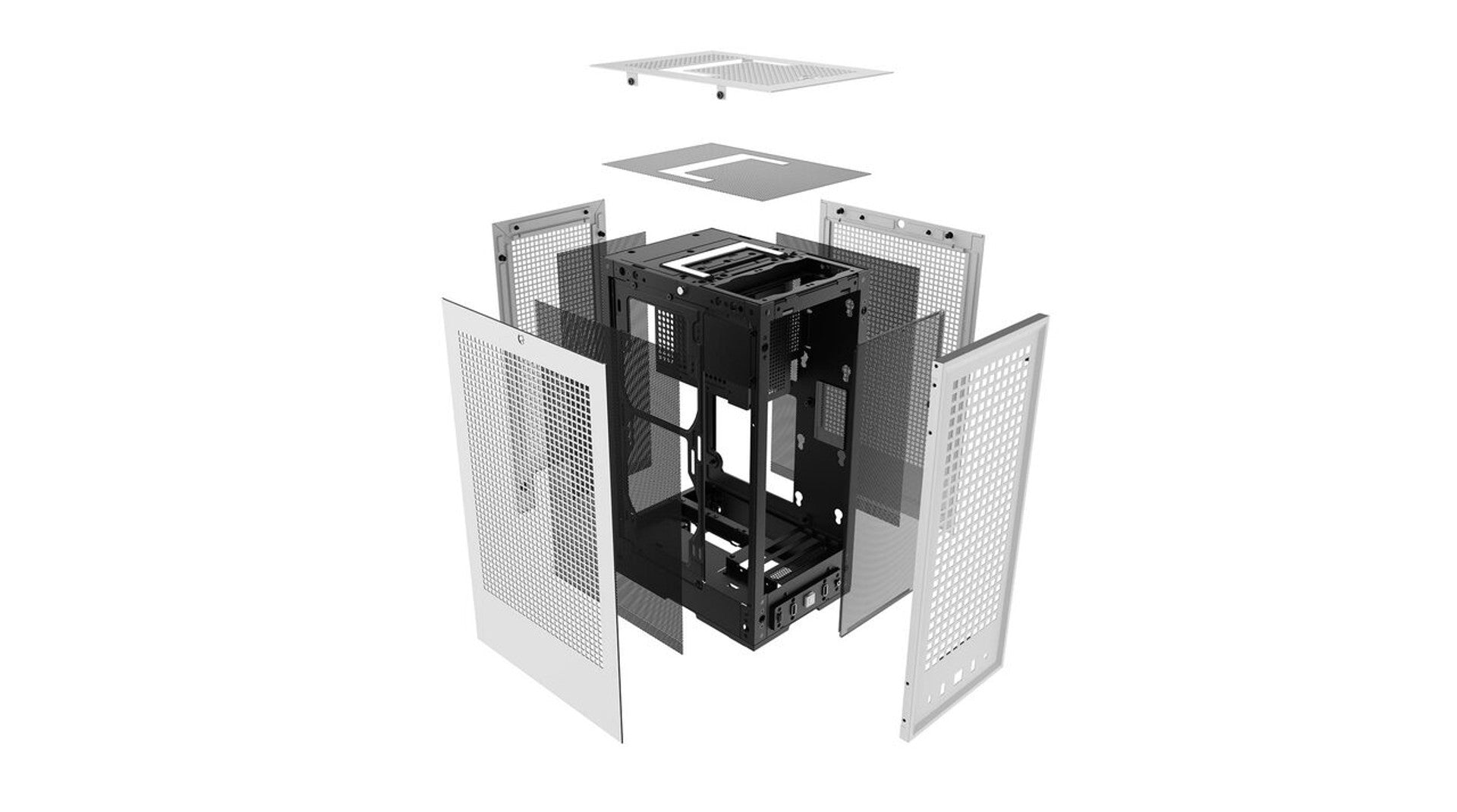

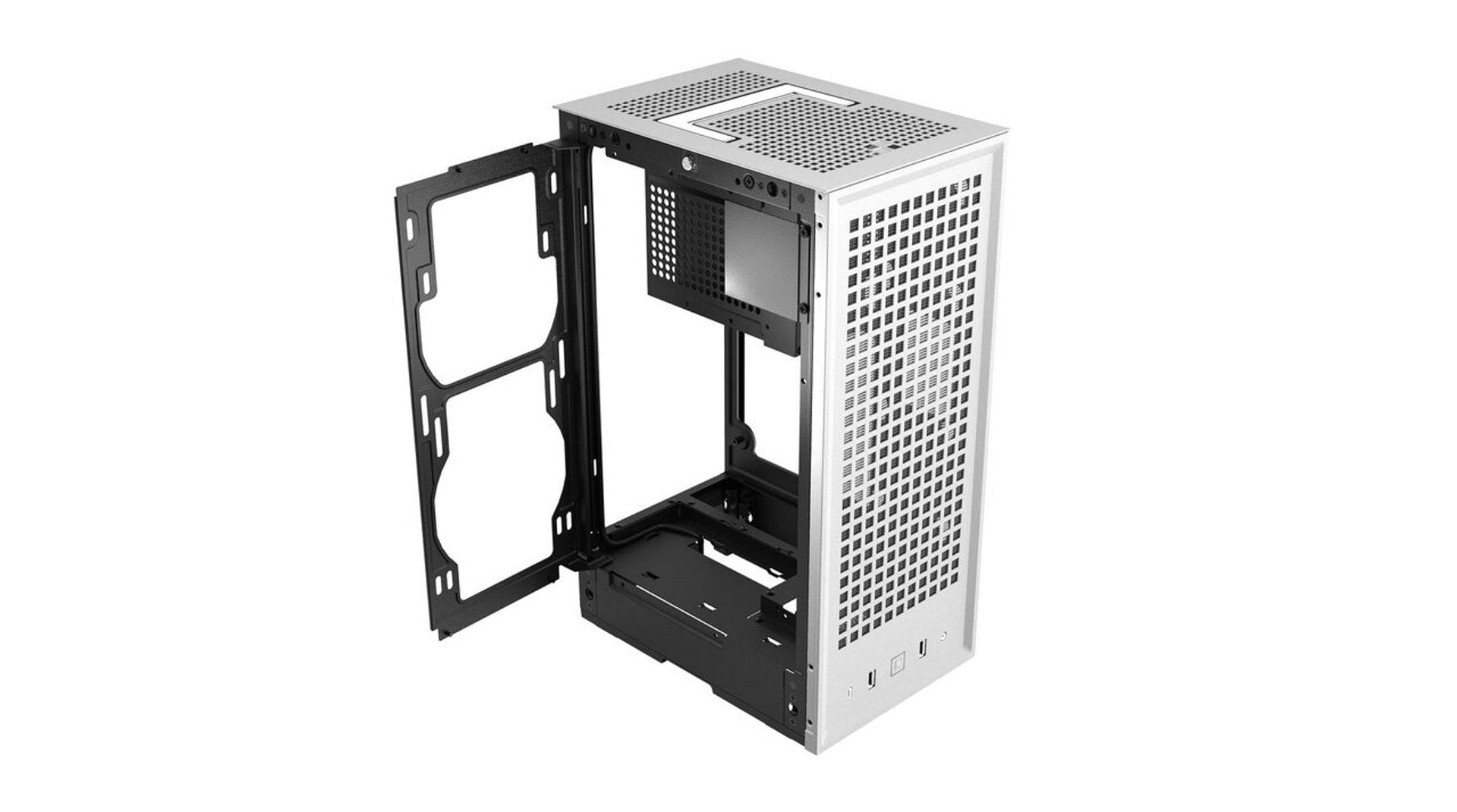

• Tool-less side panels: pop them off for effortless access to build and upgrade

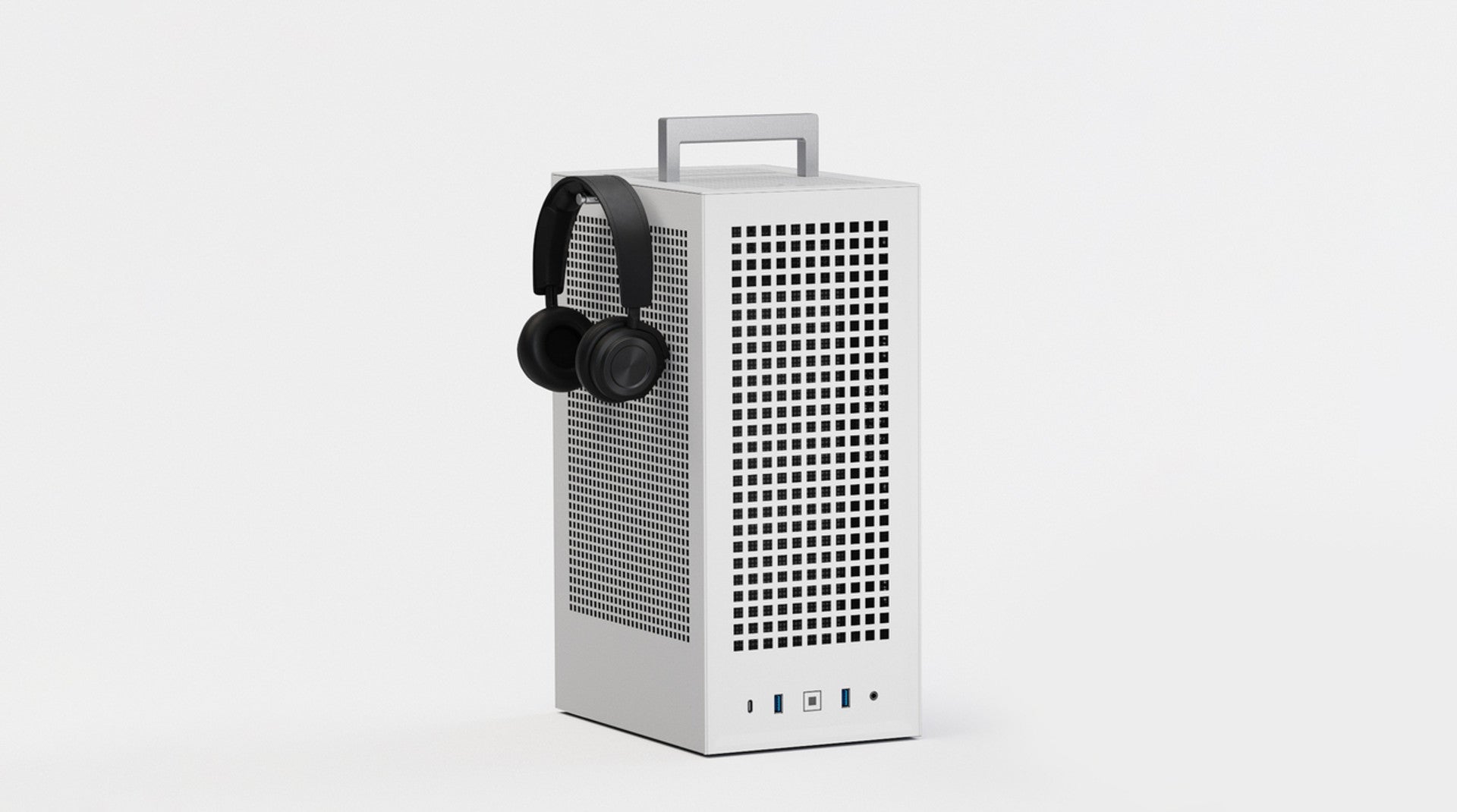

• Integrated handle and accessory holders, for easy travel.


• Downward-facing motherboard I/O routes cables out the back of the case


• Bottom-front case I/O offers a cleaner desk setup and superior cable management.


• Supports 1 HDD and up to 2 x 2.5 SSDs


• Optional PSU with pre-measured and routed cables.


• Separated airflow channels for CPU and GPU cooling

Material	Aluminum, Steel, ABS
Color	Black, White
Dimensions	253 x 178 x 409mm (9.9 D x 7 W x 16.1 H)
Motherboard Size	ITX
Graphics Card	Most cards up to 335 x 140 x 58mm*
Radiator Support	120, 240, 140, 280mm up to 35mm thick
CPU Cooler Height	Up to 140mm
Top Fan Support	80x15 mm (x1)
Handle Weight Limit	30lbs. (14kg)
Expansion Slots	3
Internal 3.5 Bays	1
Internal 2.5 Bays	2
Front Interfaces	USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio/Mic Combo x1
Dust Filters	Front (Metal Mesh), Top, Slides, Rear (Magnetic)
Case Weight	14lbs (6.3kg) - Including PSU
Power Supply	SFX, SFX-L (700W 80 Plus Gold optional)



GPU Compatibility
