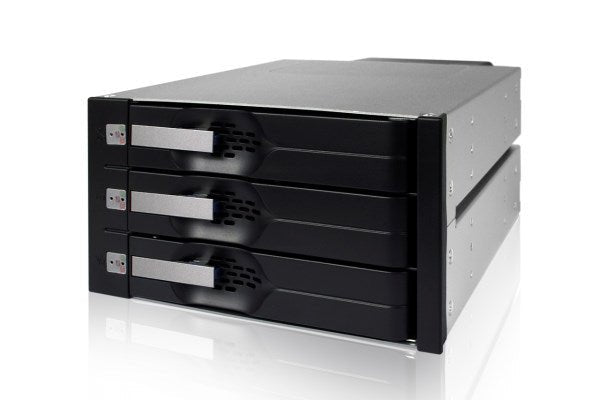

ICY DOCK MB673SPF-B Screw-less 3 in 2 SATA I & II Hot-Swap Internal Backplane Raid Cage

#1 Best Seller
in HDD/SSD Enclosures
#1 Best Seller
in Icy Dock
#5 Best Seller
in Peripherals
IcyDock logo

MB673SPF-B-D

Product Details:

The MB673SPF-B is our series of internal multi-bay tray-less models that are coming out to the ICY DOCK enclosures. It has a lock system built behind the handle to prevent any unintentional breach of the hard drive. Once the door opens, a mechanism behind the back will gently push the hard drive out for easy access. The handles have hinges on the door, which is firm enough to prevent the handle from breaking and easy enough to open the door without any exertion of force. The detachable fan on the rear is easy to take apart from the enclosure and requires no tools or wiring to remove the fan. The enclosure also has output pins for power access and hard drive access as well as pins to detect hard drive failures for each slot. A toggle switch lets you configure the temperature settings to warn of any overheating in the bays. The spacing between the hard drives were designed to effortlessly insert and remove drives and the front of the enclosure also have opening to allow better dissipation of heat. Moreover, aluminum panels surrounding the drives will prevent any overheating. This is the ideal enclosure to organize your drives using minimal amount of area on your computer.

Suggested Applications

Storage drives expansion and enabling drive maintenance to industrial PC, server, and various storage system applications.

Product Features:

* 3 in 2 RAID back plane module.
* User friendly Screw-less design just plug in the hard drive and play.
* Full aluminum built cooling body constructed.
* Fully supports Hot-Swap function.
* Compact and space saving for multiple drive fit (three drives within a two 5.25Â? bay fitting).
* Huge warm air detachable outtake fan cooling.
* Multi-drive exchangeability & maintenance capabilities.
* Easy installation & No driver needed.
* Advanced drive monitoring system built internally w/ visual & audio indicators.

Models & Specifications

ICY DOCK MB673SPF-B Screw-less 3 in 2 SATA I & II Hot-Swap Internal Backplane Raid Cage Module Tray-less - Black
Item Number: Black
MB673SPF-B
Internal Host
7 pin SATA
Drive Fit
3 x 3.5 Â? SATA I / II
Drive Bay
2 x 5.25Â?
Transfer Rate
up to 3Gb/sec. (depending on hard drive speed)
Insert & Extract connection Via
15 pin direct hard drive connection
Structure
Full Aluminum
Fan
Detachable 80 x 80 x 25mm ball bearing fan
Drive Cooling
Rear outtake fan w/ aluminum heat dispersion
Alarm Indication
Audio & Visual
LED Indication
Drive activity/overheat/failure,
Fan working/failure status
LED Display Color
Green : Device Power ; Amber : Drive activity;
Red : Drive failure / over heat / Fan failure
Drive Security
Drive tray locking mechanism
Dimension (L x W x H)
(w/ fan) 220.0 x 146.0 x 86.0 mm
(w/o fan) 180.0 x 146.0 x 86.0 mm
Weight
2.40 lbs.
