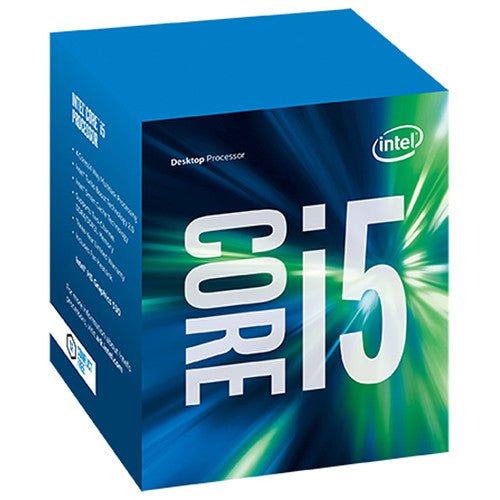

Intel Core i5-7600T 2.8 GHz Quad-Core Processor

BX80677I57600T

The Core i5-7600T 2.8 GHz Quad-Core Processor from Intel features a base clock speed of 2.8 GHz, Intel Turbo Boost 2.0, and Intel Hyper-Threading technology. With Intel Turbo Boost 2.0 technology, the maximum turbo frequency this processor can achieve is 3.7 GHz. Additionally, this processor features four cores with four threads in an LGA 1151 socket and has 6MB of cache memory.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$249.95 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The Core i5-7600T 2.8 GHz Quad-Core Processor from Intel features a base clock speed of 2.8 GHz, Intel Turbo Boost 2.0, and Intel Hyper-Threading technology. With Intel Turbo Boost 2.0 technology, the maximum turbo frequency this processor can achieve is 3.7 GHz. Additionally, this processor features four cores with four threads in an LGA 1151 socket and has 6MB of cache memory. Having four cores allow the processor to run multiple programs simultaneously without slowing down the system, while the four threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports up to 64GB of DDR4-2400/2133 and DDR3L 1600/1333 RAM at 1.35V.

Specifications


Intel i5-7600T Specs




Essentials












Processor Number i5-7600T
Lithography 14 nm



Performance




































Number of Cores 4
Number of Threads 4
Processor Base Frequency 2.8 GHz
Cache 6 MB SmartCache
Bus Speed 8 GT/s DMI3
# of QPI Links 0
TDP 35 W
Configurable TDP-down Frequency 1.80 GHz



Supplemental Information












Embedded Options Available No
Conflict Free Yes



Memory Specifications




















Max Memory Size 64 GB
Memory Types DDR4-2133/2400, DDR3L-1333/1600 @ 1.35 V
Max Number of Memory Channels 2
ECC Memory Supported No



Graphics Specifications








































































Processor Graphics Intel HD Graphics 630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.1 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60 Hz
Max Resolution (HDMI 1.4) 4096 x 2304 @ 24 Hz
Max Resolution (DP) 4096 x 2304 @ 60 Hz
Max Resolution (eDP - Integrated Flat Panel) 4096 x 2304 @ 60 Hz
DirectX Support 12
OpenGL Support 4.4
Intel Quick Sync Video Yes
Intel InTru 3D Technology Yes
Intel Clear Video HD Technology Yes
Intel Clear Video HD Technology Yes
Intel Clear Video Technology Yes
# of Displays Supported 3
Device ID 0x5912



Expansion Options




















Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations Up to 1x16, 2x8, 1x8+2x4
Max Number of PCI Express Lanes 16



Package Specifications
























Sockets Supported FCLGA1151
Max CPU Configuration 1
Thermal Solution Specification PCG 2015D (130 W)
TJUNCTION 212°F (100°C)
Package Size 1.5 x 1.5 (37.5 x 37.5 mm)



Advanced Technologies




























































Intel Turbo Boost Technology 2.0
Intel vPro Technology Yes
Intel Hyper-Threading Technology Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O Yes
Intel TSX-NI Yes
Intel 64 Yes
Instruction Set 64-bit
Instruction Set Extensions SSE4.1/4.2, AVX 2.0
Idle States Yes
Enhanced Intel SpeedStep Technology Yes
Thermal Monitoring Technologies Yes
Intel Identity Protection Technology Yes
Intel Stable Image Platform Program (SIPP) Yes



Intel Data Protection Technology




















Intel AES New Instructions Yes
Secure Key Yes
Intel Software Guard Extensions (Intel SGX) Yes
Intel Memory Protection Extensions (Intel MPX) Yes



Intel Platform Protection Technology




















OS Guard Yes
Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel Device Protection Technology with Boot Guard Yes



Packaging Info












Package Weight 0.5 lb
Box Dimensions (LxWxH) 4.6 x 4.3 x 2.9
