Internal AC-97 Audio Cable Extension Internal AC-97 Audio Cable Extension
Internal AC-97 Audio Cable Extension

Internal AC-97 Audio Cable Extension

PPCS

INT-AC97-EXT

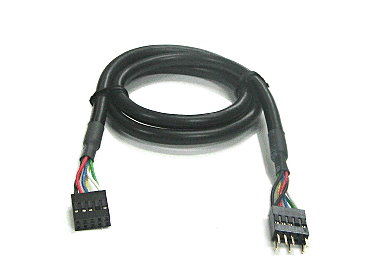

This cable can be used to extend the internal cable of front panel headphone and microphone ports.




Found a better price? Let us know and we'll try and match it!
Estimate shipping
24 in stock, ready to ship
$9.95 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Product Details:

This cable can be used to extend the internal cable of front panel headphone and microphone ports. Header connectors can be modified to suit application by lifting tabs and moving pins.

Specifications

Specifications:










PRODUCT NAME
Headphone & Mic 2' - 2x5 F to 2x5 M

CONNECTORS
2x5 header connector female
2x5 header connector male


CABLE
Audio cable - 6 wires + 1 shielding ground
Length - 2 feet (610 mm)



WIRE ASSIGNMENTS



cable


Green: Back Line-out Left / BL-OUT L
Yellow: Back Line-out Right / BL-OUT R
White: Front Line-out Left / L-OUT L
Blue: Front Line-out Right / L-OUT R
Red: Microphone Power / MIC PWR / Bias / REF
Black: Microphone / MIC
Black: Ground / GND


The GND wire is fatter and can be easily recognized.
