iStarUSA v7AGE220-SAU - 2-Bay Trayless USB 2.0/ eSATA RAID Box - Black
v7AGE220-SAU-D
Thank you for your submission!
We will get back to you soon.
Estimate shipping
Shipping calculated at checkout.
Pickup currently unavailable at Performance-PCs.com
Details
Product Details:

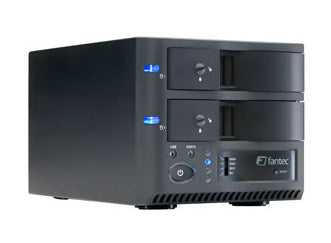

v7AGE220-SAU is for use with two 3.5 SATA II hard drives. The storage capacity of the hard drive is unlimited. It has screw-less design for easy installation. 2 LEDs for power on and HDD activity and 6 blue LEDs for RAID level and data connection. It has internal power supply
Features:
- Screwless Design for Fast HDD Mounting and Swapping
- 70 mm Thermal Controlled Fan for Excellent Heat Dissipation
- Internal 60 Watt Power Supply
- Power Switch at Front
- For Use with All 3.5 SATA I/II HDD
- RAID Level Switch at Front
- RAID 0-Stripping Mode: Maximum Speed by Two Simultaneous Writing HDDs
- BIG Mode: Two HDDs Combined and Shown Up as One Single Drive (No RAID)
- RAID 1-Mirroring Mode: Maximum Security by HDD Mirroring
- JBOD Mode: Two Independent Hard Drives (No RAID)
Specifications:
| Model Number | v7AGE220-SAU |
| RoHS Compliance Version | Yes |
| Dimensions (W x H x D) | 130 x 117 x 210 mm |
| HDD Interface | SATA I/II |
| Connectors | USB 2.0 and eSATA |
| LED Display | Power and HDD Activity RAID LEVEL and Connector |
| Material | Case: Likeable Soft-coated Metal Front Panel: Plastic |
| Power Supply | Internal 60W |
| Chipset | Silicon Image 5744 |
| Weight | 5.5 lbs |
| O.S. Support | Windwos 98SE/ME/2000/XP/Vista, Mac OSX |
| Certifications | TUV/GS, CUL, CE, RoHS |
| Color | Black/White |
| Packaging Information | Manual, USB 2.0 Cable, eSATA Cable, and Power Cord |
| RAID Level | RAID 0, 1, JBOD, BIG |
