Koolance EX2-755 Computer Liquid Cooling System Rev1.3
EX2-755
Thank you for your submission!
We will get back to you soon.
Estimate shipping
$386.99
/
Sold out
Shipping calculated at checkout.
Pickup currently unavailable at Performance-PCs.com
Details

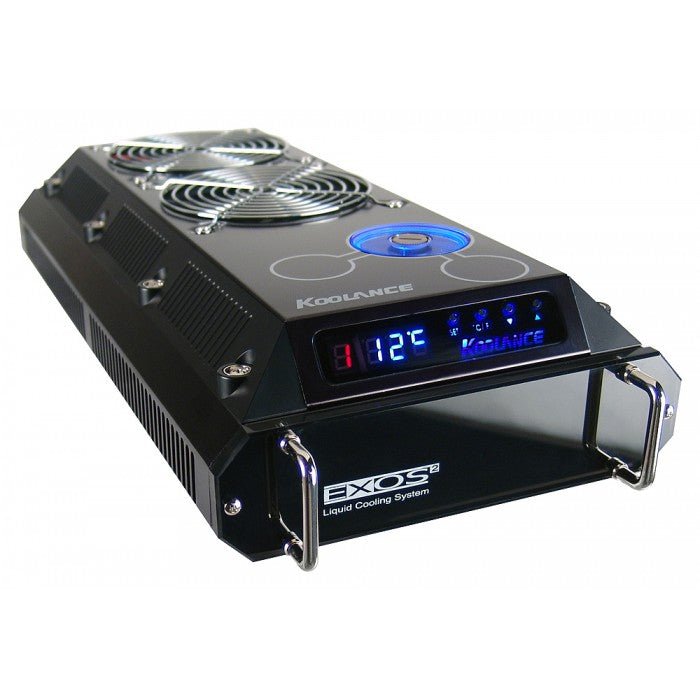

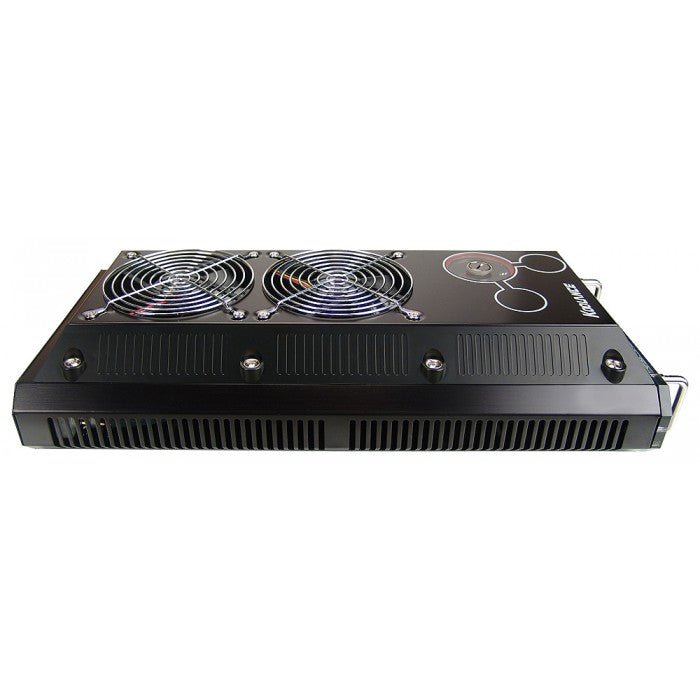

EX2-755 is an ambient liquid cooling system designed with features for computer cooling. This model contains a dual x 120mm fan aluminum radiator, providing roughly 590W of cooling with a 25°C ambient delta. Just add tubing, fittings, coolant, and connect to your cold plate(s).
Liquid Coolants
Koolance's product warranty does not cover the use of 3rd-party coolants, coolant additives, or corrosion. Koolance LIQ-702 or LIQ-705 coolants are strongly recommended to help avoid issues with mixed metals or biological growth. Additionally, do not use aluminum with bare (unplated) copper or bare (unplated) brass in the same system. Do not use silver with nickel in the same system.
Features
Specifications
General
Weight
8.00 lb (3.63 kg)
Max Pressure @ 25°C
2kgf/cm2 (28.5psi)
Max Temperature
60°C (140°F)
Cooling Systems
Cooling Capacity
590W (2013BTU/hr) @ 25°C liquid-ambient (25°C dT)
Display Type
LED
Flow Rate
4LPM (1GPM)
Max Power Consumption
20W
Power Source
12 VDC (110/220 VAC with Separate Adapter)
Radiator
Aluminum, 2 x 120mm fans
Temperature Sensors
10K Thermistors
Dimensions
Diagrams / Models
(See Files Tab for Diagrams and 3D Models)
