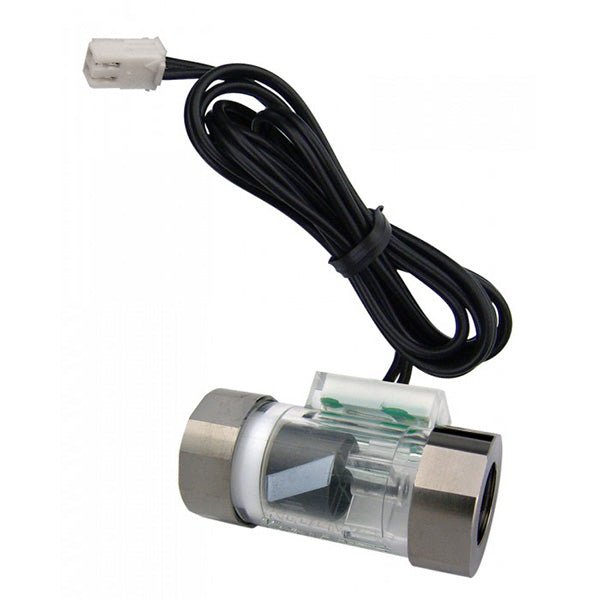

Koolance INS-FM14 Coolant Flow Meter

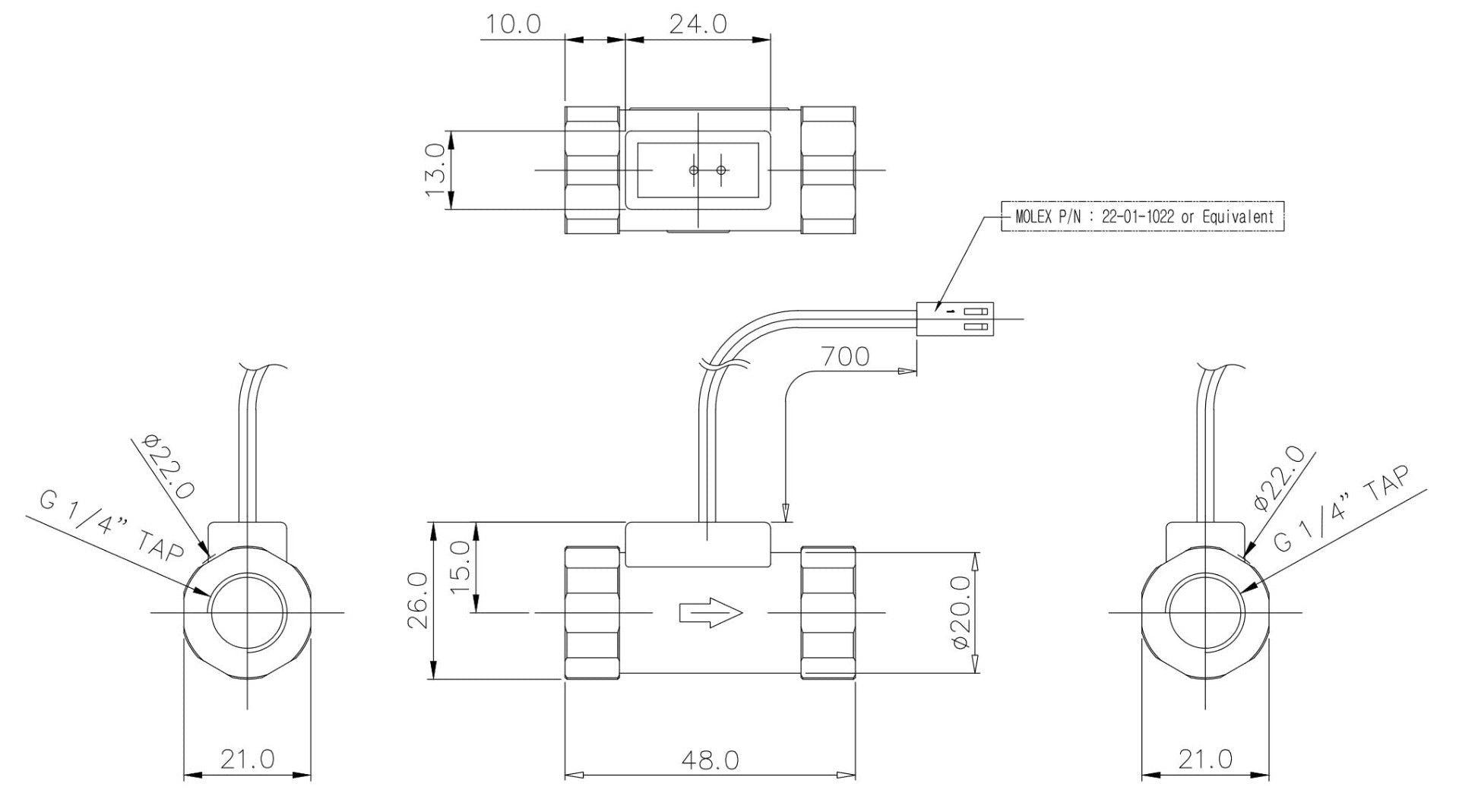

Koolance's inline flow meter provides a visual and electronic indicator of real-time coolant flow rate. Uses G 1/4 BSPP threads.

A frequency circuit (sold separately) multiplies the RPM signal to allow it to be read by most fan tachometer headers (such as those found on ATX motherboards). This signal is intended to allow fan detection software (including BIOS) to enable the appropriate alarm or shutdown procedure if the flow meter impeller stops rotating. The RPMs represent approximate flow meter coolant in mL/min, and not revolutions.

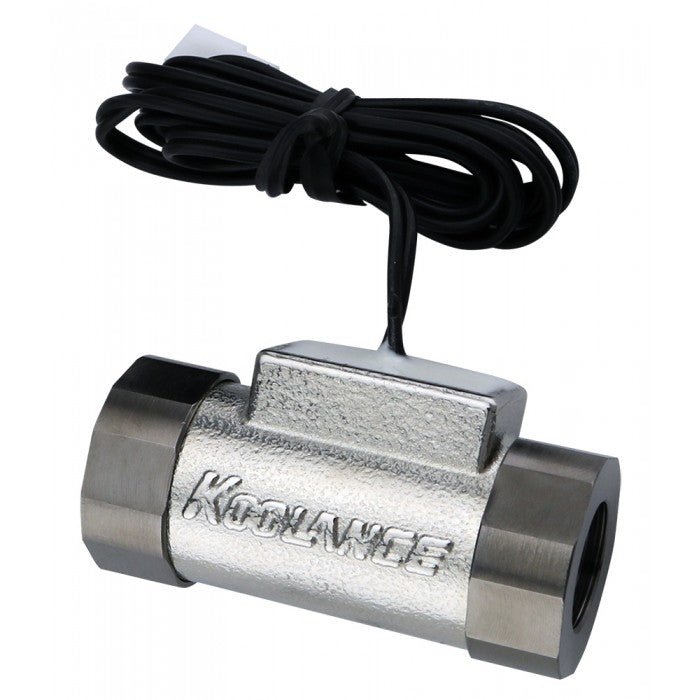

Wire length is about 28 (70cm). Primary materials are nickel-plated brass and acrylic.

Flow Meters
Flow Rate Range	0.5-10 LPM (7.8- 158GPH)
General
Weight	0.13 lb (0.06 kg)
Max Pressure @ 25°C	6kgf/cm2 (85 psi)
Max Temperature	70°C (158°F)
Min Temperature	0°C (32°F)
Materials
Wetted Materials	Nickel-Plated Brass, Brass, Acrylic, Stainless Steel, POM Acetal, Plastic, SmCo5
