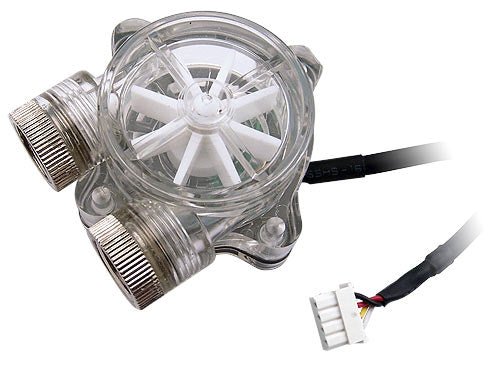

Koolance INS-FM16 Coolant Flow Meter

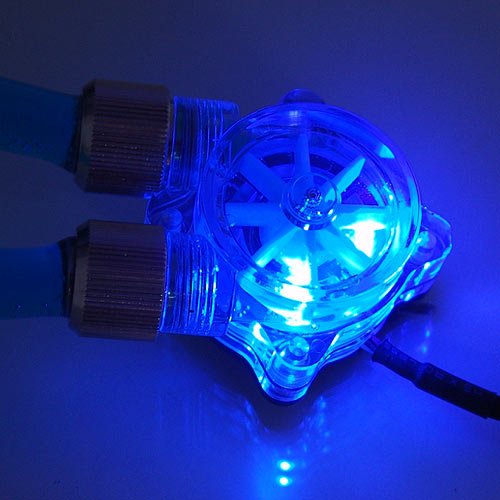

Koolance's flow meter provides a visual and electronic indicator of real-time coolant flow rate. It is compatible with Koolance TMS, which also allows the internal blue LED lighting to be turned on, off, or pulse according to flow rate. Compatible with 1/4 (6mm), 3/8 (10mm), or 1/2 (13mm) ID G1/4 threaded nozzles.

• Flow rate range = 0.5-22 LPM (7.8-349 GPH).
• Fluid temperature range = -10 - 80°C (14-176°F).
• Wire length is 19 (48cm), with product dimensions of approximately 2.2 x 2.2 x 1.3 (5.5cm x 5.5cm x 3.2cm).
