Koolance PLT-UN25F Cold Plate, 25mm x 25mm (0.98in x 0.98in)

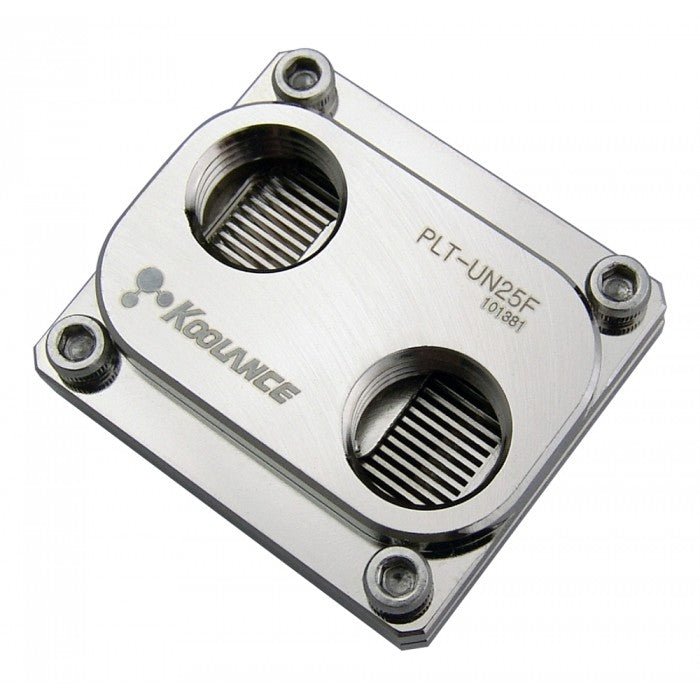

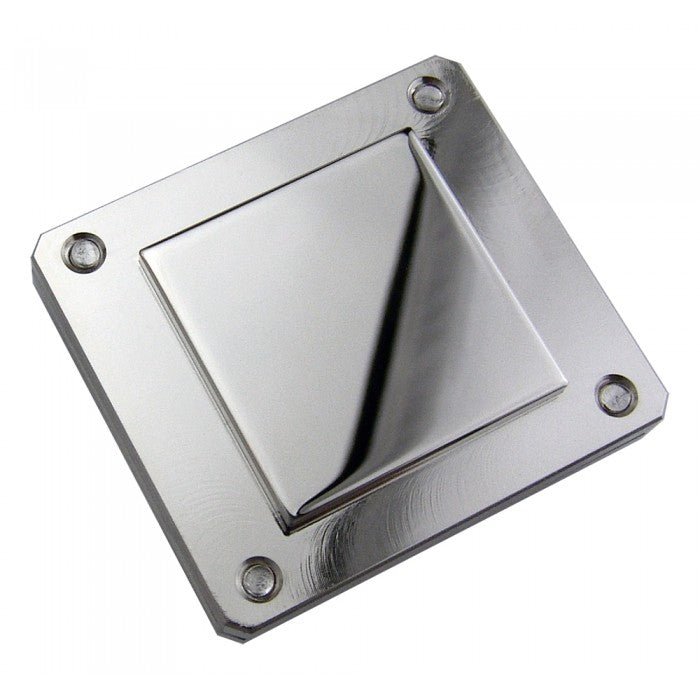

PLT-UN25F is a high-efficiency, general-purpose cold plate for thermal applications such as TEC, LED, image sensor, and semiconductor cooling. The cooling area footprint is 25mm x 25mm (0.98in x 0.98in), and it utilizes a 0.5mm microfin internal structure.

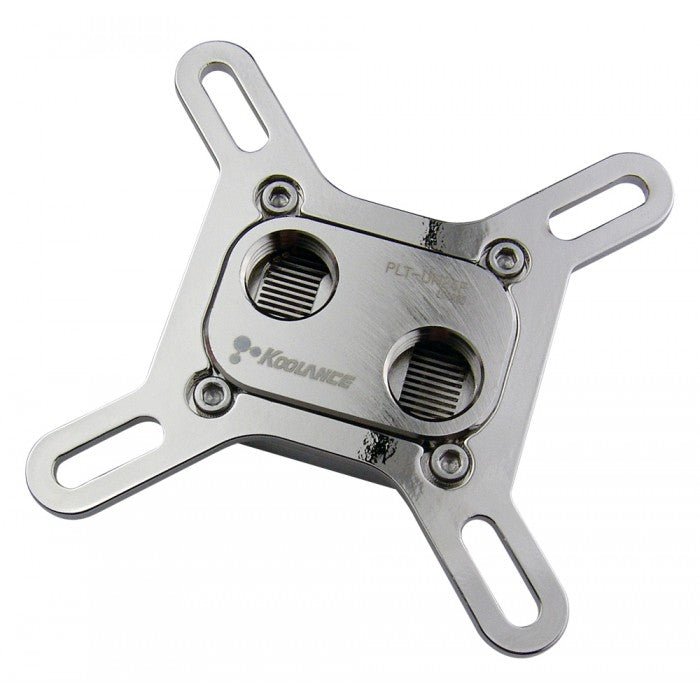

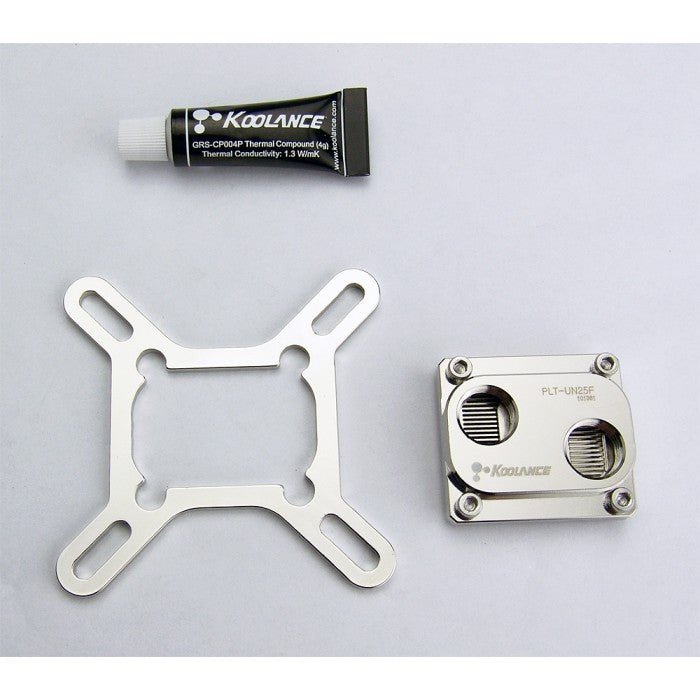

One loose steel bracket is included, designed for easy fabrication and modification (see dimensions under the Files tab). The included bracket accommodates diagonal mounting hole distances from approximately 60mm to 88mm (2.36in to 3.46in).

Cold plate materials include copper, a brass top, anti-corrosive nickel plating, and EPDM o-ring. Threaded for G 1/4 BSPP fittings.

Cold Plates
Flow Resistance @ 5LPM (10-13mm ID)	0.077 kgf/cm2 (1.1psi)
Thermal Resistance @ 5LPM (Approx.)	0.047°C/W
General
Weight	0.28 lb (0.13 kg)
Max Pressure @ 25°C	8kgf/cm2 (113.8psi)
Max Temperature	100°C (212°F)
Materials
Wetted Materials	Nickel-Plated Copper, Nickel-Plated Brass, EPDM

Dimensions
Diagrams / Models	(See filesfor Diagrams and 3D Models)
