Koolance PLT-UN40F Cold Plate, 40mm x 40mm (1.57in x 1.57in)

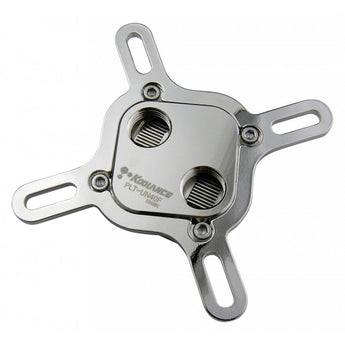

PLT-UN40F is a high-efficiency, general-purpose cold plate for thermal applications such as TEC, LED, image sensor, and semiconductor cooling. The cooling area footprint is 40mm x 40mm (1.57in x 1.57in), and it utilizes a 0.5mm microfin internal structure.

One loose steel bracket is included, designed for easy fabrication and modification (see dimensions under the Files tab). The included bracket accommodates diagonal mounting hole distances from approximately 60mm to 88mm (2.36in to 3.46in).

Cold plate materials include copper, a brass top, anti-corrosive nickel plating, and EPDM o-ring. Threaded for G 1/4 BSPP fittings.

Cold Plates
Flow Resistance @ 5LPM (10-13mm ID)	0.07 kgf/cm2 (1.0psi)
Thermal Resistance @ 5LPM (Approx.)	0.044°C/W
General
Weight	0.34 lb (0.15 kg)
Max Pressure @ 25°C	8kgf/cm2 (113.8psi)
Max Temperature	100°C (212°F)
Materials
Wetted Materials	Nickel-Plated Copper, Nickel-Plated Brass, EPDM

Dimensions
Diagrams / Models	(See Files for Diagrams and 3D Models)
