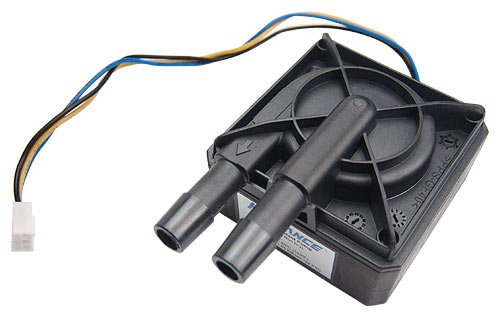

Koolance PMP-400 High-flow DDC Pump

PMP-400

The PMP-400 is a high-pressure pump with a very low profile format. It is used in multiple Koolance systems, such as the PC4-1000, RP-1000, and TNK-400 products.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
3 in stock
$84.49
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The PMP-400 is a high-pressure pump with a very low profile format. It is used in multiple Koolance systems, such as the PC4-1000, RP-1000, and TNK-400 products.

Specifications


  • Maximum Flow Rate: 8.7 L/min (2.3 gal/min)

  • Maximum Head Pressure: 7m (23ft)

  • Motor: Brushless DC, electronically commutated, spherical motor

  • Expected Lifetime: 50,000 hrs. MTBF (5.7 years)

  • Power Consumption (at max): 20W

  • Voltage Range: 8 to 13.2 VDC

  • Startup Voltage: 9 to 13.2 VDC

  • Maximum System Pressure: 1.5 kgf/cm2 (22 PSI)

  • Maximum Temperature: 60°C (140°F)

  • Electrical Connector: 3-pin fan header with tachometer speed signal

  • Hose Connections: 10mm (3/8) ID hose barbs

  • Weight: 198g (7oz)
