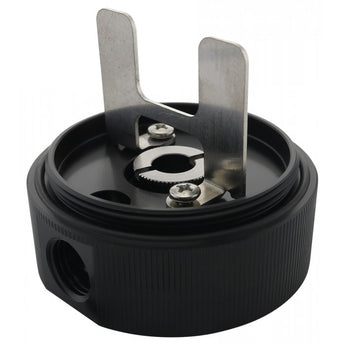

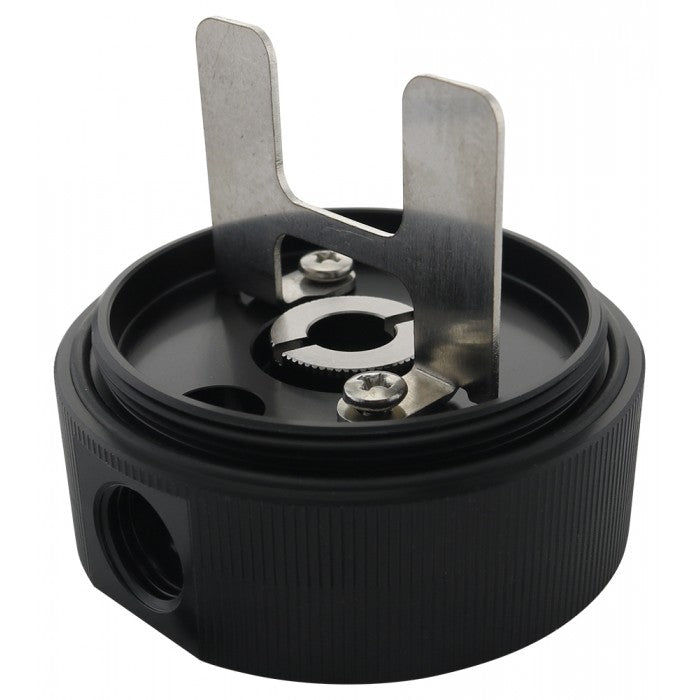

Koolance Pump Reservoir Base for PMP-420/500/600 (60mm OD)

CNT-PMP500T is an acetal reservoir base for the Koolance PMP-420, PMP-500, and PMP-600 (sold separately). Koolance 60mm OD acrylic reservoir bodies can be directly connected to the CNT-PMP500T. The fitting on the reservoir side can be pointed in any direction before tightening to the pump.

O-rings for pump and reservoir sides, a stainless steel liquid partition, and nickel-plated brass attachment fitting are included.

Specifications:

Â
Weight	0.25 lb (0.11 kg)
Fitting Thread	G 1/4 BSPP
Materials	Nickel-Plated Brass, POM Acetal, Stainless Steel, EPDM
Max Pressure @ 25°C	2kgf/cm2 (28.5psi)
Max Temp. Operating Tolerance	70°C (158°F)
