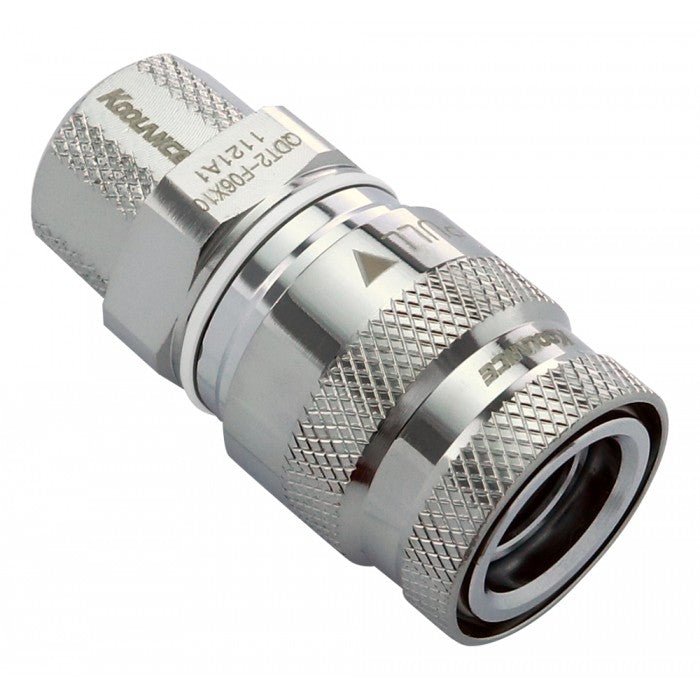

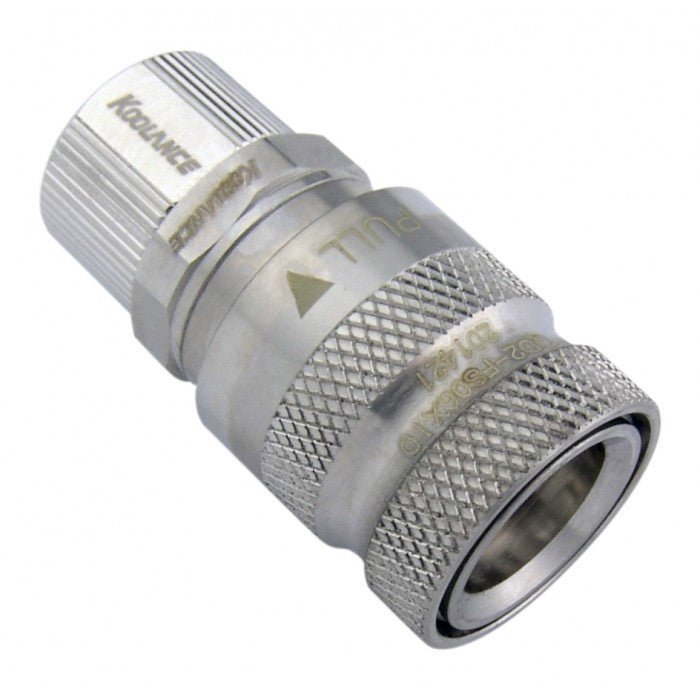

Koolance QD2 Female Quick Disconnect No-Spill Coupling, Compression for 06mm x 10mm (1/4in x 3/8in)

Koolance (patent-pending) quick disconnect no-spill coupling with automatic shutoff. 6mm (1/4) ID female straight connection with compression fitting. It will only fit a Koolance QD2 male quick disconnect.

After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.2mL freed. Fittings are nickel-plated brass.

*NOTE: Liquid Coolants Koolance's product warranty does not cover the use of 3rd-party coolants, coolant additives, or corrosion. Koolance LIQ-702 or LIQ-705 coolants are strongly recommended to help avoid issues with mixed metals or biological growth. Additionally, do not use aluminum with bare (unplated) copper or bare (unplated) brass in the same system. Do not use silver with nickel in the same system.*

General
Weight	0.13 lb (0.06 kg)
Max Pressure @ 25°C	8kgf/cm2 (113.8psi) connected, 5kgf/cm2 (71psi) disconnected
Max Temperature	100°C (212°F)
Materials
Wetted Materials	Nickel-Plated Brass, Stainless Steel, EPDM

Dimensions
Diagrams / Models	(See Files Tab for Diagrams and 3D Models)
