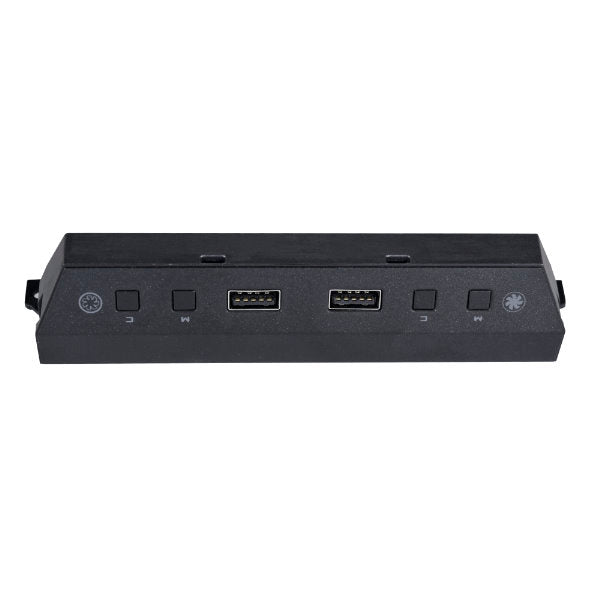

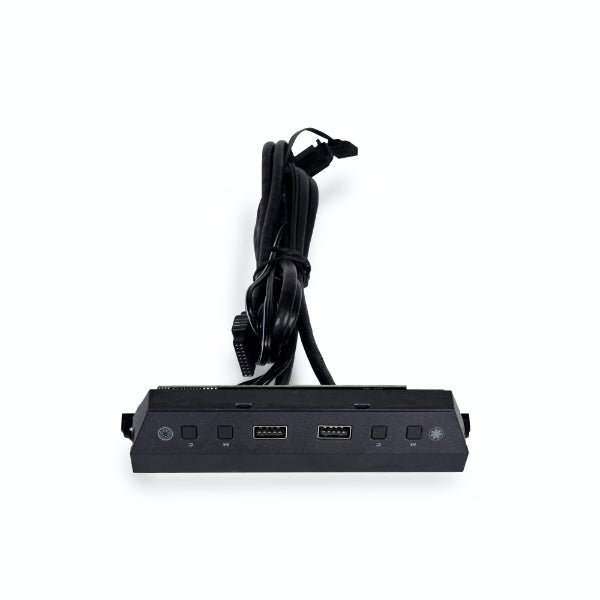

LANCOOL 216 ARGB Control & USB Module LAN216-1X- Black
LAN216-1X
Thank you for your submission!
We will get back to you soon.
Estimate shipping
$24.99 USD
/
Sold out
Shipping calculated at checkout.
Pickup currently unavailable at Performance-PCs.com
Details
The LANCOOL 216 ARGB Control & USB Module LAN216-1X/1W is a handy new chassis accessory we are sure you will appreciate. An additional ARGB I/O module can be installed at the side or top of the front panel to provide better control over the front ARGB fans and offer 2 extra USB 3.0 ports. Offering 10 lighting modes and 7 lighting colors with the controller. Users can set both the fan blade lighting effects and the fan rim lighting effects separately or combine the two LED channels to set the lighting effects. Gather all cables through the bottom gap of fan bracket provides an easier installation. Example:Fan Rim: Rainbow Mode/Fan Blade: Static Blue.
LANCOOL 216
ARGB Control & USB Module
LAN216-1X/1W
An additional ARGB I/O module can be installed at the side or top of the front panel to provide better control over the front ARGB fans and offer 2 extra USB 3.0 ports.
AVAILABLE IN TWO COLORS
Black
White
SEPARATELY
CONTROL
FAN RIM
AND
FAN BLADE LED
Offering 10 lighting modes and 7 lighting colors with the controller. Users can set both the fan blade lighting effects and the fan rim lighting effects separately or combine the two LED channels to set the lighting effects.
Example:
Fan Rim: Rainbow Mode
Fan Blade: Static Blue
SIDE INSTALLATION
Gather all cables through the bottom gap of fan bracket provides an easier installation.
| FUNCTION | ACTION | NOTE |
|---|---|---|
| Fan Blade Lighting Effect Mode | Press KEY_1 | |
| Fan Blade Lighting Effect Color | Press KEY_3 | |
| Fan Rim Lighting Effect Mode | Press KEY_2 | |
| Fan Rim Lighting Effect Color | Press KEY_4 | |
| MB Sync | Press KEY_1 or KEY_2 for 3 seconds |
Blink white color 3 times and pass control to the motherboard |
| Quit MB Sync | Press KEY_1 or KEY_2 once |
|
| Combine Fan Blades Rim | Press KEY_1 KEY_2 together for 3 seconds |
|
| Remove Combination | Press again KEY_1 KEY_2 together for 3 seconds |
