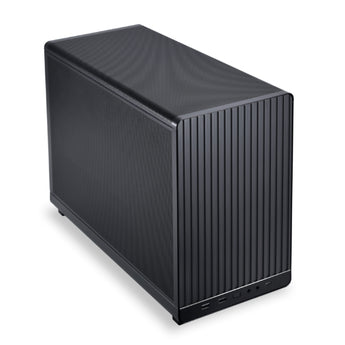

LIAN LI A3-mATX Mini Chassis

Name: LIAN LI A3-mATX Mini Chassis
Brand: Lian-Li
SKU: A3-MATX-X
Price: 69.99 USD
Availability: InStock

A3-MATX-X

The LIAN LI & DAN Cases A3-mATX is a versatile M-ATX mesh PC case that maintains a minimal chassis size while accommodating large components. Thanks to the relocatable PSU bracket, the A3-mATX empowers you to build a powerful and compact PC system tailored to your needs and preferences.

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

2 in stock

$69.99

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

Features

Features:

Minimalistic sleek design 26.3L micro form factor chassis

Side and top panels are designed with steel mesh

Accommodates M-ATX and ITX motherboard with 4 slots 415mm large GPU

Supports up to 360 radiator and 10 x 120mm fans

Supports ATX/SFX/SFX-L and LIAN LI Edge PSU that can be mounted sideways or frontways

In collaboration with DAN Cases for the case design whereas manufactured and sold by LIAN LI.

OPTIONAL ACCESSORIES

VERTICAL GPU KIT (A3-1X/ A3-1W)
Supports up to 3 slots thick GPU at vertical display with an 150mm PCIe4.0 riser cable.

LEFT SIDE TEMPERED GLASS PANEL (A3-2X/A3-2W)
Display of the interior components can be achieved with the accessory.

More Details

HARDWARE COMPATIBILITY IN ALL CONFIGURATION

Front PSU Installation

ATX PSU FRONT

ATX PSU FRONT with offset bracket

EDGE FRONT

SFX FRONT

SFX-L FRONT

A3 Front mounted PSU 2.5 slot(F2.5)? Top AIO, Installation Guide

Side PSU Installation

ATX PSU SIDE

EDGE SIDE

SFX SIDE

SFX-L

Specifications

Specifications:

MODEL NAME	A3-mATX
MODEL NO.	A3-mATX BLACK	A3-mATX WHITE	A3-mATX-WD BLACK
COLOR	Black	White	Black (Wood Edition)
CASE TYPE	MFF (Micro Form Factor)
DIMENSION	(D) 443mm x (W) 194mm x (H) 321.5mm (D) 443mm x (W) 194mm x (H) 306mm(w/o feet)
CAPACITY	26.3L
MATERIAL	Steel
MOTHERBOARD SUPPORT	M-ATX/ITX
PSU SUPPORT	ATX/SFX/SFX-L (Max 220mm)
FAN SUPPORT	Top: 3 x 120mm Side: 3 x 120mm or 2 x 140mm Bottom: 3 x 120mm Rear: 1 x 120mm
RADIATOR SUPPORT	Top: 1 x 360/240mm Side: 1 x 360/280/240mm Bottom: 1 x 240mm (360mm with fan at the bottom)
DRIVE SUPPORT	Tray: 2 × 2.5? SSD Bottom: 1 × 2.5? SSD or 1 × 3.5? HDD
GPU LENGTH CLEARANCE	Max 415mm
CPU HEIGHT CLEARANCE	Max 165mm
EXPANSION SLOTS	4
I/O PORTS	1 x Power Button 2 x USB 3.0 TYPE-A 1 x USB 3.1 TYPE-C 1 x Mic 1 x HD Audio
DUST FILTER	1 x Bottom		1 x Bottom 1 x Front
WARRANTY	1 year
