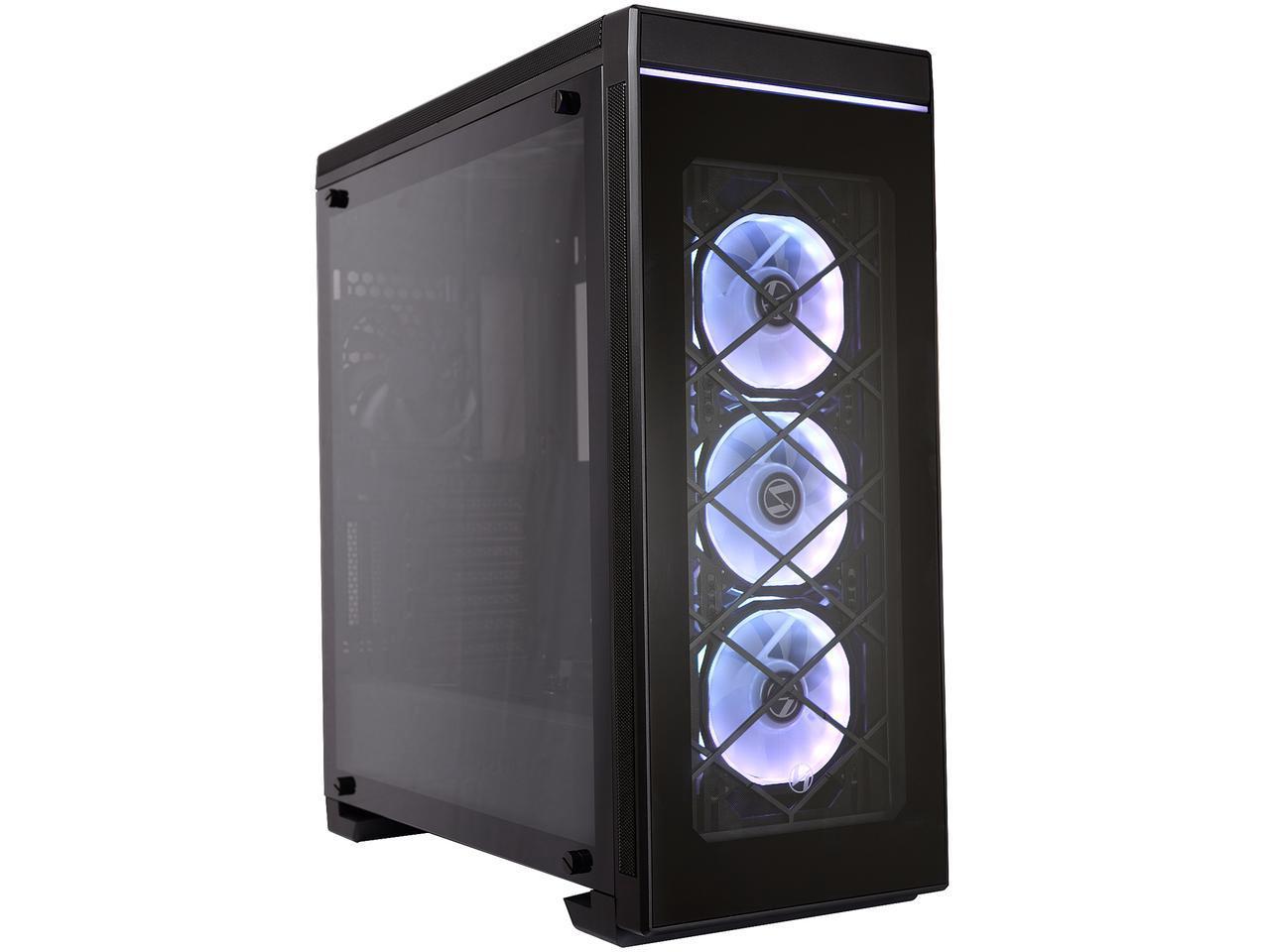

LIAN LI ALPHA 550X Black SECC ATX Mid Tower Computer Case

The Alpha 550 housing is a mid tower with a particularly good price/performance ratio from the renowned manufacturer Lian Li, which is equipped with many tempered glass elements and well thought-out features. Three pre-installed 120 mm RGB fans, extensive cable management for a clean appearance, readiness for vertical graphic card mounting and extensive watercooling support are just some of the highlights that distinguish the stylish housing.

Cable management
With tempered glass all-around, hiding cables is essential. The cable shroud behind the motherboard tray is spacious enough to hide all the cables in your build, and then some1 Clean is the new standards.

Cable ties
Lose the unnecessary cable ties. The Alpha series uses an all tool-less design for easy cable mangement.

Darkened tempered glass
The left tempered glass panel features two levels of transparance. This hides the cables in the PSU shroud area, and maintains that classy tempered glass look.

Brand

LIAN LI

Model

ALPHA 550X

Details

Type

ATX Mid Tower

Color

Black

Case Material

SECC

With Power Supply

No

Power Supply Mounted

Bottom

Motherboard Compatibility

Micro ATX / ATX

Side Panel Window

Front Panel Tempered Glass, Both Sides Tempered Glass

LED

RGB

Expansion

Internal 3.5 Drive Bays

2

Internal 2.5 Drive Bays

5

Expansion Slots

7

Front Panel Ports

Front Ports

2 x USB 3.0 / 1 x USB 3.1 (Type-C) / HD Audio

Cooling System

120mm Fans

Front: 3 x 120mm fan (Digital LED fan with controller included)

Top: 3 x 140/120mm fan (Optional, not included)

Rear: 1 x 120 mm fan (included)

Dimensions & Weight

Max GPU Length Allowance

400 mm

Max CPU Cooler Height Allowance

170 mm

Dimensions (H x W x D)

21.49 x 9.05 x17.71

Weight

29.10 lbs.

Additional Info

Features

PSU Support: ATX PSU,(L)250mm

Radiator Support: 360mm x 120mm / 420mm x 140mm
