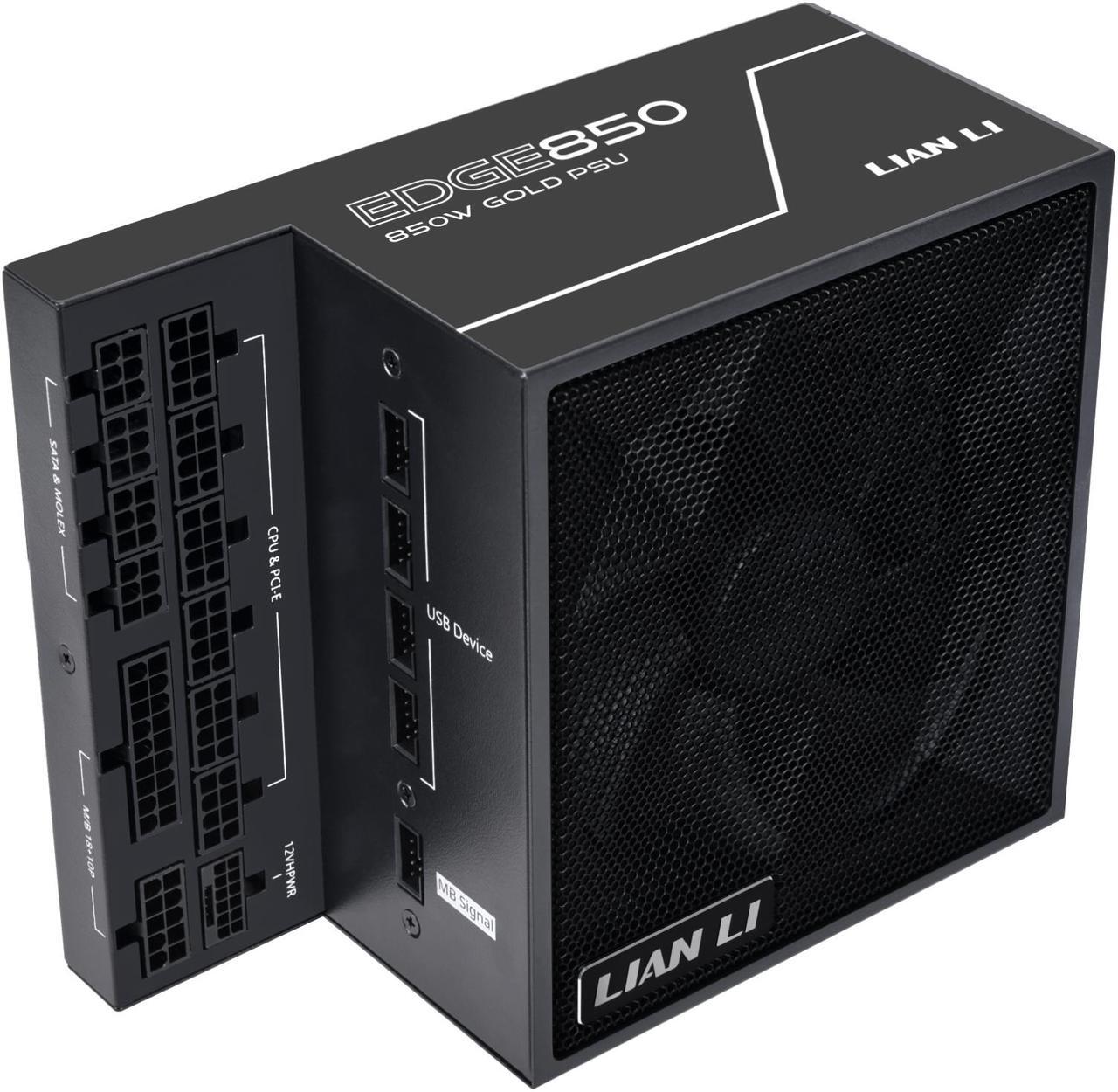

LIAN LI Edge series EG0850 Black, 850W ATX12V v3.1, 80 PLUS GOLD Certified

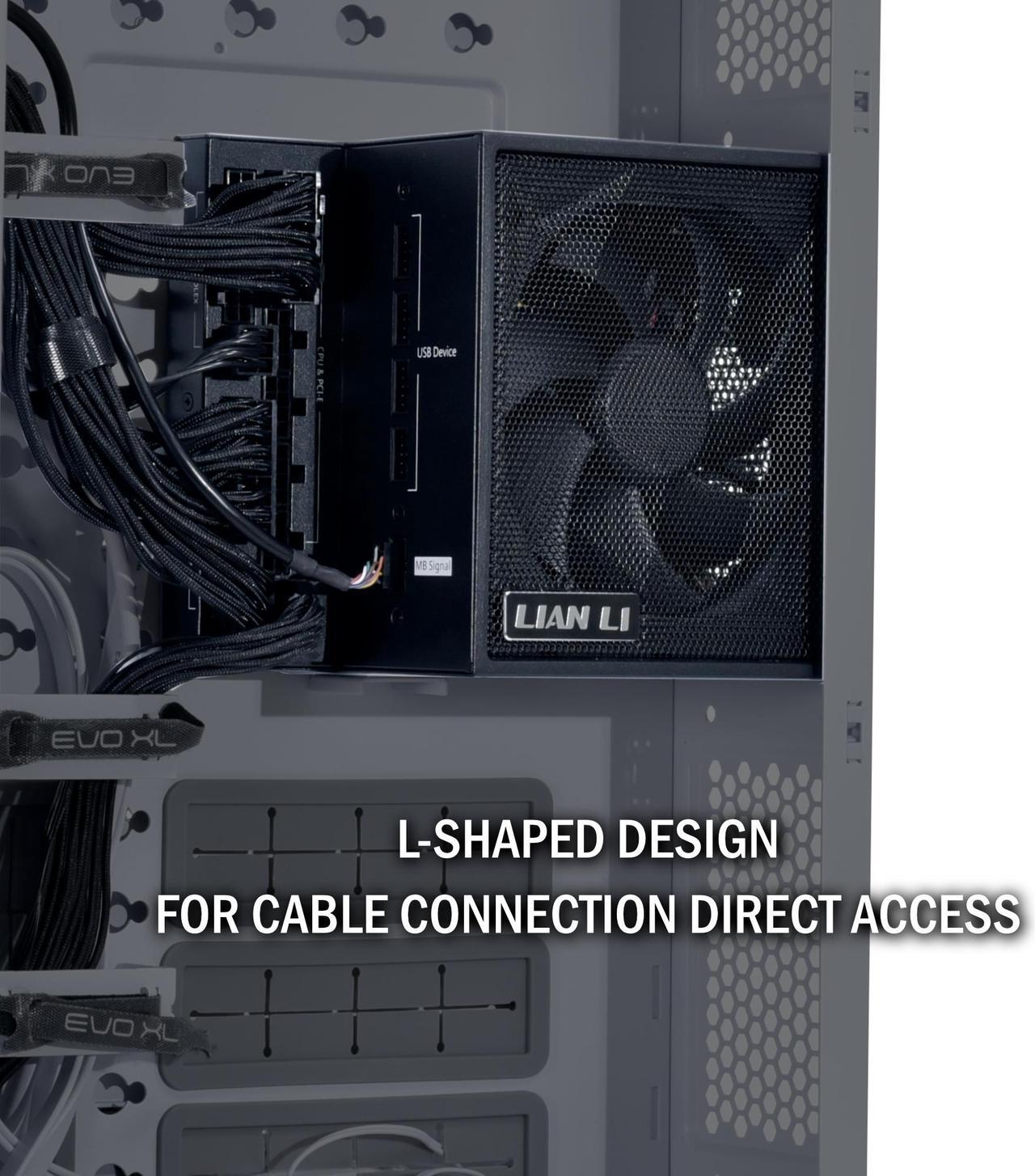

L-Shape design for dual chamber case

80 PLUS Platinum Efficiency

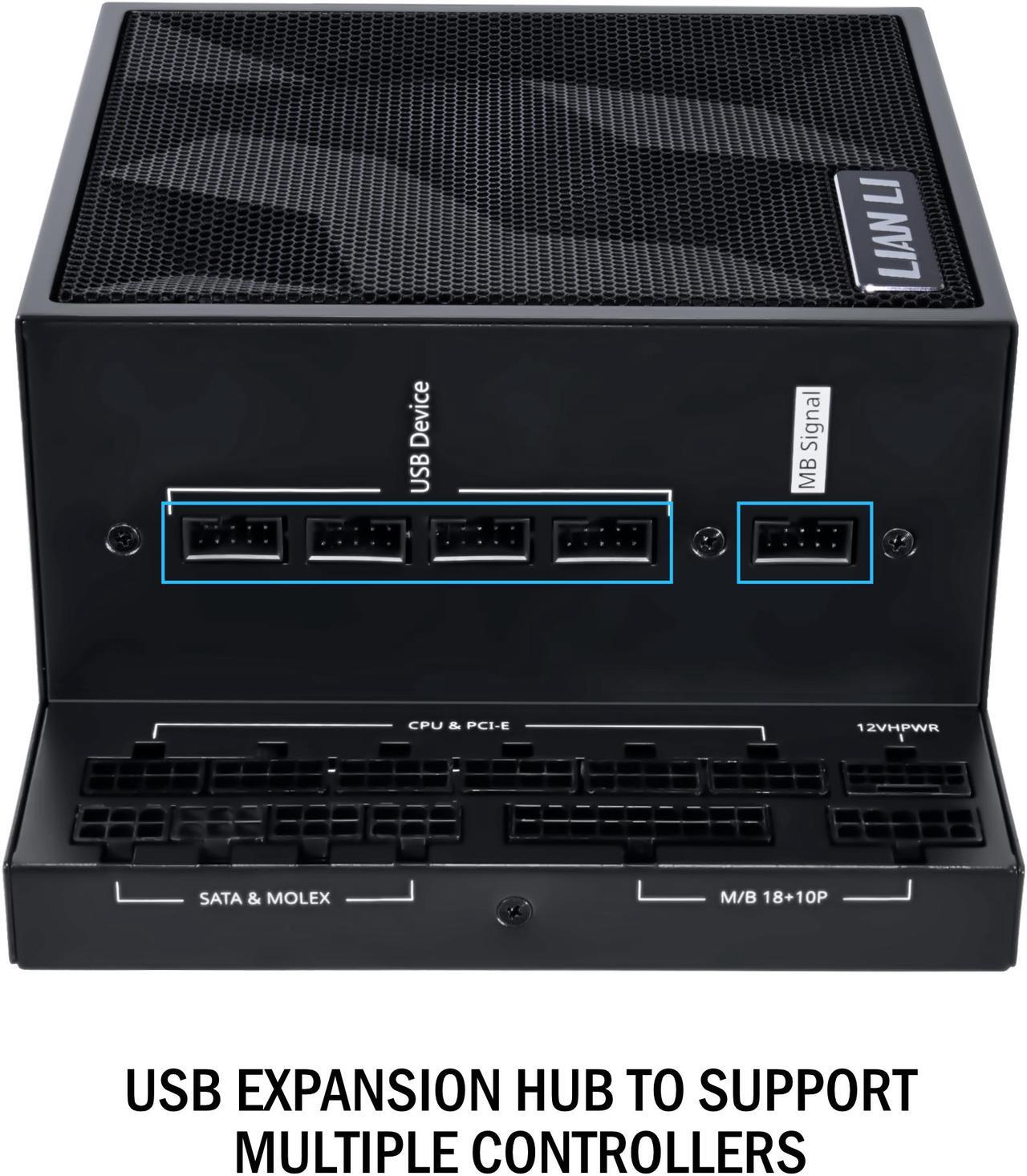

Built-in USB expantion hub with 4 internal USB 2.0 headers

Integrating German EPCOS bulk capacitors

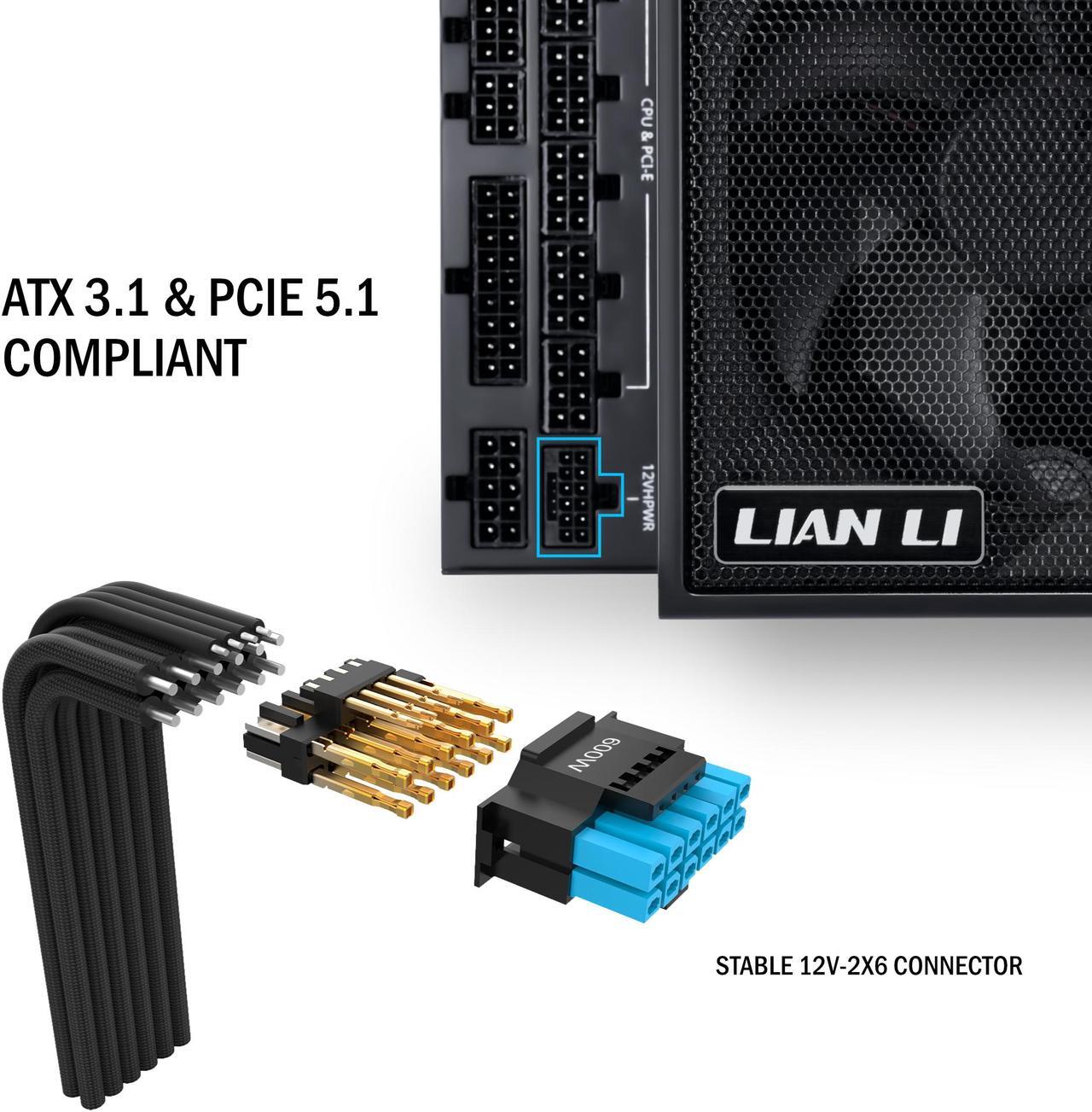

In-house R&D 12V-2×6 alloy copper soldered terminals

ATX 3.0/3.1 compliant PSU

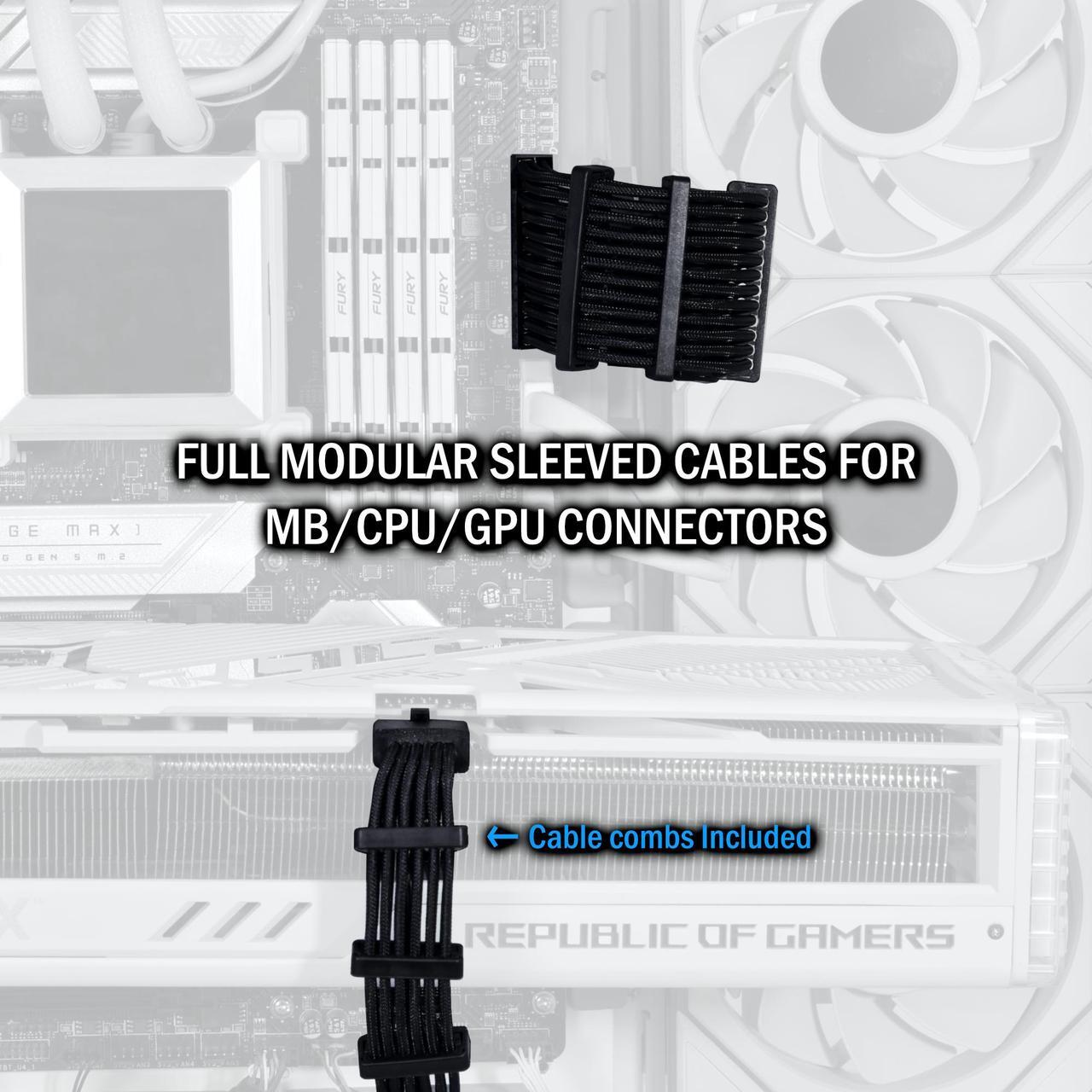

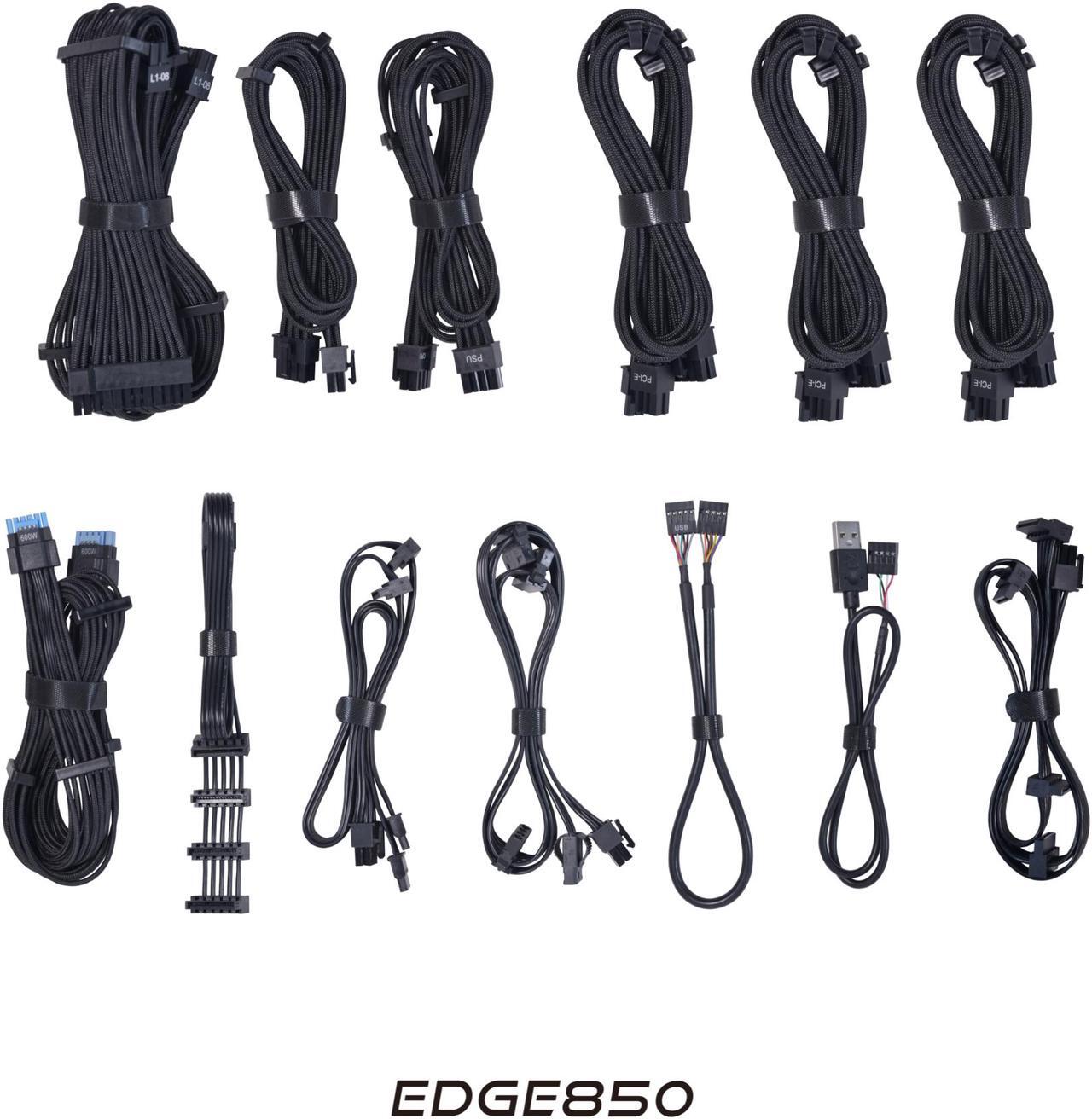

Full modular sleeved cable with cable comb MB/CPU/GPU connectors

MODEL NAME    EDGE850    EDGE1000    EDGE1300

MODEL NO.    EG0850    EG1000    EG1300

COLOR    Black/ White    Black/ White    Black/ White

DIMENSIONS    (D)182 mm X (W)86 mm X (H)150 mm

POWER SUPPLY DESIGN    Fully modular

MATERIAL    Steel

FORM FACTOR    ATX 3.1

CERTIFICATION    80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM

MAX. DC OUTPUT    850W    1000W    1300W

COMBINED +3.3V & +5V    120W    120W    120W

COMBINED +12V    849.6W    996W    1296W

INPUT VOLTAGE    100-240Vac    100-240Vac    100-240Vac

INPUT FREQUENCY RANGE    10-5A 50-60Hz    12-6A 50-60Hz    15-7.5A 50-60Hz

PFC    Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz    Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz    Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz

EFFICIENCY    92.41%MAX    92.36% MAX    92.39% MAX

PROTECTIVE CIRCUIT    OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLP

CONNECTORS    1 x 24/20-Pin motherboard connector (500mm) x1pcs

1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs

1 x 8/6+2 Pin PCle connector (550m m) x3pcs

1 x 12V-2×6 connector (550mm) × 1pcs

4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs

4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs

4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs

4 x Y Type SATA connector (400mm-125mm x 2) x1pcs

USB*9pin – USB*9pin connector (350mm) × 1pcs

USB*9pin -Type A connector (550mm) × 1pcs

FAN TYPE    120mm FDB Fan

FAN SPEED    2000RPM

FAN NOISE LEVEL    25.96dBA

WARRANTY    10 Years
