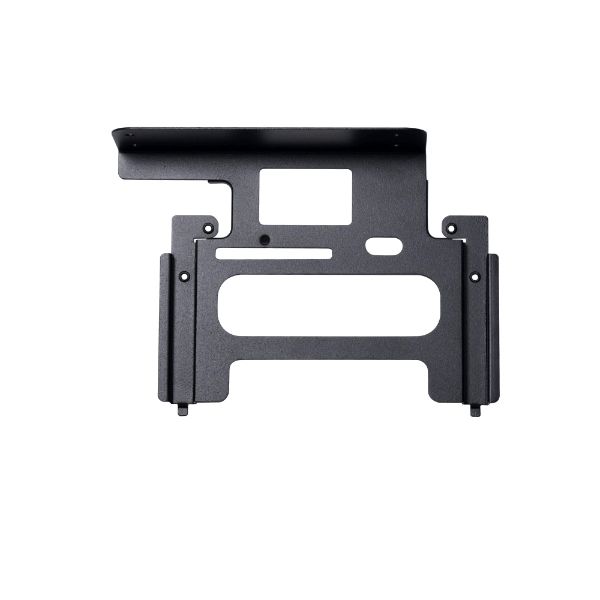

Lian Li O11D EVO Upright GPU Bracket for 40 Series GPU - Black

The Lian Li O11D EVO Upright GPU Bracket for 40 Series GPU. Mount large graphics cards in a unique way for better cooling performance with the upright GPU bracket. Users who own the original upright GPU bracket (O11DE-2/ O11DE-6) can purchase the add-on supplemental kit to ideally hold the longer and thicker 40 series GPU at the upright position. The GPU standing upright next to the motherboard creates a chimney-style airflow, moreover the ability to mount intake fans behind the GPU effectively controls the GPU temperature. The new upright GPU kit mounts directly to the side fan bracket, which makes the installation easier and slightly shifts the GPU position to prevent the upright GPUs from interfering with top/bottom mounted fans/radiators. The adjustable bracket can hold all kinds of GPUs which within 3 slots thick. Due to GPU cooler design, some GPUs have been found to perform significantly better with GPU IO facing down when using an upright GPU kit.

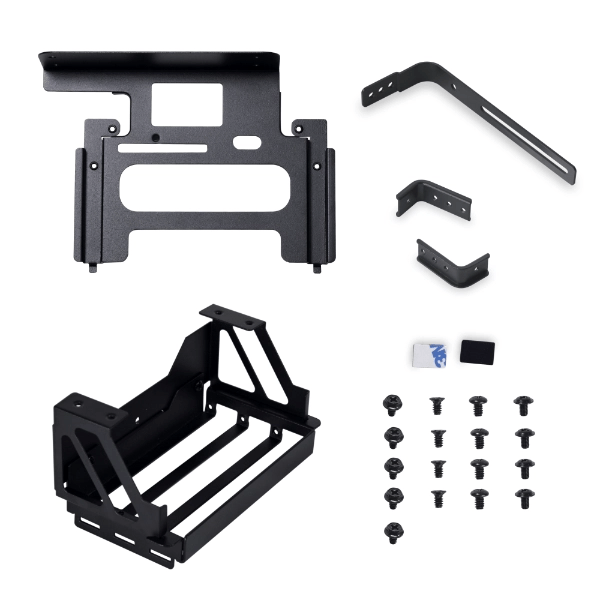

Upright GPU Bracket for 40 Series GPU
Mount large graphics cards in a unique way for better cooling performance with the upright GPU bracket.

Black

O11DE-9X

OPTIMIZED FOR DIRECT COOLING

The GPU standing upright next to the motherboard creates a chimney-style airflow, moreover the ability to mount intake fans behind the GPU effectively controls the GPU temperature.

SIMPLE INSTALLATION

The new upright GPU kit mounts directly to the side fan bracket, which makes the installation easier and slightly shifts the GPU position to prevent the upright GPUs from interfering with top/bottom mounted fans/radiators.

No interference with radiator/ fans

SUPPORTS WIDE VARIETY SIZES OF GPU

The adjustable bracket can hold all kinds of GPUs which within 3 slots thick.

1. Length = 348mm
2. Width 135mm~150mm
3. Thickness =75mm

RECOMMEND SET UP FOR SOME GPUS

Due to GPU cooler design, some GPUs have been found to perform significantly better with GPU IO facing down when using an upright GPU kit.
Test results are as follows:

GPU MODEL	COMPATIBILITY	SUGGEST ORIENTATION
ASUS TUF 4090	O	Reverse Mode
ROG STRIX 4080	X	?
ROG STRIX 4070TI	O	Reverse Mode
GIGABYTE GAMING OC 4080	O	Reverse Mode
GIGABYTE WINDFORCE 4090	O	Reverse Mode
AORUS MASTER 4090	X	?
AORUS MASTER 4070TI	O	Reverse Mode
MSI SUPRIM 4090	O	Reverse Mode
MSI GAMING X 4080	O	Reverse Mode
PALIT GAMEROCK 4090	O	Reverse Mode/Normal Mode
ZOTAC TRINITY 4090	X	?
NVIDIA 4090	O	Reverse Mode/Normal Mode

Features:

Specifications:

PRODUCT NAME	O11D EVO Upright GPU Bracket for 40 Series GPU
MODEL	O11DE-9X
COLOR	Black
BRACKET DIMENSION	Mounting frame: 115.8mm(L) x 158.8mm(D) x 50 mm(H) Support frame: 70mm(L) x 81mm(D) x 10 mm(H)
MATERIAL	1mm STEEL
EXPANSION SLOT	3 slots		?
GPU COMPATIBILITY	Length: Maximum 348MM Thickness: Maximum 75MM thick Width: 135MM~150MM
