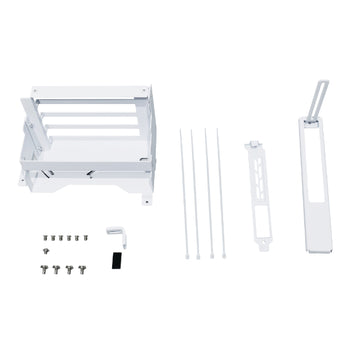

Lian Li O11D EVO XL Upright GPU Bracket - White

 Mount large graphics cards in a unique way for better cooling performance with the upright GPU bracket.

AVAILABLE IN TWO COLORS

The Galahad II Trinity series comes with pre-installed fans for quick installation to the case.

Black
O11DEXL-1X

White
O11DEXL-1W

OPTIMIZED FOR DIRECT COOLING

The GPU standing upright next to the motherboard creates a chimney-style airflow, moreover the ability to mount intake fans behind the GPU effectively controls the GPU temperature.

SIMPLE INSTALLATION

The upright GPU kit mounts directly to the side fan bracket, which makes the installation easier.

TWO DIRECTION INSTALLATION

The GPU can be flipped with the side bracket, letting you decide to have the GPU ports at the top or bottom.

GPU IO FACING UPWARDS
Recommend to mount with 600mm PCIe riser cable
(PW-PCIV-4-60X / PW-PCIV-4-60W)

GPU IO FACING DOWNWARDS
Recommend to mount with 900mm PCIe riser cable
(PW-PCIV-4-90X / PW-PCIV-4-90W)

Due to GPU cooler design, some GPUs have been found to perform significantly better with GPU IO facing down when mounting the GPU at an upright position.
Test results are as follows:

SUPPORTS WIDE VARIETY SIZES OF GPU

The adjustable bracket can hold all kinds of GPUs which with in 4 slots thick.

1. Length = 358mm
2. Width = 150mm
3. Thickness = 80mm

If install a 420mm radiator on the top or bottom, GPU thickness limits to 75mm.
