Lian-Li O11DE-2W-3 Upright GPU Kit for O11 Dynamic EVO White PCI-E 3.0 Riser Cable Included

Name: Lian-Li O11DE-2W-3 Upright GPU Kit for O11 Dynamic EVO White PCI-E 3.0 Riser Cable Included
Brand: Lian-Li
Price: 19.99 USD
Availability: InStock

O11DE-2W-3

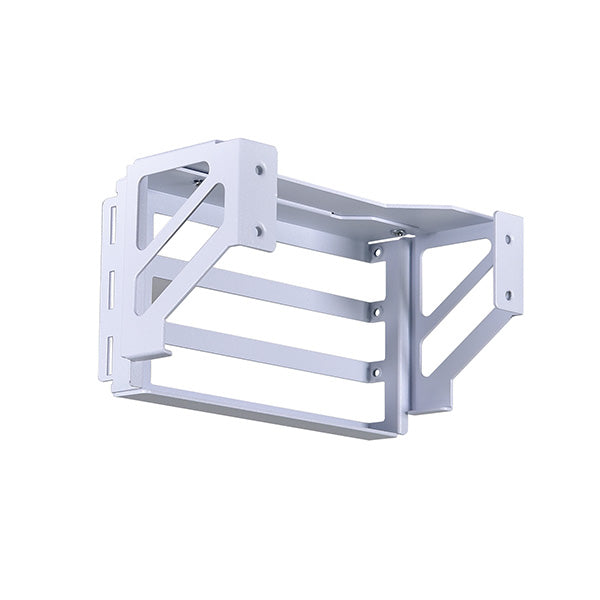

Show off your graphics card in a unique way with the exclusive upright GPU bracket, including a PCIe 4.0 riser cable for seamless connectivity.

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

1 in stock

$19.99 USD

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

Show off your graphics card in a unique way with the exclusive upright GPU bracket, including a PCIe 4.0 riser cable for seamless connectivity.

Features

TWO MOUNTING WAYS WORK ON BOTH MODES

Both HDD tray panel and fan bracket support to mount upright GPU kit on normal or reverse mode.

HDD Tray Panel Scenario

Fan Bracket Scenario
(120mm Fan x3)

The GPU holds perfectly beside the motherboard and holds 2 HDDs or 4 SSDs behind the GPU.

HDD TRAY PANEL SCENARIO

Supreme Water-Cooling Configuration

Normal Mode with HDD Tray Panel Scenario

Moving the GPU next to the motherboard opens up the main chamber in the chassis for the tubes to pass through and creates a chimney-style airflow, effectively cooling the top and bottom radiator.

Ultimate Air-Cooling Configuration

Normal Mode with HDD Tray Panel Scenario

Paired with the upright GPU kit, the front mesh kit provides the O11D EVO with additional fresh air intake from the front to better cool the GPU and the CPU.

NOTE: Recommend Set-up for some GPUs

Due to GPU cooler design, some GPUs have been found to perform significantly better with GPU IO facing down when using upright GPU kit. Test result as follow :

GPU MODEL	REVERSE MODE	NORMAL MODE
ROG STRIX RTX 30 Series	O	X
ASUS TUF GAMING 30 Series	O	X
ASUS TUF GAMING AMD 68/69 series	O	X
AORUS 2080 Super	O	O
MSI 6800XT	O	O

O ： compatible
X ： not compatible

SPECIAL NOTE FOR NVIDIA 40 SERIES GPU

The thicker and longer Nvidia 40 series non-reference GPU is not friendly with the current upright GPU kit, and it requires a new supplemental kit to help clear more clearance to prevent the upright GPUs from interfering with top/bottom mounted fans/radiators.
The new supplemental kit will be released by the end of March 2023, and it will support the 40 series card according to the following chart.
(The chart below specifies not only which card fits but also which orientation is favorable for cooling.)

40 SERIES GPU MODEL	COMPATIBILITY	NORMAL MODE	REVERSE MODE
ASUS TUF	O	X	O
ROG STRIX	X	X	X
GIGABYTE GAMING OC	O	X	O
GIGABYTE WINDFORCE	O	X	O
AORUS MASTER	X	X	X
MSI SUPRIM	O	X	O
MSI GAMING X	O	X	O
PALIT GAMEROCK	O	O	O
ZOTAC TRINITY	X	X	X
NVIDIA	O	O	O

FAN BRACKET SCENARIO

Extreme AIO-cooling configuration

Reverse Mode at Fan Bracket Scenario

Exhaust fans behind the GPU directly pull the heat out of the chamber, effectively control the GPU temperature.

Reverse Mode with Front Mesh Kit at Fan Bracket Scenario

Replace the glass panel to the front mesh kit brings further fresh air into the chassis to cool the CPU and GPU efficiently.

SUPPORT WIDE VARIETY SIZES GPU

While the bracket supports up to 3 slots thick GPUs, thin GPUs can be mounted at the second slot.

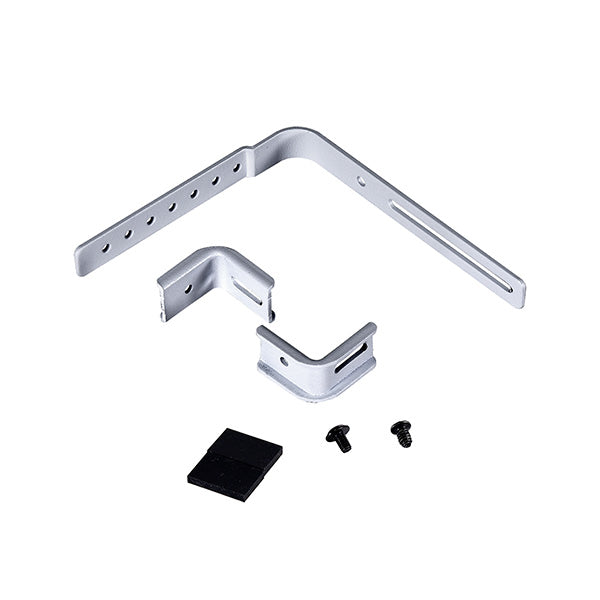

In addition, the L-type support bracket can be adjusted according to the GPU’s width and thickness.

GPU installing at ① slot –

GPU Max Width: 150mm

Water block GPU max Width: 151mm

Compatible with Compatible with 600mm PCIe 4.0 Riser Cable(PW-PCI-4-60X/W)

GPU installing at ② slot –

GPU Max Width : 150mm

Water block GPU max Width : 158mm

NOT compatible with 600mm PCIe 4.0 Riser Cable, please purchase PCI-e 4.0 X16 Riser cable(PW-PCI-420) and connect to the riser cable included in Upright GPU Kit (O11DE-2X/W) to route from the second chamber.

Note:
Plug the display cable to the graphic card before installing the upright GPU on the chassis..

O11D EVO UPRIGHT GPU KIT SIZE LIMITATION FOR GPU SUPPORT

1.

length ≤ 356mm

2.

Width ≤ 150mm
Supports without using NVIDIA adaptor, slimmer power cable required

3.

Thickness > 62

- Does NOT support the L-type bracket, be careful when moving the case
- Top 360 AIO total max thickness: 56mm
- Bottom fan can NOT be installed

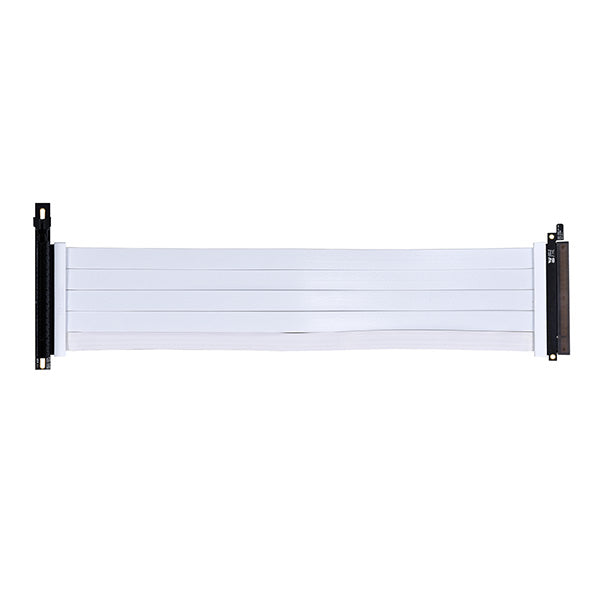

GEN 4.0 PCIE RISER CABLE

The PCIe 4.0 riser cable supports bit rate speeds of 16GT/s. While providing double the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backward compatible with a maximum transfer speed, offering great performances.

Note:
Make sure the GPU PCIe Connector is fully inserted into the PCIe Riser Cable Socket and motherboard PCIe slot when powered off. Circuit short may occur and cause hardware damages if installed not properly.

FAN AND RADIATOR COMPATIBILITY

When installing a three-slot thick GPU in the upright position, the radiator width clearance beside the bracket is limited to 130mm, and 120mm for fans.

Normal Mode
