Lian Li UNI Fan SL140 White with Controller- 2 PACK

UF-SL140-2W

Revolutionary fan with modular design, interlocking fan that can be linked up and operate with a fan and RGB cable. The included UNI HUB contains 4 designated UNI FAN ports. Each port can connects to a cluster of 4 UNI FANs via the cable module, allowing users to control up to 16 UNI FANs in one go. The L-Connect software enables users to control and adjust fan RPM, colors, brightness and lighting effects with extreme ease. moreover, pass control to the motherboard.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
33 in stock, ready to ship
$99.95 USD $69.99 USD Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

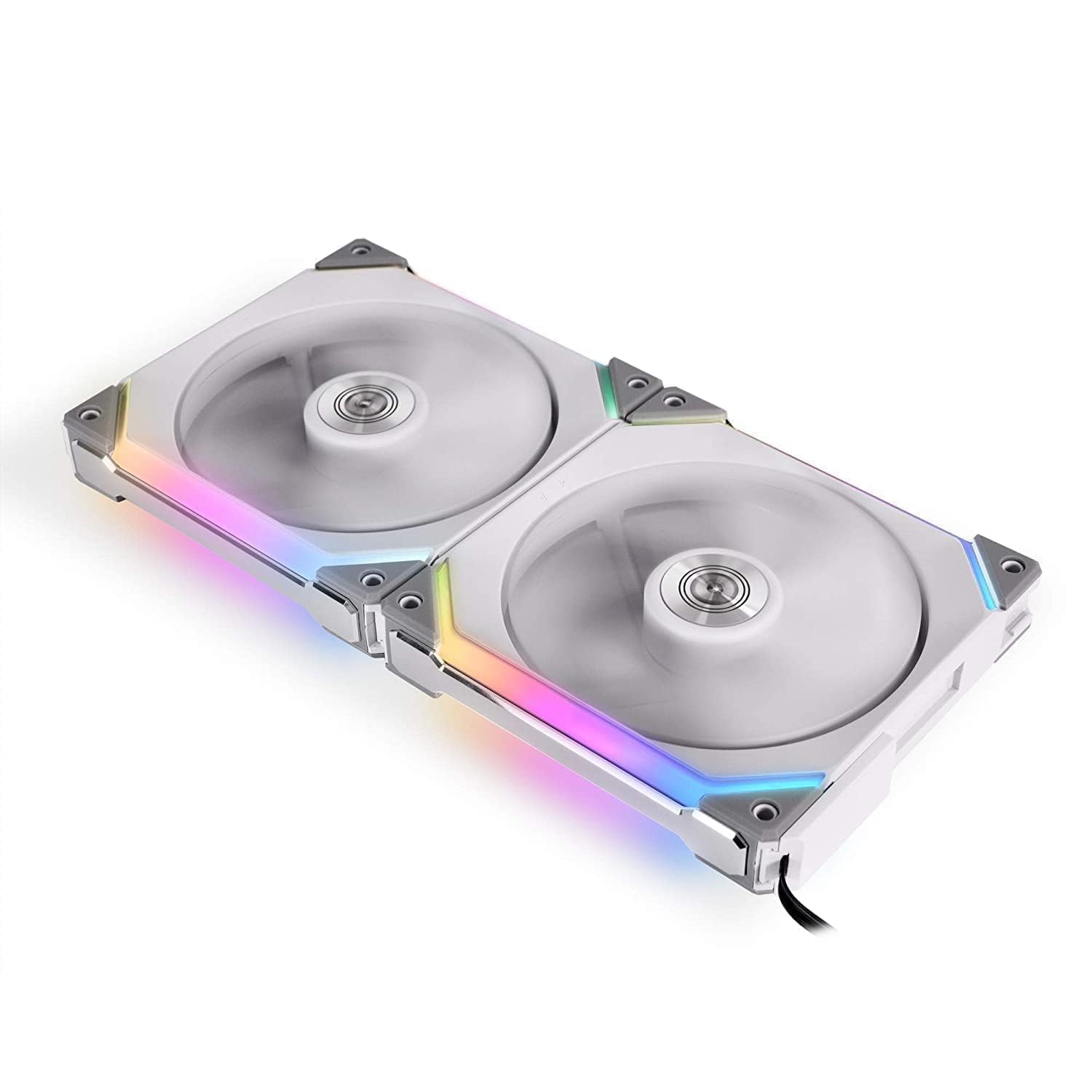

DAISY-CHAIN DESIGN
AN ENJOYABLE EXPERIENCE
L-CONNECT
INTUITIVE CONTROL INTERFACE
MULTIPLES EFFECT/ABILITY TO SYNC
32 LEDS PER FAN
HIGH STATIC PRESSURE
QUIET OPERATION
PREMIUM QUALITY
SANDBLASTED ALUMINUM PARTS
UNPRECEDENTED FLEXIBILITY
A QUICKER AND EASIER INSTALLATION PROCESS

AVAILABLE IN TWO SIZE TWO COLORS


UNPRECEDENTED MODULARITY

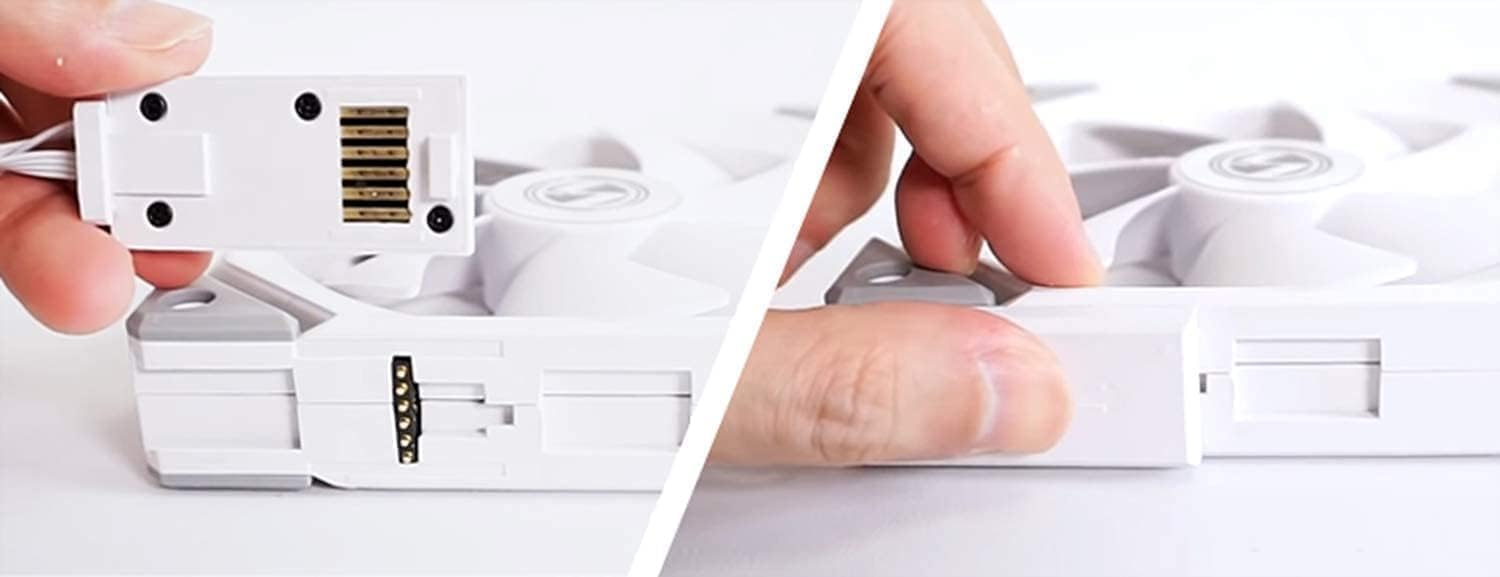

 slide-in/ interlocking mechanism

• PIN-to-PIN contact point for receiving power and signal

• reduced need for mounting screws


DESIGNATED CABLE MODULES FOR UNI FAN

Each UNI FAN features a cable module with a PIN-to-PIN contact point to receive power and signal. Each cable module can support up to 4 UNI FAN, allowing users to choose to use either a single fan or up to 4 fans in one go.

Note!
When using the UNI FAN SL120 in a custom water cooling configuration, make sure that the fittings on the radiators do not interfere with the contact point on the side of the fans. We suggest to use the insulating tape to isolate contact points.

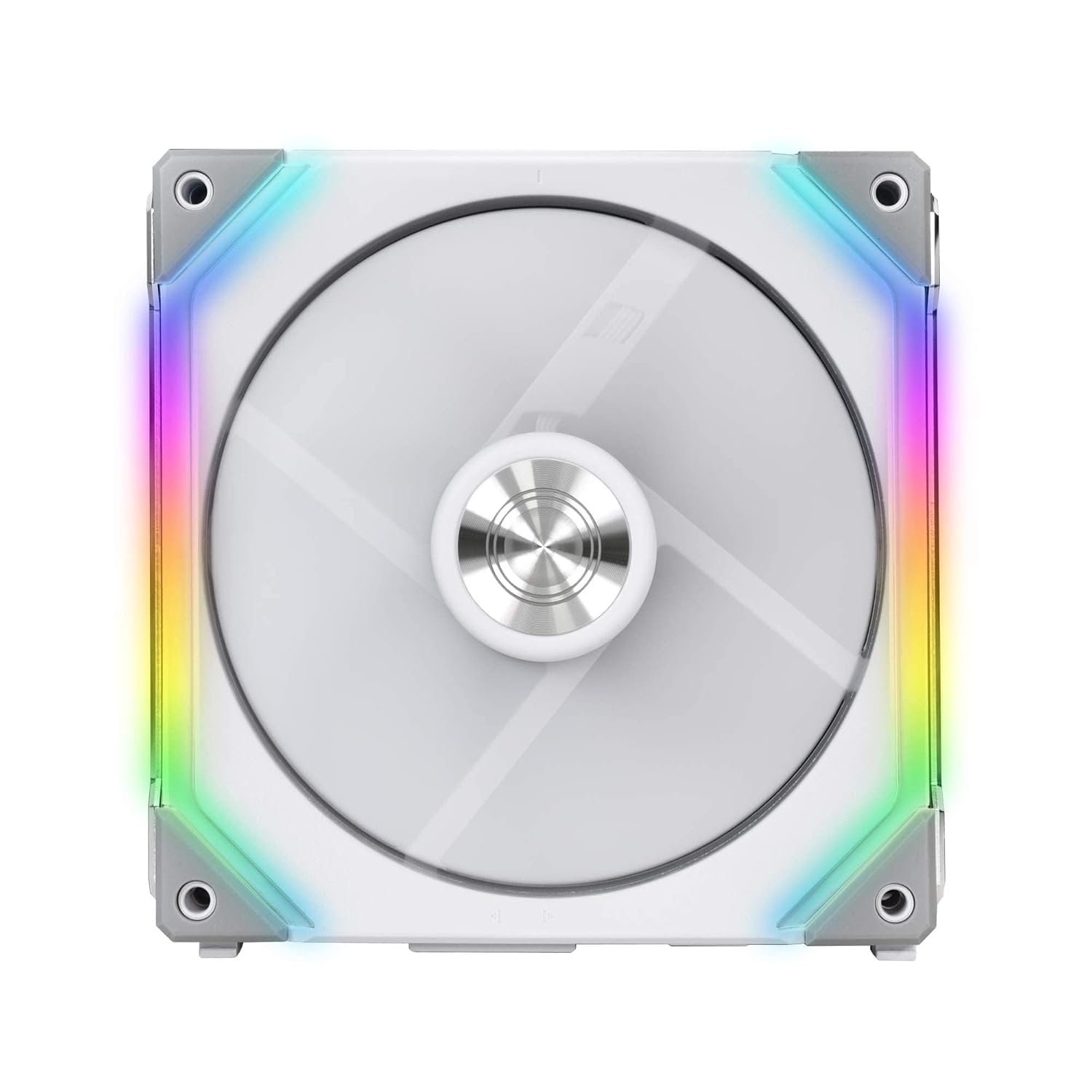

SOPHISTICATED RGB LIGHTING

The 32 addressable RGB LEDs embedded in each fan (16 LEDs on either side of the frame) ensure vibrant lighting effects.

VIBRANT RGB LIGHTING VISIBLE FROM ALL ANGLES

The 16 LEDs on each side shine through a diffuser, ensuring a smooth light is visible from all angles.


L-CONNECT SOFTWARE FOR
A MORE INTUITIVE FAN CONTROL

With the toggle of a switch, changing control between motherboard software and the L-Connect is a breeze.



Run L-Connect as administrator
We recommend updating the latest version and update the firmware of the controller to enhance your overall experience.



When L-Connect can’t control the fan speed and lighting effects, please download the fix.

  1. Unplug the USB and SATA Cable of the UNI HUB
  2. Close and exit MSI dragon center and L-connect software.
  3. Download L-Connect Fix , and run UP_MousePad.bat
  4. To check if it is downloaded correctly, please direct to your download file see details and check if the file version is 1.0.3.0
  5. Plug back the USB and SATA cables and reboot the system.

Note : Please do not download any software regarding L-Connect update apart from LIAN LI website. This might occur UNI HUB(Controller) disfunction.

Note: Please update firmware in L-Connect 3


SL120 Fan Speed : 800 ~ 1900 RPM
SL140 Fan Speed : 500 ~ 1500 RPM

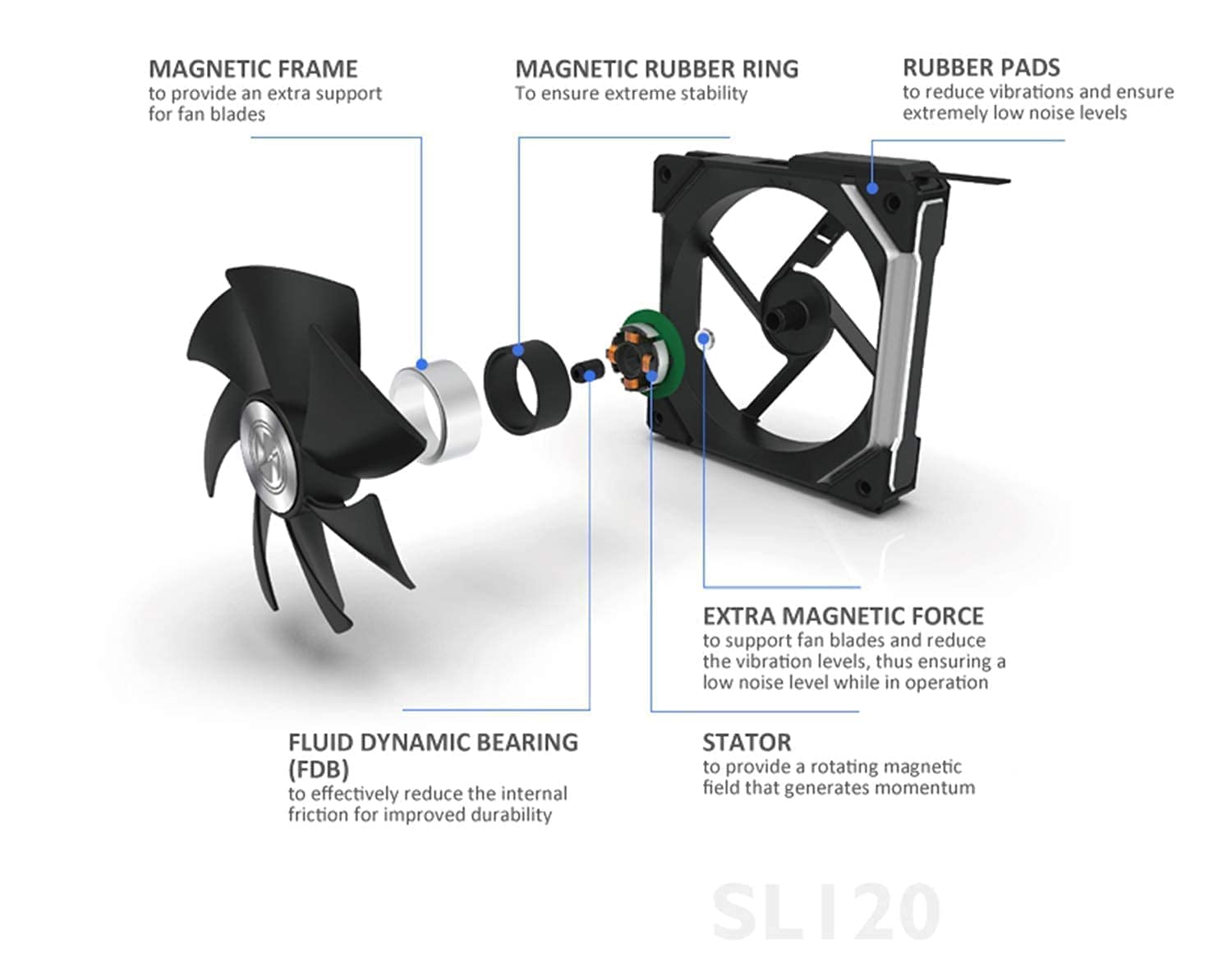

MORE DURABLE, EXTREMELY SILENT

A close look at what makes UNI FAN operate efficiently.

PREMIUM LOOK, EXQUISITE DETAILING

Machine-detailed aluminium frame

Aluminium logo badge
CD texture for an enhanced quality feel

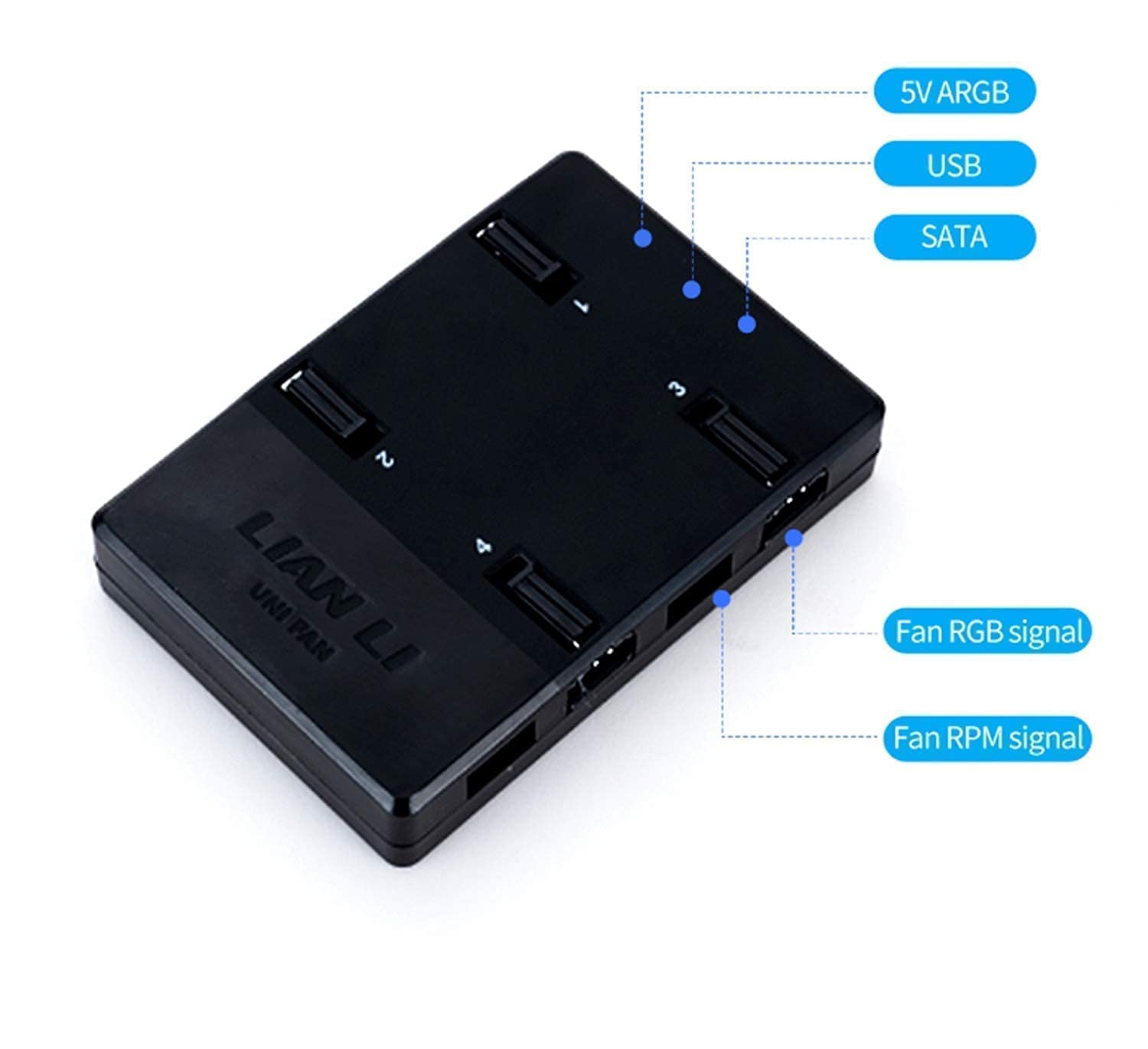

A DESIGNATED UNI FAN CONTROLLER (UNI HUB)
TO EASILY MANAGE 16 FANS IN ONE GO

If the motherboard used in your build doesn’t have the requisite 3-PIN 5V ARGB headers, you can leave this port unplugged.

But then you won’t be able to switch to motherboard synchronisation with the toggle shown on the L-Connect.

OPTIONAL KIT – ARGB DEVICE CABLE KITS

Supports all Lian Li product control by UNI HUB or connect UNI FAN directly to motherboard.

UPDATED SCREW HOLES OF UNI FAN SL SERIES

In order to minimize the tolerance interference with the radiator and case screw hole.

*** The update will implement on the batch manufactured in June 2021.

*** The new oblong hole UNI FAN SL Fans can still be compatible with the prior ones



NOTE

  1. Purchase a three-pack SL120 or a two-pack SL140(including a controller) as the starter kit for fully experienced UNI FANs with L-Connect. To control all 16 UNI FANs (4 fans each cluster) in one go, a controller is needed, no matter control with L-Connect software or sync to the motherboard. Please note that the single-pack version does not contain this controller.
  2. Please enter your motherboard BIOS and set the correspondent fan header at PWM mode. (Update your motherboard BIOS if necessary)
  3. Do not connect more than 10 UNI FANs (device up to 21W) to the controller (UNI HUB) when performing white static color. To connect more devices, please update to L-Connect 2 (reference to update guide) and use 2 or more controllers.
  4. Listed radiators are known not compatible with UNI FAN.
    1. ARCTIC Liquid Freezer II Series
    2. CORSAIR iCUE H115i RGB PRO XT Liquid CPU Cooler
    3. CORSAIR Hydro Series™ H110i GT 280mm Extreme Performance Liquid CPU Cooler
    4. Radiators that doesn’t follow bellow rule:
      Rule 1// The tubes of the radiator must avoid the tenon of the UNI FAN and be at the safe area, which is in grey in the image.

Rule 2// The screw holes between the two fans must be 15mm width on the radiator for either 120mm or 140mm UNI FAN.


Features

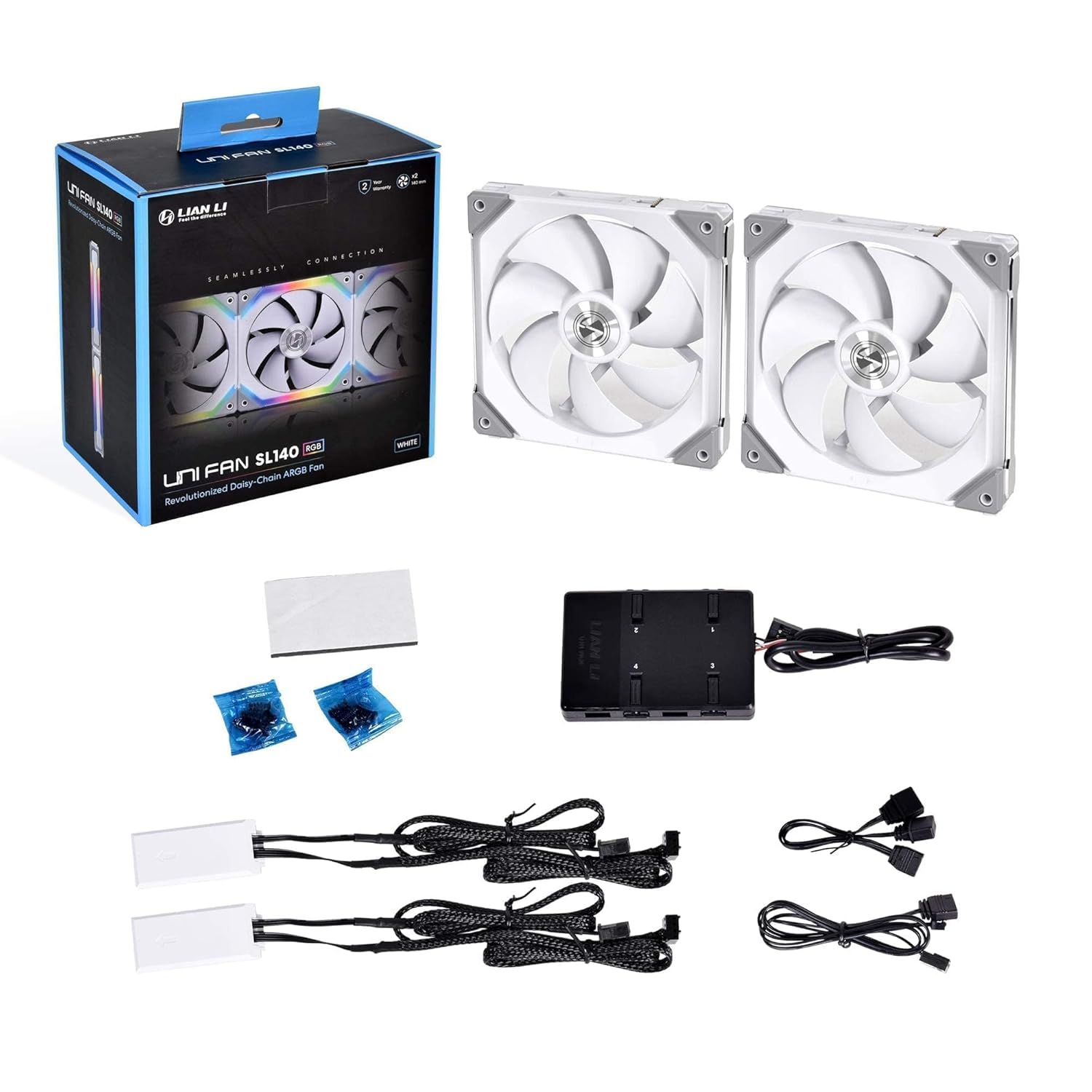

  • 140mm UNI FAN 2 Pack with controller

  • Controller Supports up to 16 UNI FAN

  • Unprecedented flexibility / A quicker and easier installation process

  • Daisy-Chain Design : Slide-in / PIN-to-PIN interlocking mechanism

  • L-CONNECT Software (Intuitive Control Interface)

Specifications

SPECIFICATIONS

Model NAME

UNI FAN SL 120UNI FAN SL 140

Model NO.

UF-SL120-1B BLACK / UF-SL120-3B BLACK / UF-SL120-1W WHITE / UF-SL120-3W WHITEUF-SL140-1B BLACK / UF-SL140-1W WHITE

Fan Dimension

120 X 120 X 25 ( mm )140 X 140 X25 ( mm )

Fan Speed

800~1900RPM500~1500RPM

Max. Air Pressure

2.54mmH2O1.67mmH2O

Max. Air Flow

58.54CFM70.5 CFM

Acoustical Noise (Min-Max.)

31dB(A) Max30dB(A) Max

Locked Current

>= 50mA>= 10mA

Bearing Type

Fluid Dynamic Bearing(FDB)Fluid Dynamic Bearing(FDB)

Connector Type (single pack)

1 x 4 Pin (PWM) +  1 x 3 Pin (ARGB)1 x 4 Pin (PWM) +  3 Pin (ARGB)

Connector Type (3 pack / 2 PACK)

1 x 4 Pin (PWM) + 3 x SM 3 Pin (ARGB)1 x 4 Pin (PWM) + 2 x SM 3 Pin (ARGB)

Start-up Voltage

DC 6.0VDC 6.0V

Input Power

5.16Watt3.6W

Rated Voltage

DC 12V (FAN) / 5V (LED)DC 12V (FAN) / 5V (LED)

Rated Current

0.18A (FAN) / 0.6A (LED)0.1A (FAN) / 0.34A (LED)

Warranty

2 year2 year
