Logisys 12VDC 2 Latch 2 momentary Relay Switch

#2 Best Seller
in Misc Accy Clearance
#3 Best Seller
in Gadgets
Logisys

RM09-D

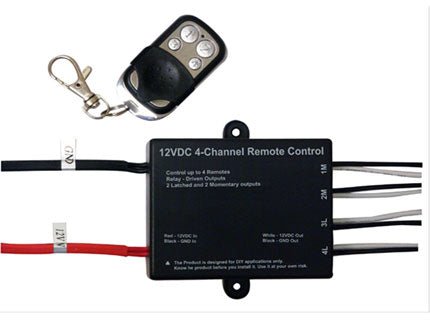

RM09 is a 12VDC remote control relay switch with four (4) power outputs, two (2) of them are latch mode and the other two (2) are momentary mode. RM09 is suitable on/off remote relay switch can be used in conjunction with any 12VDC applications such as lighting, landscaping, automobile or PC modding etc. RM09 is water proof, weather resistant and shock resistant.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
5 in stock
$29.99 $15.00 Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

RM09 is a 12VDC remote control relay switch with four (4) power outputs, two (2) of them are latch mode and the other two (2) are momentary mode. RM09 is suitable on/off remote relay switch can be used in conjunction with any 12VDC applications such as lighting, landscaping, automobile or PC modding etc. RM09 is water proof, weather resistant and shock resistant. It is good for outdoor use.

Applications:
Security Systems, Electronic Anchor, Boat Applications, Remote Gates, Light Controls, Window Curtain Automation, 12VDC Motors, Remote Blinds, Garage Doors, Irrigation Pumps, Sprinklers, PC Modding, Traffic Signals etc.
Features


  • Functionality: wirelessly controls output of 12VDC on four individual channels (two latch mode, two momentary mode)

  • Remote key fob: high quality 4 button remote control with sliding cover and metal hook for keychain.

  • Key fob battery: 27A 12V DC battery included (battery can be replaced by unscrewing key fob cover)

  • Relay box dimension: 88 x 66 x 31mm in black with two additional mounting holes. Box can be mounted using two M3 size screws.

  • Power Input: 12VDC

  • Power Output: 12VDC, 6A Max. Per channel
Specifications

Remote key fob functionality: There are 4 keys on key fob: 1, 2, 3, and 4



  • Key 1: controls channel 1 on/off; latched output / default off. Click once to turn on and click once more to turn off and so on.

  • Key 2: controls channel 2 on/off; latched output / default off. Click once to turn on and click once more to turn off and so on.

  • Key 3: controls channel 3 on/off; momentary output / default off. Press and hold to turn on, release to turn off

  • Key 4: controls channel 4 on/off; momentary output / default off. Press and hold to turn on, release to turn off
