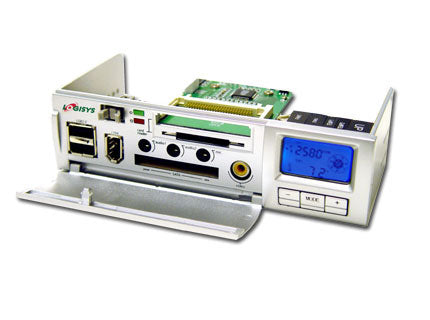

Logisys 5.25" Multi Purpose Deluxe Panel - Silver

The 5.25 ? Multi Purpose Deluxe Panel is an extreme ?3-module ? front panel comes with multi-slot card reader, thermal LCD indicator and multi I/O (USB, Firewire, SATA and A/V input). As a multi-slot card reader, it is compatible with most popular memory cards including Compact Flash card type I/II, MicroDrive, Memory Stick, Memory Stick Pro, Memory Stick Duo, Memory Stick Duo Pro, SD Card, MMC card and SM card. The thermal LCD indicator allows users to set temperature, alarm and adjust the speed of the fans (2 set fans). For multi I/O panel functions, it provides a quick, reliable and convenient PC operating environment. It provides most convenient front cable connections including USB/1394/Audio/Video/SATA connectors.
Not like most of the I/O panels, the panel connects most of the outlets to the motherboard internally instead of routing around to the back outlets, which is technically incorrect and makes messy wiring.

• Stylish push open front cover


• Hi-Speed USB2.0 Backward compatible with USB 1.1


• 4 Memory slots addressing 9 memory card formats


• All 4 memory slots are active allowing cross format transfer


• LED display indicating power on and drive access


• LCD shows 2 fan rpm and monitors 2 temperature zones


• Over-temperature alarm-Fan failure alarm


• Compatible with Mo/Bo fan signal detection


• 13 I/O ports


• USB 2.0x2, IEEE1394 x 1, audio - speaker x 1, microphone x 1, earphone x 1, memory card reader x 4, A/V x 1, SATA data x 1, SATA power x 1
