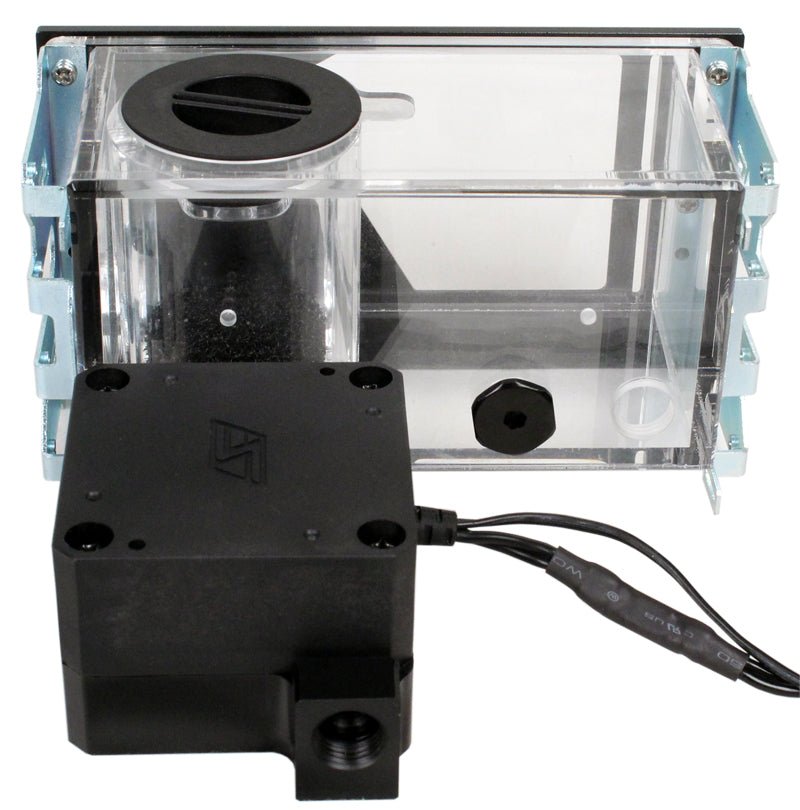

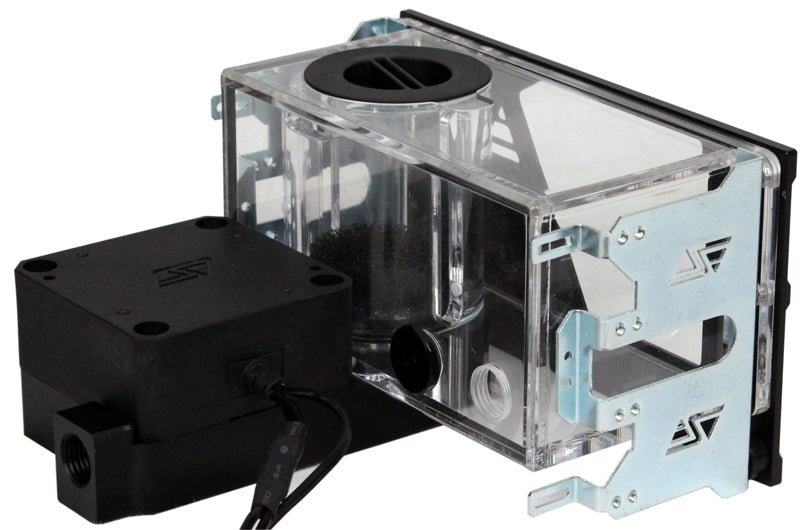

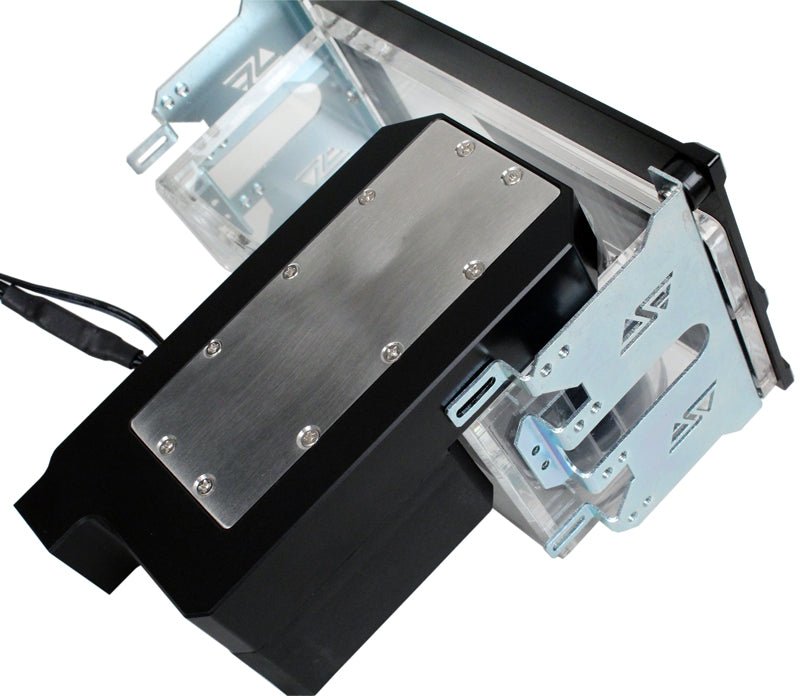

Maelstrom V2 Dual Bay Reservoir w/ MCPX50 Pump

The Maelstrom V2 is a dual 5 ¼? bay reservoir for coolant storage and recirculation, featuring a built-in MCP50X pump. With its large coolant window illuminated by a UV LED, and machined billet aluminum face plate, the Maelstrom V2 makes a powerful statement of hi-tech elegance matched only by the spectacular technical specifications of its pump. Swiftech intends for the new Maelstrom V2 to become the foundation of any enthusiast DIY build. The product is covered by a 3-year limited warranty.

• The recommended coolant is Swiftech's HydrX or Hydrx PM. Swiftech's product warranty does not cover the use of 3rd-party coolants.
• Excessive use of coloring additives and/or UV dies containing particulate fillers may damage your pump bearing and may void your pump warranty.
• The use of any additive or coolant containing alcohol is prohibited and dangerous: it will result in permanent damage to your acetal reservoir and may result in catastrophic leaks.

Functional Features	Benefits
Clear acrylic construction	Visible coolant level
Flow path control	Anti-vortex pump intake partition

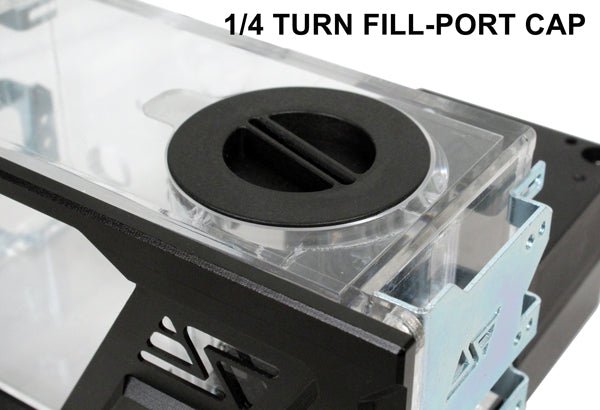

Push and twist fill-port cap	Tool-less,  ease of use
Dual flow return ports	Loop parallelization option
Standard CD/DVD mount points	Universal compatibility
Performance Features	Benefits
Buil-in MCP50X pump	Extreme pressure (4.8mH2O) pump for the most complex loops
PWM control	Speed adjustable from 1200 to 4500 rpm for flow and noise control
Cosmetic Features	Benefits

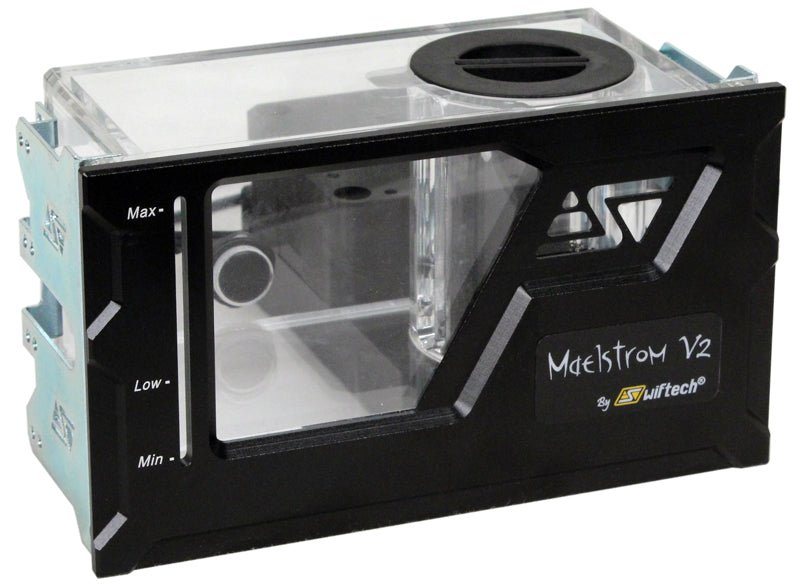

CNC machined and black anodized billet aluminum face plate with silk screened level	Hi-tech custom look

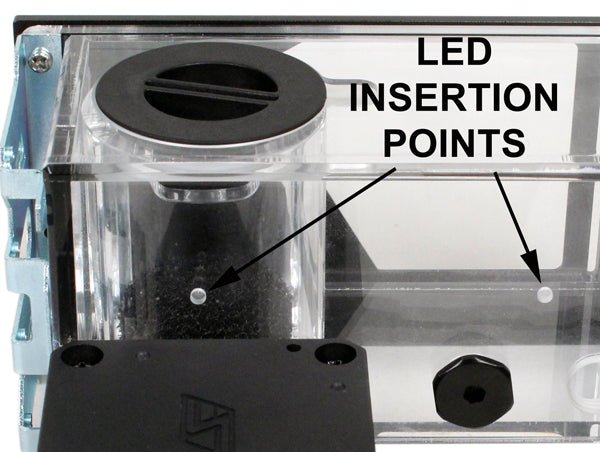

UV LED included	Glowing coolant with UV reactive additives

Maelstrom V2 Dual bay Reservoir
Reservoir materials:	Face plate: Black anodized billet aluminum Reservoir: Clear Acetal Brackets: Nickel plated steel Fill cap: plastic Fitting: Brass
Assembly Dimensions:
Weight:	16 Oz (453g)
Coolant Capacity:	354 cm3 (12 fl oz)
LED	3mm - UV 3-Pin connector
Pump Specifications	Technical Specifications Motor type Electronically commutated, brushless DC motor Nominal voltage 12 V DC Operating voltage range 7 to 13.4 V DC Max. power (@12 V) 25.8 W Max. current (@12 V) 2.15 A Redundant Fail Safe Software current limiting fail-safe AND hardware shutoff built-into the pump power wires. The hardware fail safe is only triggered in case of a firmware malfunction. Max. head (@12 V) 15.8 ftH2O (4.8 mH2O) Max. discharge (@12 V) 3.8 gpm (14.3 Lpm) Max. pressure 22 PSI (1.5 BAR) Temperature range Up to 140 °F (60 °C) Electrical power  SATA connector PWM + RPM Signals  4-pin connector RoHS Compliant Port thread standard G1/4 MTBF 50,000 Hours Weight 7.6 oz
