Copper/Aluminum

Masscool 7WD04L3 120mm Hydro Bearing CPU Cooler for Intel 775 & AMD 939/AM2

7WD04L3

The ultimate cooling system for your CPU! This Masscool 7WD04L3 feature a copper base aluminum fin heat sink with 5 copper heatpipes and an extremely silent 120 mm Hydro Bearing fan that lights up with a blue LED!

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$24.95 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The ultimate cooling system for your CPU!

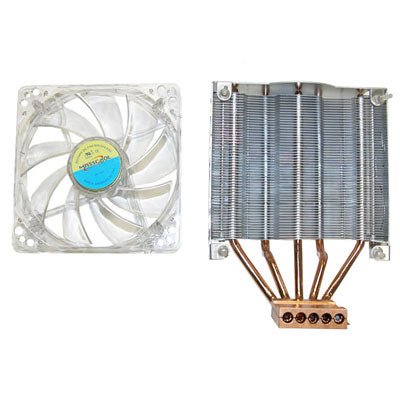

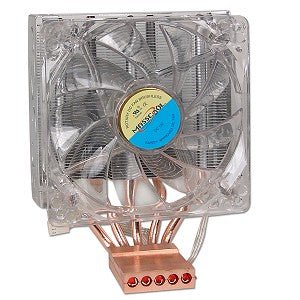

This Masscool 7WD04L3 feature a copper base aluminum fin heat sink with 5 copper heatpipes and an extremely silent 120 mm Hydro Bearing fan that lights up with a blue LED!

This Masscool 7WD04L3 is compatible with Intel Socket 775 Extreme Edition, Prescott, Celeron D, Core 2 Duo, Core 2 Quad, Core 2 Extreme, Dual-Core and Pentium D processors. Plus, it supports AMD Socket 754, 939, 940, AM2, AM2+ and F(1207) processors!

Higher temperatures will shorten the CPU's life. Keep it cool with this Masscool 7WD04L3 Heat Sink and Fan!

Features


  • For Socket 754/939/940/AM2/AM2+/775 processors

  • Copper Base + AL Fin + 5 Heatpipe

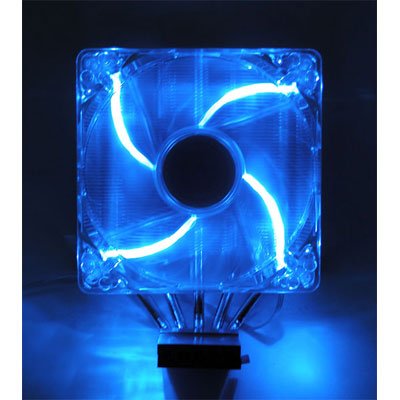

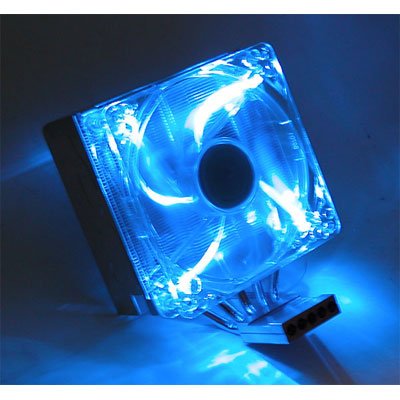

  • 120 mm clear fan with Blue LED

  • Bearing: Hydro Bearing

  • Rated Speed: 1500± 10% RPM

  • Rated Power: 1.92W

  • Noise Level: 25.5 dBA

  • Air Flow: 57.91 CFM

  • Current: 0.16A ±10%

  • Life Hours: 50,000

  • Thermal resistance: 0.215°C/W

  • 3-pin power connector (10-inch length, approximate)

  • RoHS compliant

Specifications

Supported Intel Socket 775 Processors:
Extreme Edition, Prescott, Celeron D, Core 2 Duo, Core 2 Quad, Core 2 Extreme, Dual-Core and Pentium D
Supported CPU TDP: 130w


Supported AMD Socket 754, 939, 940, AM2, AM2+, F(1207) Processors:
Athlon 64, Athlon FX, Athlon X2 Dual Core, Business Class-AMD all series, Phenom all series, Sempron and Opteron
Supported CPU TDP: 125w


Overall Dimensions:
156 x 123 103 mm/6.14 x 4.84 x 4.05-inches (H x W x D, approximate)

Fan Dimensions:
120 x 120 x 25 mm/4.72 x 4.72 x 0.98-inches (H x W x D, approximate)

Regulatory Approvals:
FCC
CE
cULus


Package Includes:



  • Masscool Socket 754/939/940/AM2/AM2+/775 Copper Base/5 Heatpipe Aluminum Fin Heat Sink & 120 mm Blue LED Fan

  • Installation Guide

  • Two (2) H Plate/Back Plate

  • One (1) H Cushion

  • One (1) G Insulator

  • Four (4) Copper Nut

  • Eight (8) Screws

  • Four (4) Washers

  • Four (4) Spare Washers

  • Four (4) Rubber Buckles



Notes:
Model: 7WD04L3
UPC: 9 55989 37041 8

Product Requirements:
Supported CPU
Available 3-pin fan power connector
