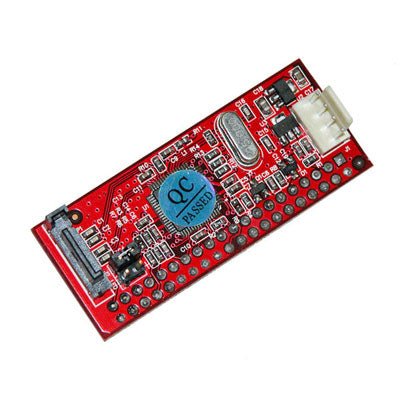

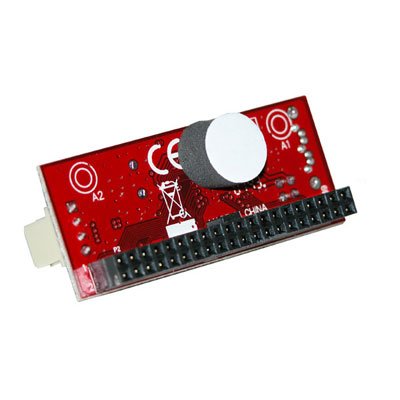

Masscool XWT-GHQ04 IDE to SATA Mini Bridge

Product Details:

Masscool XWT-GHQ04 IDE to SATA Mini Bridge

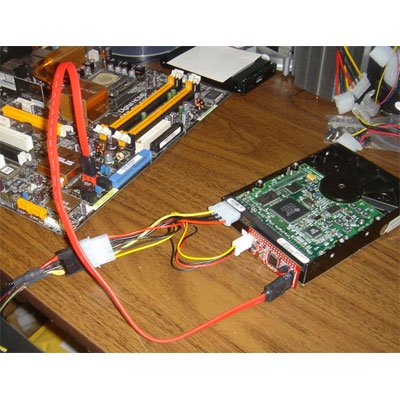

Just simply attach this converter to the back of any IDE storage device or High Capacity IDE HDD. Instantly the IDE/ATAPI drive can be used as a standard Serial ATA device in all kinds of applications that have been tested and certified. This Bridge board can be support HDD larger than 137GB.

	Just simply attach this converter to the back of any IDE storage device or High Capacity IDE HDD
	It accepts Parallel ATA (IDE) commands through the 40 pin IDE connector from the host, decodes the commands and converts them to a Serial ATA commands to the device.

Features:

• IDE Drive to SATA Bus Bridge board


• Convert standard ATA 5 or ATA6 IDE drive mechanisms into SATA mechanisms


• Drive access LED connector

Specifications:

• Chipset: sil3811


• IDE 40pin drive connector


• Standard 4-pin power connector
