Matrix Orbital BGK19264-BK-USB-YG 192x64 LCD-Black Bay w/ 7-Keys & 3 Status LED - Yellow

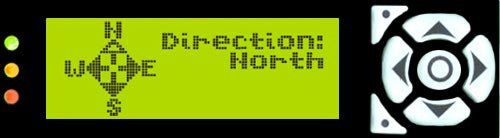

This part number includes all that you need for a PC Bay Insert. The display is our GLK19264-7T-1U-USB-YG which is a 192 by 64 pixel USB graphic LCD with a 7 key tactile keypad and 3 status indicating LEDs. This unit fits into a 1U opening. It also comes with the B19264-BK (Black) mounting bracket and 3ft A to B Mini USB.

Features:

• Includes Black 5.25 inch Mounting Bay and hardware:


• Attractive and durable coated rust-resistant steel mounting bracket with mounting screws and washers.


• Includes 3' Standard mini A to B USB communication cable.

Optional: Internal Mini A to USB 5-Row. This cable can be used with any display that features a Mini USB header and connect to a 4/5 pin internal motherboard USB header

*Matrix Orbital provides all manuals on line at our Tech Support site at http://www.matrixorbital.ca/manuals/ and questions may be posted on our forum site at http://www.lcdforums.com/forums

Specifications:

Display Appearance
Pixels	Module Size	Character Size
Rows Columns 64 x 192	Length Width Thickness 144.00 mm x 38.00 mm x 33.00 mm	Length Width   x
Display Size	Background Color	Text Color
Length Width 82.00 mm x 28.40 mm	Yellow/ Green	Black
Features
Keypad	One Wire	GPO
7	N/A	6
Interface
USB	Buffer	Other
19200 56700 115200	128
Environmental Conditions
Standard Temp.	Extended Temp (-E)	Max Humidity
Min Max 0.00°c to 50.00°c	Min Max -20.00°c to 70.00°c	90.00 %
Power Requirements
Supply Current	Backlight Current	Inrush Current
90 mA	140 mA	N/A
