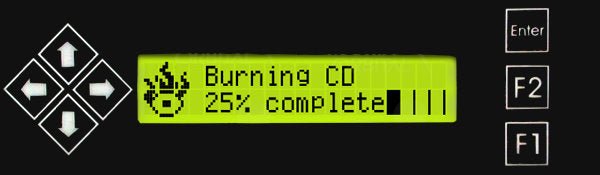

Matrix Orbital BLK202A-BK-USB 20x2 LCD - Black Bay w/ 7-Keys - Yellow/Green

With the BLK202A-BK-USB you will find all that you need for a beautiful character LCD Display in a PC Bay Insert. This part number includes your LCD display, bracket and cables.

Features:

• Display: LK202-25-USB


• 5Vdc


• 20 Characters by 2 lines


• USB interface


• Mounting Bracket: B202A-S


• Cables:
  External Mini USB
  (Internal Mini USB substitution available upon request)

Specifications:

Display Appearance Character X Lines Module Size Character Size 20 x 2   Length Width Thickness 116.00 mm x 37.00 mm x 25.73 mm   Length Width 5.55 mm x 3.20 mm   Display Size Background Color Text Color Length Width 79.00 mm x 17.00 mm   Yellow/ Green Black Features Keypad One Wire GPO 25 1 6 Interface USB Buffer Other 1200 2400 9600 19200 33600 56700 115200 128   Environmental Conditions Standard Temp. Extended Temp (-E) Max Humidity Min Max 0.00 °c to 50.00 °c   Min Max -20.00 °c to 70.00 °c   90.00 % Power Requirements Supply Current Backlight Current Inrush Current 50 mA 185 mA N/A
