Matrix Orbital BLK204A-BK-USB-GW 20x4 LCD - Black Bay w/ 15-Keys - Gray/Blue

Product Details:

With the BLK204A-BK-USB-GW you will find all that you need for a beautiful character LCD Display in a PC Bay Insert. This part number includes your LCD display, bracket and cables.

Features:

Display:

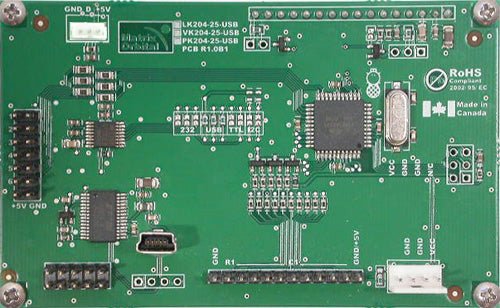

      LK204-25-USB
            � 5Vdc
            � 20 Characters by 4 lines
            � USB interface
Mounting Bracket:
      B204A-BK
Cables:
      External Mini USB
            (Internal Mini USB cable available via options below.)

Specifications:

Display Appearance Character X Lines Module Size Character Size 20   x   4     Length Width Thickness 98.00 mm  x  60.00 mm  x  30.63 mm     Length   Width  5.55 mm  x   3.20 mm     Display Size Background Color Text Color Length   Width  76.30 mm  x   25.00 mm     Gray/White Light Blue Features Keypad One Wire GPO 25 1 6 Interface USB Buffer Other 1200 2400 9600 19200 33600 56700 115200   128   Environmental Conditions Standard Temp. Extended Temp (-E) Max Humidity Min Max 0.00°c  to  50.00°c     Min Max -20.00°c  to  70.00°c     90.00 % Power Requirements Supply Current Backlight Current Inrush Current 50 mA 185 mA N/A
